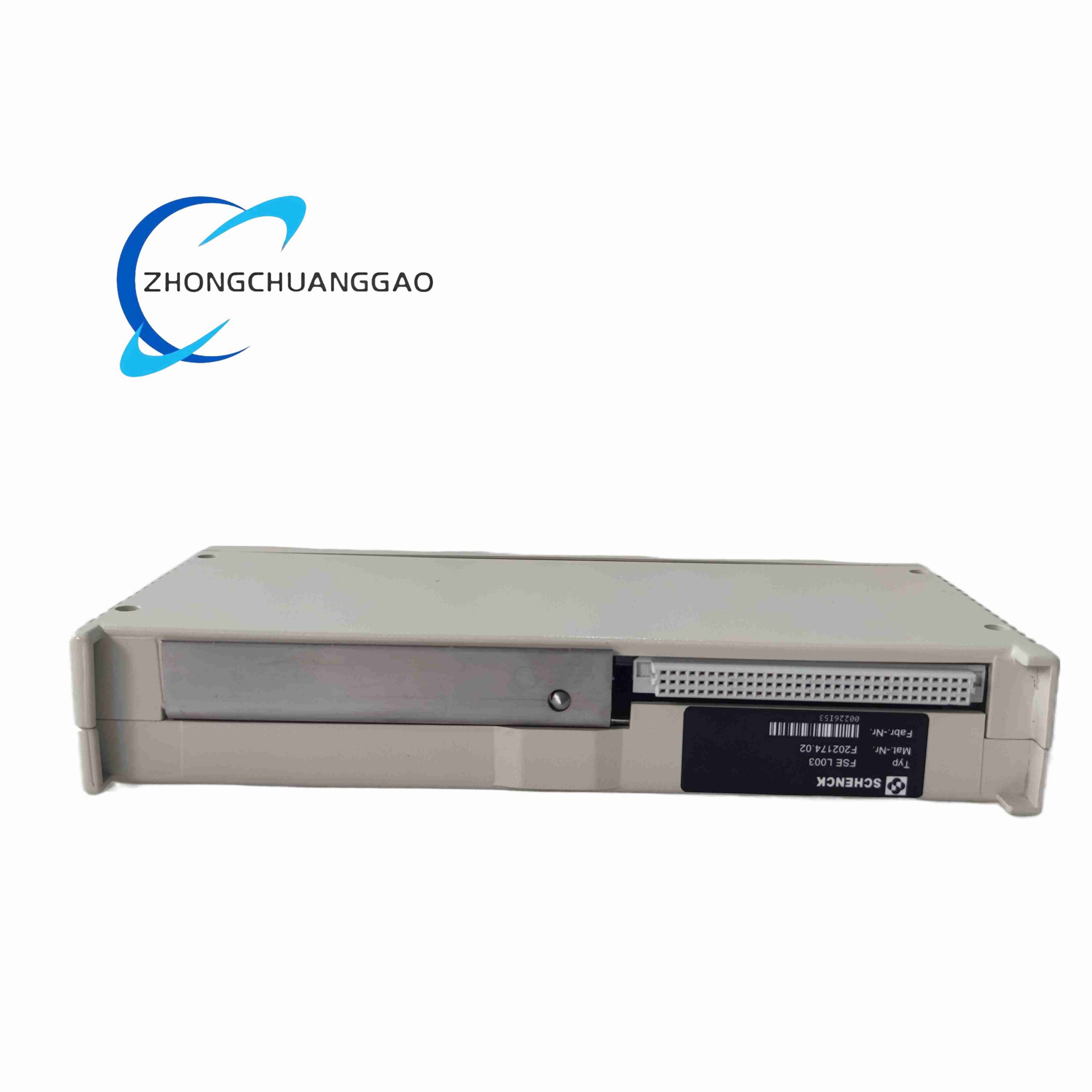

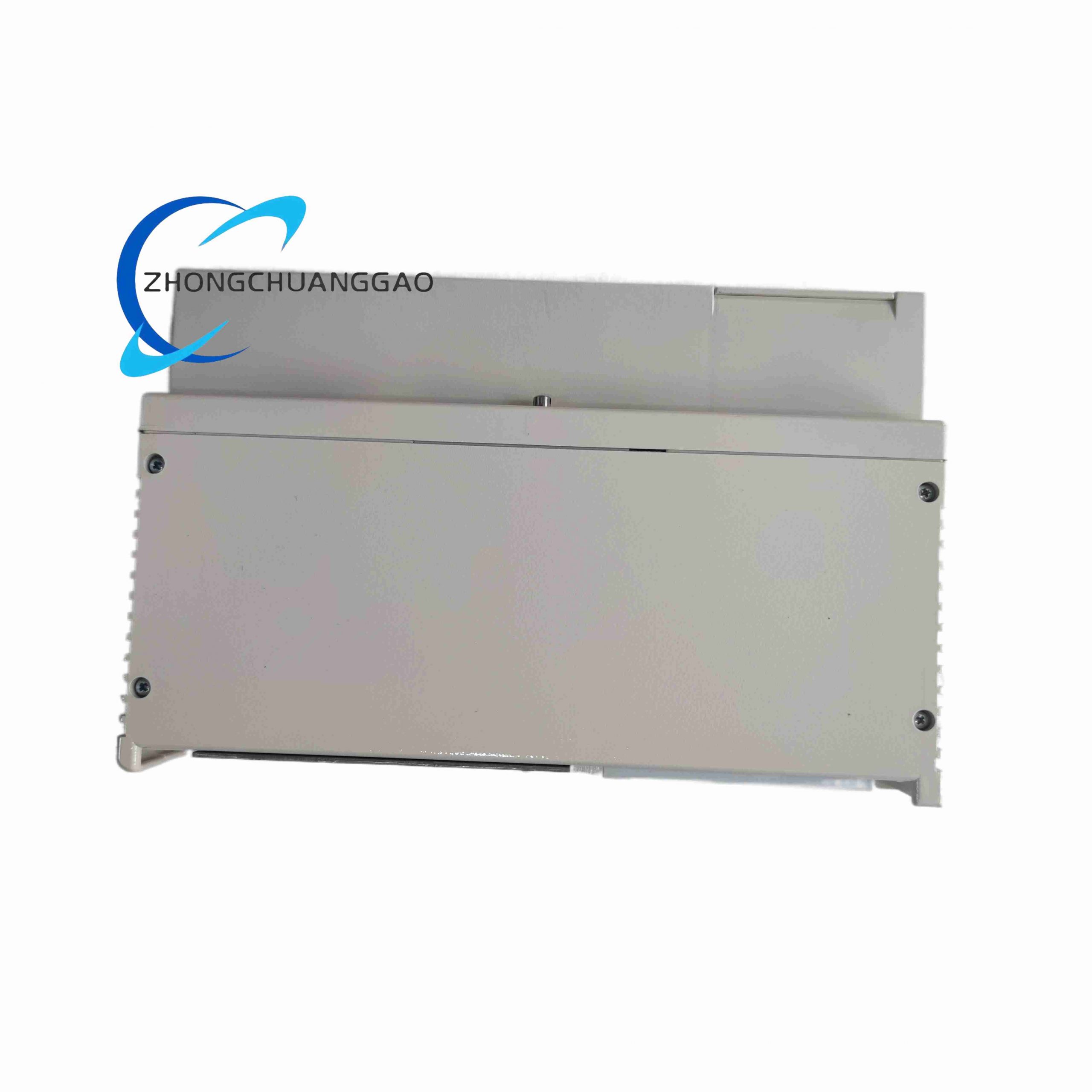

Schenck FSE-L003

  • Product Name: Force and Torque Sensor (High-Performance Transducer)
  • Product Introduction: The Schenck FSE-L003 is a precision industrial sensor designed to convert mechanical force or torque into proportional electrical signals. It is utilized for both static and dynamic measurement scenarios requiring high reliability and linearity in harsh environments.
Category:
Description
  • Technical Specifications:
    • Measurement Range: Force 0–1000 N; Torque 0–1000 Nm
    • Accuracy Class: ±0.5% F.S. (Full Scale)
    • Output Signals: 4–20 mA, 0–5 V, RS-232
    • Operating Temperature: -20 °C to +70 °C
    • Protection Rating: IP65
    • Weight: Approx. 0.5 kg
    • Dimensions: Φ30 × 96 mm
  • Functional Features:
    • High Precision & Stability: Maintains consistent readings with automatic zero-point tracking in vibrating environments.
    • Fast Response: Suitable for dynamic force measurement and rapid load changes.
    • Environmental Resistance: Resists electromagnetic interference, shock, and vibration.
  • Material Composition: Stainless steel housing for corrosion resistance and structural durability.
  • Structure & Installation: Compact cylindrical design supporting flange mounting​ or bearing mounting​ for direct integration into shafts or test rigs.
  • Application Scenarios: Engine performance testing, material fatigue testing, automotive component validation, aerospace structural analysis, and industrial process weighing.
  • Working Principle: Utilizes strain gauge technology or piezoelectric elements to detect deformation under load, converting mechanical stress into a calibrated electrical output.
  • Usage Notes: Requires proper alignment to avoid side-load errors; calibration is recommended periodically to maintain ±0.5% accuracy.
