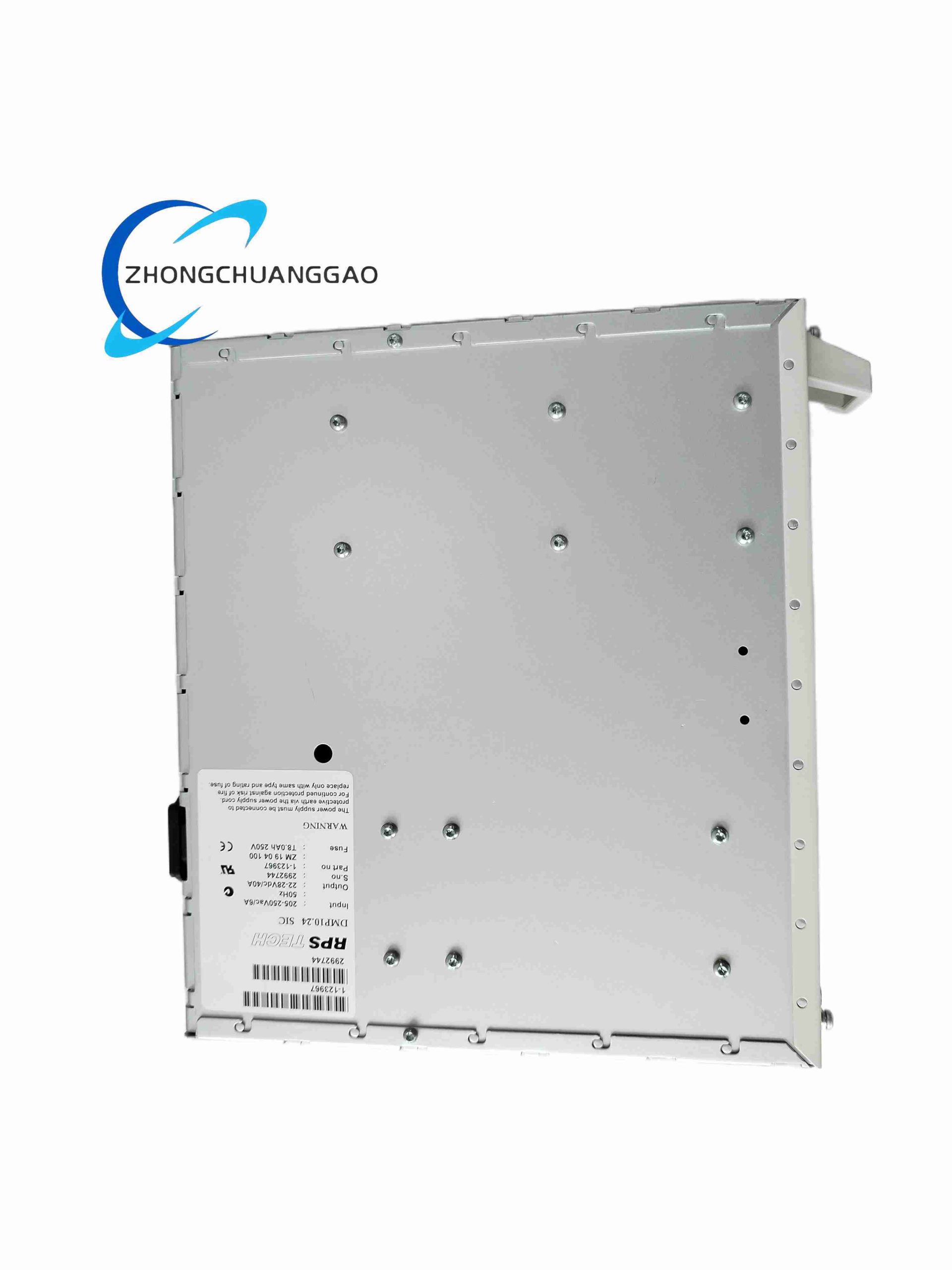

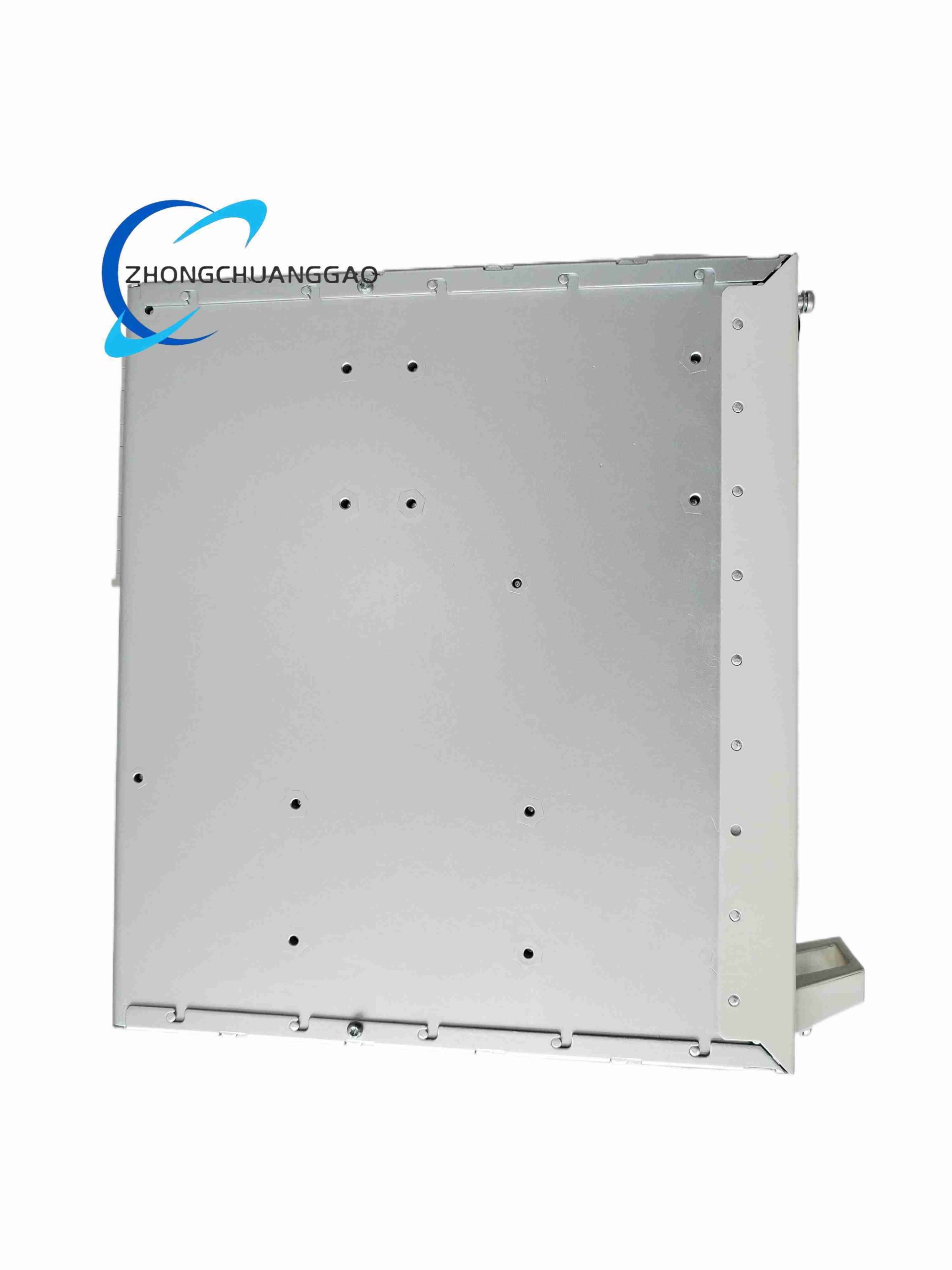

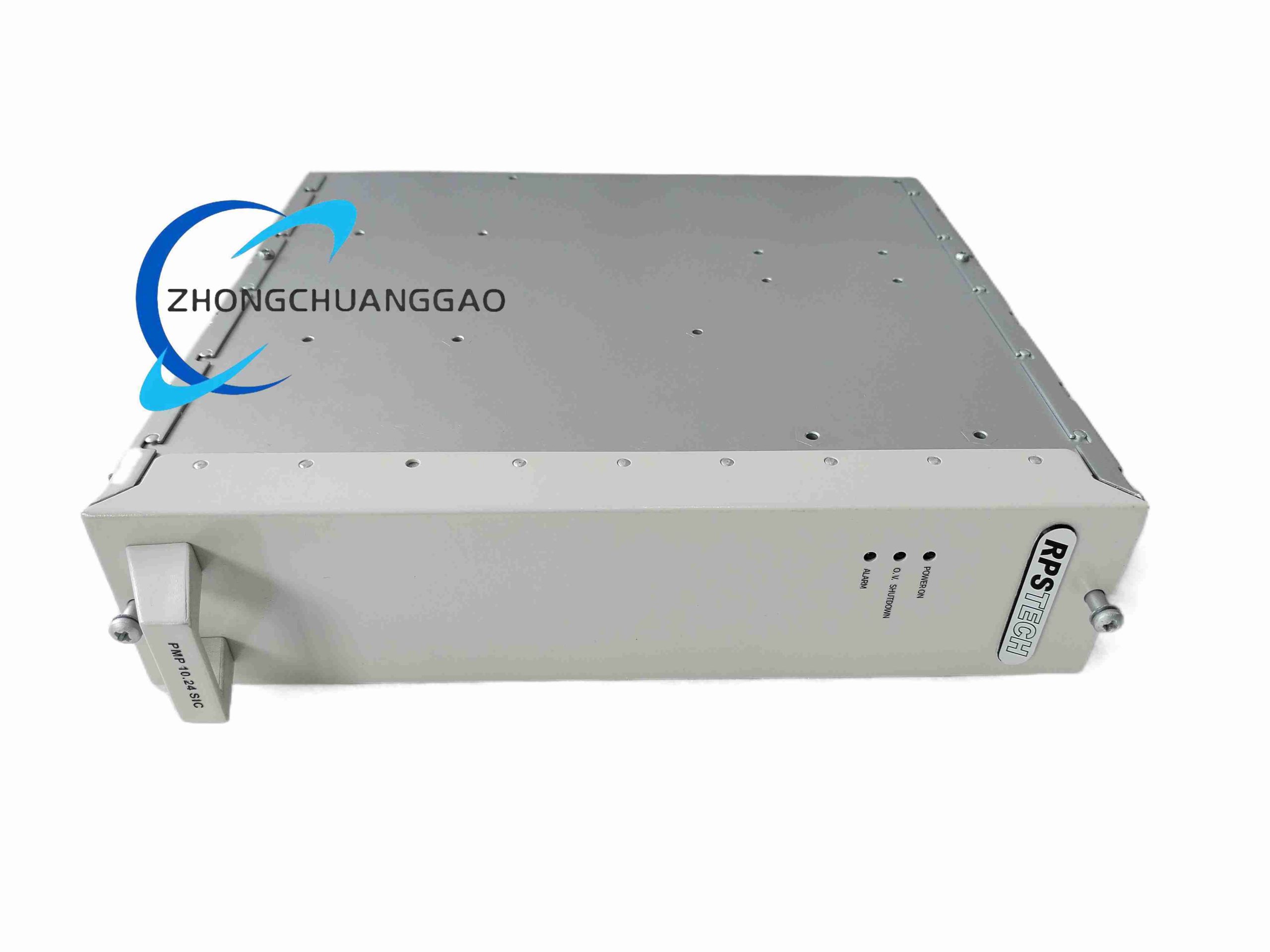

RPSTECH DMP10.24

  • Product Name:​ RPSTECH DMP10.24 Digital Pulse Input / Counting Module, 10 channels, 24 V DC
  • Product Introduction:​ Industrial-grade digital pulse acquisition and high-speed counter module designed for flow meters, encoders, or proximity sensors. Typically used as a slave I/O node on RS-485 (Modbus RTU) or as part of a proprietary RPSTECH rack system.
Category:
Description
  • Technical Specifications:
    • Channels: 10 digital inputs​ configurable as dry contact or 24 V DC (PNP)
    • Counter type: 32-bit up/down counters per channel (some channels may support high-speed, others low-speed)
    • Max. counting frequency: typically 10 kHz (high-speed channels) / 500 Hz (standard); verify exact model suffix
    • Input voltage: 24 V DC (range 18–30 V DC), logic high ≥ 15 V
    • Isolation: opto-coupler isolation between field inputs and logic side (typically 2.5 kV RMS)
    • Communication (if remote node): RS-485 Modbus RTU, baud 1200–115200 bps
    • Power consumption: typ. 2–4 W @ 24 V DC
    • LEDs: Power LED + Rx/Tx LED + per-channel status (some models)
    • Mounting: DIN rail, width ~35 mm (2 TE)
    • Operating temp.: –10 … +55 °C
  • Features:​ Preset / latch value readable via register, debounce filter (software settable), overflow interrupt flag, totalizer function for flow accumulation.
  • Application:​ Water / gas flow totalization, part-counting on production lines, rotary encoder position tracking in simple machines.
  • Installation & Notes:​ Ensure common 0 V reference between sensor supply and module DI common. For high-speed counting (> 5 kHz), use twisted-pair shielded cable with shield grounded at one end. Set Modbus slave address via DIP switches before powering up.
