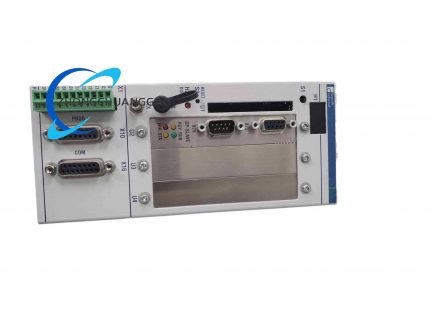

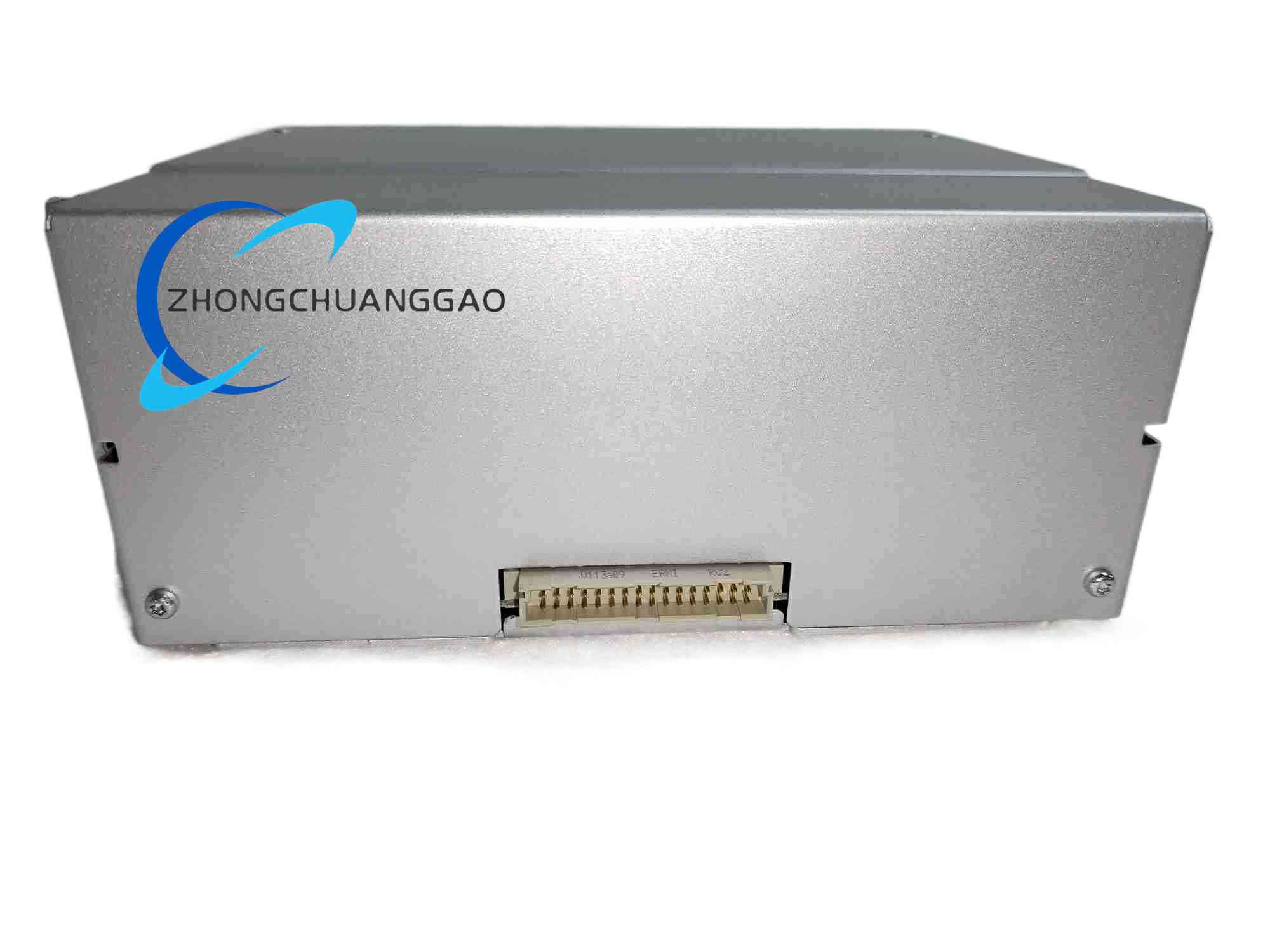

Technical Specifications
-
CPU: PowerPC 266 MHz
-
Memory: 32 MB SDRAM, 128 KB NVRAM, 32 MB CompactFlash
-
Supply: 24 V DC, 19.2–30 V DC, max 1.2 A
-
Interfaces: Ethernet (Q1), RS-232/485, SERCOS up to 16 MBaud, ARCNET
-
Digital I/O: input delay 50 µs, output 0.5 A, output delay 500 µs
-
Display: 4-digit alphanumeric
-
Dimensions: 83.7 × 192 × 150 mm
-
Weight: 1.3 kg
-
Protection: IP20
Functional Features
-
PLC and NC in one project
-
Up to 8 SERCOS axes
-
16 parameter sets for fast changeover
-
Optional safe torque off coordinated with drives
Application Scenarios
Automotive engine assembly, multi-station handling, CNC retrofit.
Working Principle
VisualMotion project in CompactFlash → SERCOS cycle synchronizes Ecodrive axes → Ethernet reports to MES/SCADA → encoder feedback closes position and torque loops.
Installation Requirements
Slot 00 of RECO-02. X1 Phoenix connector for 24 V, wire cross-section up to 1.5 mm². Leave cabinet ventilation for 1.2 A controller plus I/O current.
Usage Notes
Q1 port is not equal to PROFINET device stack. NVRAM backup capacitor loses offsets if power down exceeds several days.
