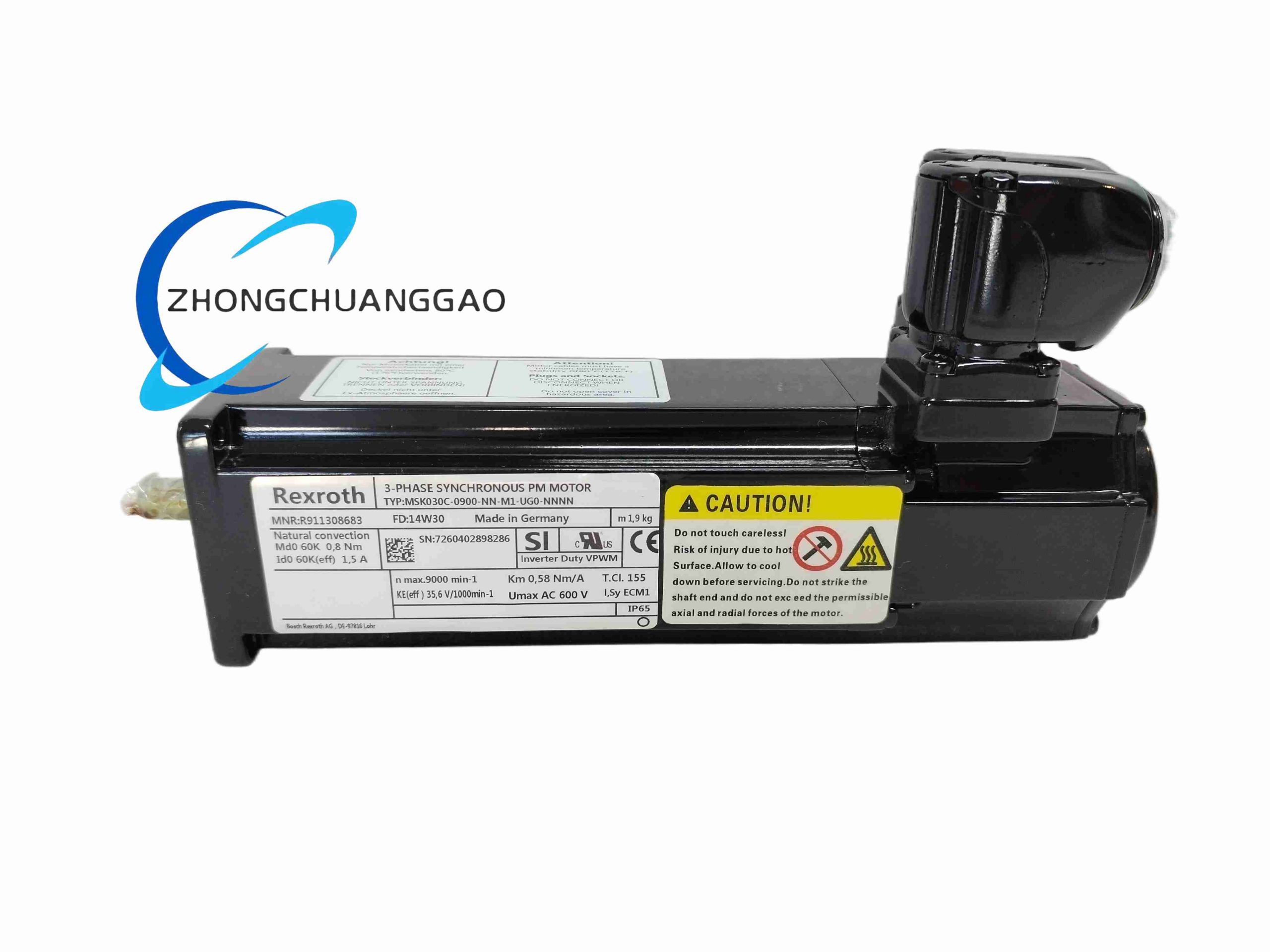

REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684 - Image 1

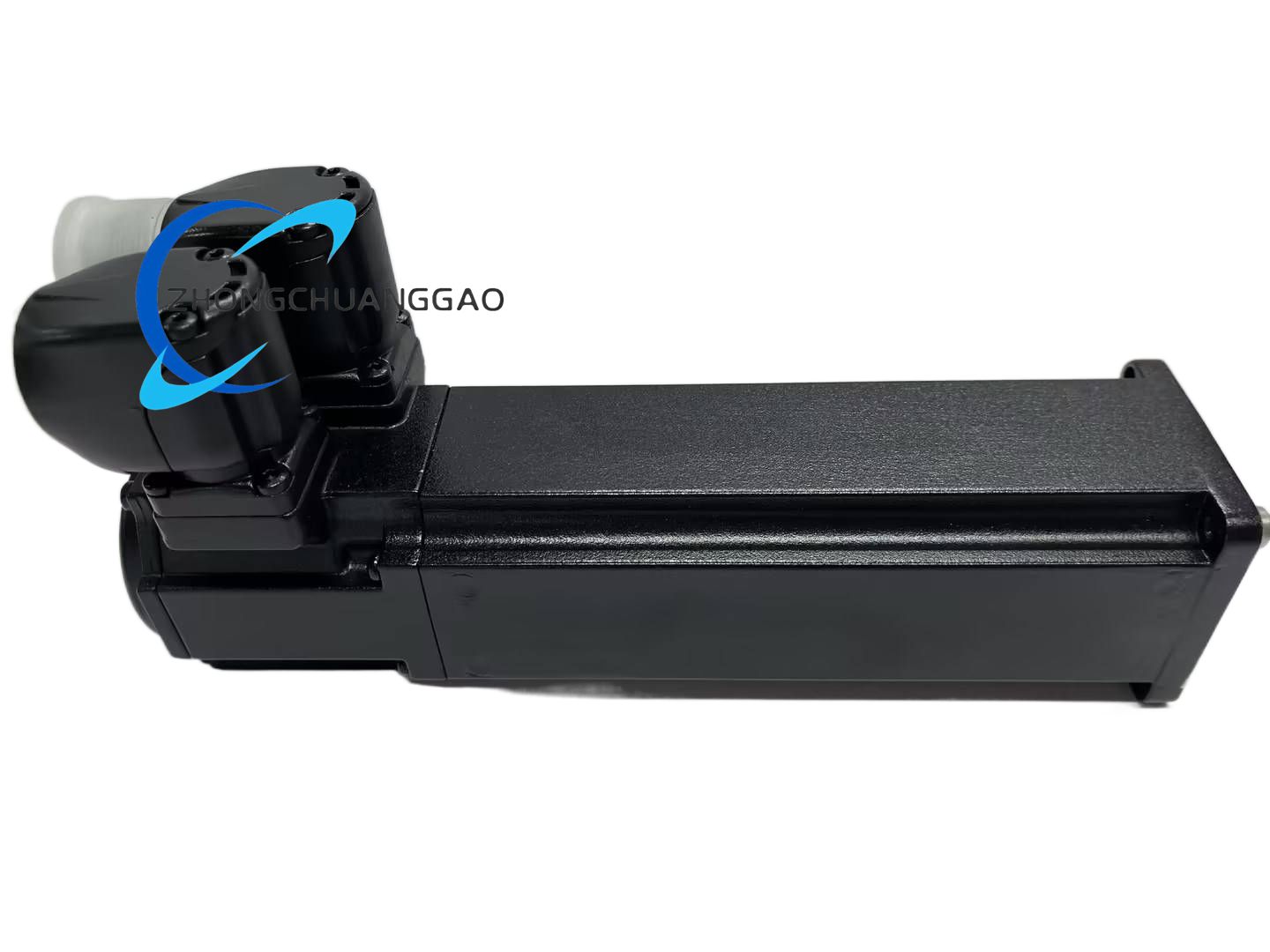

REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684 - Image 2
Click to enlarge
REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684
REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684 - Image 2
Siemens MSI-20B 500-893081
Siemens MSI-20B 500-893081
Back to products
Macrotek MSPC-68866800
Macrotek MSPC-68866800

REXROTH MSK030C-0900-NN-M1-UG1-NNNN R911308684

Product Name:​ Bosch Rexroth IndraDyn S MSK030 Permanent Magnet Synchronous Servo Motor
Product Overview:​ A compact high-dynamic synchronous servo motor with natural cooling, designed for precise positioning and high-speed cycles in automation.
Category:
Description
Technical Specifications (MSK030C-0900):​
  • Frame Size:​ 030 (flange ~30 mm characteristic length class, actual length 188 mm)
  • Winding Code:​ 0900 (max speed 9000 rpm)
  • Standstill Torque:​ ~0.4 Nm (continuous ~0.8 Nm depending on cooling)
  • Peak Torque:​ ~1.8–4.0 Nm (depending on duty)
  • Encoder:​ M1 = Optical multi-turn absolute Hiperface with 128 signal periods
  • Shaft:​ G = Smooth shaft with sealing ring
  • Brake:​ 1 = Electrical release holding brake (~1 Nm)
  • Cooling:​ NN = Natural convection (no fan)
  • Connection:​ U = Rotatable plug connector
  • Protection:​ IP65 with shaft seal
  • Material:​ NdFeB high-temp permanent magnets, aluminum housing
    Functional Features:​
  • Absolute Multi-Turn Memory:​ No homing required after power cycle.
  • High RPM Density:​ 9000 rpm in compact body for packaging/sorting axes.
  • Cleanroom Suitable:​ Fanless natural cooling avoids particle generation.
    Application Scenarios:​ Pick-and-place robotics, lab automation, semiconductor handling, small-format packaging machines.
    Working Principle:​ Stator windings driven by inverter create rotating field interacting with rotor NdFeB magnets; encoder feeds back position to drive controller for closed-loop commutation.
    Installation Requirements:​ Align coupling without side-load; torque tightening per Rexroth mechanical manual; brake must be released electrically only when safe.
    Precautions:​ Do not disassemble encoder; brake holds load mechanically—verify holding capacity; motor surface can reach high temp—allow cooling before handling; match drive (IndraDrive) parameters exactly.
