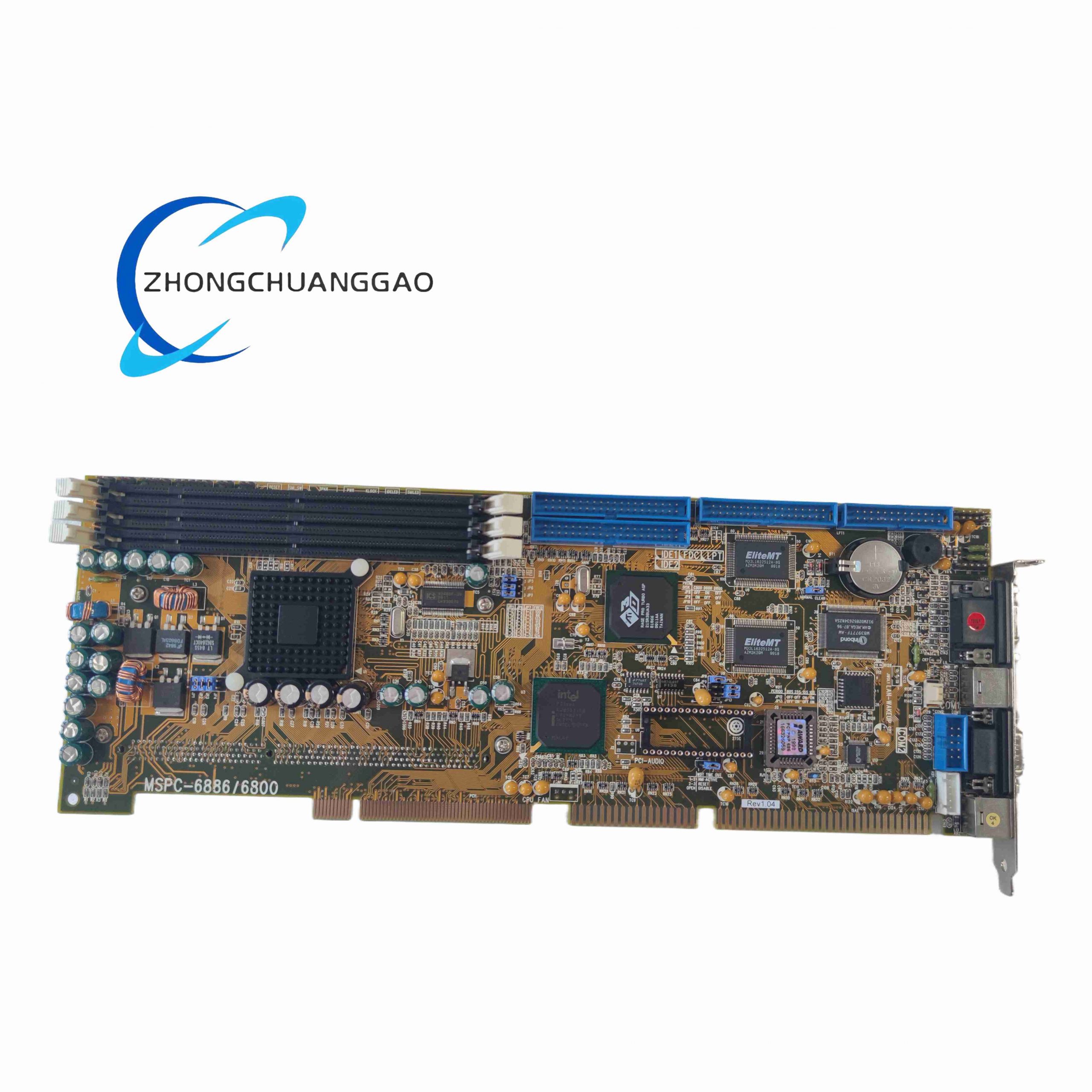

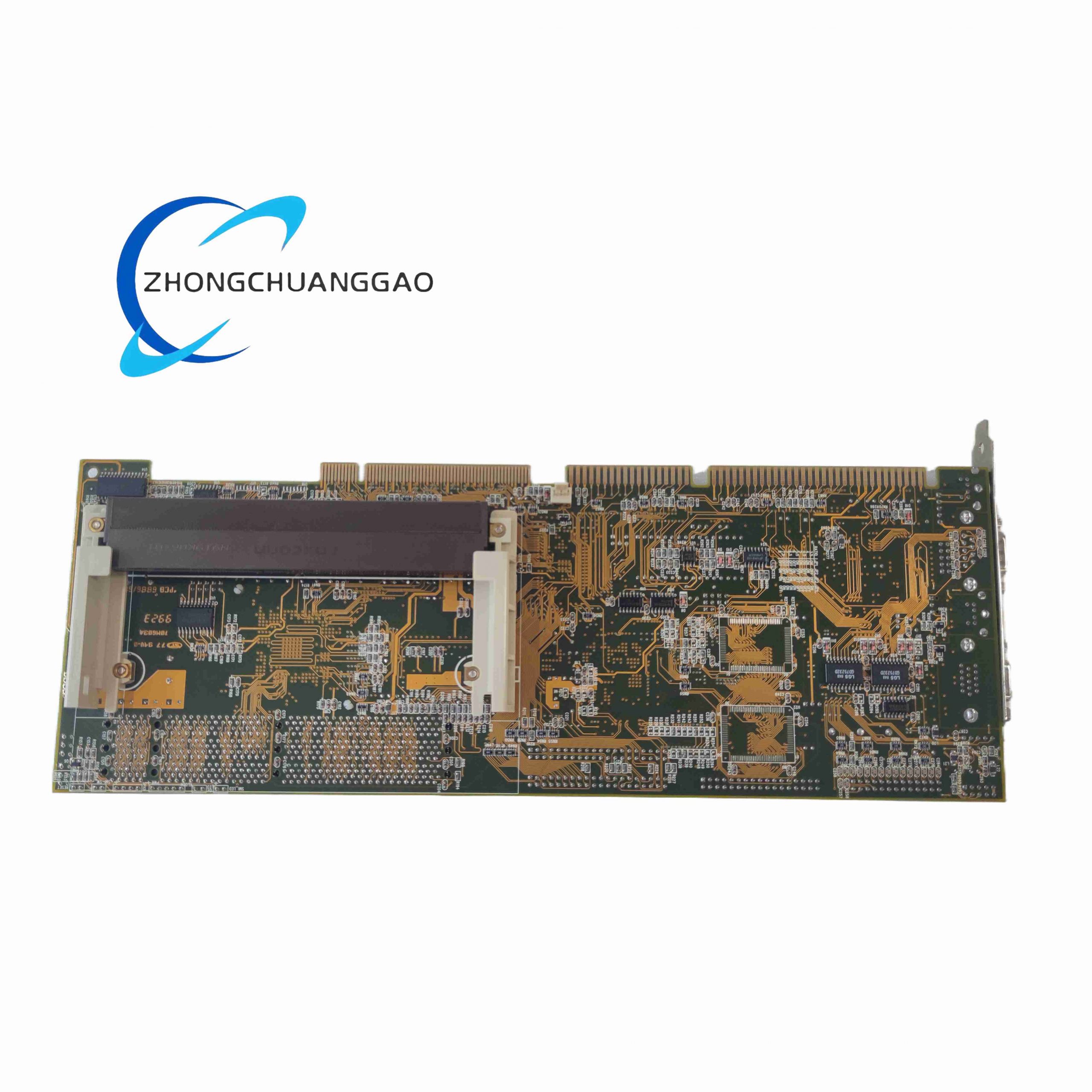

Product Name:​ Macrotek MSPC-6886/6800 Series Industrial PCI/ISA Single Board Computer (SBC)
Product Overview:​ A legacy industrial-grade CPU board based on Intel Slot 1 architecture (440BX chipset era), designed for long-life embedded control, data acquisition, and test systems requiring ISA/PCI passive backplanes.
Category:
Description
Technical Specifications:​
  • Model Variant:​ MSPC-6886 6800 (or 6800-1)
  • Processor Support:​ Intel Pentium II/III or Celeron (Slot 1, 66/100 MHz FSB)
  • Chipset:​ Intel 440BX (82371EB PIIX4E southbridge)
  • Memory:​ 3 × 168-pin DIMM slots, SDRAM/EDO 8 MB – 256 MB
  • BIOS:​ Award PCI BIOS with green/PM functions
  • Expansion Bus:​ Passive PCI + ISA (PC/104 or AT-style signaling)
  • I/O Interfaces:​ VGA, RS-232 COM, LPT parallel, USB (early 1.0/1.1), keyboard/mouse, infrared port
  • Form Factor:​ ~338 mm × 122 mm (standard SBC dimensions)
  • Operating Systems:​ DOS, Windows NT/9x, OS/2, Linux, VxWorks, RTOS
  • Supply:​ AT/ATX industrial backplane power (+5 V, +12 V, -12 V, +3.3 V via regulator)
  • Operating Temp:​ 0°C to +60°C (industrial grade)
    Functional Features:​
  • Legacy Bus Support:​ Retains ISA slots critical for old proprietary data acquisition cards.
  • Hot-Swap Ready (Backplane Dependent):​ Can be designed for live module swap in redundant systems.
  • Long-Term Stability:​ Components selected for extended lifecycle availability.
    Application Scenarios:​ Legacy semiconductor test stands, older medical imaging host CPUs, retrofitted CNC retrofits, maritime navigation computers, industrial data loggers.
    Material & Structure:​ FR4 multilayer PCB with gold-finger edge connector for backplane; aluminum heat sink on CPU (passive or fan-assisted); mounting holes for standoffs.
    Working Principle:​ Standard x86 architecture; BIOS initializes hardware, loads bootloader from IDE/SCSI/network; runs real-time or general-purpose OS to execute control logic and communicate with ISA/PCI peripheral cards.
    Installation Requirements:​ Insert into passive PCI/ISA backplane with anti-static handling; ensure CPU heatsink contact; configure BIOS for correct memory/peripheral mapping.
    Precautions:​ Static discharge can damage unbuffered chips—use ESD precautions; ISA signal timing sensitive to card pl
