NI PXIe-4145

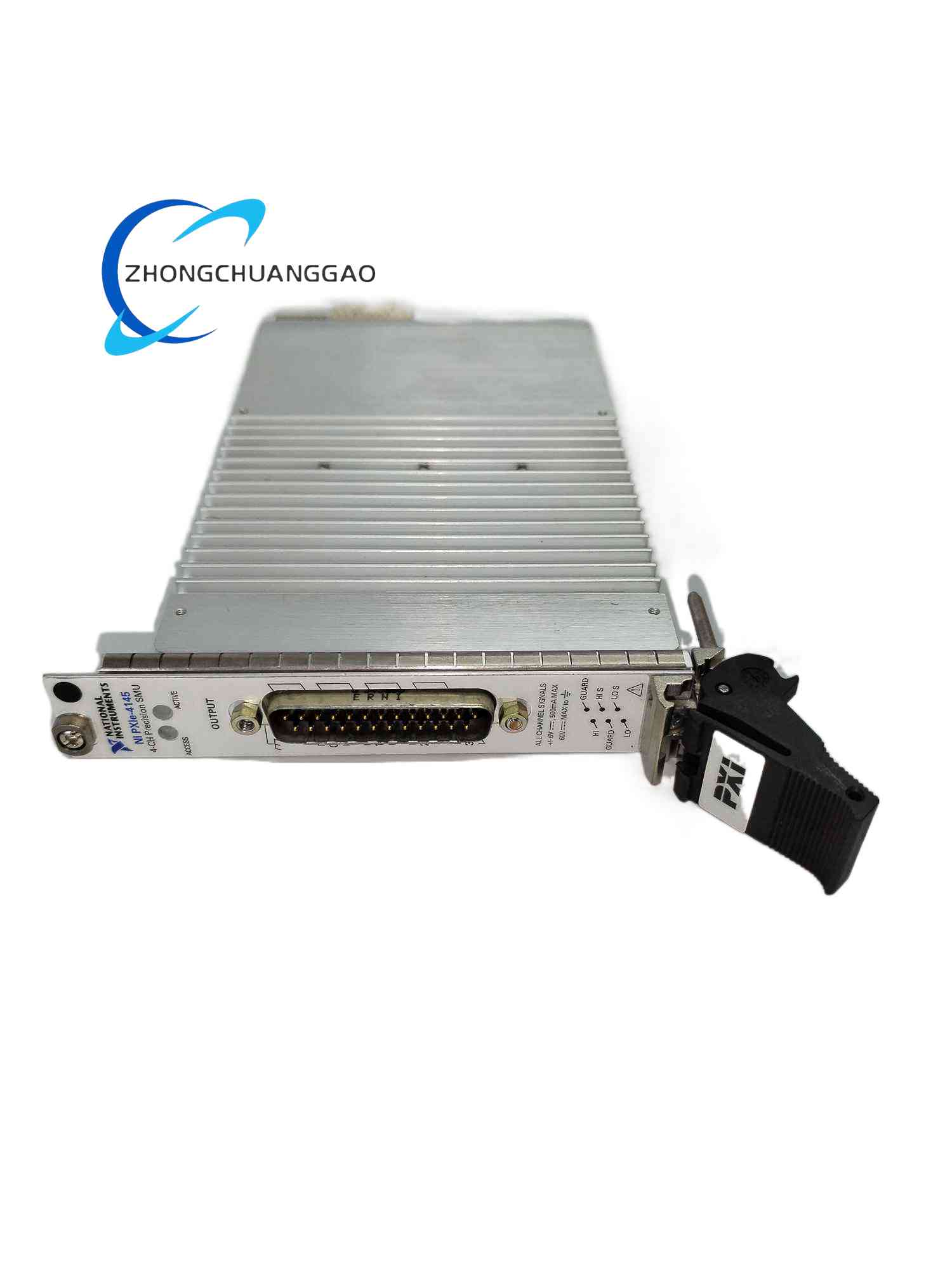

Product Name:​ PXIe-4145 High-Precision SMU (lower-current variant of 414x family)
Introduction:​ 4-channel SMU optimized for low-current, high-accuracy sourcing and measurement down to nA/pA levels.
Technical Specifications:
  • Channels: 4
Category:
Description
  • Voltage: ±60 V
  • Current: ±100 mA DC (higher resolution at µA/nA ranges)
  • Current resolution: pA-level on low range
  • ADC: 18-bit or better effective
  • Slew control and arbitrary waveform sourcing supported
    Features:​ Similar architecture to 4142 but tuned for low-leakage devices; software-selectable ranges.
    Applications:​ MOSFET subthreshold, photodiode IV, precision sensor bias.
    Notes:​ Shield cabling required for pA measurements; minimize thermal EMF by using copper wiring and avoiding hand contact with terminals.
