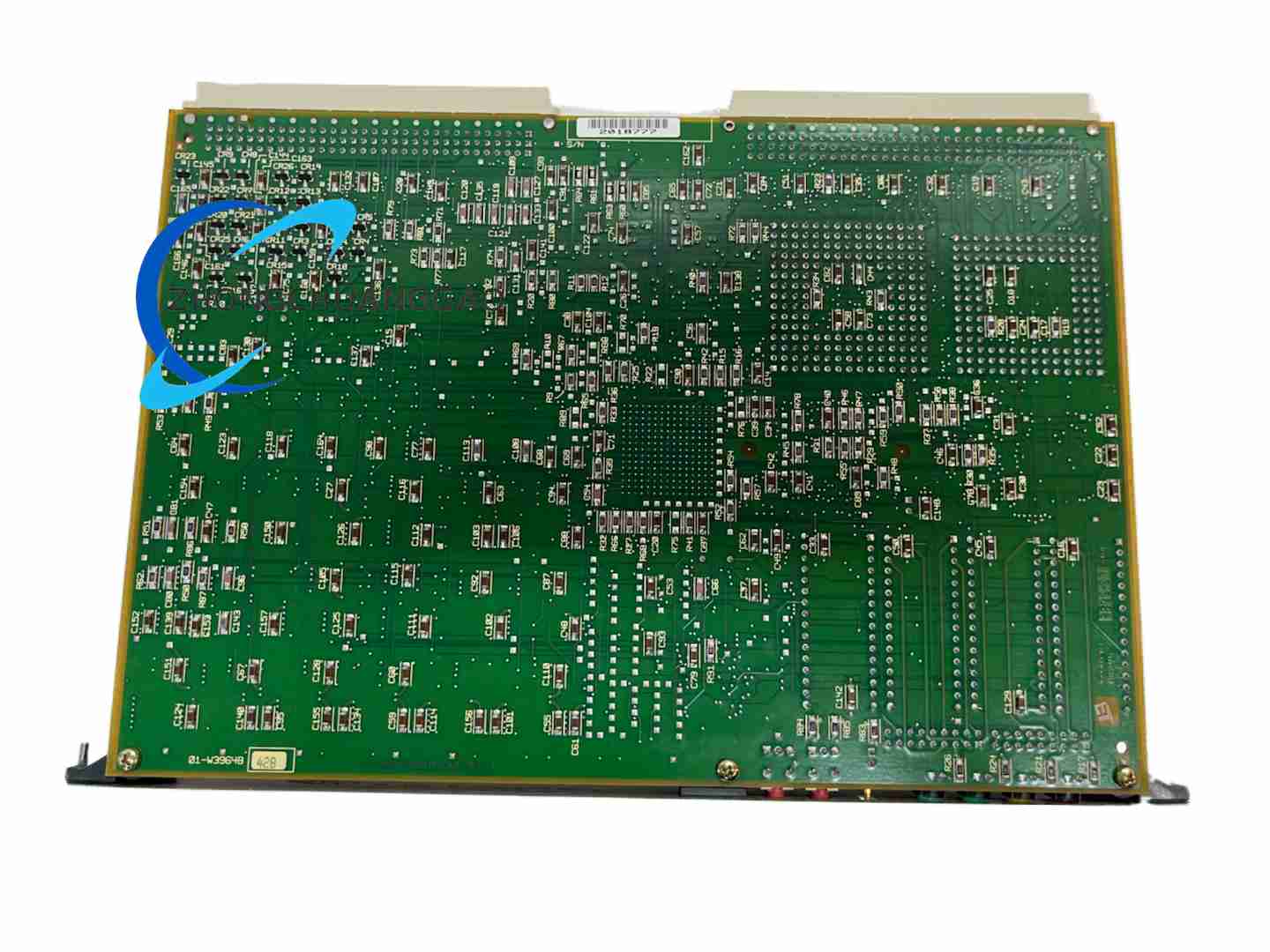

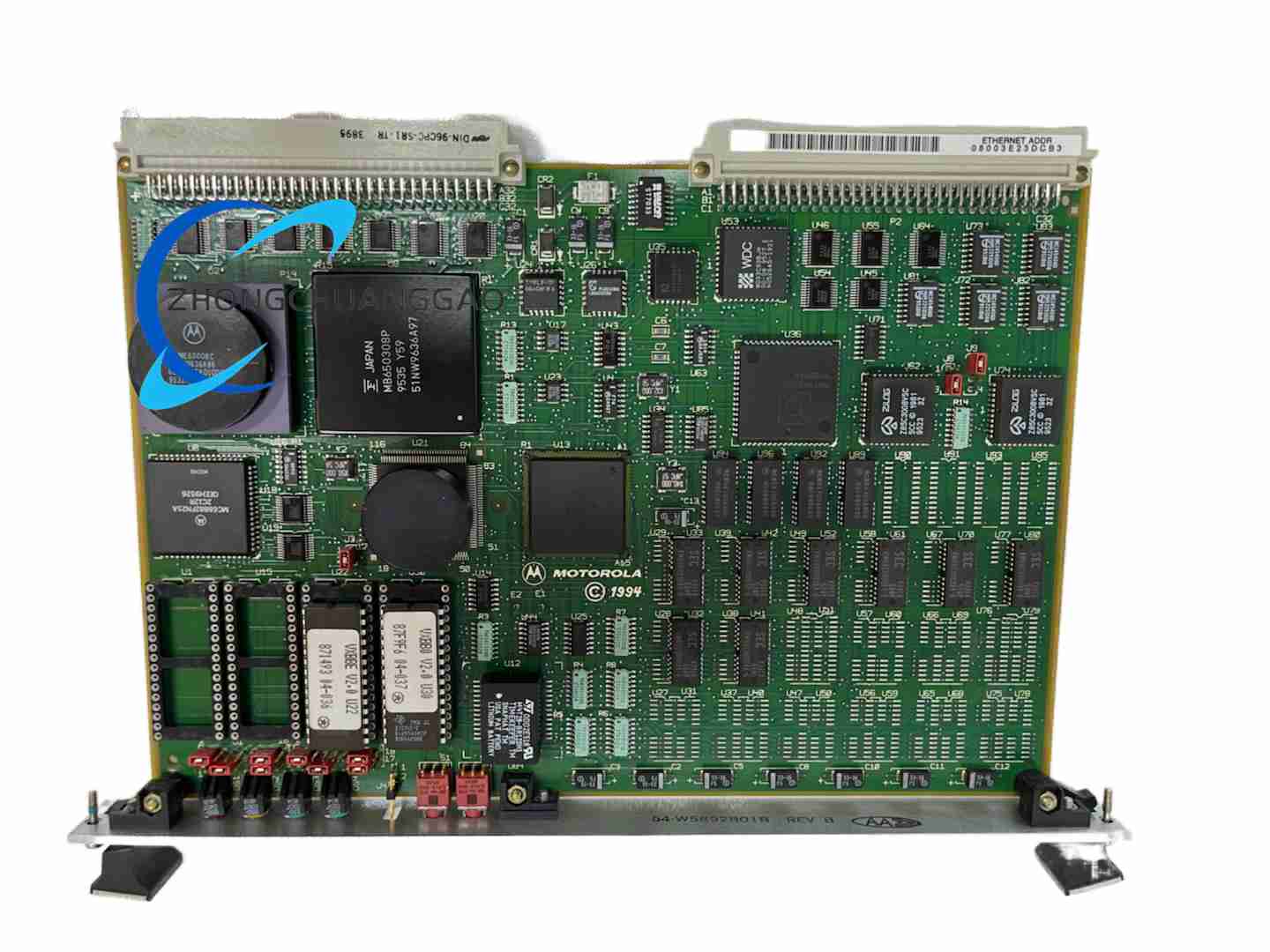

Motorola MVME147-013

Product Name:​ 6U VMEbus Single-Board Computer (SBC) with MC68030.
Product Introduction:​ Mid-range 32-bit VME SBC from Motorola’s MVME147 family, integrating CPU, FPU, memory, Ethernet, SCSI and multi-serial on one 6U Eurocard. Targeted at lifecycle extension of 1990s telecom, defense, medical and industrial VME racks.
Category:
Description
Technical Specifications:
  • CPU: MC68030 @ 25 MHz, 32-bit with MMU, 256 B cache
  • FPU: MC68882 @ 25 MHz
  • DRAM: 16 MB fast-page (some builds 8 MB), expandable to 32 MB
  • SRAM: 4 KB battery-backed + RTC
  • ROM: 2–4 sockets for EPROM/Flash, 147Bug firmware
  • Bus: VME A32/D32, master/slave, system controller, BLT DMA
  • Ethernet: 10 Mbps AUI (external transceiver needed)
  • Serial: 4 × EIA-232-D DB25
  • Parallel: 1 × Centronics
  • SCSI: Onboard SCSI-1 / Fast SCSI 50-pin, 10 MB/s
  • Watchdog: 8-bit programmable
  • Power: +5 V @ 4 A typ (≤18 W); some sources +12/-12 V aux
  • Dimensions: 160 × 233 mm (6U), ~490 g
  • Temperature: 0–60 °C commercial, -40–70 °C extended available
  • Certifications: CE, cULus, RoHS (later refurb)
Functional Features:​ Self-contained compute+IO, onboard 147Bug debugger with net/disk boot, VME system-controller capability, no fan required, direct replacement for MVME147-010/012.
Application Scenarios:​ Legacy CNC controllers, rail signaling, sonar processors, pharmaceutical batch loggers, utilities DCS front-ends.
Installation / Notes:​ Requires VMEbus crate with correct P1/P2 connector keying; AUI port needs external MAU for RJ45; battery CR2032-style cell backs RTC—replace during service; observe 5 V rail sag under 4 A inrush.
