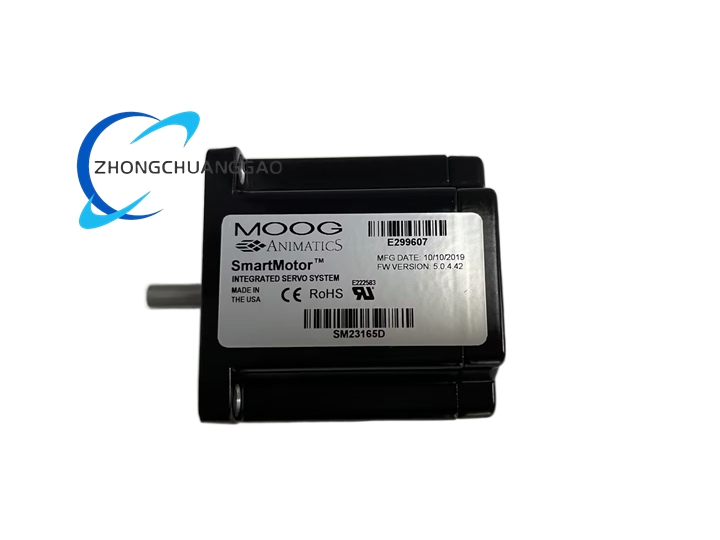

MOOG SM23165D - Image 1
Click to enlarge
REXA SMB9215-1E-1-7725
REXA SMB9215-1E-1-7725
Back to products
MOOG SM2337D
MOOG SM2337D

MOOG SM23165D

  • Product Name:​ Animatics SmartMotor Integrated Servo Motor (NEMA 17/23 class)
  • Introduction:​ Brushless DC servo with built-in drive, controller, encoder and comms in one housing.
  • Technical Specifications:
    • Continuous Torque: 0.28 N·m (2.5 in-lb)
Category:
Description
    • Peak Torque: 0.45 N·m
    • No-load Speed: 10,400 RPM @ 48 V DC
    • Power: 181 W
    • Encoder: 4000 counts/rev
    • Voltage: 48 V DC default (range depends on config)
    • Shaft: 6.35 mm, radial 3.18 kg, axial 1.36 kg
    • Weight: 0.45 kg
    • Comms: RS-232/485, CANopen, DeviceNet optional
  • Features:​ Standalone motion program (SMI language), no external drive needed, closed-loop.
  • Applications:​ Lab automation, packaging, small robotics, semiconductor handlers.
  • Installation & Notes:​ Avoid sustained overload above 85 °C ambient derating; use Moog MotionWiz for tuning; ensure 48 V supply sizing for peak current 4.7 A.
