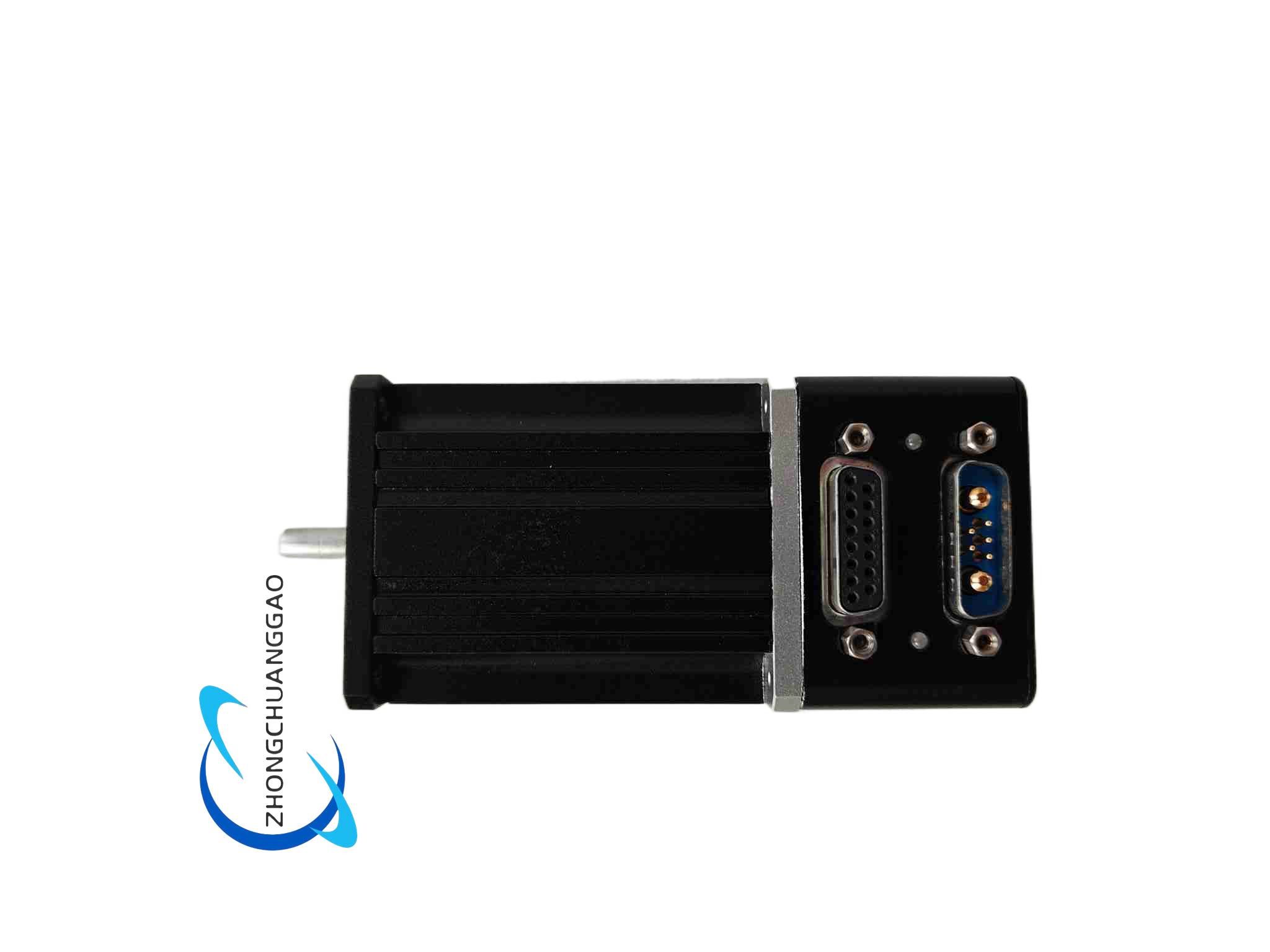

MOOG SM2337D - Image 1
Click to enlarge
MOOG SM23165D
MOOG SM23165D
Back to products

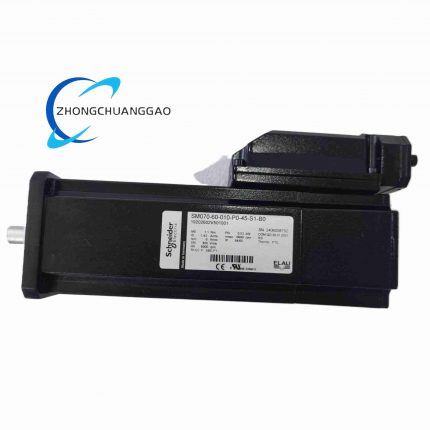

ELAU SM070-60-010-P0-45-S1-B0
ELAU SM070-60-010-P0-45-S1-B0

MOOG SM2337D

  • Product Name:​ Animatics SmartMotor Integrated Servo Motor (NEMA 23)
  • Introduction:​ Higher-torque integrated servo motor with embedded controller and drive.
  • Technical Specifications:
    • Voltage: 24–75 V DC
Category:
Description
    • Continuous Current: 3.0 A, Peak 6.0 A
    • Continuous Torque: ~0.6 N·m, Peak ~1.8 N·m
    • Encoder: 1000 CPR optical
    • Flange: NEMA 23 (57 mm)
    • Comms: RS-232/485, CANopen optional
    • Protection: Typically IP20
  • Features:​ All-in-one servo, point/velocity/torque modes, multi-axis coordination via network.
  • Applications:​ Light CNC, labeling, pick-and-place, textile machines.
  • Installation & Notes:​ Share same SmartMotor programming model as SM23165D; derate torque if running at 24 V; mount with shaft load within spec.
