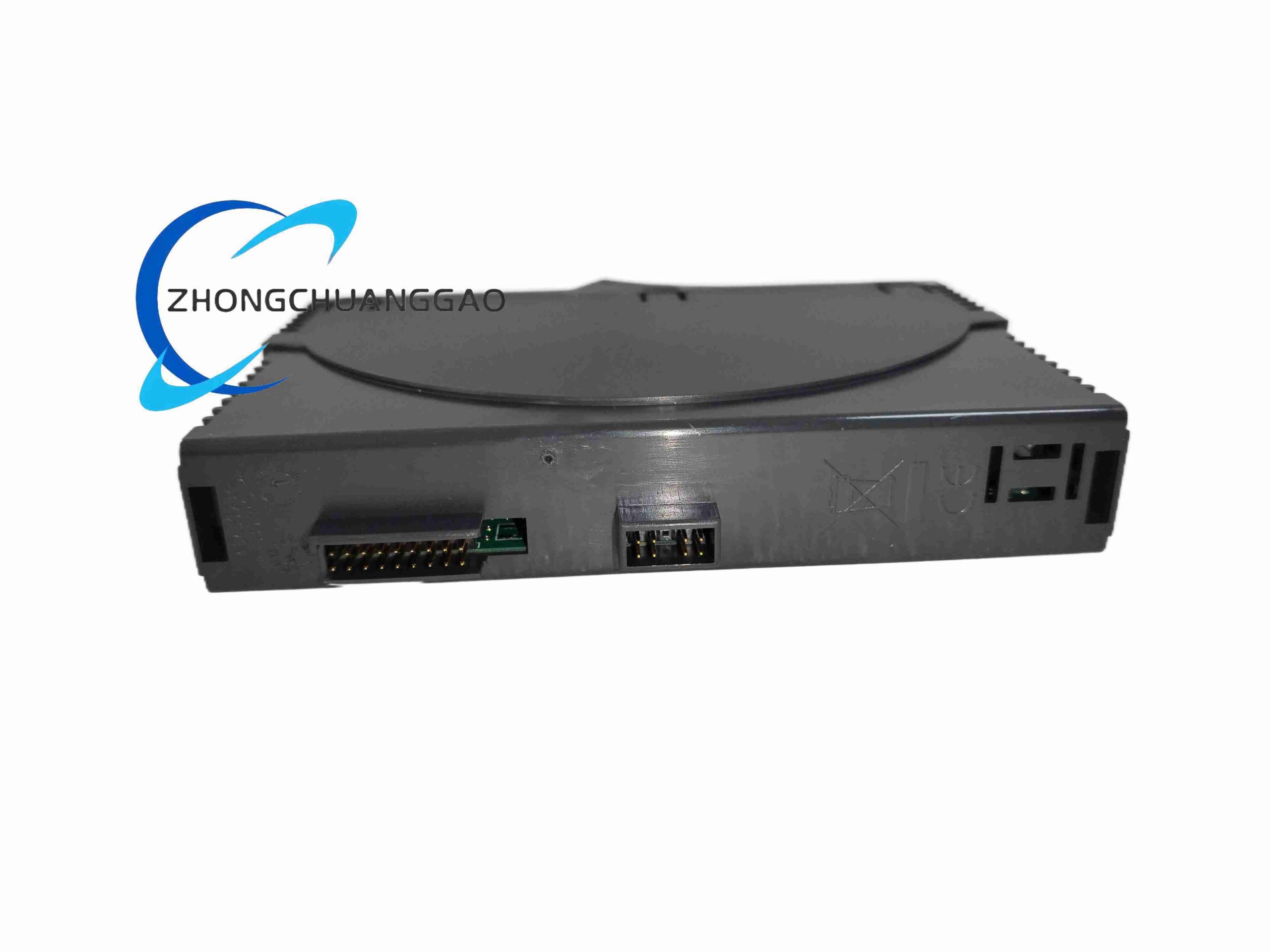

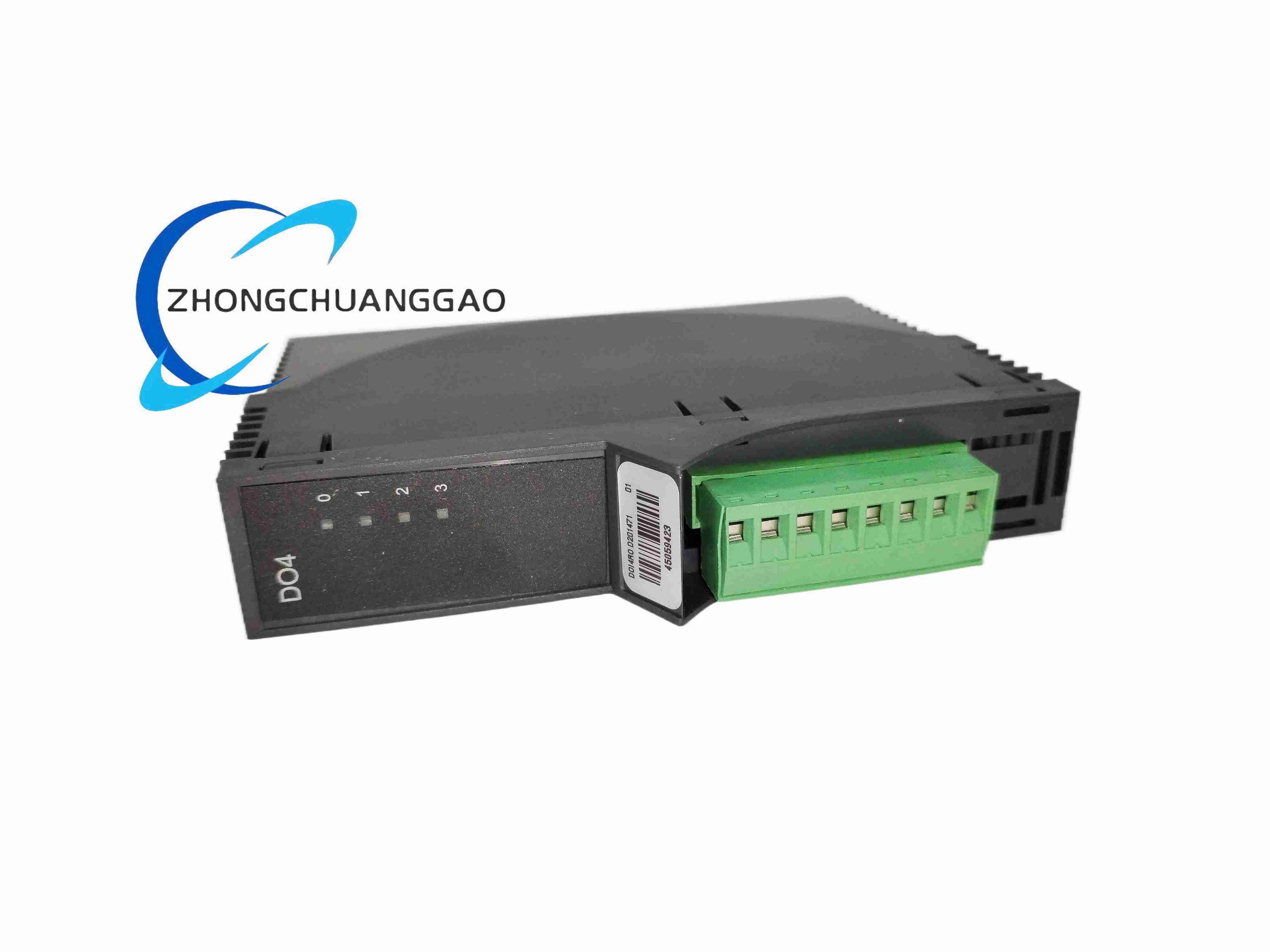

METSO D201471 - Image 1
METSO D201471 - Image 2
Click to enlarge
METSO D201471
METSO D201471 - Image 2
METSO D201466
METSO D201466
Back to products
METSO D201472
METSO D201472

METSO D201471

Product Name:​ Metso Neles Smart Valve Positioner Electronic Module, D201471
Product Type:​ Intelligent positioner controller / internal module or complete unit
Specifications:
  • Input:​ 4–20 mA + HART (optionally Profibus PA / FF per full assembly)
Category:
Description
  • Supply Pressure (pneumatic section):​ 1.4–7 bar
  • Output:​ Pneumatic to actuator — single or double acting
  • Travel Range:​ Linear 10–100 mm; Rotary 0–90°
  • Accuracy:​ ±0.5 % FS
  • Hysteresis:​ < 0.3 %
  • Enclosure:​ IP66 / NEMA 4X, die-cast Al, SS fasteners
  • Temp. Range:​ –40 °C to +85 °C
  • Certification:​ ATEX, IECEx, SIL 2/3, CE, UL
  • Mounting:​ NAMUR VDI/VDE 3845 direct mount; also Neles/Jamesbury yoke kits
Features:​ Auto-tuning, valve signature / partial stroke test, NAMUR NE 107diagnostics, fail-safe programmable.
