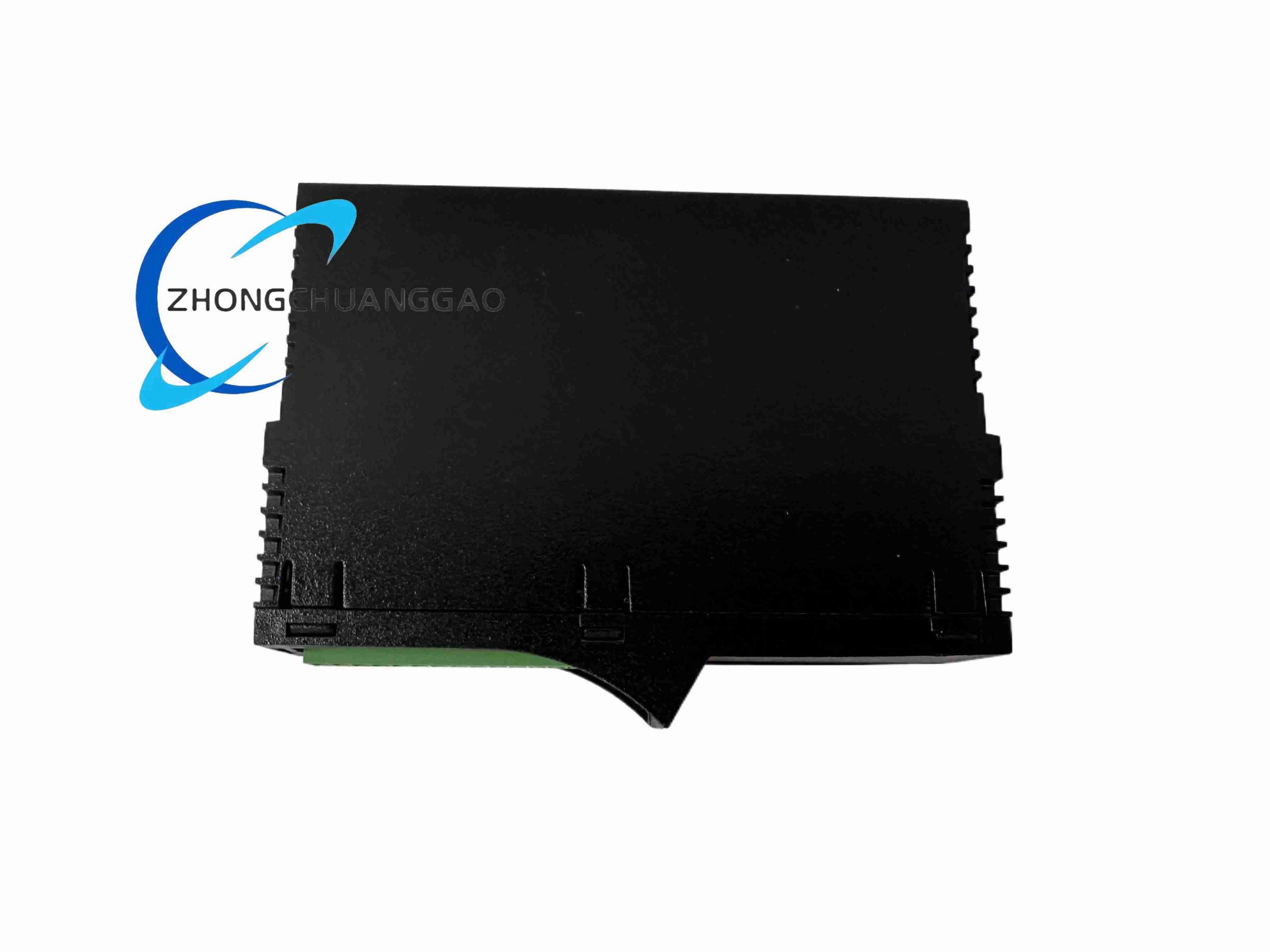

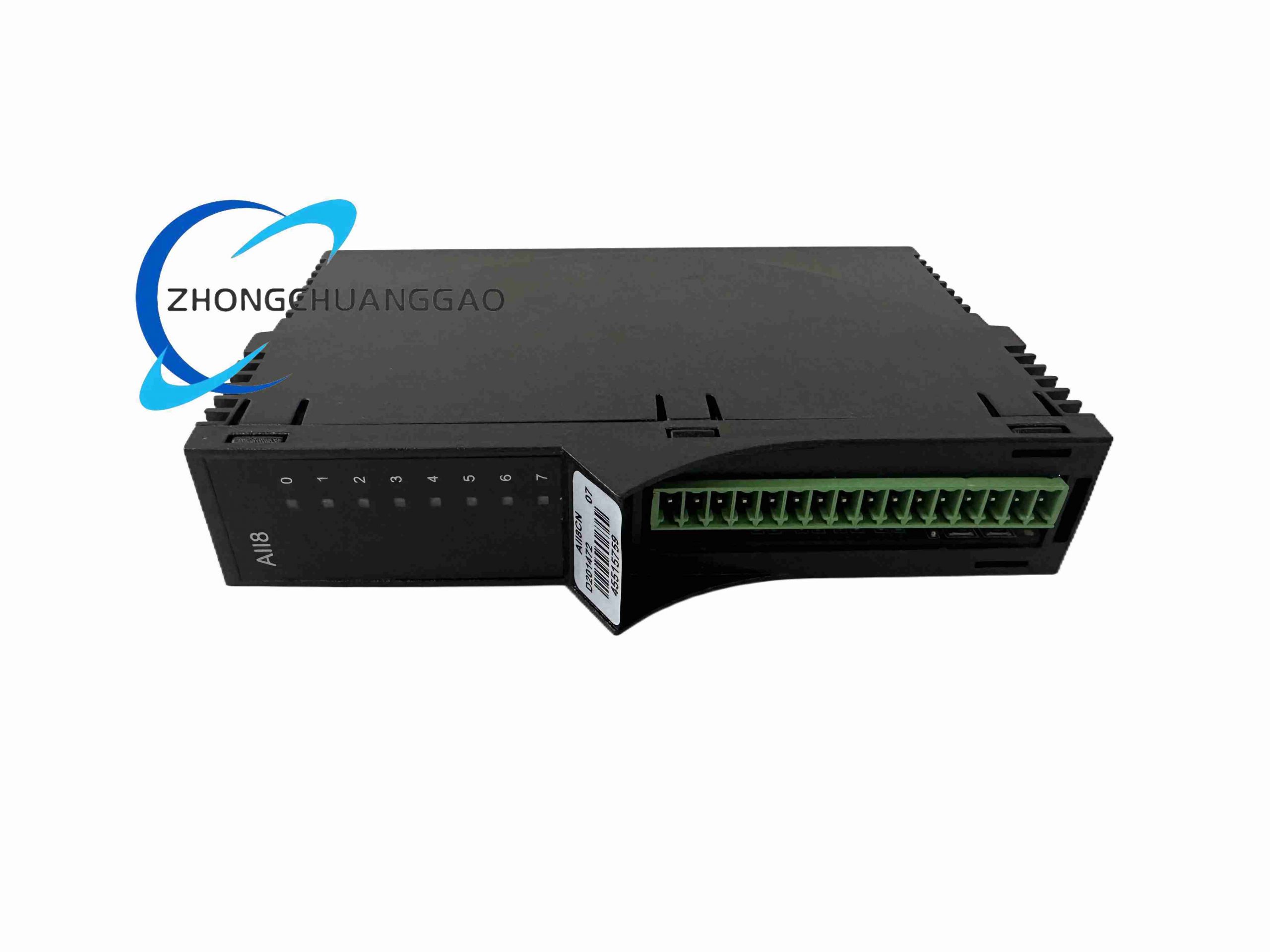

METSO D201472 - Image 1
METSO D201472 - Image 2

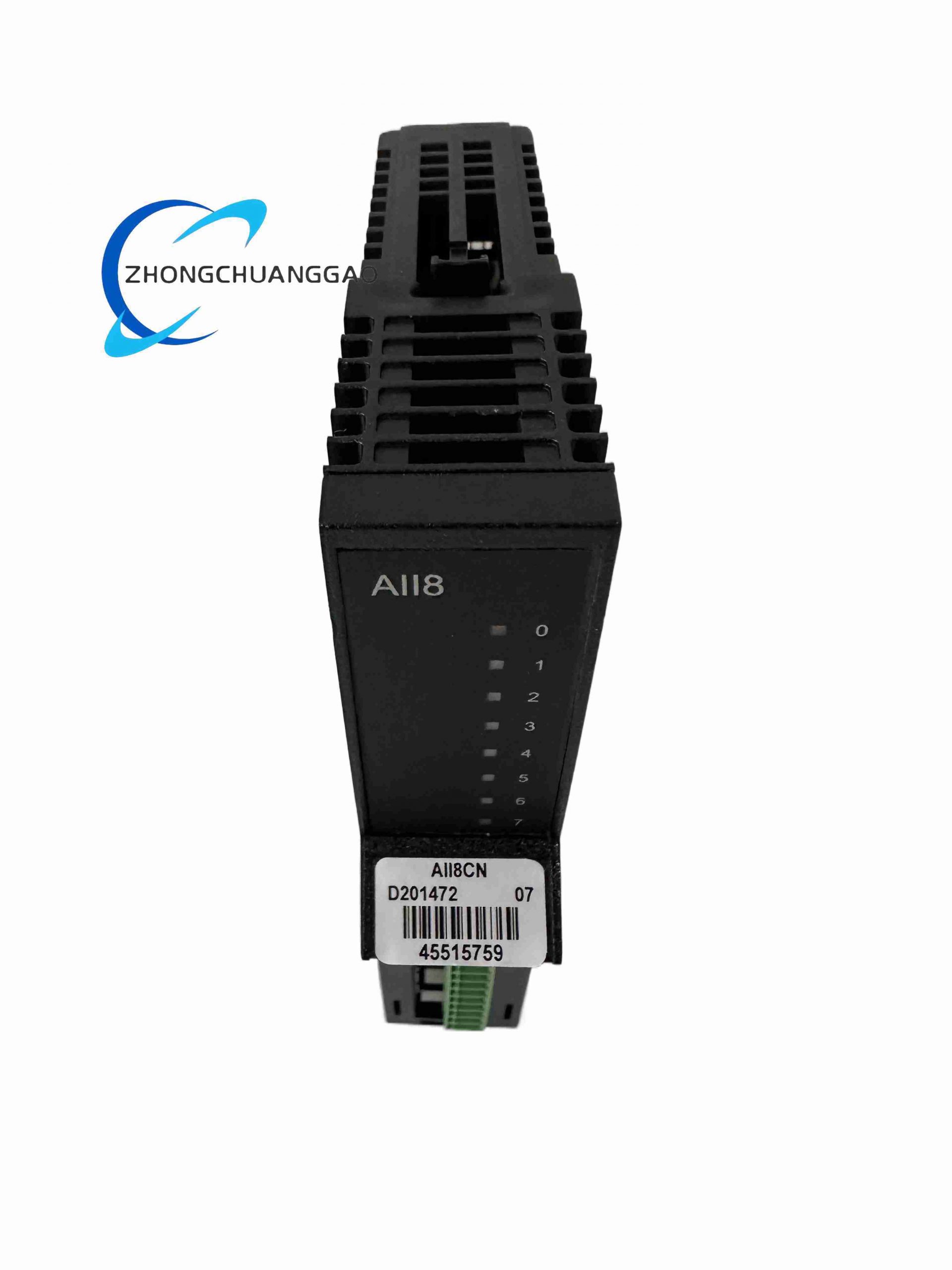

METSO D201472 - Image 3
Click to enlarge
METSO D201472
METSO D201472 - Image 2
METSO D201472 - Image 3
METSO D201471
METSO D201471
Back to products
METSO D201483
METSO D201483

METSO D201472

Product Name:​ Metso DNA Distributed Control System — Analog Output Module, 8-channel (D201472)
Product Type:​ Process I/O module for Metso DNA / third-party DCS racks
Function / Working Principle:​
Converts digital process values from the control engine into proportional analog signals (4–20 mA or 0–10 V DC) to drive field devices such as valve positioners, variable frequency drives (VFDs), or indicating meters. Each channel is galvanically isolated.
Category:
Description
Technical Specifications:
  • Channels:​ 8 × Analog Output, individually configurable
  • Output Signal:​ 4–20 mA DC / 0–10 V DC (software selectable)
  • Resolution:​ 16-bit D/A conversion
  • Accuracy:​ ±0.1 % of Full Scale (typical @ 25 °C)
  • Isolation:​ 2500 V AC opto-isolation (channel-to-channel & channel-to-ground)
  • Update Time:​ ≤ 3 ms (typical 2 ms)
  • Power Supply:​ 24 V DC (redundant input supported)
  • Hot-Swap:​ Yes — module can be replaced under power
  • Diagnostics:​ Channel-level open-circuit / short detection, LED status per channel
  • Expansion:​ Up to 8 modules cascaded (max 64 AO channels per segment)
  • Communication:​ Metso DNA backplane bus; Modbus RTU / RS-485 on some interfacing modes
  • Operating Temp.:​ –40 °C to +85 °C
  • Protection:​ IP20 (panel/cabinet mounted)
Applications:​ Ore processing (flotation reagent dosing pumps), power plant combustion air/fuel control, chemical batch blending — anywhere continuous analog control from DCS to final control element is required.
