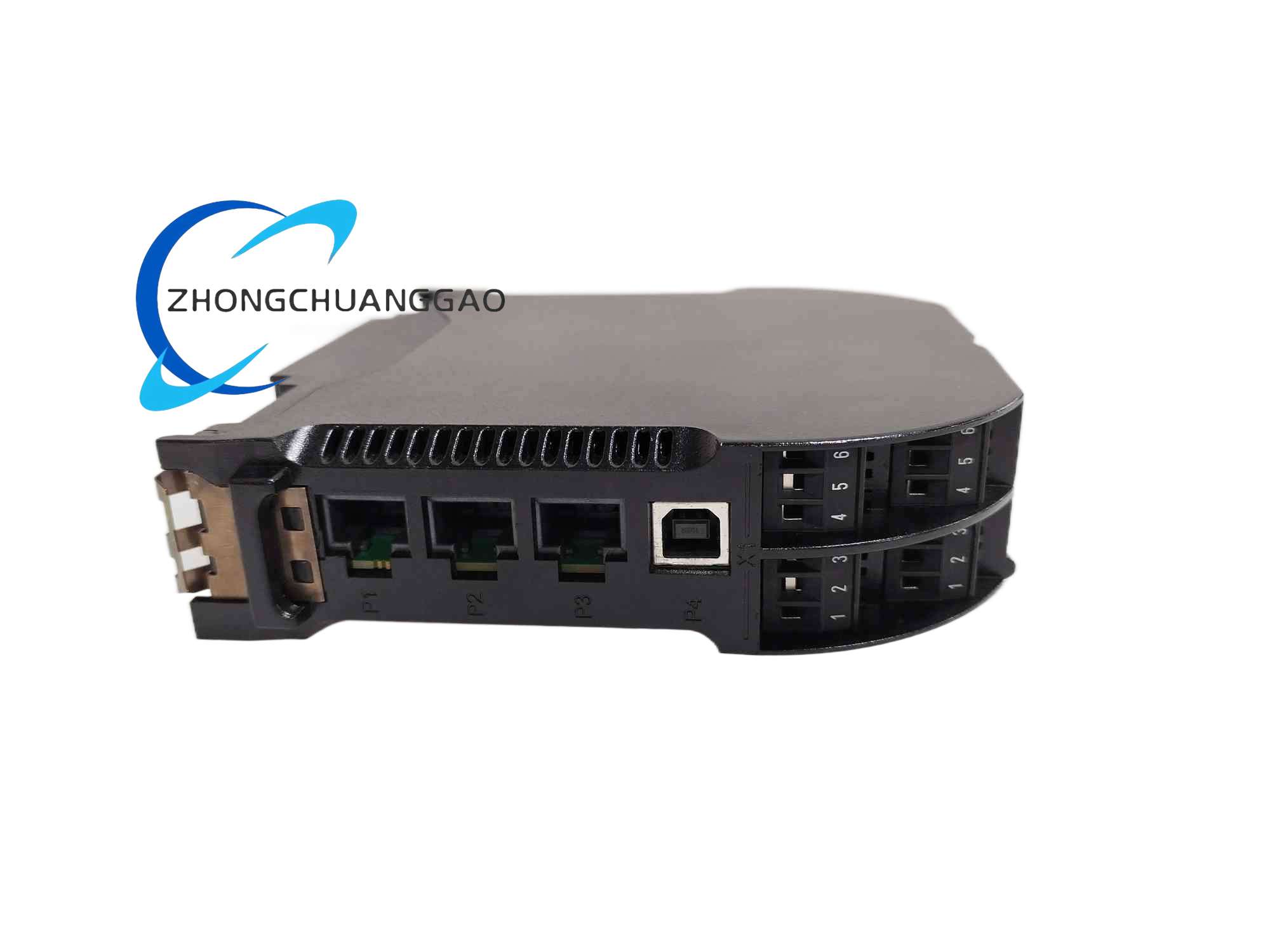

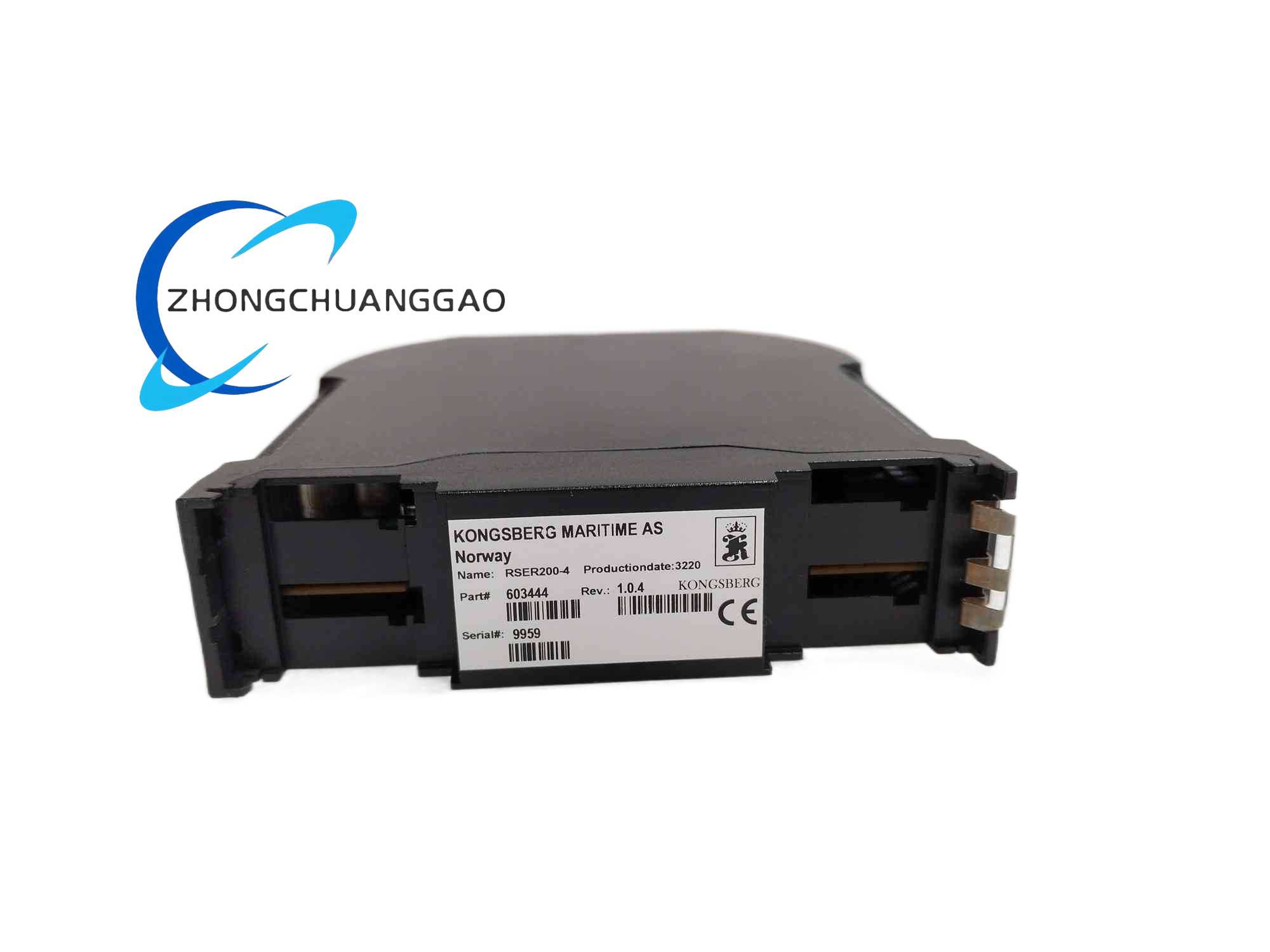

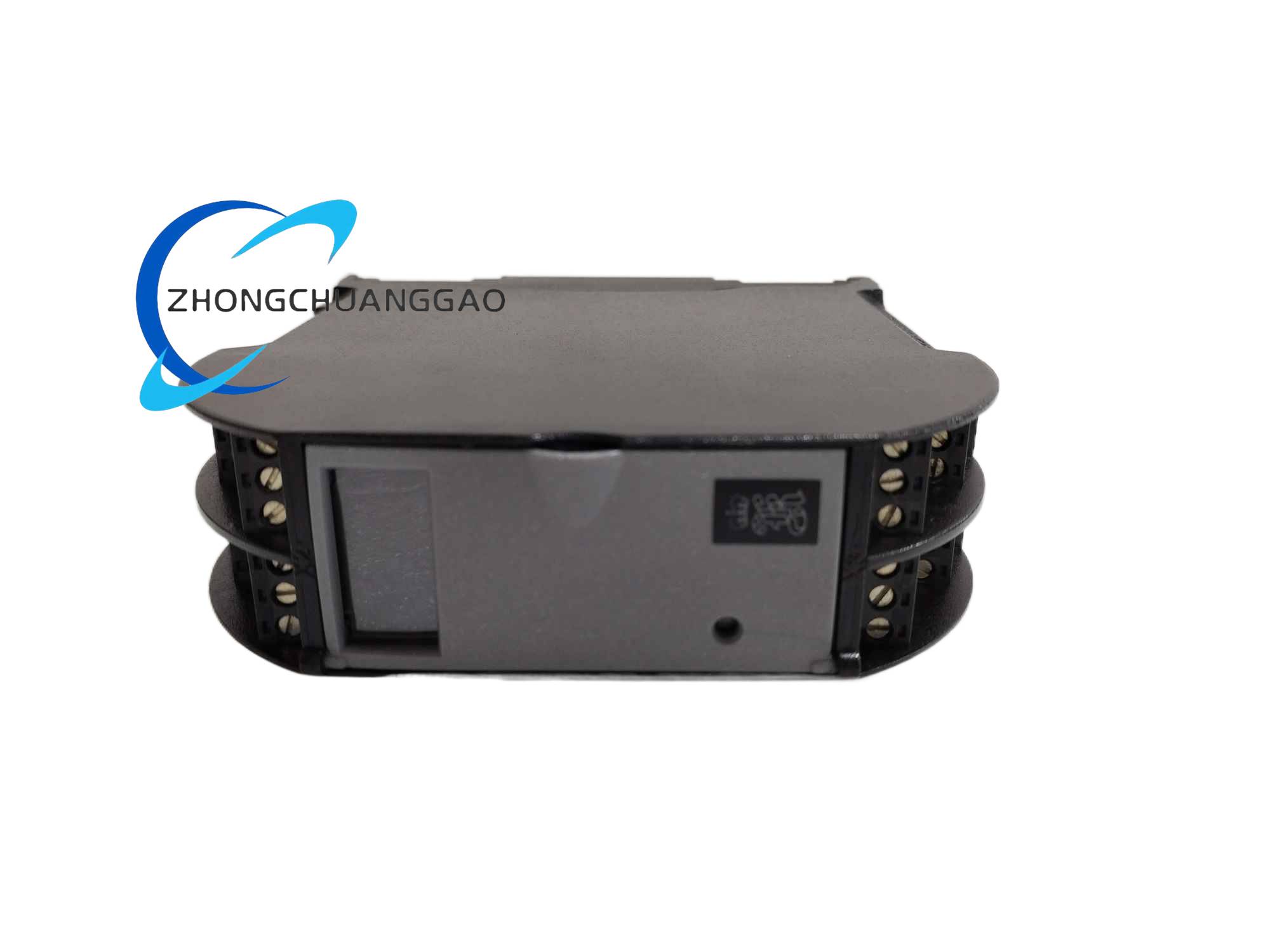

KONGSBERG RSER200-4
KONGSBERG RSER200-4 - Image 2
KONGSBERG RSER200-4 - Image 3

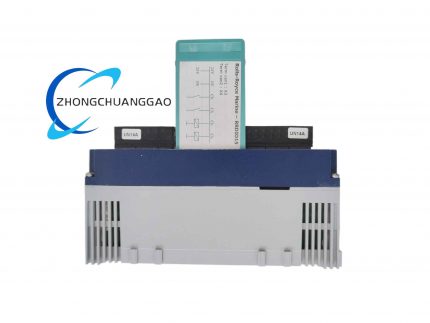

Rolls-Royce RRDIO15
Rolls-Royce RRDIO15
Back to products
Eaton RSG-5
Eaton RSG-5

KONGSBERG RSER200-4

  • Product Name:​ RSER200-4 4-channel servo amplifier / hydraulic servo driver
  • Product Introduction:​ Converts low-level DP/steering commands into high-current drive for electro-hydraulic servo valves; also referenced as RIO200 serial interface variant in some cabinets—confirm firmware label. Core function in marine motion control: position/speed/torque or valve current output.
Category:
Description
  • Technical Specifications (servo amplifier configuration):
    • 4 independent channels
    • Input: ±10 VDC or 4–20 mA configurable
    • Output: 2.5 A continuous / 4.0 A peak per channel
    • Supply: 24 VDC (18–32 V)
    • Feedback: resolver, inc/absolute encoder
    • Control modes: position, speed, torque (or valve drive)
    • Comms: CANopen, Sercos, Ethernet/IP, Kongsberg proprietary
    • Temp: -25 to +55 °C (some variants +70 °C), IP20
    • Certifications: DNV-GL, ABS, LR, CE, UL
  • Functional Features:​ Vector control, redundant bus option, natural/forced cooling, DIN/panel mount, anti-vibration salt-mist design.
  • Application Scenarios:​ Rudder gear, thruster vector, CPP pitch, crane hoist, valve actuator.
  • Installation Requirements:​ Cabinet interior, ground star point, shielded motor cables, separation from SPBus signal wires.
  • Usage Notes:​ Do not drive inductive solenoid directly; use as servo valve driver only; verify part-no suffix (4603444 vs 603444) matches firmware and bus option.
