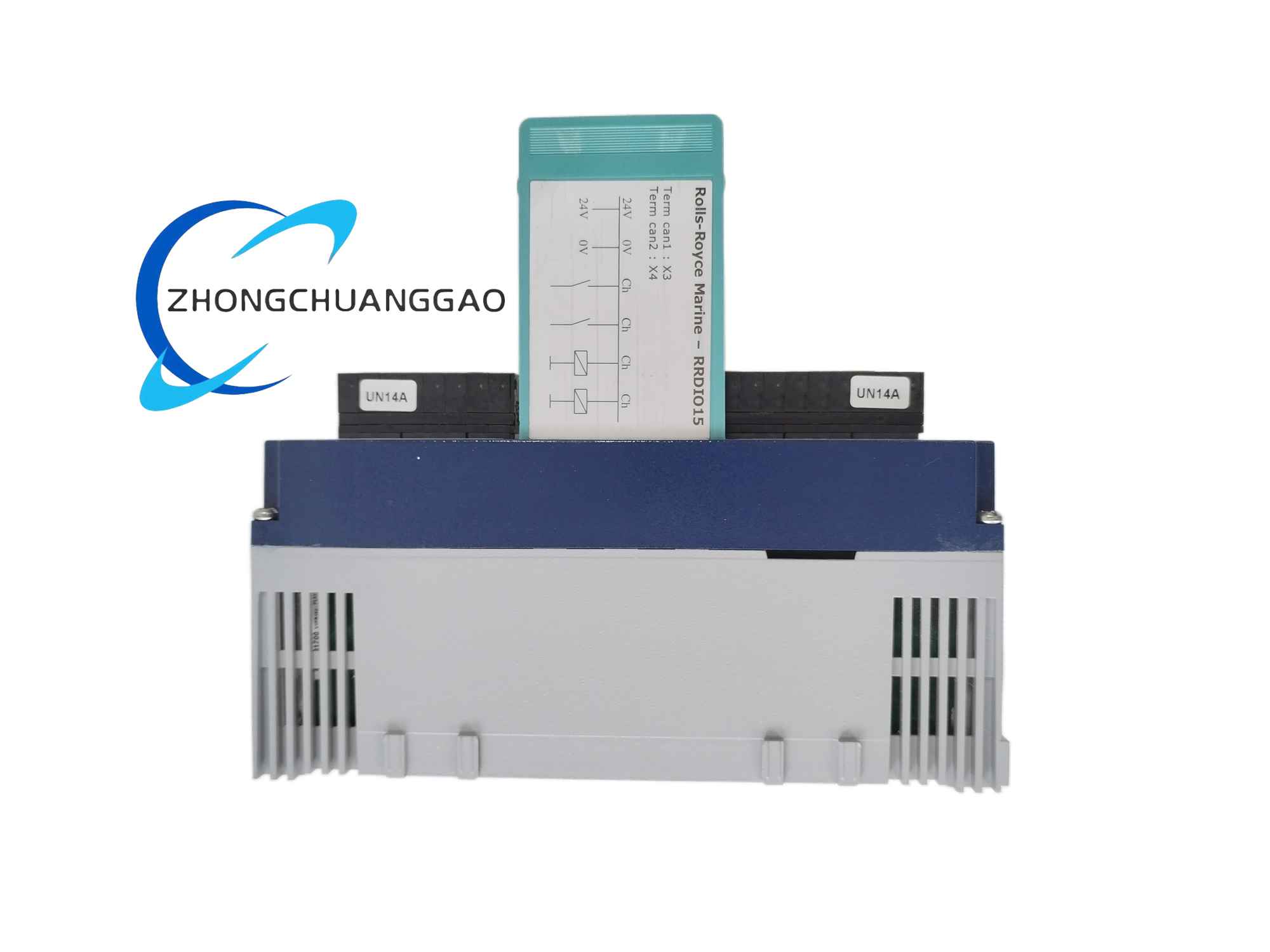

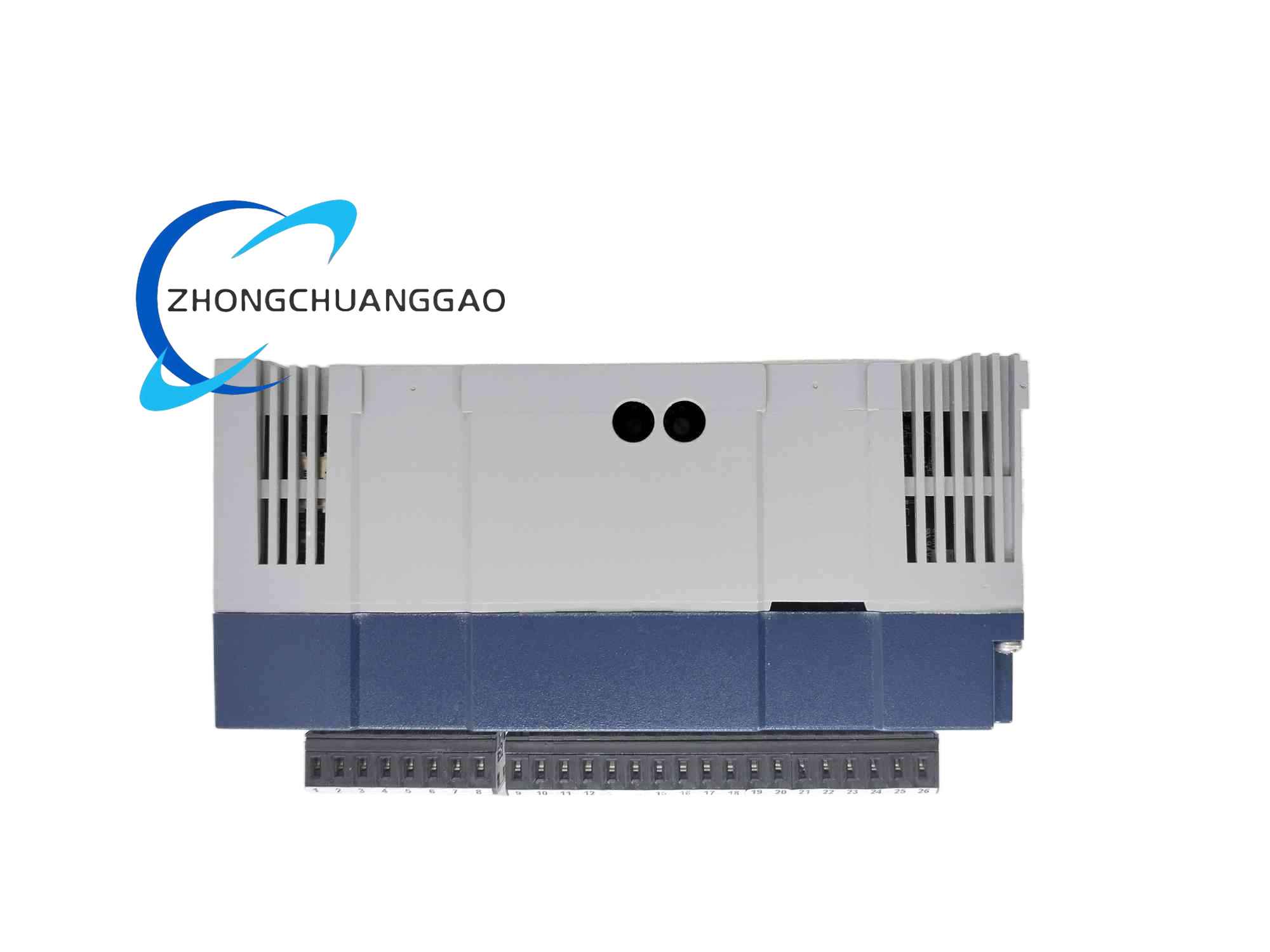

Rolls-Royce RRDIO15

  • Product Name:​ RRDIO15 15-channel digital input/output module
  • Product Introduction:​ Fast-response discrete I/O for interlock, alarm, and actuator drive in Rolls-Royce marine/industrial automation.
Category:
Description
      • Technical Specifications:
        • 15 DI/DO mixed (dry/wet contact DI, transistor/relay DO)
        • Input: 24 VDC; response <5 ms
        • Protection: overcurrent, short-circuit
        • Per-channel LED; 24 VDC; -20 to +70 °C
      • Functional Features:​ Deterministic switching, channel diagnostics, rack-mount.
      • Application Scenarios:​ Pump start/stop, breaker status, ESD latches, machinery alarm.
      • Installation Requirements:​ Proper 24 V supply, debounced field contacts, bus address set pre-power.
      • Usage Notes:​ Relay output version has mechanical life limit; transistor version needs freewheeling diode on inductive loads.
