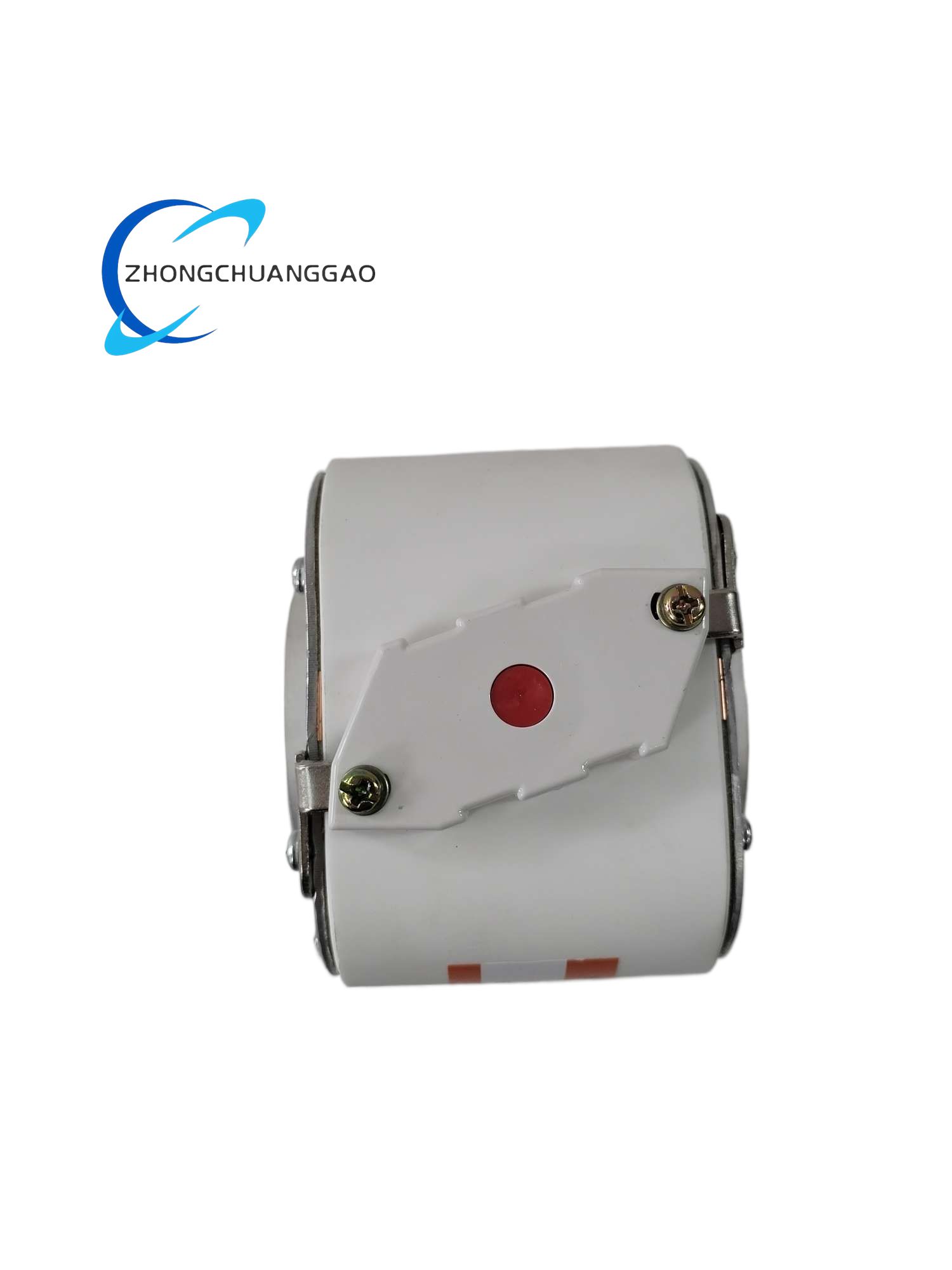

Eaton RSG-5

  • Product Name:​ Eaton Bussmann RSG-5 high-speed semiconductor fuse
  • Product Introduction:​ Bolted-blade ultra-fast fuse protecting thyristor/IGBT bridges in marine drives, DP converters, HVDC benches.
  • Technical Specifications:
    • Voltage: 690 V or 1000 V AC/DC depending variant
Category:
Description
    • Current: 2000 A (RSG-5 690V), 2500 A (1000V variant)
    • Breaking capacity: 100 kA
    • Standard: IEC 60269-4(old IEC 269-4), GB/T 13539.4
    • Construction: ceramic body, silver-plated bolt terminals
    • Torque: 15–20 N·m on terminals
  • Functional Features:​ Matched I²t to semiconductor withstand curve, arc-quenching filler, no venting in normal break.
  • Application Scenarios:​ Propeller drive rectifiers, dynamic positioning inverters, wind/lab power electronics.
  • Installation Requirements:​ De-energize and LOTO; use calibrated torque wrench; holder rated ≥ fuse voltage/current; no mechanical stress on ceramic.
  • Usage Notes:​ Replace after any overcurrent event even if intact; never substitute non-certified fuse; infrared check connections periodically.
