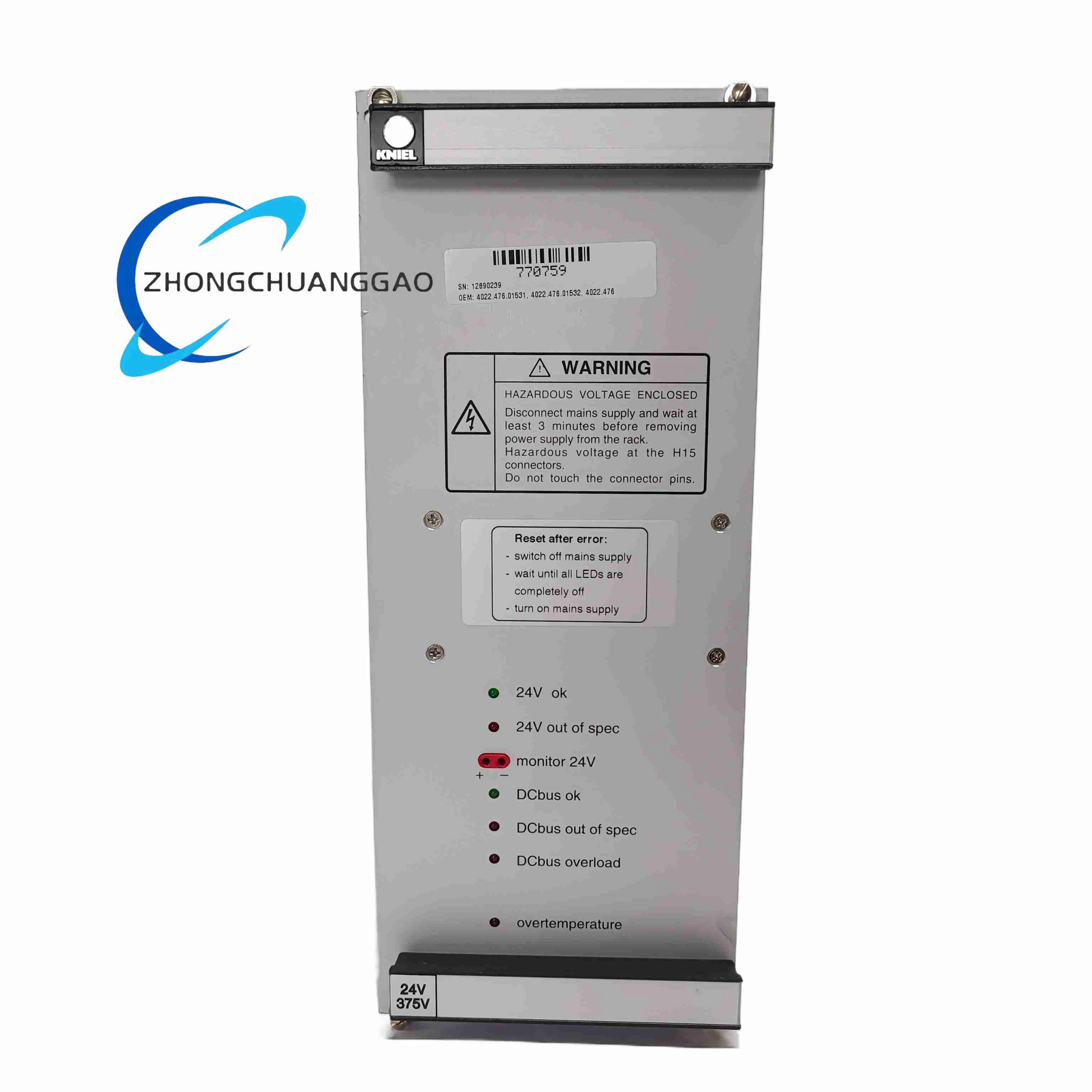

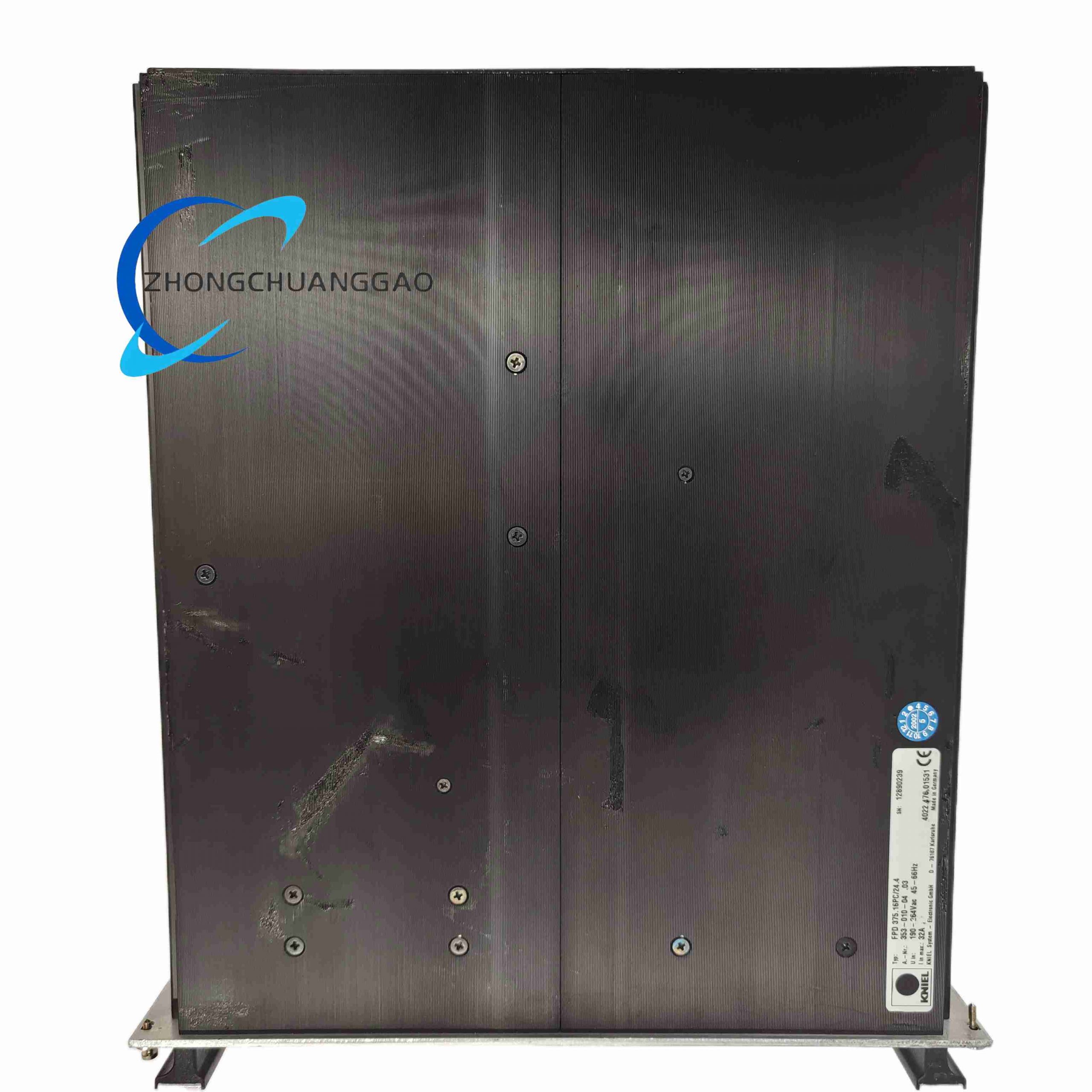

KNIEL FPD 375.16PC24.4

  • Product Name: Industrial DC/DC Power Supply Module (FPD Series)
  • Product Introduction: A high-efficiency 375 W DC/DC converter module from KNIEL (TDK-Lambda Group), delivering stabilized 24 V DC output from a 24 V DC input range, used for decoupled and clean power distribution in industrial control cabinets.
Category:
Description
  • Technical Specifications & Performance Parameters:
    • Model: FPD 375.16PC/24.4
    • Input Voltage: 24 V DC (18–32 V DC range)
    • Output Voltage: 24 V DC regulated
    • Output Current: 15.6 A (375 W rated power)
    • Efficiency: Up to ~95%
    • Ripple & Noise: < 50 mV (typical)
    • Operating Temp: -40 °C to +70 °C
    • Dimensions: ~230 × 127 × 41 mm (varies slightly by source)
    • Weight: ~0.5–0.65 kg
    • Protection: Overload, over-temperature, short-circuit
  • Functional Features: High-efficiency DC conversion with low ripple, wide ambient tolerance, parallel operation capability for redundancy, LED status indicator, galvanic isolation (depending on variant).
  • Material & Structural Characteristics: Metal housing for EMI shielding and heat dissipation, DIN-rail or chassis mount, screw terminal or busbar connections.
  • Application Scenarios: Powering sensitive PLC I/O, sensors, communication modules, robotic controllers, test equipment requiring isolated 24 V DC rails.
  • Working Principle: Switch-mode DC/DC regulation converts input DC to high-frequency AC, transforms and rectifies to regulated 24 V DC, using feedback loop to maintain voltage stability under load transients.
  • Installation Requirements: Secure on DIN rail or panel with adequate airflow; input/output fusing recommended; tighten terminals to spec torque; separate power and signal wiring.
  • Usage Precautions: Ensure input polarity correct; do not exceed 32 V DC input; derate output power at high ambient temperatures (>50 °C); avoid moisture (IP20); verify earth ground connection for EMI suppression.
