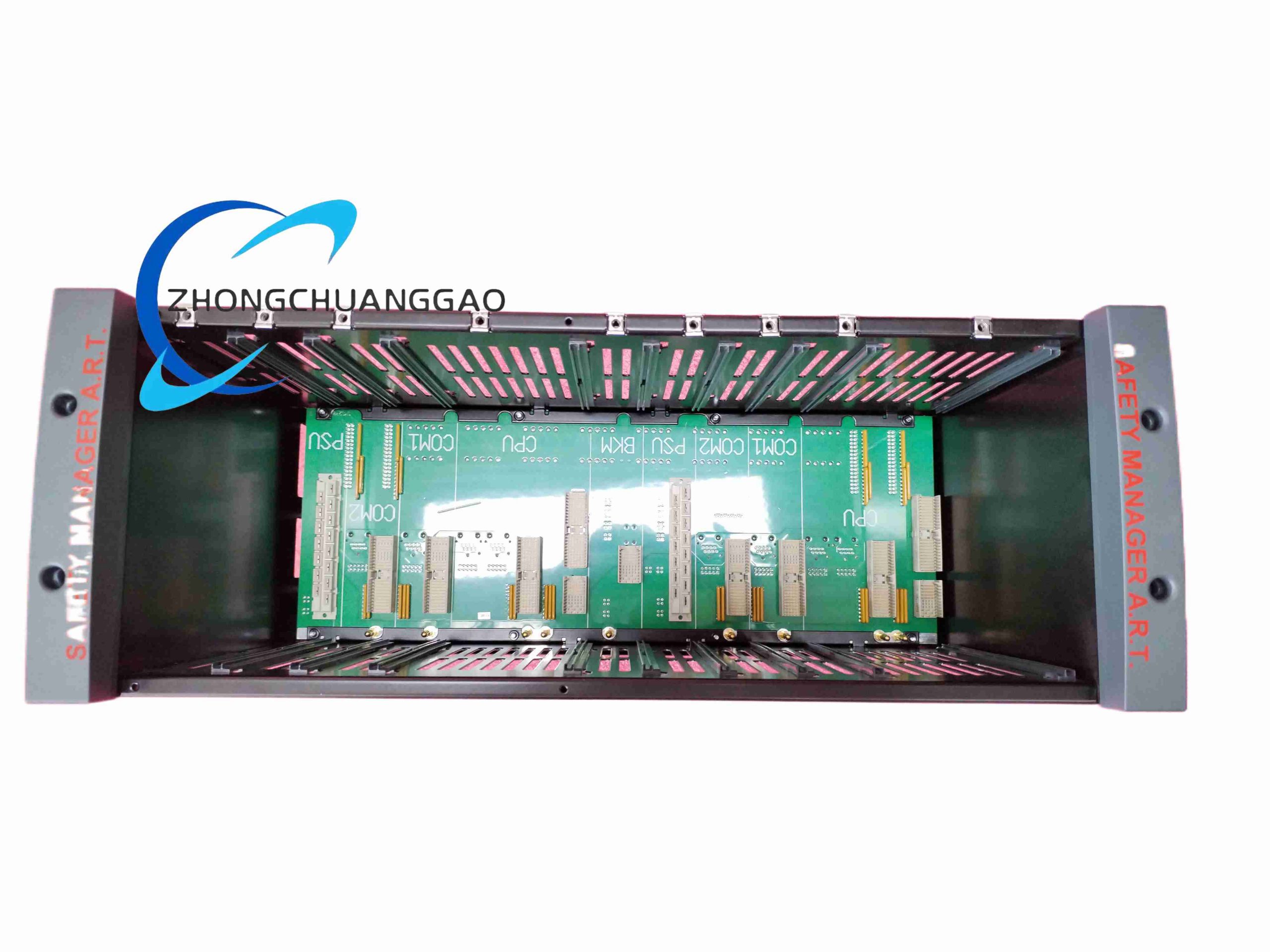

Honeywell FS-CPCHAS-0002

Product Name: Control Processor Chassis for Safety Manager
Product Introduction: A rugged 19-inch rack-mountable chassis providing the structural and electrical backplane foundation for Honeywell Safety Manager Control Processor modules, communication modules, and associated electronics.

Category: Honeywell

Description

Technical Specifications & Performance Parameters:
- Model: FS-CPCHAS-0002
- Slots: 8 module slots (processor, comm, I/O interface)
- Dimensions: 280 × 482.6 × 177 mm (H × W × D)
- Weight: 5.8 kg
- Material: Powder-coated steel with EMI shielding
- Cooling: Passive (natural convection)
- Mounting: Panel or 19″ rack mount
- Backplane: Integrated power distribution and redundant communication bus
- Grounding: Built-in ground rail system
- Ingress: IP20 (cabinet required)
- Operating Temp: 0 °C to +60 °C
- Certifications: CE, UL, CSA, TÜV (SIL environments)
Functional Features: Supports redundant processor configurations, hot-swap module insertion, organized cable management via rear horizontal bars, expanded capacity over FS-CPCHAS-0001 (5-slot).
Material & Structural Characteristics: Heavy-gauge steel construction with magnetic back cover, quarter-turn fasteners for module locking, guided rail slots for module alignment.
Application Scenarios: Central mounting point for Safety Manager CPUs in ESD, F&G, BMS, turbine protection across oil & gas, power gen, pharma, marine/offshore.
Working Principle: Backplane distributes regulated 5 V/24 V power and deterministic safety communication bus to all slotted modules; ground rail suppresses noise; mechanical guides ensure correct pin engagement.
Installation Requirements: Secure in 19″ rack or panel with 4 screws; connect cabinet ground to chassis ground stud; route 24 V supply, comm, and watchdog cables to designated rear bars; insert modules with fastener lock.
Usage Precautions: Not weatherproof—must be in enclosed cabinet; do not mix incompatible module generations without verifying backplane support; ensure fan-less convection area is not obstructed; only use Honeywell-certified modules to retain safety certification; periodic inspection of backplane connector cleanliness advised.
