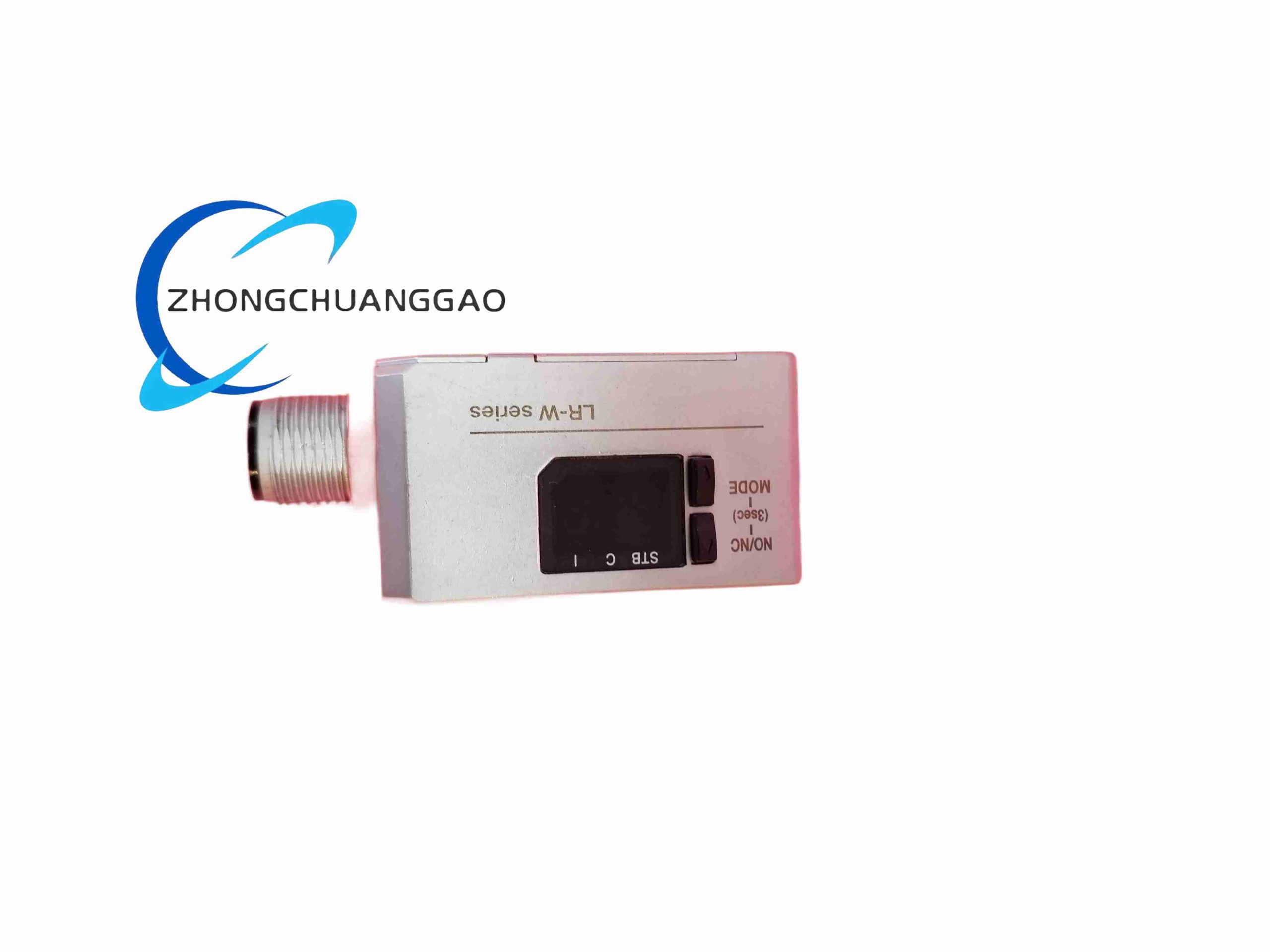

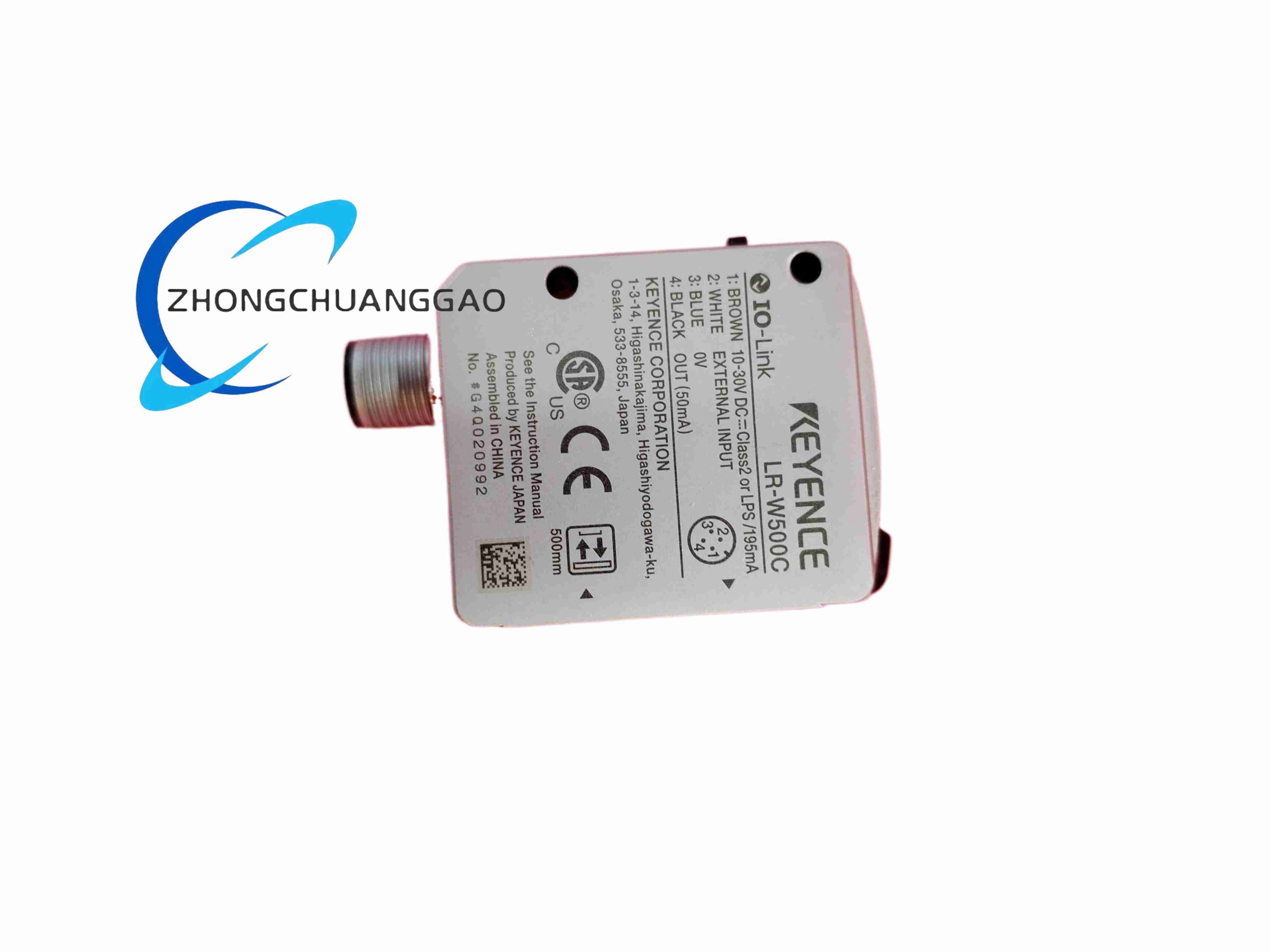

Technical Specifications & Performance Parameters:
-
Detection Range: 30 to 500 mm (1.18″ to 19.69″)
-
Light Source: White LED
-
Minimum Spot Diameter: Adjustable; approx. ø3.5 mm at 100 mm, ø9 mm at 250 mm, ø18 mm at 500 mm
-
Response Time: Selectable 200 µs / 1 ms / 10 ms / 100 ms / 500 ms
-
Power Supply: 10 to 30 V DC (including 10% ripple P-P, Class 2 or LPS)
-
Current Consumption: 65 mA max (at 24 V DC no load), 120 mA max (at 12 V DC no load)
-
Control Output: NPN or PNP open collector selectable (30 V DC max, 50 mA max, residual voltage 2 V max), N.O./N.C. selectable
-
External Input: Tuning / Light emission OFF selectable
-
Timer Functions: OFF / ON-delay / OFF-delay / One-shot
-
Mutual Interference Reduction: Up to 2 units when alternate frequencies are set
-
Protection Circuits: Power reverse connection, power surge, output overcurrent, output surge, output reverse connection
-
Enclosure Rating: IP65 / IP67 (IEC 60529)
-
Ambient Light Resistance: Incandescent lamp 10,000 lux max, Sunlight 20,000 lux max
-
Operating Temperature: -20 to +50 °C (no freezing)
-
Relative Humidity: 35 to 85% RH (no condensation)
-
Vibration/Shock Resistance: 10 to 55 Hz double amplitude 1.5 mm (2 hrs per axis) / 1,000 m/s² (6 times per axis)
-
Weight: Approx. 110 g
-
Connection: M12 4-pin connector
-
Communication: IO-Link V1.1 / COM2 (38.4 kbps) compatible
Material Composition & Structure:
-
Case: Zinc die-cast (Nickel-Chrome plating)
-
Indicator Cover: PPSU (Polyphenylsulfone)
-
Buttons: PES (Polyethersulfone)
-
Lens Cover and Display: PMMA (Acrylic, scratch-resistant coating)
-
Spot Adjustment Dial: Iron (Triiron tetraoxide coated)
-
Connector Ring: PMP (Polymethylpentene)
-
Connector Socket: PEI (Polyetherimide)
-
Cable Bushing (on cable types): PBT (Polybutylene terephthalate)
Functional Features & Working Principle:
-
Working Principle: Emits a full-spectrum white light and receives reflected light to analyze differences in spectral reflection characteristics (color, gloss, surface texture) for stable detection regardless of target properties.
-
One-Touch Calibration: Auto-tuning function automatically determines optimal detection settings for the target.
-
Adjustable Spot: Variable spot diameter allows precise focusing on small parts or wider coverage for larger objects.
-
Selectable I/O: Supports both NPN and PNP outputs in a single unit, simplifying inventory and standardization.
Application Scenarios:
-
Product differentiation based on color and surface finish variations
-
Registration mark detection on films, labels, and curved surfaces
-
Part presence detection inside molds, dies, and assembly stations
-
Detection of rounded or irregular targets on moving conveyors
-
Coating or treatment verification in quality control processes
Installation Requirements & Usage Notes:
-
Standard mounting pitch of 25.4 mm compatible with existing brackets.
-
M12 4-pin connector allows quick disconnect for easy replacement.
-
When alternate frequencies are set for mutual interference reduction, response time increases by approx. 20%.
-
Ensure power supply ripple does not exceed 10% P-P to maintain stability.
-
Avoid exposing the lens to harsh chemicals or abrasive cleaning to preserve the scratch-resistant coating.
