Technical Specifications & Performance Parameters:
-

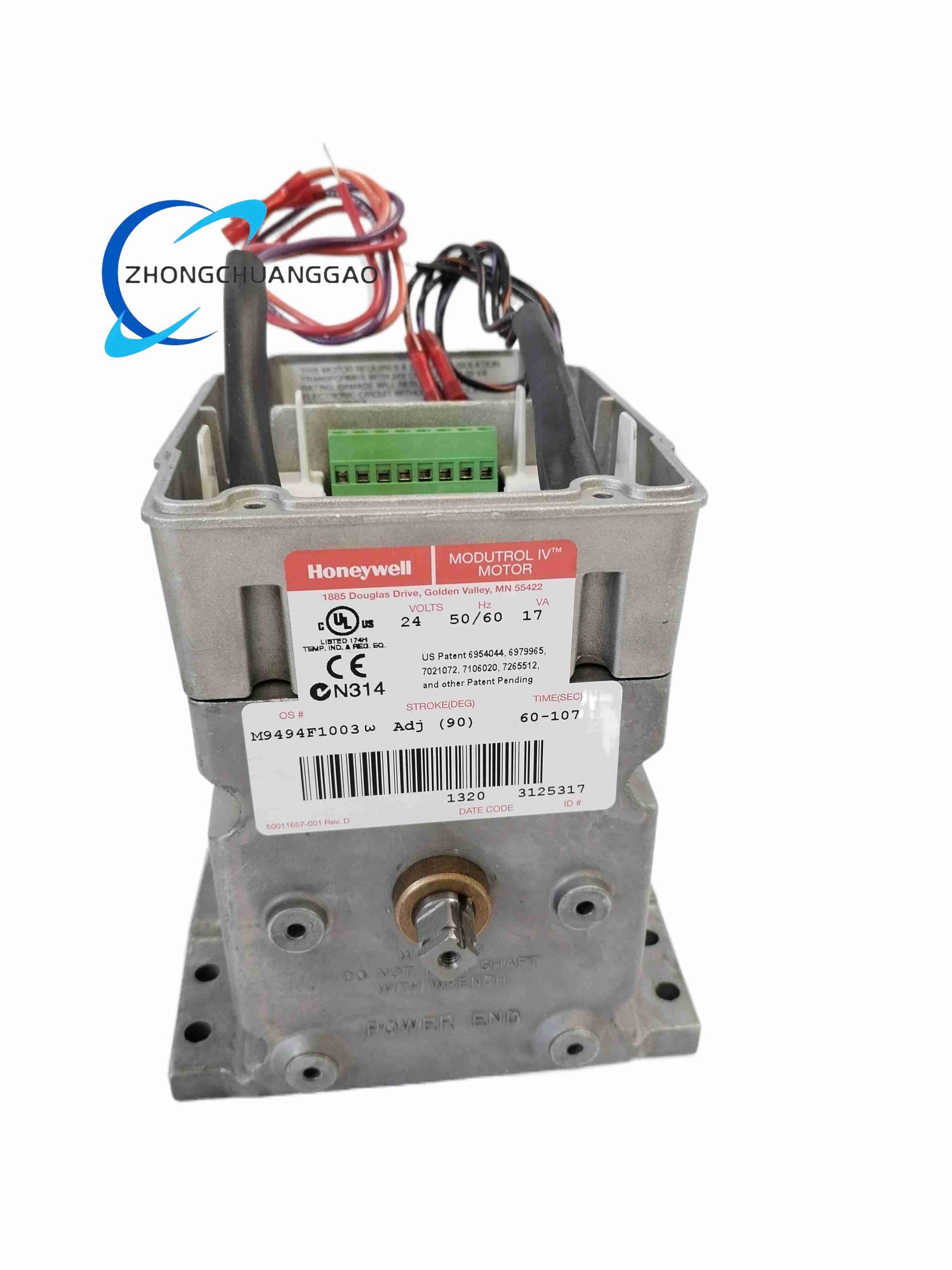

Model: M9494F1003 (Also listed as M9494F1003/U)
-
Type: Proportional Modutrol Motor (Non-Spring Return)
-
Torque Rating: 300 lb-in (34 Nm) running torque; Breakaway Torque: 600 lb-in (68.0 Nm)
-
Power Supply: 24 V AC, 50/60 Hz
-
Power Consumption: 15 W
-
Input Signal: 135 Ohm proportional (three-wire system)
-
Stroke Time: 60 seconds (90° stroke), 107 seconds (160° stroke)
-
Stroke Adjustability: Field adjustable 90° to 160° (symmetrical), factory set typically at 90° or 160°
-
Output Shaft: Double-ended, 3/8 in (9.5 mm) square
-
Auxiliary Switches: 2 integral SPST switches (configurable for cams)
-
Operating Temperature: -40 °F to +150 °F (-40 °C to +66 °C)
-
Enclosure: NEMA 1 (general purpose), Insulation Class B
-
Dimensions: 6.45 in H x 5.5 in W x 7.3 in D (164 x 140 x 185 mm)
-
Weight: 4.40 lbs (2 kg)
-
Deadweight Load on Shaft: 200 lb per end (300 lb combined)
Material Composition & Structure:
-
Housing: Die-cast metal or molded composite (NEMA 1 rated)
-
Gear Train: High-strength engineered plastic/metal hybrid gears with lubrication
-
Shaft: Steel, square profile
-
Electronics: Vibration-resistant drive circuit potted or secured against industrial vibration
-
Switch Cams: Adjustable plastic cams on shaft for auxiliary switch actuation
Functional Features & Working Principle:
-
Working Principle: Receives a varying resistance (135 ohm) or voltage signal from a controller; an internal feedback potentiometer compares commanded position vs actual shaft position, driving the motor forward/reverse via the AC synchronous motor and gear train until positions match.
-
Precision Firing Control: Proportional response ensures smooth modulation of fuel/air valves to maintain combustion efficiency and reduce emissions.
-
Vibration-Resistant Electronics: Designed to withstand pump/fan vibrations in boiler rooms without premature failure.
-
Field Adjustable Stroke: Mechanical stops and cams allow customization of rotation range to match valve/damper travel requirements.
-
High Breakaway Torque: Overcomes static friction from stiff valves or debris accumulation during startup.
Application Scenarios:
-
Commercial/industrial gas or oil burner firing rate control
-
HVAC damper modulation in air handling units
-
Boiler systems (hot water, steam) requiring modulated fuel input
-
Incinerators and thermal oxidizers
-
Any application requiring proportional modulation of a mechanical linkage up to 300 lb-in torque
Installation Requirements & Usage Notes:
-
Mount in any orientation but avoid excessive heat directly on the motor housing; keep away from open flame impingement.
-
Shaft must be coupled to the valve/damper with a flexible linkage or direct coupling that does not impose side loads exceeding specs.
-
Adjust auxiliary switches before final installation to ensure they trip at correct positions (e.g., low fire cutoff, high fire alarm).
-
Verify 24 V AC supply is derived from a suitable transformer; do not share heavily inductive loads on same circuit without isolation.
-
During initial power-up, test manual override (if available) or observe stroke to ensure it does not hit mechanical limits of the driven device.
-
Periodically inspect for looseness due to vibration; high breakaway torque can mask a seized linkage until failure occurs.
