HIMA F3503SILWORX

Product Name: HIMatrix F35 Compact Safety Controller (SILworX Variant)
Product Introduction: Compact metal-cased safety controller with integrated I/O, programmed via SILworX, intended for small to medium safety applications requiring SIL 3 / SIL 4.

Category: HIMA

Description

Technical Specifications:
- Digital Inputs: 24 channels
- Digital Outputs: 8 channels
- Analog Inputs: 8 channels (4–20 mA)
- Counter Channels: 2 (up to 100 kHz)
- Supply Voltage: 24 V DC
- Operating Temperature: -25°C to +70°C
- Protection: IP20, suitable for Ex-zone 2
- Weight: Approx. 1.2 kg
Functional Features: Multitasking capability; sequence of events (SOE) recording; built-in Ethernet ports; fail-safe output on power loss; configurable thresholds for analog/digital.
Performance Parameters: SIL 3 (IEC 61508, IEC 61511, IEC 62061), SIL 4 (EN 50126/128/129); Cat. 4 / PL e (EN ISO 13849-1).

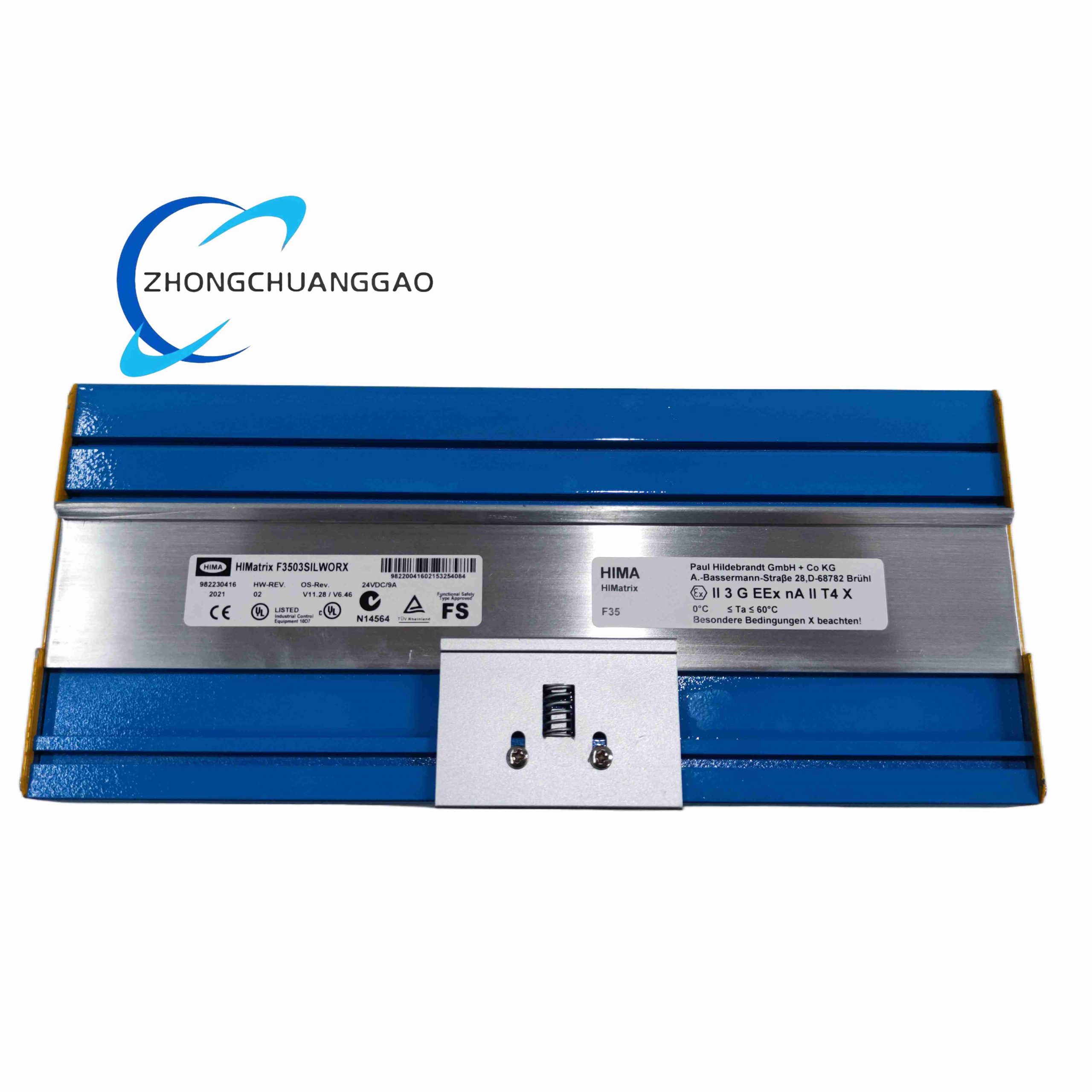

Material Composition: Metal housing; PCB with conformal coating; screw-terminal blocks.

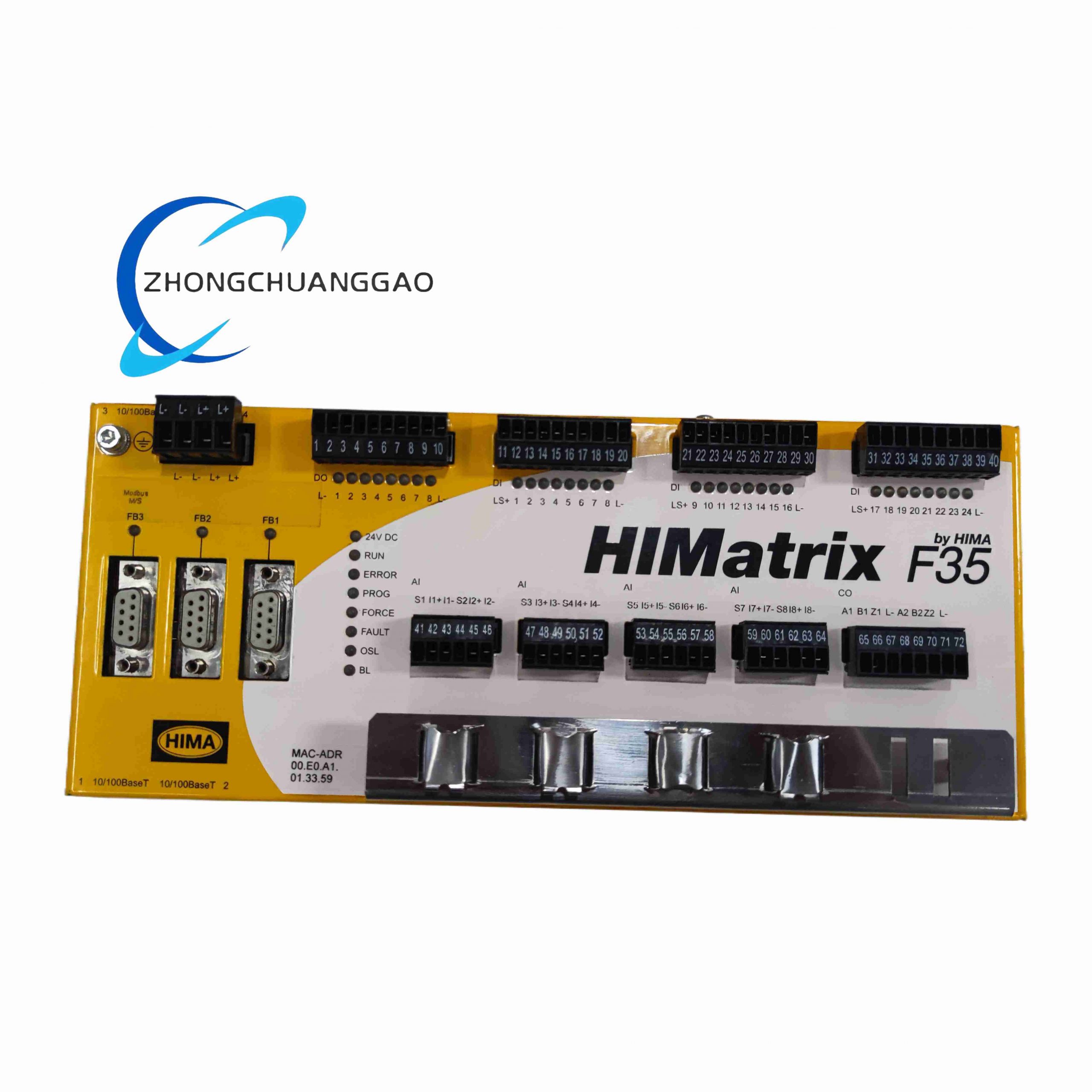

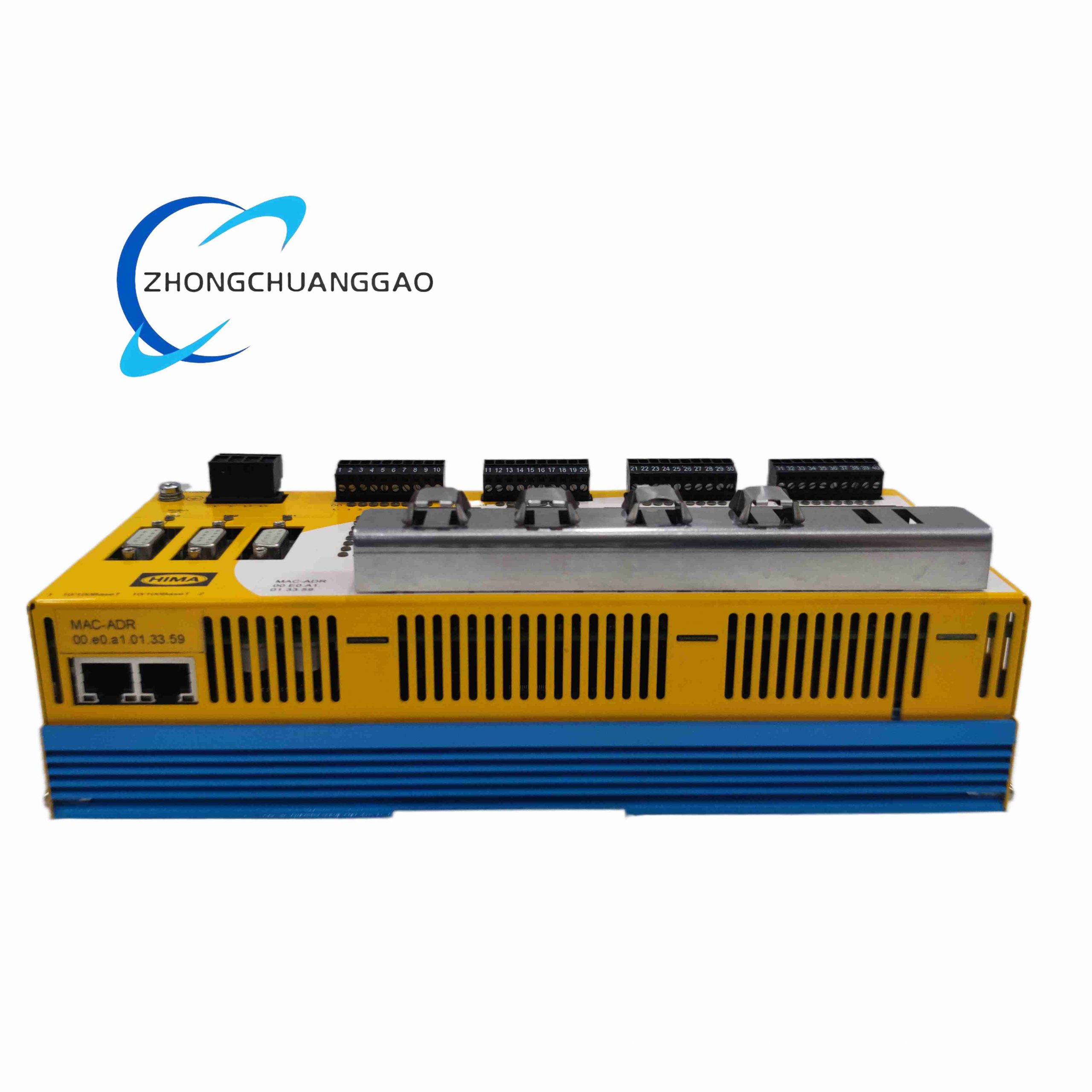

Structural Features: Compact standalone unit; front LEDs for I/O and system status; D-sub or spring-clamp terminals; Ethernet RJ45 ports.
Working Principle: Dual or diversified processors execute safety logic in lockstep; results compared cyclically; mismatch forces outputs to safe state; inputs measured as analog values then thresholded to BOOL.
Advantage Highlights: All-in-one controller+I/O reduces cabinet space; supports SafeEthernet; high-speed counters; TÜV certified for railway and process safety.
Applicable Industries: Railway Signaling, Machine Safety, Packaging Machinery, Small Process Skids.
Model Series: HIMA HIMatrix F35 Series.
Installation Requirements: Mount on 35 mm DIN rail or screw-fixed panel; ensure 24 V DC supply filtered and fused; provide clearance for ventilation; connect Ethernet via industrial-grade shielded cabling.
Usage Precautions: Digital outputs load-limited (0.5 A continuous, some 1 A / 2 A at ≤50°C); overload causes auto-shutdown—clear fault before restart; ensure SILworX project version matches firmware; do not mix Ex and non-Ex wiring in same terminal compartment without barrier.
