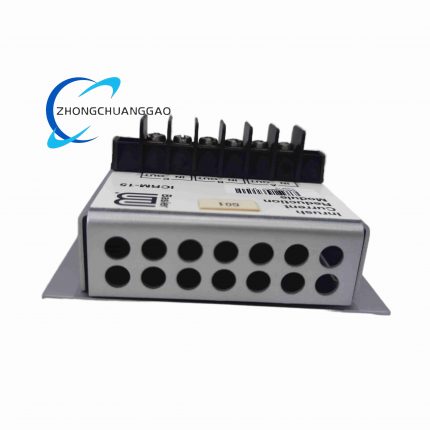

BASLER ELECTRIC ICRM-15
BASLER ELECTRIC ICRM-15
Back to products
Cisco IE-2000-8TC-G-B
Cisco IE-2000-8TC-G-B

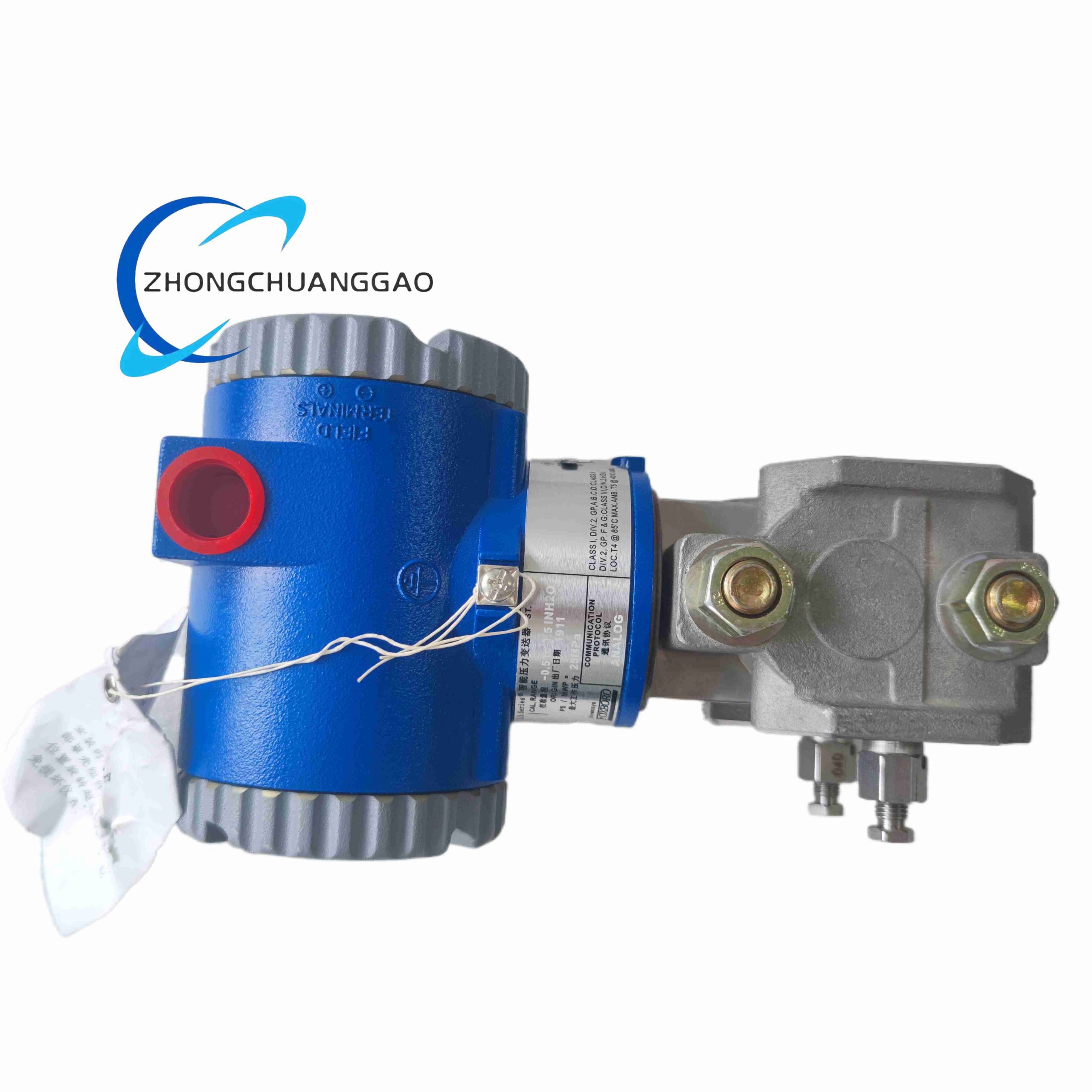

Foxboro IDP10-A22A01F-M1

Product Name: IDP10 Series Differential Pressure Transmitter (Smart)
Product Introduction: The Foxboro IDP10-A22A01F-M1​ is a high-accuracy differential pressure transmitter​ utilizing MEMS silicon resonant sensor technology​ for measuring liquid, gas, or steam pressure differences. It converts measurements to standard 4–20 mA/HART signals for process control.
Category:
Description
Technical Specifications:
  • Accuracy: ±0.075% FS
  • Range: 0–100 bar (model dependent)
  • Long-term Stability: ≤±0.1% / 5 years
  • Media Temperature: -40 °C to +125 °C (standard), up to +150 °C (option)
  • Ambient Temperature: -40 °C to +85 °C
  • Communication: HART 7 protocol, max 1500 m shielded twisted pair
  • Power Consumption: <3.5 mA @ 24 VDC
  • Overload Capacity: 200% rated pressure
  • Protection: IP67, ATEX/IECEx Ex d IIC T6
    Material Composition:
  • Wetted Parts: 316L stainless steel or Hastelloy C-276 diaphragm
  • Housing: Aluminum with anti-corrosion coating
  • Process Connection: 1/2 NPT or M20×1.5 thread / flange
    Function Features:
  • Dual-chamber explosion-proof structure
  • Zero calibration​ via HART handheld or control system
  • EMI grade IEC 61326 Class 3
    Applications: Refinery catalytic cracking pressure, LNG tank safety interlock, boiler feedwater control, pharmaceutical cleanroom air monitoring, pipeline SCADA nodes.
