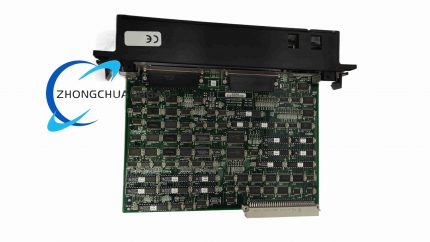

GE IC697RCM711
GE IC697RCM711
Back to products
Foxboro IDP10-A22A01F-M1
Foxboro IDP10-A22A01F-M1

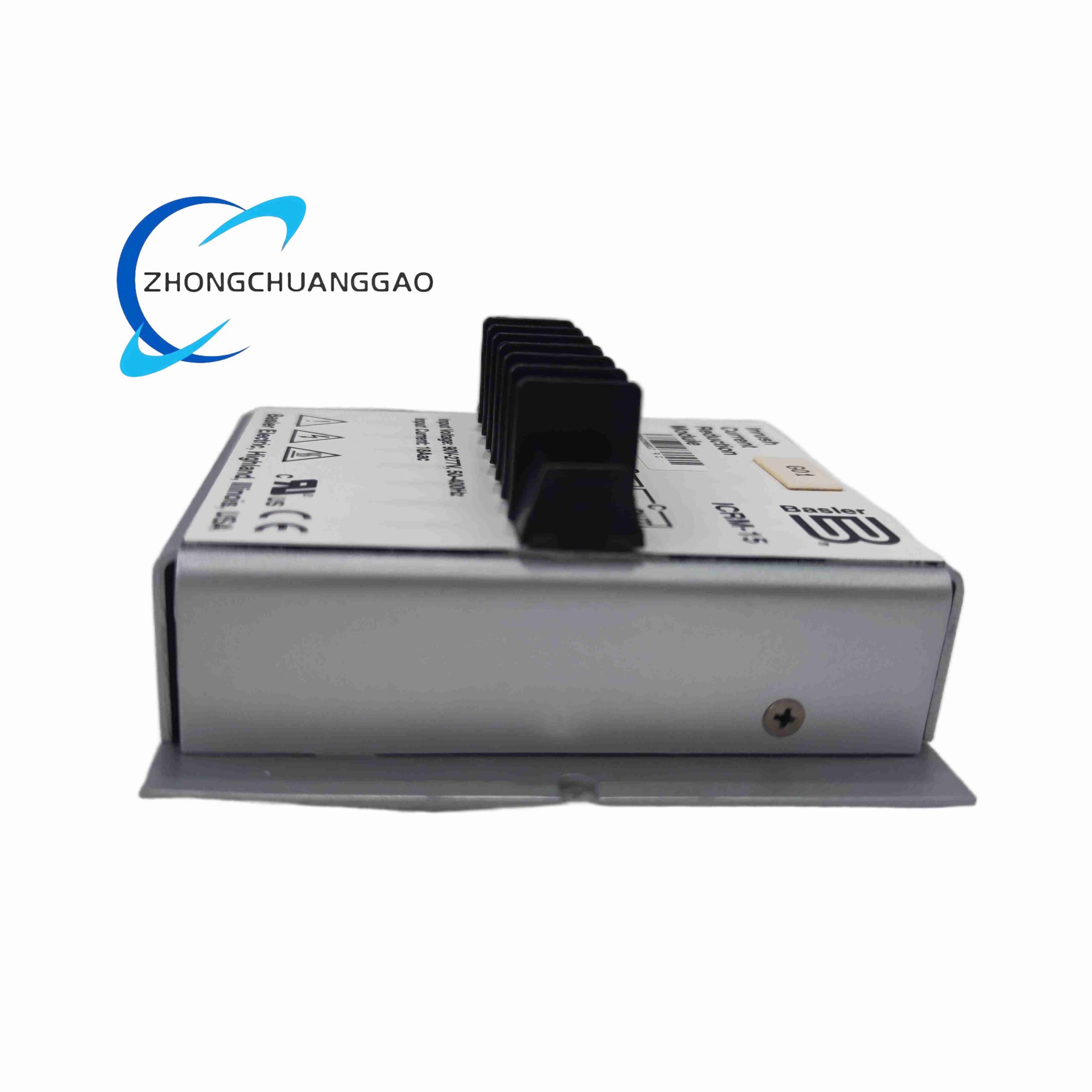

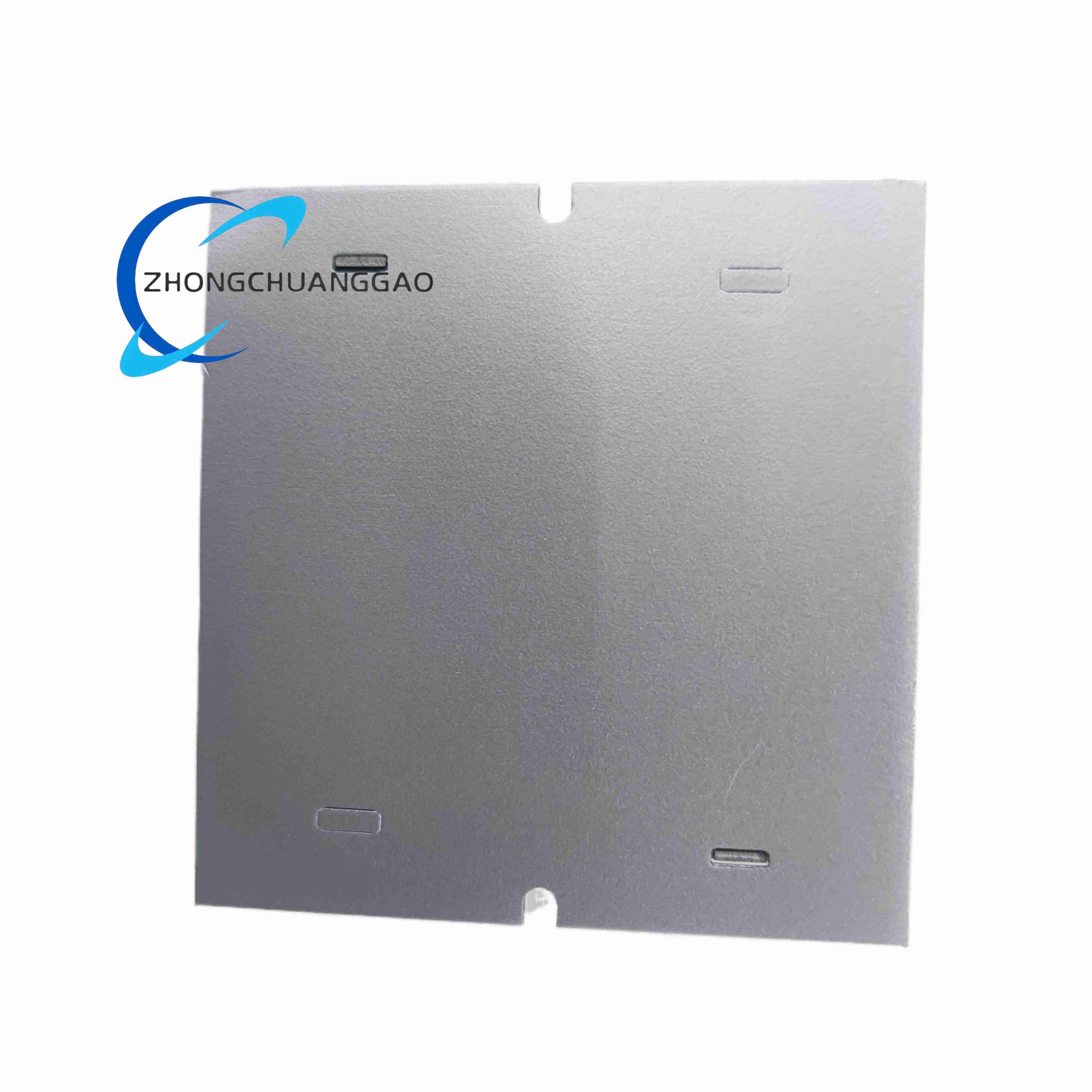

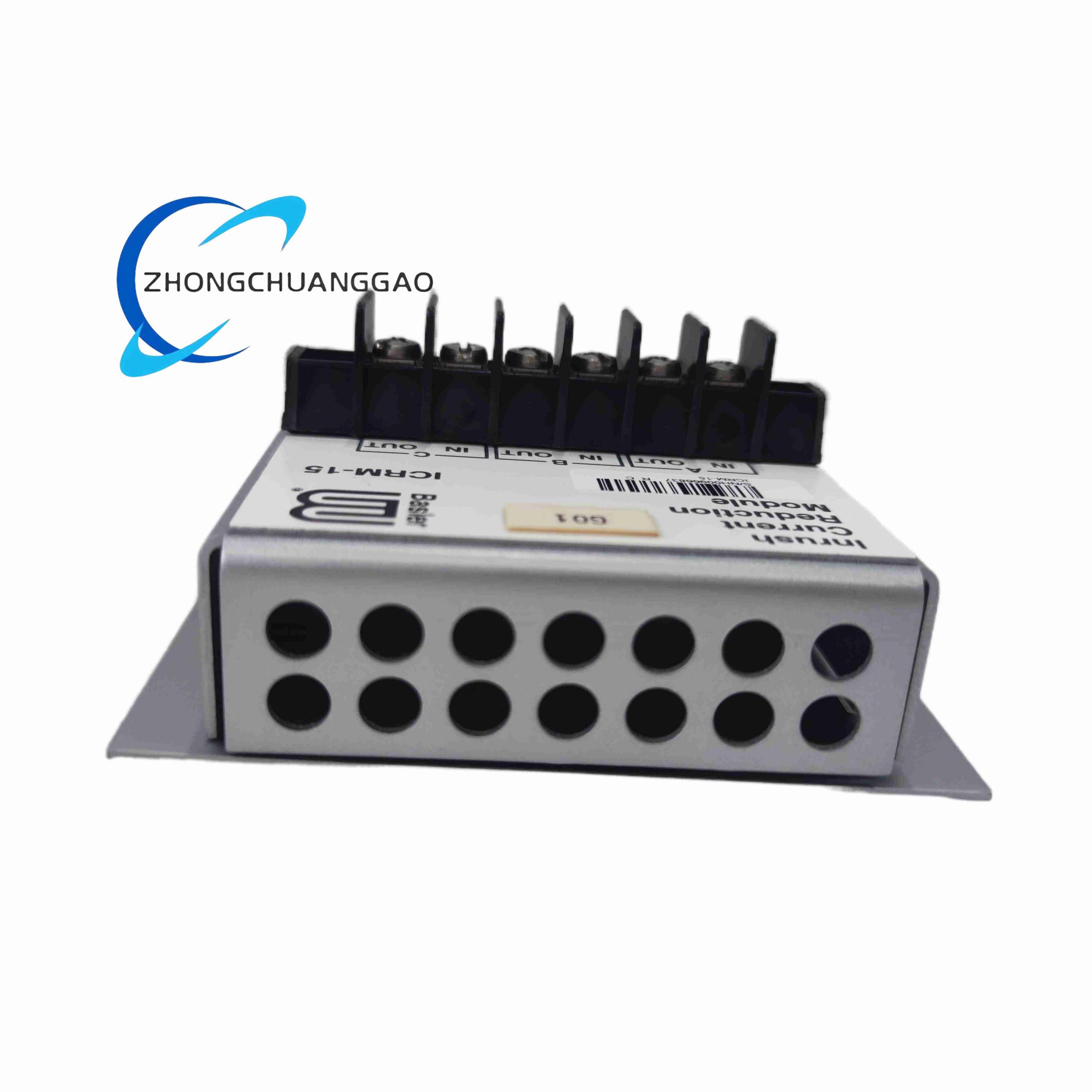

BASLER ELECTRIC ICRM-15

Product Name: Inrush Current Reduction Module (ICRM)
Product Introduction: The BASLER ICRM-15​ is an inline protection module designed to suppress high surge currents during startup of PWM voltage regulators​ (such as Basler DECS series) when powered by independent sources rather than a PMG (Permanent Magnet Generator). It protects solid-state regulator components from inrush damage.
Category:
Description
Technical Specifications:
  • Input Voltage: 90 VAC – 277 VAC, 50–400 Hz
  • Input Current: 18 A AC (max)
  • Output Terminals: A-OUT, B-OUT, C-OUT (three-phase capable)
  • Input Terminals: IN-A, IN-B, IN-C
  • Mounting: DIN rail snap-on or panel mount
  • Dimensions: Approx. 3.88″ H × 4.13″ W × 2.00″ D (98.4 × 104.8 × 50.8 mm)
    Function Features:
  • Reduces inrush current to safe levels for regulator longevity
  • Compatible with single-phase and three-phase operating power (non-phase sensitive)
  • Pairs with DECS-100, DECS-150, DECS-200, DECS-250, AVC63, AVC125 regulators
    Installation Requirements:
  • Mount vertically with ventilation holes at top/bottom for maximum cooling
  • Series connection between independent power source and PWM regulator input
  • Torque terminal screws to specification; use crimped ferrules
  • Case may become hot during operation
    Applications: Generator excitation systems, hydroelectric plant voltage regulation, industrial generator sets with independent excitation supplies.
