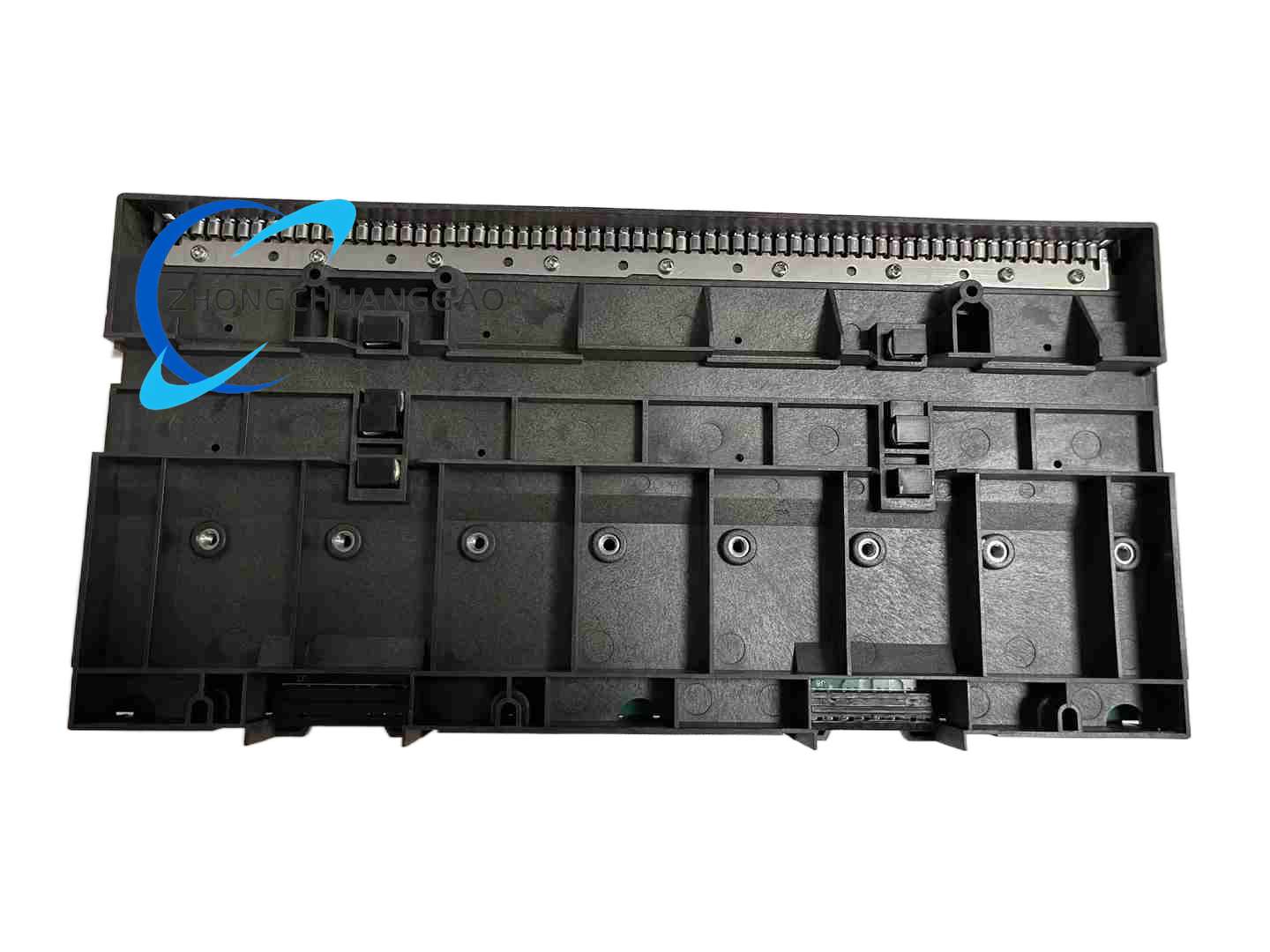

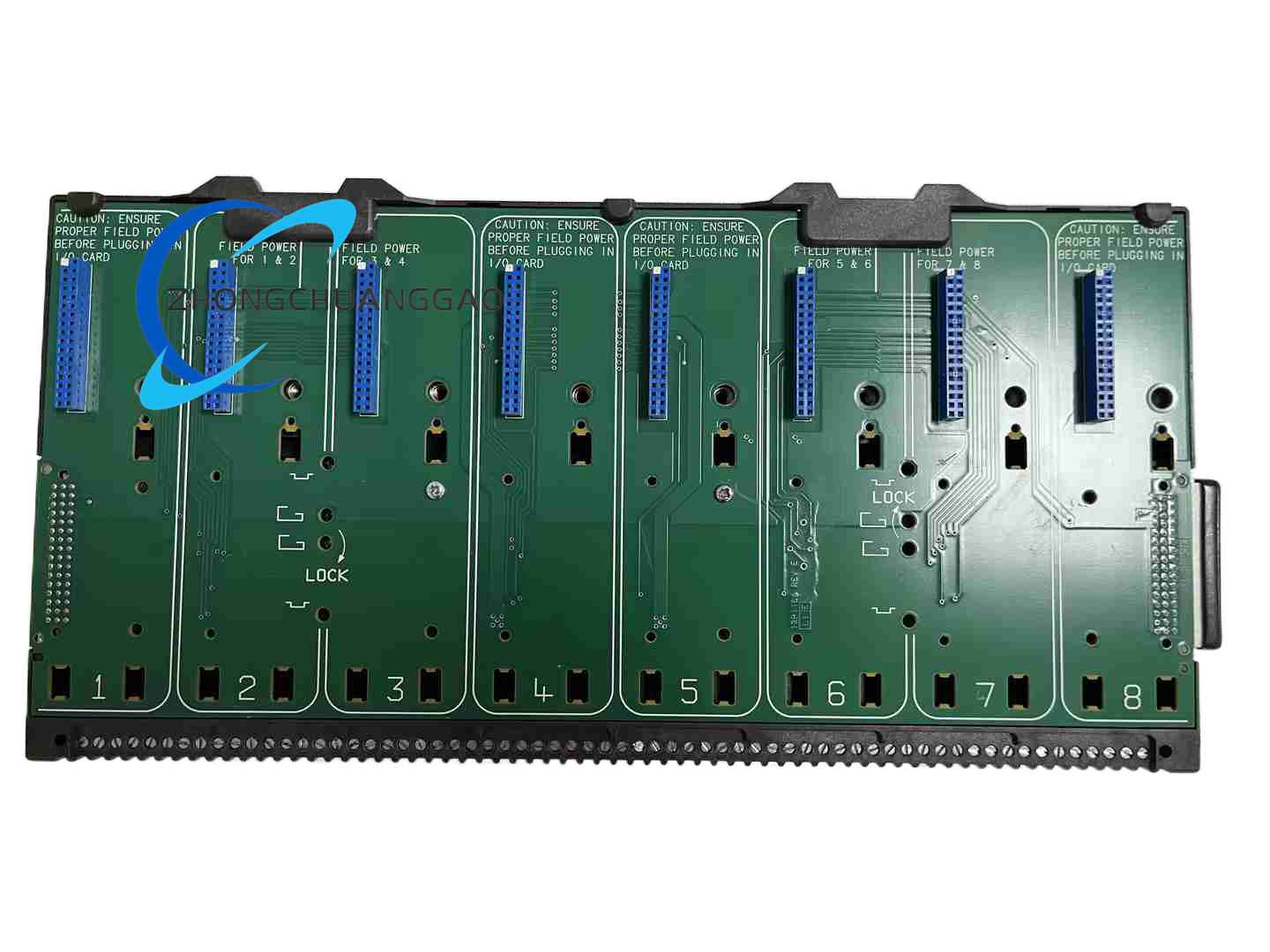

Emerson KJ4001X1-BE1

  • Product Name: DeltaV 8-Wide I/O Carrier with Shield Bar
  • Product Introduction: An 8-slot wide carrier platform used to mount DeltaV I/O modules, providing LocalBus communication, power distribution, and EMC shielding for dense I/O configurations.
Category:
Description
  • Technical Specifications:
    • Model Alias: 12P0818X072, VE4050E1C0
    • Capacity: 8 standard width DeltaV I/O modules
    • LocalBus Power: 12.6 VDC to 30 VDC, max 8 A
    • Field Power: 250 VDC max, 6.5 A max
    • Dimensions: 347 mm x 170 mm x 33 mm
    • Weight: Approx. 0.72 kg
    • Temp: -40°C to +70°C
    • Certifications: ATEX, IECEx, FM, CSA, Class I Div 2, Zone 2
  • Functional Features: Integrated shield bar for EMI reduction, hot-swap support for modules (with system awareness), module-to-module isolation.
  • Application Scenarios: High-density I/O cabinets in large-scale DCS projects such as refineries, power generation, and pulp & paper mills.
  • Material & Structure: Aluminum backplane with printed circuit tracks, plastic guide rails, and removable shielding strip.
  • Working Principle: Distributes regulated LocalBus power and data signals to plugged I/O modules while isolating field-side power domains.
  • Installation Requirements: Mount on standard DIN rail; de-energize bussed field power before removing carriers; interconnect cables must be in conduit between enclosures.
  • Usage Notes: Cannot be removed with power energized; ensure shield bar is properly grounded; discontinued status check recommended for new designs.
