Eaton MTL5544

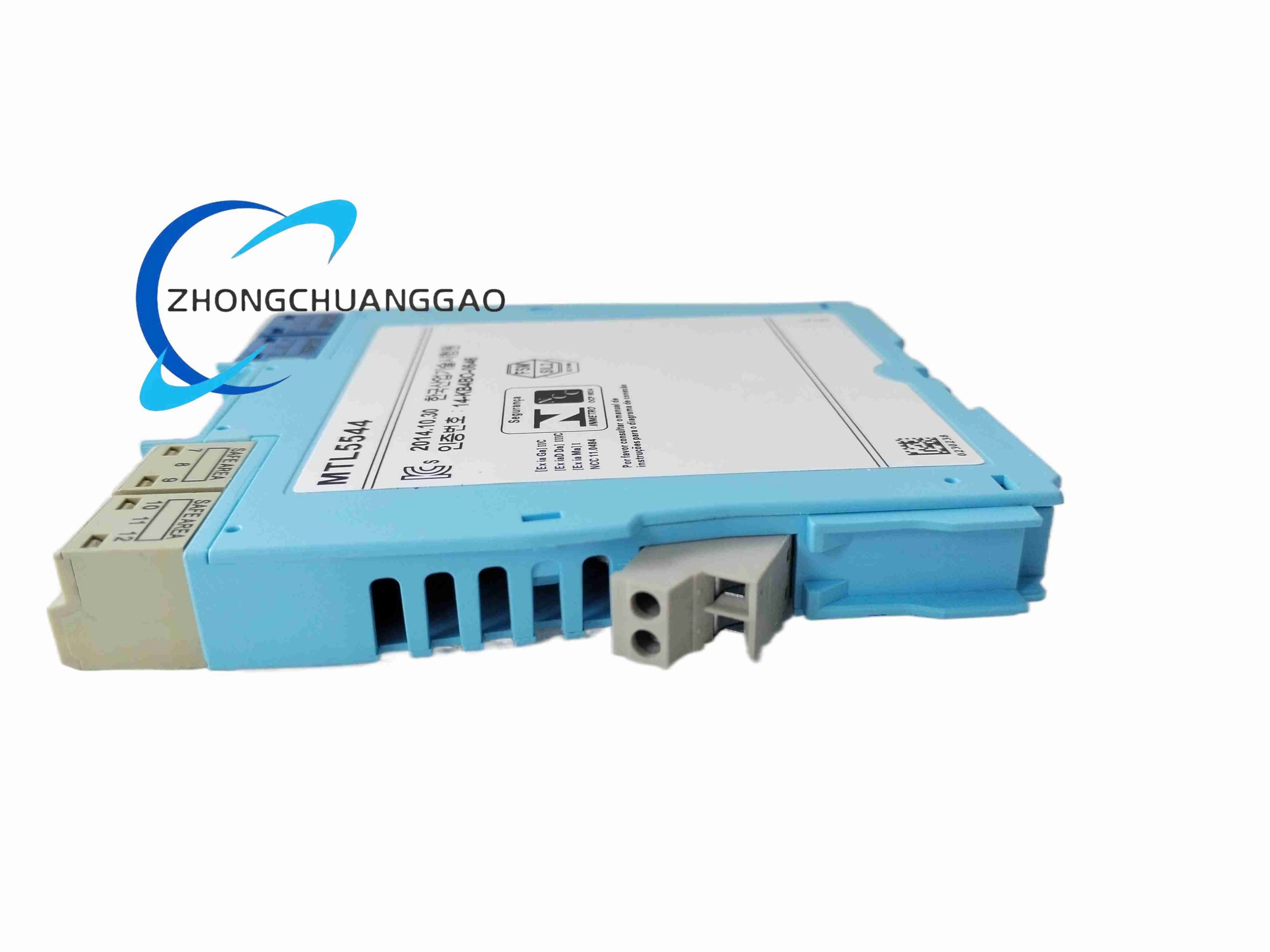

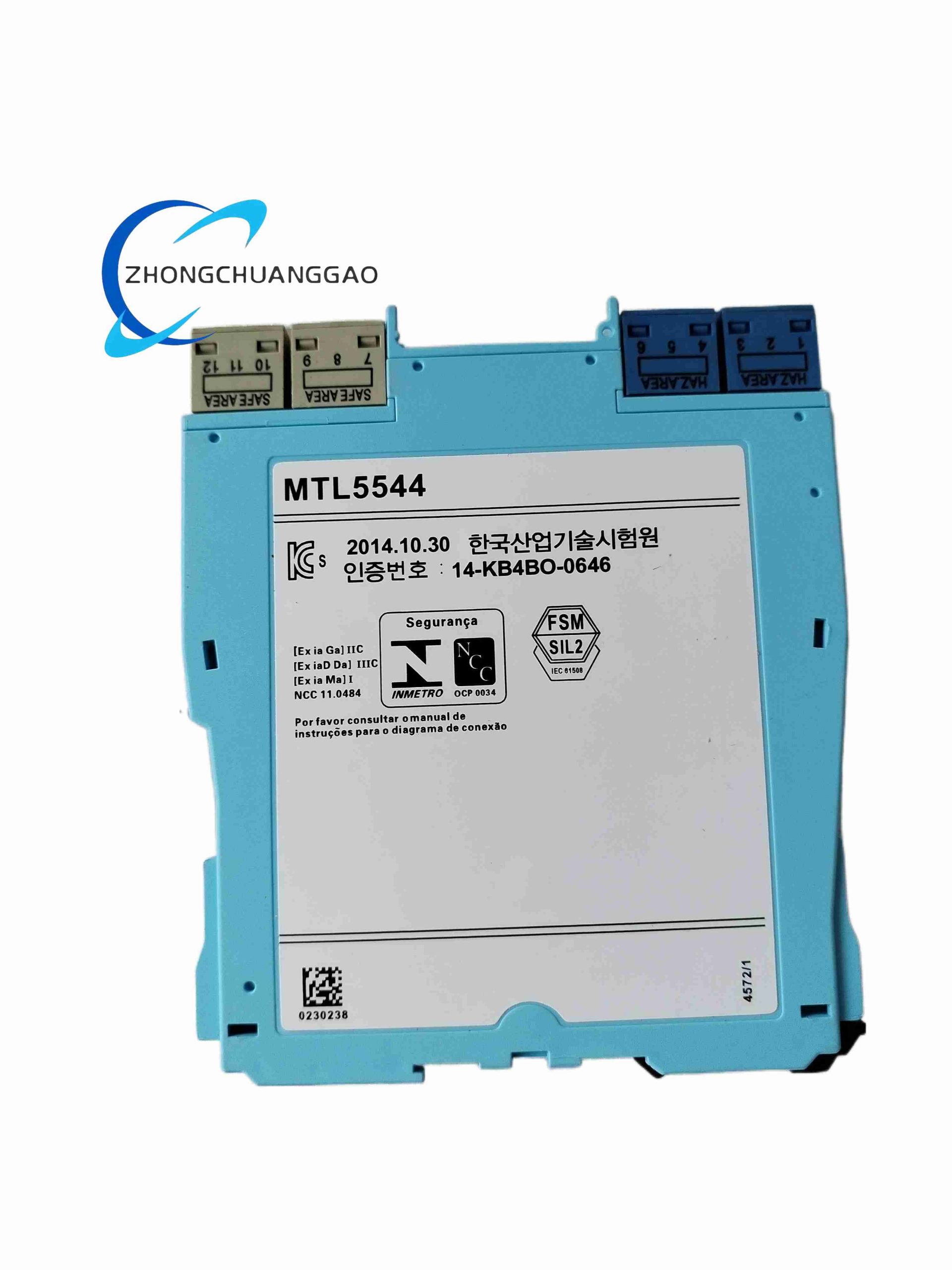

Product Name:​ MTL5544 Dual Channel 2/3 Wire Transmitter Repeater (Analog Input Isolator)
Product Introduction:​
The MTL5544 (MTL5500 DIN rail series counterpart to MTL4544) is a dual-channel isolator that repeats 4–20 mA signals from hazardous-area 2-wire or 3-wire transmitters to safe-area control systems, supplying loop power to the field transmitter.
Category:
Description
Technical Specifications:​
  • Channels:​ 2 independent channels
  • Input:​ 4–20 mA from Ex-area transmitter (active input, powered by barrier)
  • Output:​ 4–20 mA into safe-area load (typically ≤ 500 Ω)
  • Loop Supply:​ ~24 VDC nominal to field (limited for IS)
  • Isolation:​ Input/Output/Power
  • Accuracy:​ Typically ±0.1% of span or better
  • HART:​ Transparent to HART signals
  • Mounting:​ 35 mm DIN rail (IP20)
  • Certification:​ Zone 0, IIC, T4 ATEX/IECEx
Functional Features:​
  • Eliminates ground loops between field and control room
  • Supports SIL 2/SIL 3 system integration (per IEC 61508)
Applications:​
  • Pressure/temperature transmitter loop isolation
  • Tank gauging systems in hazardous terminals
  • Any 4–20 mA IS transmitter interface requiring duplication or isolation
