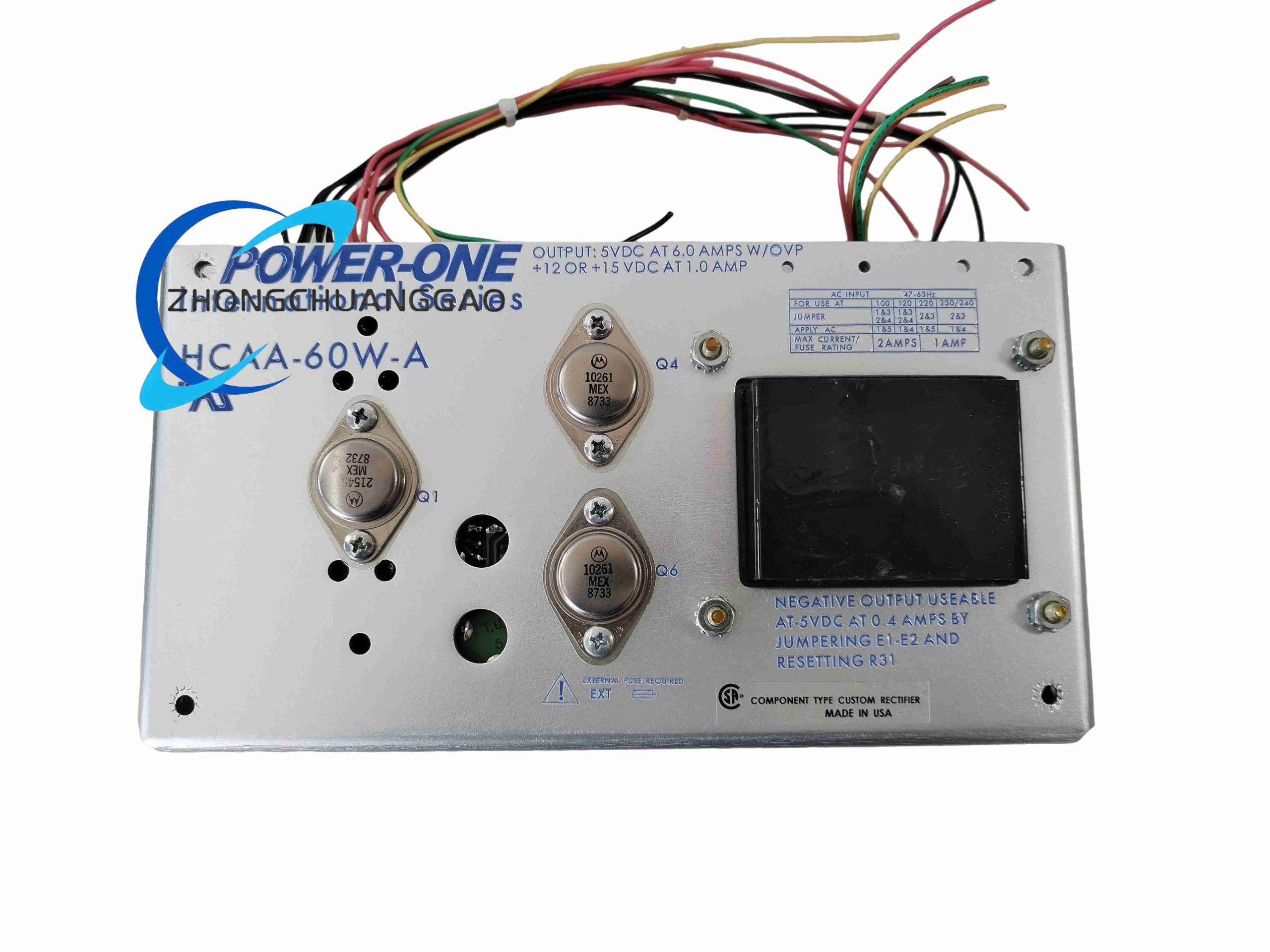

CONDOR HCAA60W-A - Image 1
Click to enlarge
Heuft HBE010200
Heuft HBE010200
Back to products
Honeywell HCIX15-TE-FA-NC
Honeywell HCIX15-TE-FA-NC

CONDOR HCAA60W-A

Product Introduction:​
A triple-output linear DC power supply designed for low-noise, high-stability voltage delivery to sensitive industrial, commercial, and test equipment. Now largely discontinued but still in service.
Category:
Description
Technical Specifications:
  • Inputs:​ 100/120/220/240 V AC ±10–15%, 47–63 Hz
  • Outputs:
    • +5 V DC @ 6 A
    • +12 to +15 V DC @ 1 A (adjustable ±5%)
    • -12 to -15 V DC @ 1 A (adjustable ±5%)
  • Total Power:​ ~54–60 W
  • Regulation:​ Line ±0.05%, Load ±0.05%
  • Ripple:​ <5 mV p-p (low voltage), <0.02% (higher voltage)
  • Transient Response:​ <50 μs for 50% load step
  • Efficiency:​ ~45% (5 V), ~55% (12/15 V)
  • Temperature:​ 0 °C to +50 °C full rated, derated to 40% at 70 °C
  • Protection:​ Short-circuit current limit/foldback, OVP on 5 V
  • Mounting:​ Chassis mount
  • Size:​ 228.6 × 124.0 × 69.9 mm
  • Certifications:​ CE, cURus, TUV
Functional Features:
  • Low EMI linear regulation (no high-frequency switching noise)
  • Remote sense capability (on ≥3 A outputs)
  • Open sense-lead protection
Application Scenarios:
  • Industrial automation controllers
  • Test & measurement instruments
  • Medical electronics, communication racks requiring clean rails
Structure & Material:
  • Heavy-gauge steel chassis with finned aluminum heatsinks
  • Internal toroidal transformer, discrete pass transistors, filter capacitors
Working Principle:​
Steps down AC via transformer, rectifies to DC, then regulates via series pass elements with feedback amplification to maintain tight voltage stability under varying load.
Installation Requirements:
  • Allow minimum 50 mm clearance around heatsinks for convection
  • Secure chassis ground to system earth
  • Fuse AC input appropriately
Usage Precautions:
  • Observe polarity on adjustable outputs before connecting load
  • Derating mandatory above 50 °C ambient
  • Replacement with switching supply requires verifying noise immunity of downstream devices
