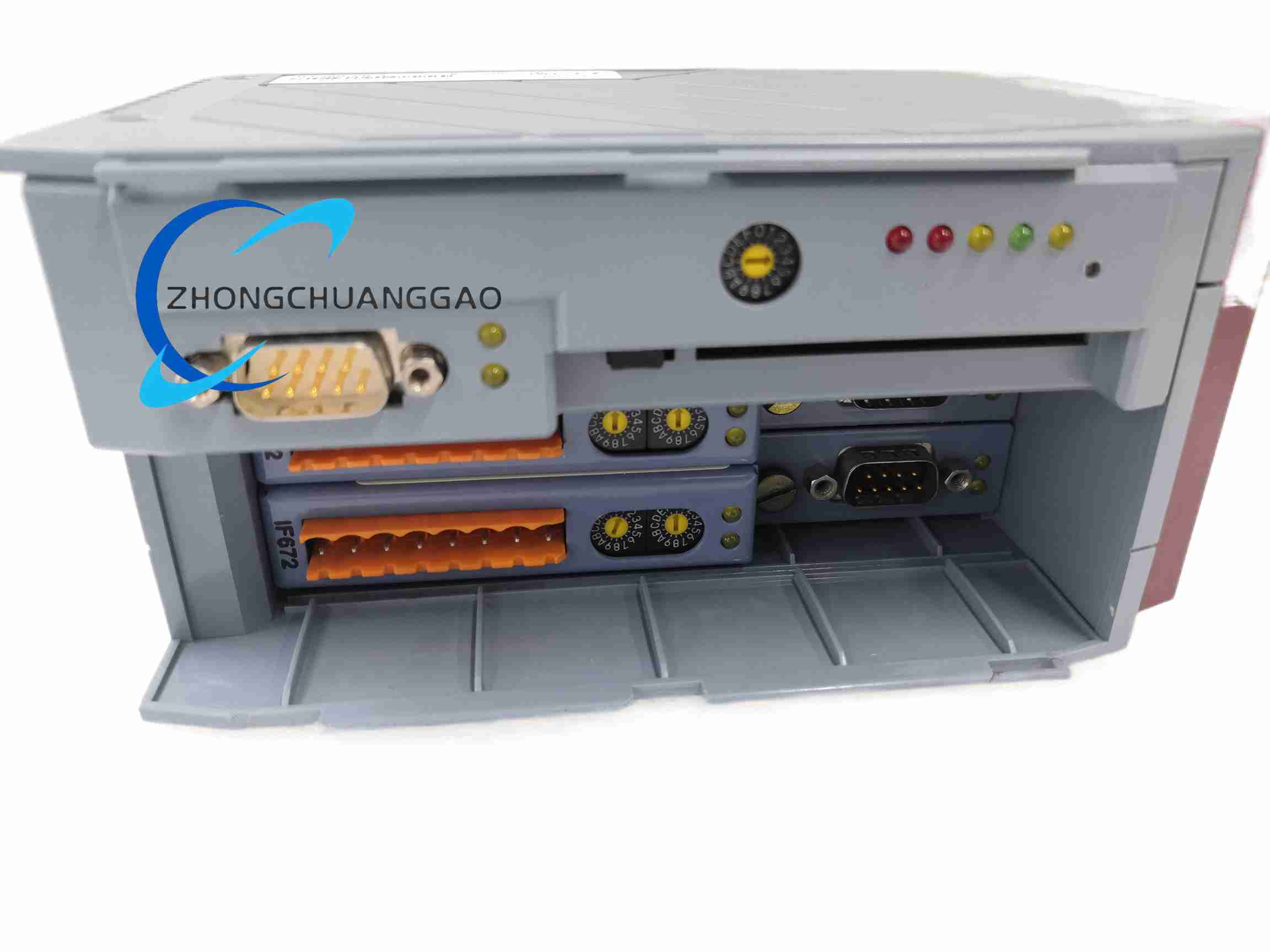

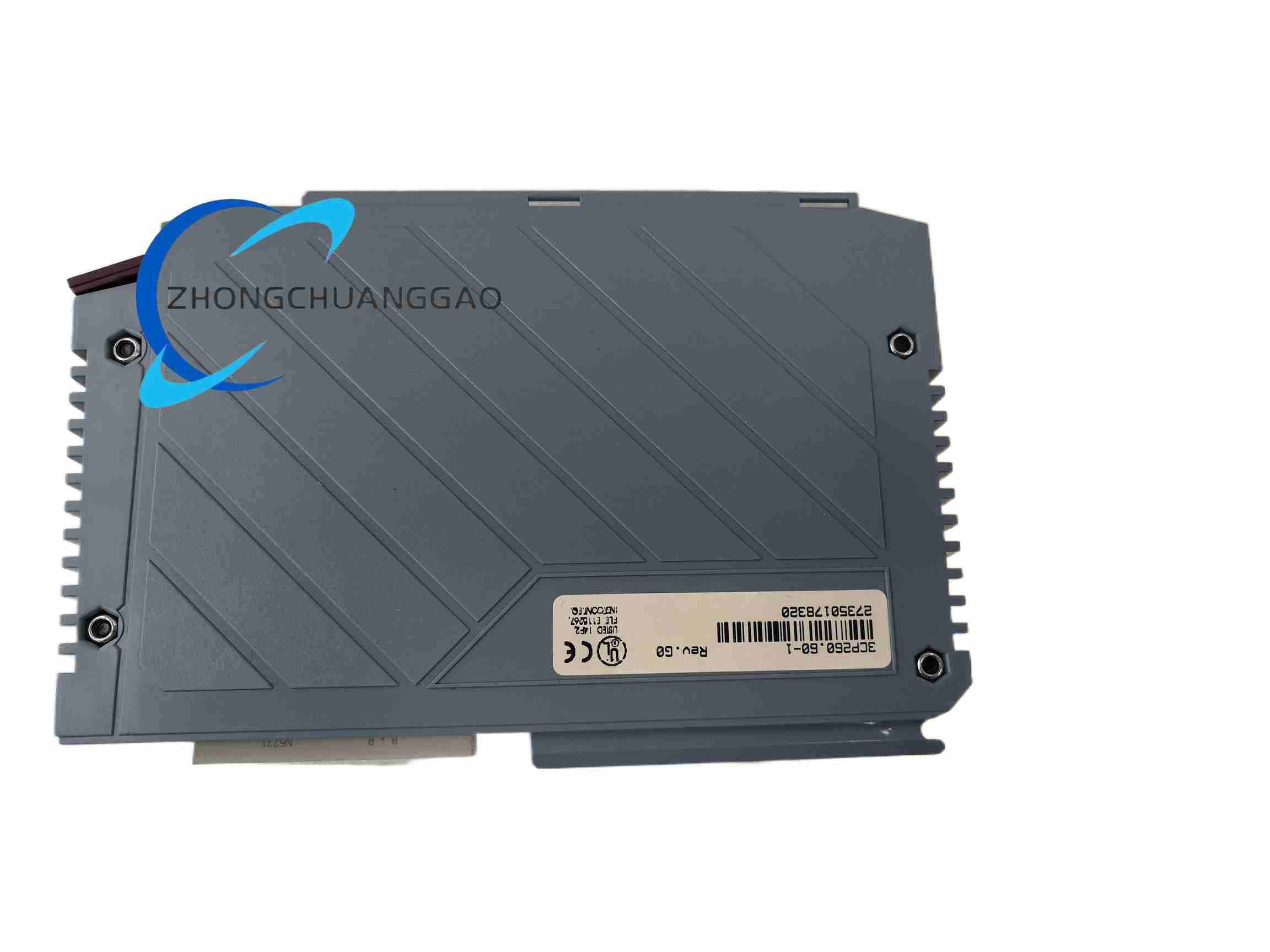

B&R 3CP260

Technical Specifications:

• Manufacturer: B&R Automation
• Part Number: 3CP260
• Series: System 2005 Controller
• DRAM: 4 MB
• SRAM: 850 KB
• FlashPROM: 512 KB non‑volatile program‑memory
• Expansion Slot: 2 internal insert‑slots, 1 PCMCIA expansion‑slot
• Built‑in Interface: RS232 serial communication port
• Power Supply: Supplied by 3BP‑series back‑plane rack
• Power Consumption: 2.3 W ~ 8 W
• Operating Temperature: ‑20 °C ~ +60 °C
• Storage Temperature: ‑40 °C ~ +85 °C
• Protection Class: IP20
• Mounting: Insert into B&R 3BP‑series back‑plane rack slot
• Weight: 300 g

Functional Features:

• Real‑time multi‑task Automation Runtime operating‑system
• Support IEC 61131‑3 standard programming languages
• Battery‑backed real‑time‑clock and volatile‑data retention
• PCMCIA slot for memory‑card expansion
• Two internal insert‑slots for additional communication‑or‑function‑card
• RS232 interface for programming download, HMI and peripheral‑device connection
• Front‑panel multi‑LED status‑indicator: Ready, Run, Error, Battery
• Fan‑less passive‑cooling design

Application Scenarios:

• Medium‑complexity machine‑automation main‑controller: packaging machinery, textile machinery, printing‑equipment
• Plastics‑processing‑equipment, material‑handling‑equipment control‑system
• Legacy B&R System 2005 equipment spare‑part replacement and system‑retrofit
• Closed‑loop motion‑control and logic‑interlock control for industrial‑machinery

Performance Parameters:

• Minimum program cycle‑time: 0.4 ms
• Data retention‑time with backup‑battery: ≥8000 hours
• EMC certification: EN 61131‑2 industrial‑control standard
• MTBF: 230 000 hours

Material Composition:

• Main‑circuit‑board: Multi‑layer FR‑4 industrial‑grade PCB
• Processor: Industrial‑grade embedded real‑time‑processor
• Housing: Flame‑retardant modified polycarbonate
• Back‑plane‑connector: Gold‑plated high‑reliability industrial‑connector

Structural Characteristics:

• Standard card‑type module form‑factor for 3BP‑series back‑plane‑rack
• Front‑panel LED‑indicator array for operating‑state diagnosis
• Rear‑side golden‑finger for connection with back‑plane‑system‑bus
• Internal battery‑compartment for real‑time‑clock backup‑battery
• External accessible PCMCIA slot for storage‑or‑communication‑card

Working Principle: After power‑on, module loads and runs B&R Automation‑Runtime real‑time‑operating‑system. Execute user control‑program stored in FlashPROM. Realize I/O‑data exchange via back‑plane‑bus with each I/O‑module. Complete data‑interaction with HMI and external‑equipment via RS232 or expansion‑card interface, finish logic‑calculation, closed‑loop‑control and motion‑control task of automation equipment.

Installation Requirements:

• Insert into designated CPU‑slot position of B&R 3BP‑series back‑plane‑rack
• Ensure back‑plane‑connector fully engaged and module‑lock‑clip locked
• Install matching backup‑battery for real‑time‑clock and data‑retention
• Complete hardware‑configuration and user‑program download before commissioning
