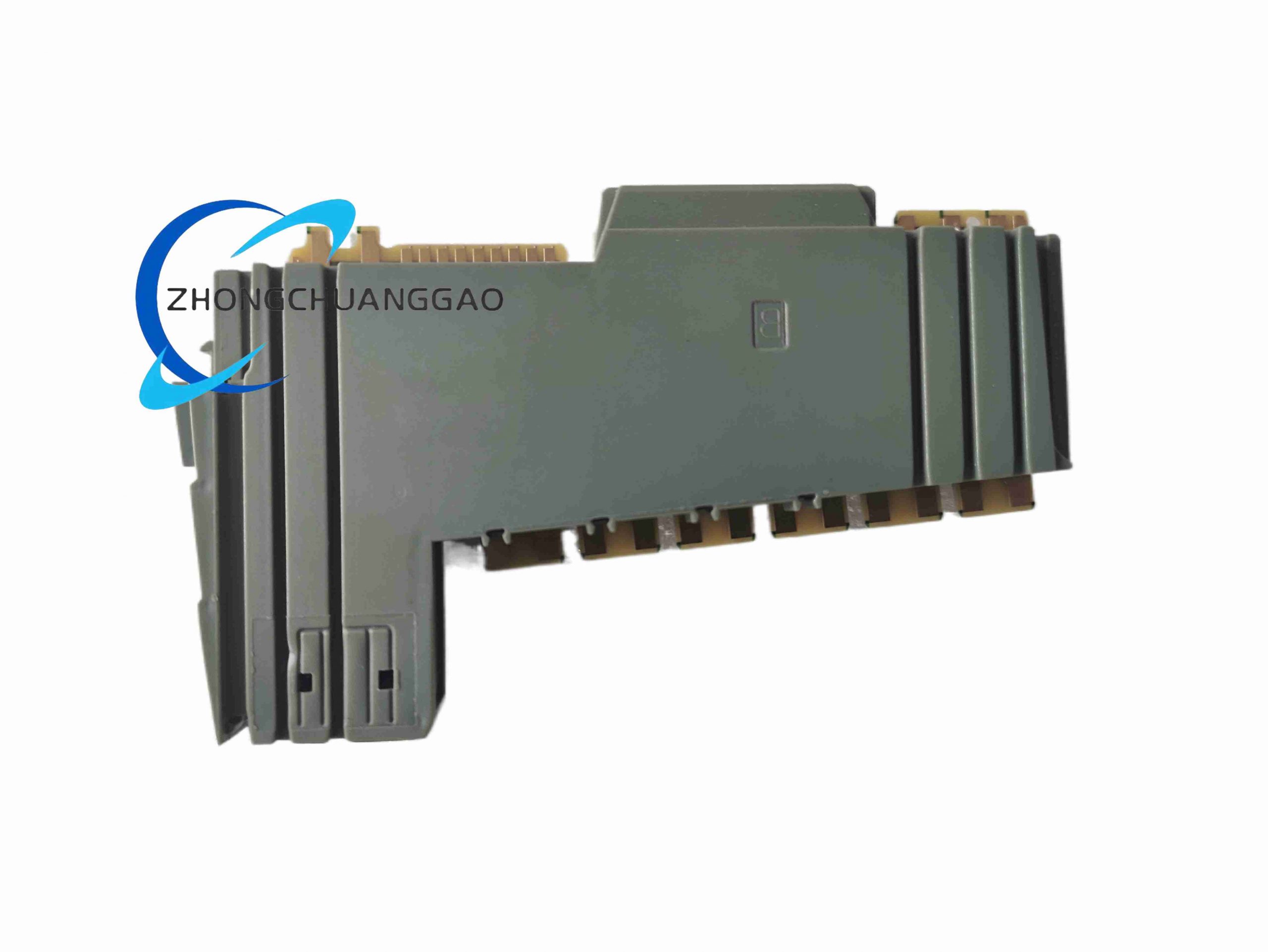

B&R X20DC1198

Product Name:​ X20 SSI Absolute Encoder Interface Module — 1 SSI Channel + 2 Digital Inputs
Product Introduction:
Interfaces one SSI (Synchronous Serial Interface) absolute encoder (5 V differential) to the X20 system and provides two additional 24 V DC digital inputs for limit/home switches.
Category:
Description
Technical Specifications:
  • SSI Input:​ 5 V differential (RS-422), up to 1 Mbit/s transfer rate
  • Encoder Power Supply:​ 5 V DC ±5% (module-internal, max. 300 mA); 24 V DC also available (max. 300 mA)
  • Counter Resolution:​ 32-bit
  • Code Support:​ Gray / Binary (selectable)
  • Digital Inputs:​ 2 × 24 V DC, sink/source, galvanically isolated from encoder side
  • Isolation:​ Bus isolated from encoder & channels (500 V~)
  • Diagnostics:​ Encoder power short-circuit proof; status LEDs per channel & module
  • Power Consumption:​ Bus ≈ 0.26 W; Internal I/O ≈ 1.0 W
  • Operating Temp.:​ –25 … +60 °C (horizontal); –25 … +50 °C (vertical)
  • Required Accessories:​ X20BM11, X20TB12
