BEIJER E300 04380/04380A

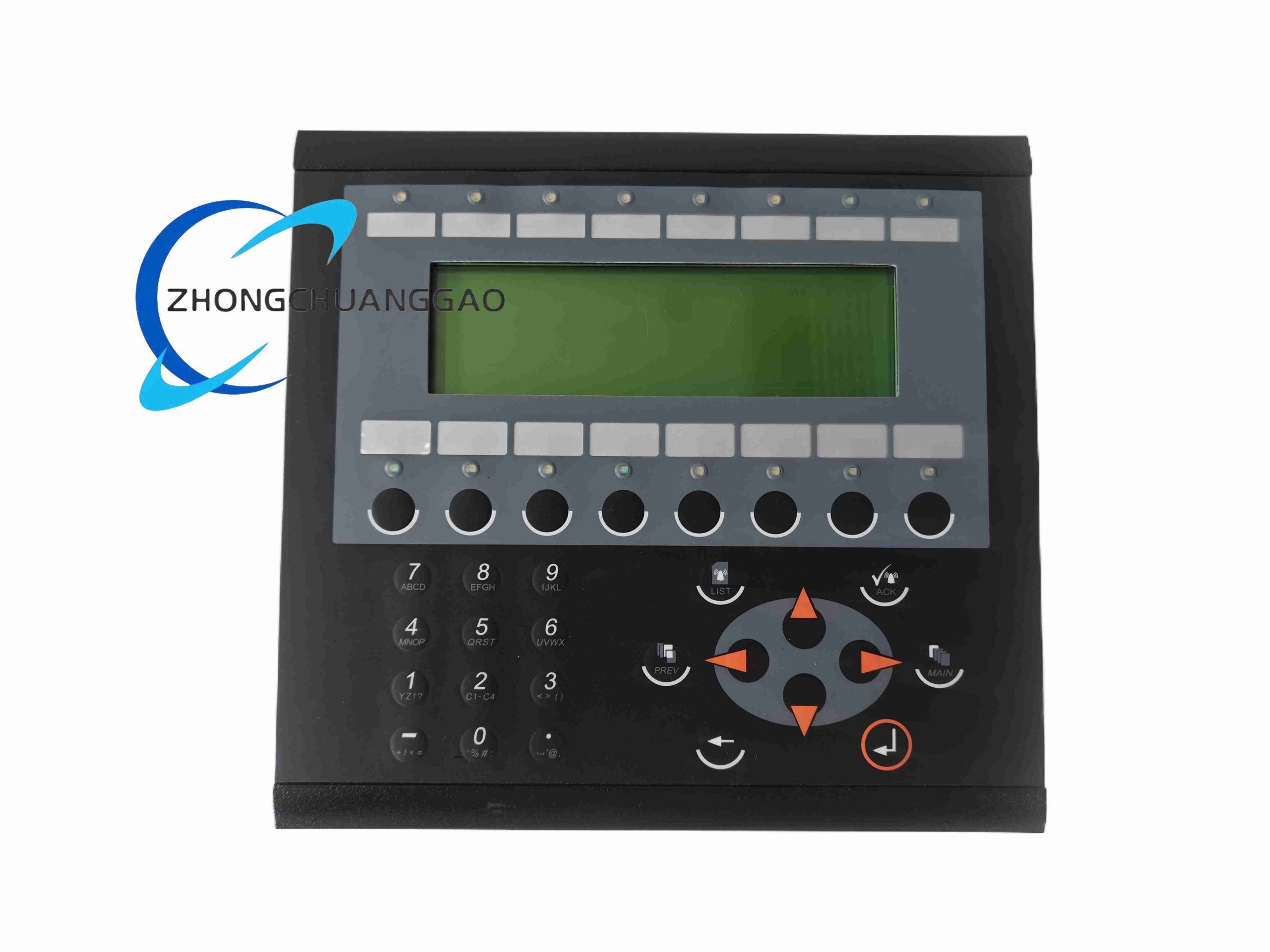

Product Introduction:​ The Beijer E300 (often rebranded by Mitsubishi as the E300 series) is a compact, text/graphic operator terminal designed for machine-level visualization and control. It connects to PLCs via serial links and provides function keys, alarms, recipes, and simple graphics. The 04380 variant features a backlit monochrome LCD with a keypad.

Category:
Description
Technical Specifications & Performance Parameters:
  • Display Type:​ Backlit monochrome LCD (supertwist STN)
  • Resolution:​ 240 × 64 pixels
  • Text Capability:​ 4 lines × 20 characters (or 8 × 40 with scrolling/variable font)
  • Function Keys:​ 8 × user-definable function keys + 12-key numeric keypad (on 04380A)
  • LED Indicators:​ 16 dual-color (red/green) LEDs for status annunciation
  • Power Supply:​ 24 V DC (20 – 30 V DC), typ. 350 – 450 mA
  • Memory:​ 400 KB Flash RAM (expandable to 4–8 MB via PCMCIA card — MAC-IFC-MC option)
  • Real-Time Clock:​ Integrated
  • Communication Ports:​ 1 × RS-232C (D-Sub 9), 1 × RS-422 (for Mitsubishi FX/Q or other PLCs); optional slot for Profibus-DP, DeviceNet, Ethernet, CC-Link cards
  • Alarm Handling:​ Up to several hundred alarms with time stamping
  • Recipe Storage:​ Supported via internal memory or PCMCIA card
Material & Structural Features:
  • Front Bezel:​ ABS plastic, typically black or dark gray; NEMA 4 / IP65 rated front face

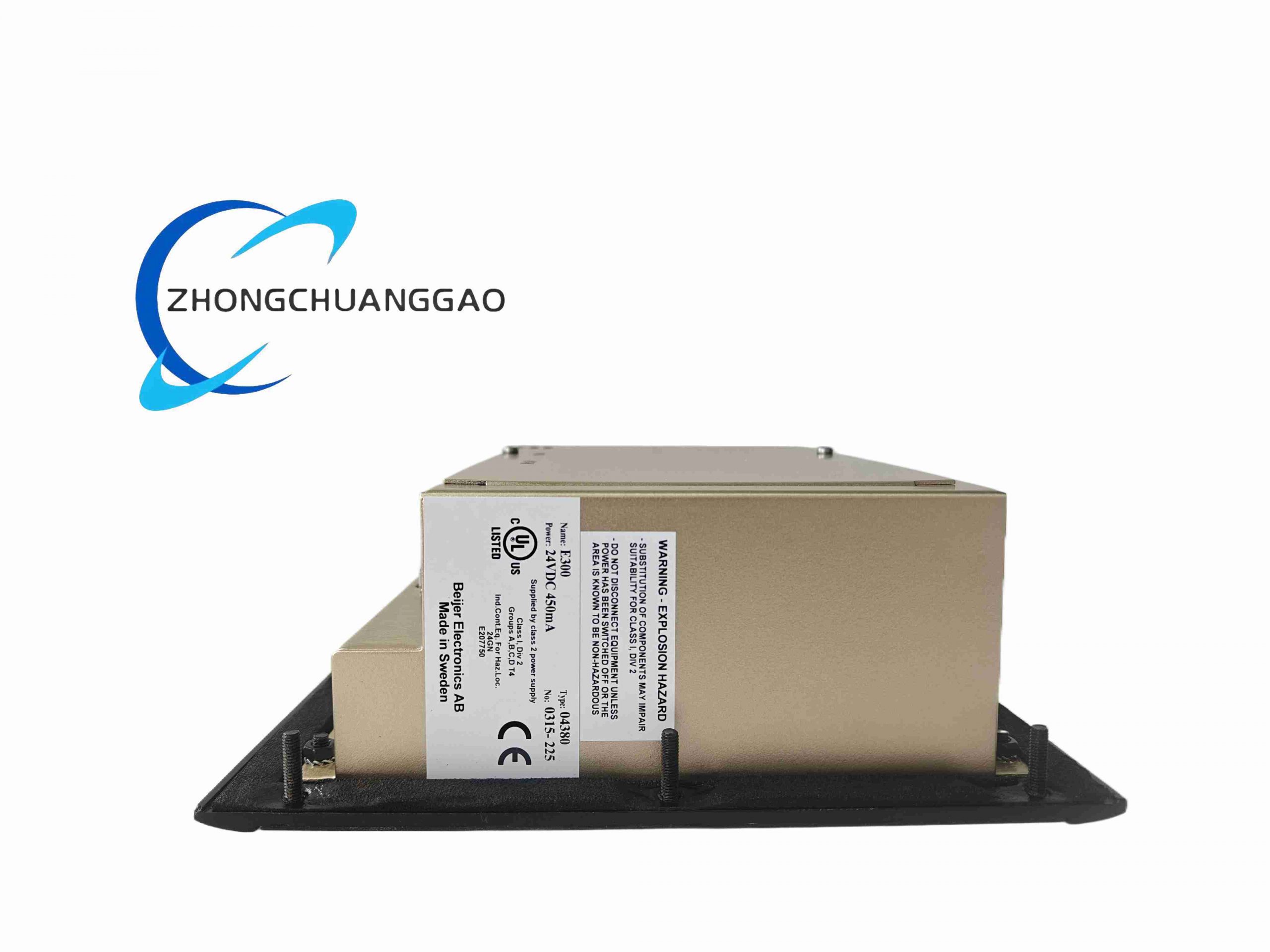

  • Rear Housing:​ Sheet metal / plastic, IP20 (control cabinet side)
  • Dimensions (H × W × D):​ Approx. 198 mm × 212 mm × 69 mm
  • Cutout Dimensions:​ Approx. 184 mm × 198 mm (check Beijer mounting drawing)
  • Weight:​ Approx. 1.35 – 1.5 kg
  • Keypad Life:​ > 1 million actuations
Operating Conditions & Installation Requirements:
  • Operating Temp.:​ 0 °C to +50 °C
  • Storage Temp.:​ -20 °C to +60 °C
  • Humidity:​ 10 % – 90 % RH, non-condensing
  • Mounting:​ Panel cutout mount with clamping brackets from rear; torque per manual (typically 0.5 – 0.8 Nm)
  • Backlight Life:​ Approx. 50,000 hours (half brightness)
Application Scenarios:​ Standalone machine HMIs, injection molding machines, bottling lines, small packaging equipment — where simple graphics, function keys, and recipe management are needed without a full-color touchscreen.
