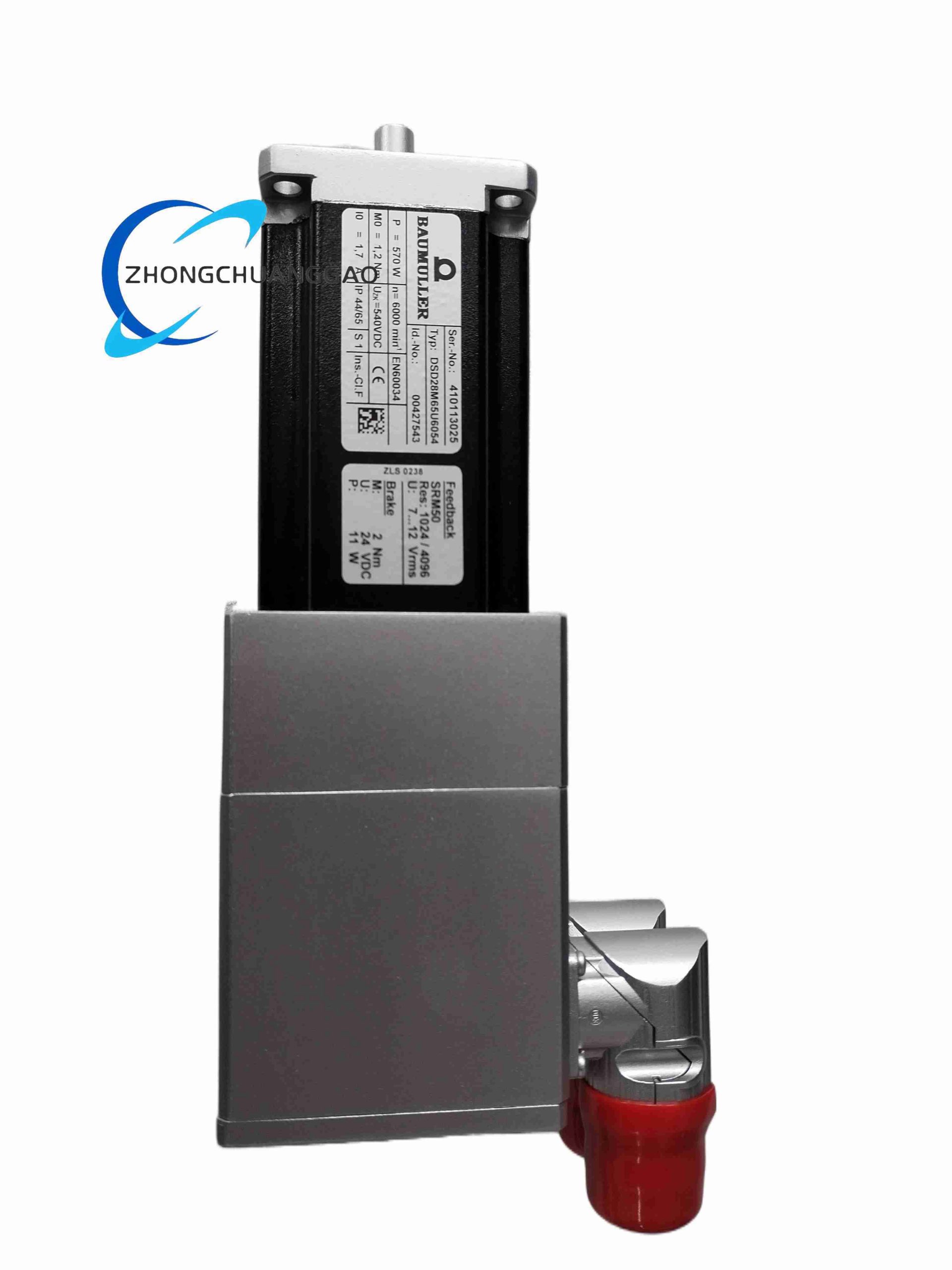

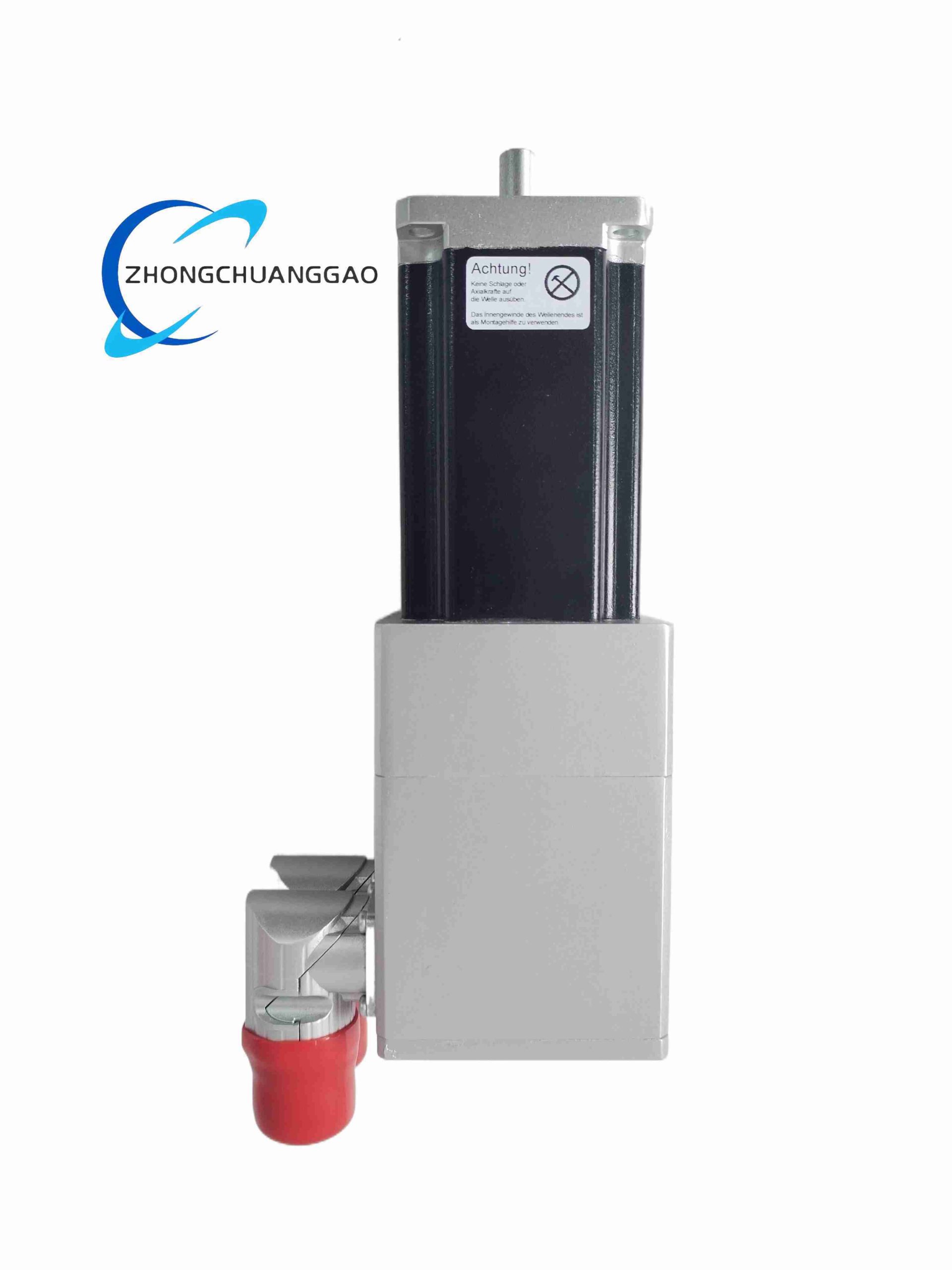

Product Name:​ Baumüller DSD2-028 (Frame Size 28) — DSD28M65U6054 Permanent Magnet Synchronous Servo Motor (High Dynamic)
Product Introduction:​ The Baumüller DSD2 series are compact, high-dynamic permanent magnet synchronous servo motors (PMSM) designed for applications requiring fast acceleration, precise positioning, and smooth running. The DSD28M65U6054 denotes a frame size 28 motor with specific winding, feedback, brake, and connector options. These motors are commonly paired with Baumüller b maXX or third-party servo drives.
Category:
Description
Technical Specifications & Performance Parameters (Typical for DSD2-028 Frame):
  • Rated Power:​ Approx. 0.57 kW (570 W) [variant dependent]
  • Rated Torque (static):​ 1.2 Nm (typical for 028 frame)
  • Peak Torque:​ 3.9 Nm (short-term overload capability)
  • Rated Speed:​ 3000 – 4500 rpm (depending on winding; 6000 rpm max mechanical)
  • Rated Current:​ Approx. 1.7 A (depending on winding)
  • Voltage (winding):​ 3 × ~170–320 V (matched to drive DC link; check nameplate)
  • Torque Constant (Kt):​ ~0.7 – 0.85 Nm/A (depending on winding)
  • Rotor Moment of Inertia (J):​ Approx. 0.00013 – 0.0002 kg·m²
  • Encoder/Feedback:​ Resolver or SinCos encoder (Hiperface®/EnDat options — check suffix U6054 detail)
  • Brake:​ Usually spring-applied, 24 V DC release (if equipped — verify by option code)
  • Thermal Class:​ Insulation class F or H (155 °C / 180 °C)
  • Cooling:​ Natural convection (self-cooled) or forced air depending on duty
Material & Structural Features:
  • Housing:​ Aluminum alloy, smooth cylindrical surface (minimizes dirt accumulation), RAL 9007 or similar
  • Flange:​ IEC-standard metric flange (IM B5 / IM V1), pilot hole for coupling alignment
  • Shaft:​ Ground steel shaft with keyway (or plain shaft per option); shaft seal ring (lip seal)
  • Connector:​ Rotatable plug-in power/feedback connector (M23 or similar circular connector)
  • Protection:​ IP65 (with shaft seal, when properly installed), IP54 on unshielded parts if specified
  • Weight:​ Approx. 2.5 – 3.5 kg (frame 028)
Operating Conditions & Installation Requirements:
  • Ambient Temp.:​ 0 °C to +40 °C (up to +55 °C with reduced rating — consult derating curve)
  • Humidity:​ < 90 % RH non-condensing
  • Mounting:​ Flange-mounted; ensure coaxial alignment (< 0.05 mm) with load to avoid bearing premature failure
  • Grounding:​ Motor PE terminal must be connected to system ground
  • Brake Wiring:​ If equipped, brake releases at 24 V DC; ensure brake is released before motion command
Application Scenarios:​ Packaging machines, textile machinery, printing presses, pick-and-place robots, labeling machines, feed axes on CNC — wherever high dynamic response and compact footprint are required.
Notes / Precautions:
  • Never disconnect encoder/motor cables while power is applied to the drive.
  • Verify winding code matches drive parameter settings before first commissioning.
  • Brake (if present) is holding-only — it is NOT a safety stop device unless specified per machine risk assessment.
  • The exact electrical parameters (winding resistance, inductance, Ke, Kt) must be taken from the motor nameplate or original Baumüller datasheet for the specific serial number.
