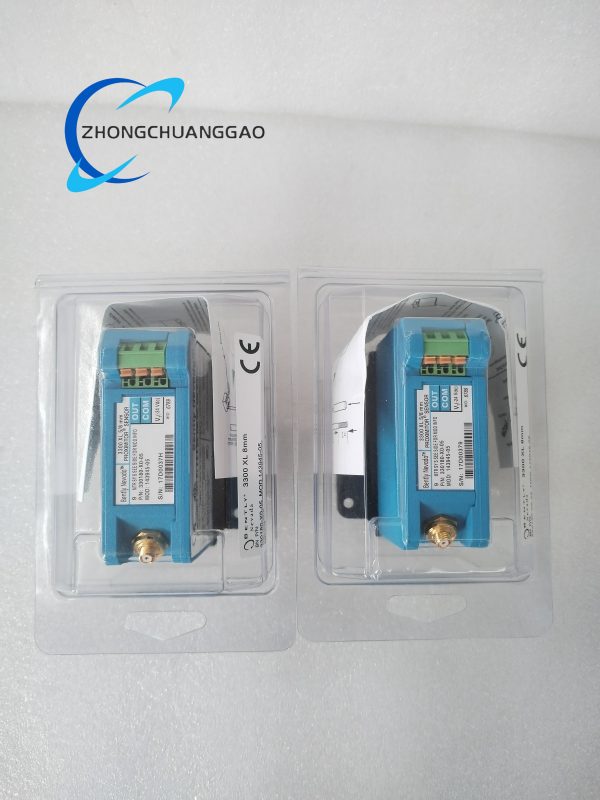

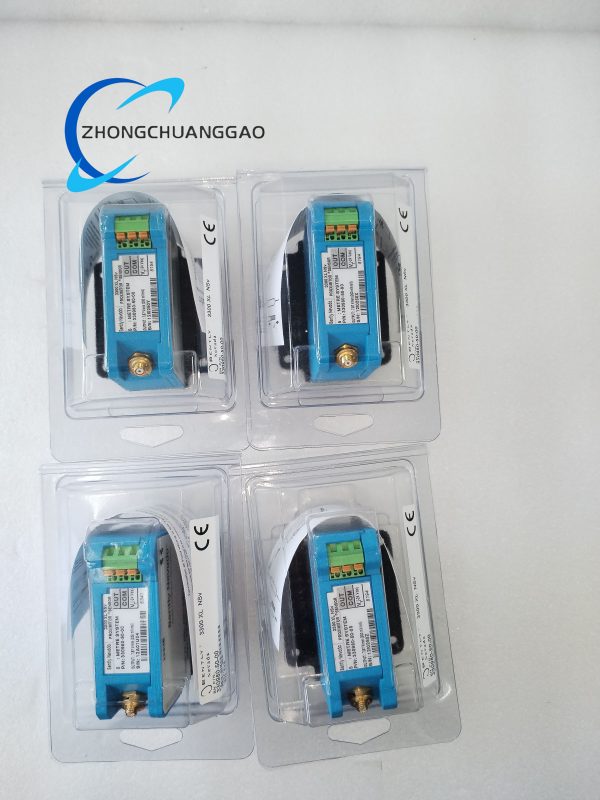

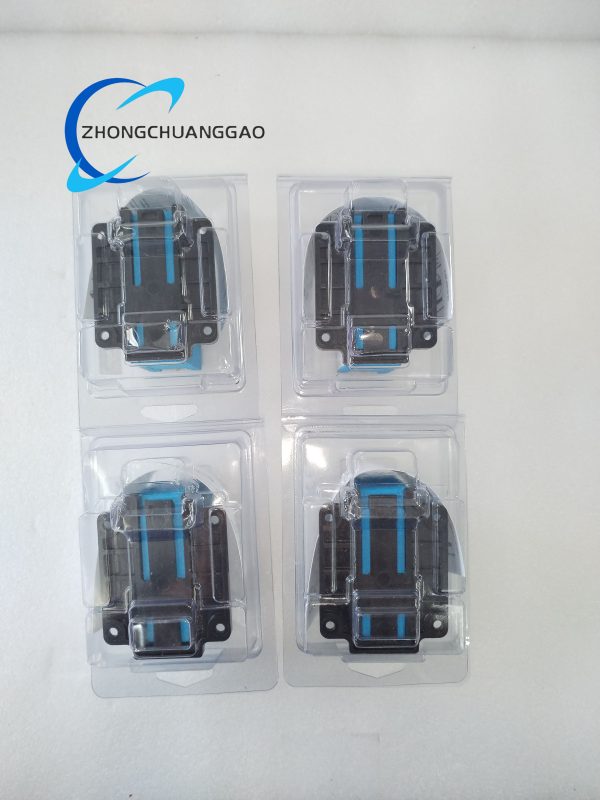

Bently Nevada 330980-51-00 3300 XL NSv Proximitor Sensor

Technical Specifications
  • System Length: 5.0 m (16.4 ft) total probe + extension + Proximitor
  • Sensitivity: 7.87 V/mm (200 mV/mil) ±1 % at –24 Vdc supply
  • Linear Range: 0.25 mm to 1.5 mm (10 mil to 60 mil) gap
  • Supply Voltage: –17.5 Vdc to –26 Vdc (barrier-free); –23 Vdc to –26 Vdc (with barriers)
  • Supply Current: 12 mA typical, 15 mA maximum
  • Output Signal: –2 V to –18 V DC linear, 50 Ω output impedance
  • Frequency Response: 0 Hz to 12 kHz (–3 dB)
  • Temperature Range: –40 °C to +85 °C (–40 °F to +185 °F) operating
  • Housing Material: A380 aluminum with iridite finish
  • Weight: 255 g
  • Mounting: 50 mm depth, DIN-rail (35 mm) or panel via optional bracket
  • Connector: Gold-plated brass ClickLoc, self-locking, accepts 3300 XL NSv probe and extension cable
  • Agency Approvals: ATEX, IECEx, CSA, TR CU, ABS Marine, RoHS, REACH
Read more
Quick view

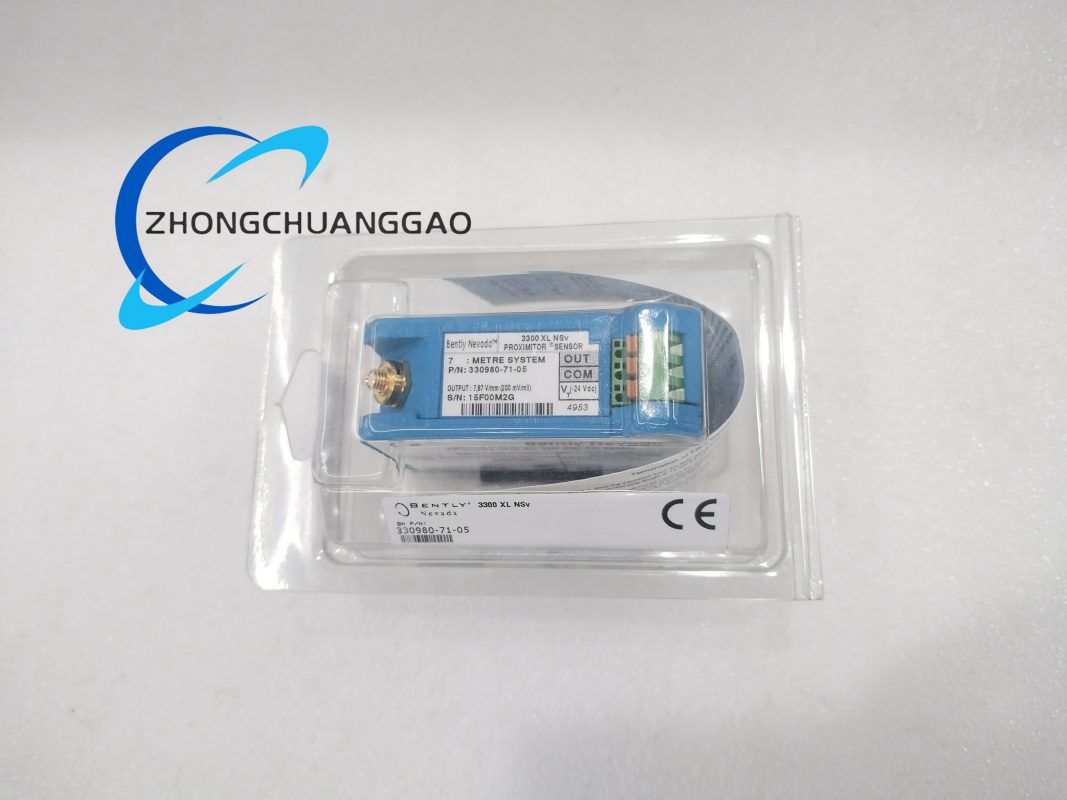

Bently Nevada 330980-71-05 3300 XL NSv Proximitor Sensor

Technical Specifications
  • System Length: 7.0 m (23.0 ft) total probe + extension + Proximitor
  • Sensitivity: 7.87 V/mm (200 mV/mil) ±1 % at –24 Vdc supply
  • Linear Range: 0.25 mm to 2.5 mm (10 mil to 100 mil) gap
  • Supply Voltage: –17.5 Vdc to –26 Vdc (barrier-free); –23 Vdc to –26 Vdc (with barriers)
  • Supply Current: 12 mA typical, 15 mA maximum
  • Output Signal: –2 V to –20 V DC linear, 50 Ω output impedance
  • Frequency Response: 0 Hz to 12 kHz (–3 dB)
  • Temperature Range: –35 °C to +85 °C (–31 °F to +185 °F) operating
  • Storage Temperature: –51 °C to +105 °C (–60 °F to +221 °F)
  • Housing Material: A380 aluminum with iridite finish
  • Weight: 255 g
  • Mounting: 50 mm depth, DIN-rail (35 mm) or panel via optional bracket
  • Connector: Gold-plated brass ClickLoc, self-locking, accepts 3300 XL NSv probe and extension cable
  • Agency Approvals: ATEX, IECEx, CSA, TR CU, ABS Marine, RoHS, REACH
Read more
Quick view

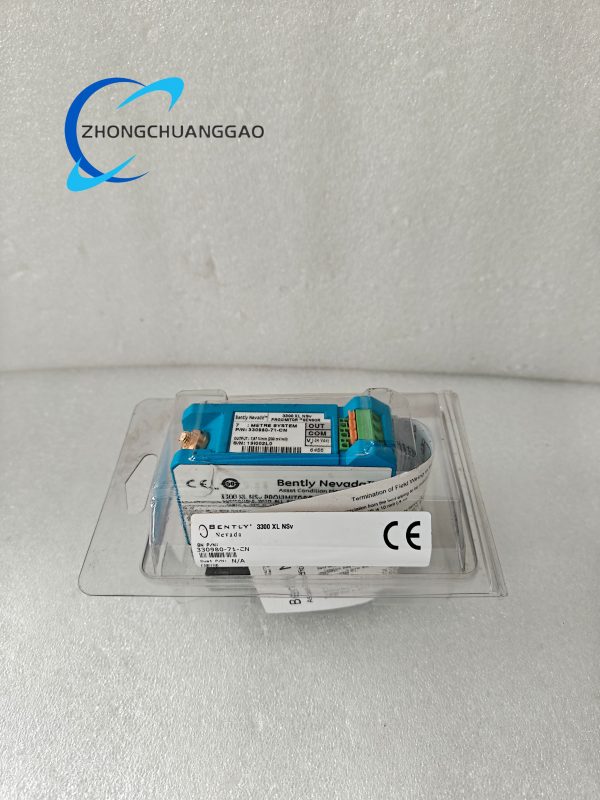

Bently Nevada 330980-71-CN 3300 XL NSv Proximitor Sensor

Technical Specifications
  • System Length: 7.0 m (23.0 ft) total probe + extension + Proximitor
  • Sensitivity: 7.87 V/mm (200 mV/mil) ±1 % at –24 Vdc supply
  • Linear Range: 0.25 mm to 2.5 mm (10 mil to 100 mil) gap
  • Supply Voltage: –17.5 Vdc to –26 Vdc (barrier-free); –23 Vdc to –26 Vdc (with barriers)
  • Supply Current: 12 mA typical, 15 mA maximum
  • Output Signal: –2 V to –20 V DC linear, 50 Ω output impedance
  • Frequency Response: 0 Hz to 12 kHz (–3 dB)
  • Temperature Range: –35 °C to +85 °C (–31 °F to +185 °F) operating
  • Storage Temperature: –51 °C to +105 °C (–60 °F to +221 °F)
  • Housing Material: A380 aluminum with iridite finish
  • Weight: 0.246 kg
  • Dimensions: 81.3 mm × 50 mm × 63.5 mm
  • Mounting: DIN-rail (35 mm) or panel via optional bracket
  • Connector: Gold-plated brass ClickLoc, self-locking, accepts 3300 XL NSv probe and extension cable
  • Agency Approvals: CN (China), ATEX, IECEx, CSA, TR CU, ABS Marine, RoHS, REACH
Read more
Quick view

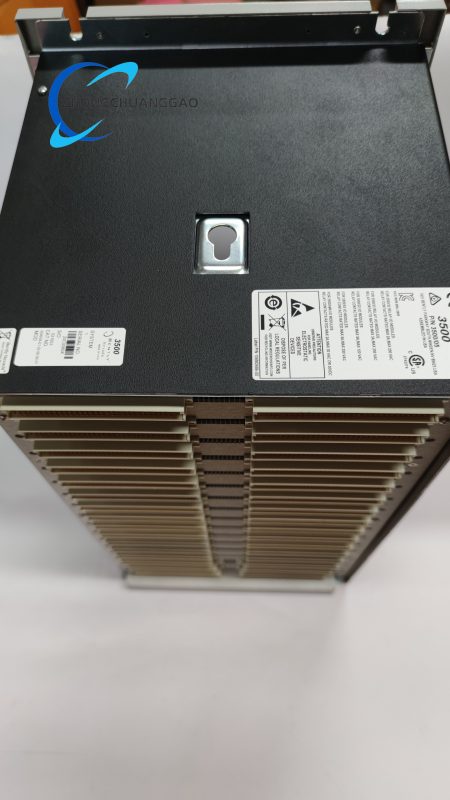

Bently Nevada 3500/05-01-02-00-00-01 3500/05 Mini System Rack

Technical Specifications
  • Form Factor: 9.1-inch mini-rack, 7 usable module slots
  • Material: High-strength aluminum alloy frame with stainless-steel guide rails
  • Power Inputs: 85–264 Vac or 88–300 Vdc, auto-ranging; redundant inputs accepted
  • Back-plane Output: +5 Vdc @ 30 A, +12 Vdc @ 4 A, –12 Vdc @ 1 A, all isolated
  • Slot Pitch: 20.3 mm (0.8 in) per slot, hot-swappable modules
  • Earth Isolation: 500 Vdc module-to-earth, 1500 Vdc channel-to-earth
  • Vibration Survivability: 5 g, 10–500 Hz per IEC 60068-2-6
  • Shock: 30 g, 11 ms half-sine per IEC 60068-2-27
  • Operating Temperature: –40 °C to +85 °C (–40 °F to +185 °F)
  • Ingress Protection: IP 20 (NEMA 1); optional IP 54 door kit
  • Dimensions: 231 mm × 160 mm × 81 mm (9.1" × 6.3" × 3.2") without door
  • Weight: 1.2 lb (0.54 kg) empty
  • Mounting Options: Panel, 19-inch sub-rail, or bulk-head; front or rear access
  • Agency Approvals: CE, UL, ATEX, IECEx, CSA, TR CU, ABS Marine, RoHS, REACH
Read more
Quick view

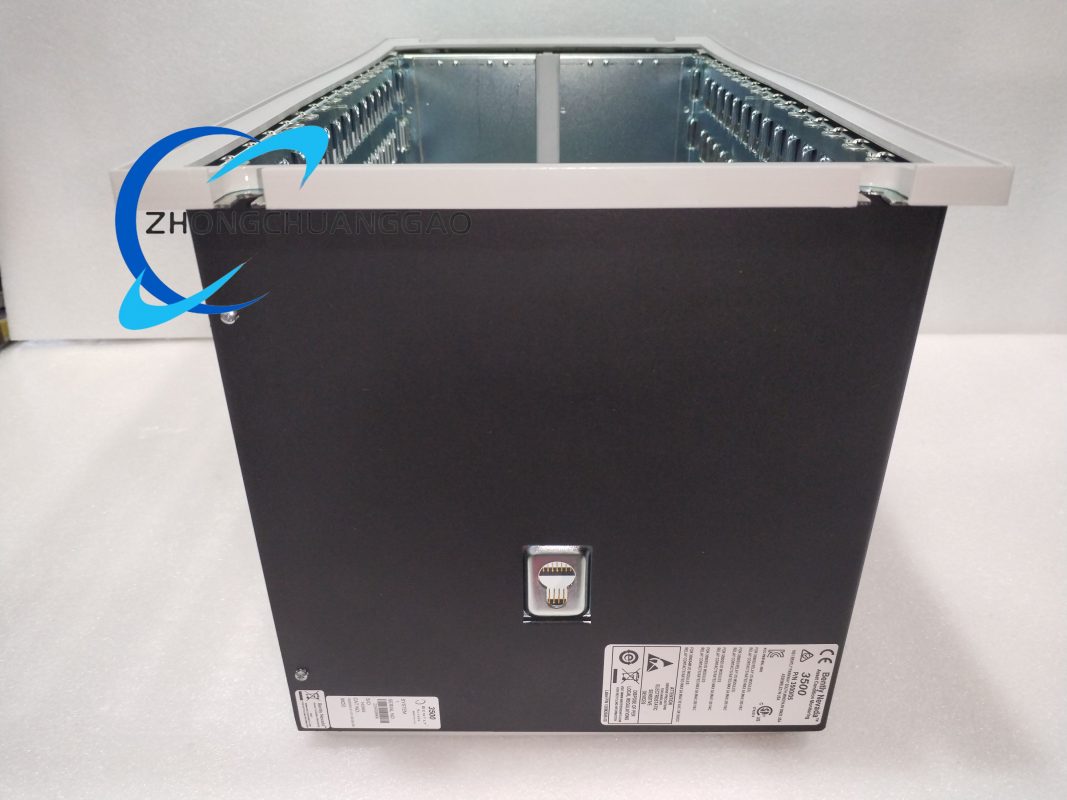

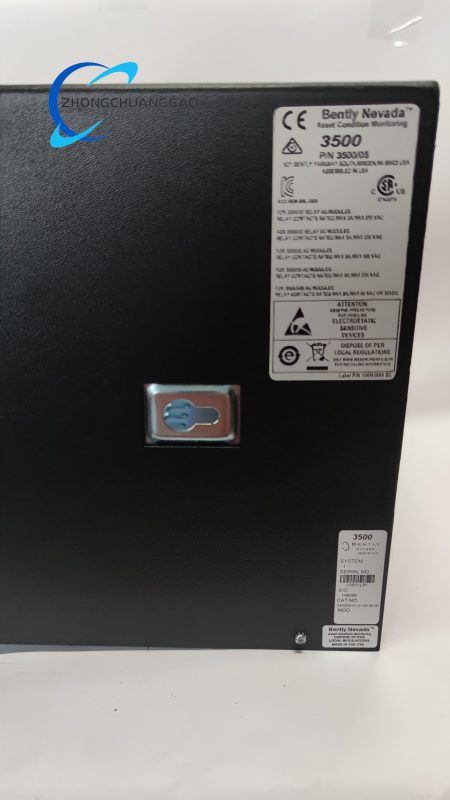

Bently Nevada 3500/05-01-03-00-00-00 3500/05 System Rack

Technical Specifications
  • Form Factor: 19-inch EIA, 14 usable module slots
  • Back-plane Data Rate: 51.2 ksamples/s per slot, parallel bus
  • Power Inputs: 85–264 Vac or 88–300 Vdc, auto-ranging, redundant feeds supported
  • On-board Rails: +5 Vdc @ 60 A, +12 Vdc @ 8 A, –12 Vdc @ 2 A, fully isolated
  • Earth Isolation: 500 Vdc module-to-earth, 1500 Vdc channel-to-earth
  • Vibration/Shock: 5 g, 10–500 Hz; 30 g, 11 ms half-sine (IEC 60068)
  • Temperature Range: –40 °C to +85 °C operating; –51 °C to +105 °C storage
  • Humidity: 5 %–95 % RH non-condensing
  • Dimensions: 483 mm × 267 mm × 160 mm (19" × 10.5" × 6.3") without door
  • Weight: 2.0 kg (4.4 lb) empty
  • Mounting: 19-inch rail, panel, or bulk-head; front or rear access
  • Agency Marks: CE, UL, ATEX, IECEx, CSA, TR CU, ABS Marine, RoHS, REACH
Read more
Quick view

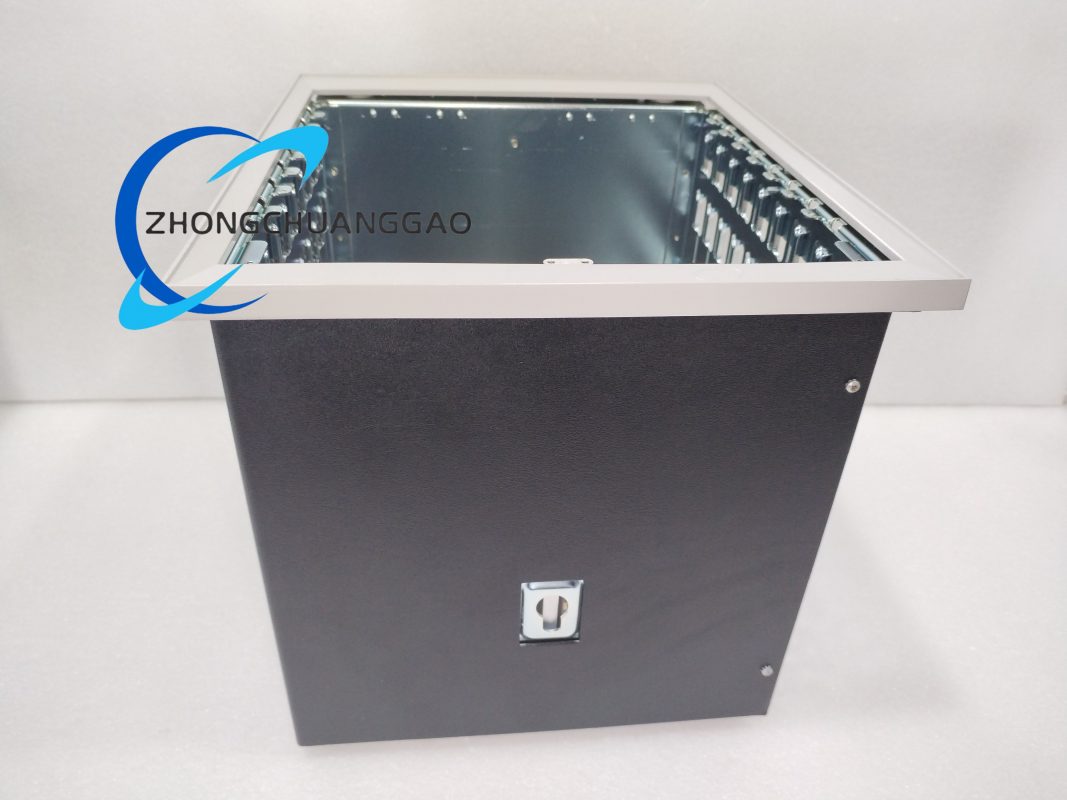

Bently Nevada 3500/05-02-04-00-00-00 3500/05 Mini System Rack

Technical Specifications
  • Form Factor: 12-inch mini-rack, 7 usable module slots
  • Back-plane Data Rate: 51.2 ksamples/s per slot, parallel bus
  • Power Inputs: 85–264 Vac or 88–300 Vdc, auto-ranging, redundant feeds supported
  • On-board Rails: +5 Vdc @ 30 A, +12 Vdc @ 4 A, –12 Vdc @ 1 A, fully isolated
  • Earth Isolation: 500 Vdc module-to-earth, 1500 Vdc channel-to-earth
  • Vibration/Shock: 5 g, 10–500 Hz; 30 g, 11 ms half-sine (IEC 60068)
  • Temperature Range: –40 °C to +85 °C operating; –51 °C to +105 °C storage
  • Humidity: 5 %–95 % RH non-condensing
  • Dimensions: 438 mm × 305 mm × 178 mm (17.2" × 12.0" × 7.0") without door
  • Weight: 9.7 kg (21.4 lb) empty
  • Mounting: Panel-mount cut-out with clamps; wiring access from rear
  • Agency Marks: CE, UL, ATEX, IECEx, CSA, TR CU, ABS Marine, RoHS, REACH
Read more
Quick view

Bently Nevada 3500/15 106M1079-01 AC Power Supply Module

Technical Specifications
  • Input Voltage: 100–240 Vac, 50/60 Hz, 2 A max
  • Output Voltage / Current: 24 Vdc, 5.5 A (133 W continuous, 150 W peak)
  • Load Regulation: ±1 % from 0 A to 5.5 A
  • Ripple & Noise: <50 mV p-p, 20 MHz bandwidth
  • Efficiency: 87 % typical @ 230 Vac, full load
  • Hold-up Time: 20 ms @ 115 Vac, full load
  • Protection: Over-current 120 % (auto-recover), over-voltage 28 Vdc (hiccup), short-circuit (fold-back), over-temp 105 °C (shutdown)
  • Isolation: Input-to-output 3 kVac, input-to-earth 1.5 kVac
  • Temperature Range: –20 °C to +65 °C operational, –40 °C to +85 °C storage
  • Dimensions: 120.7 mm × 50.8 mm × 251.5 mm (H × W × D)
  • Weight: 1.39 kg (3.1 lb)
  • Cooling: Internal fan, temperature controlled
  • Indicators: Green “AC OK”, red “Fault” LEDs on front bezel
  • Connector: IEC C14 inlet, crimp fork terminals for DC output
  • Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH
Read more
Quick view

Bently Nevada 3500/15 106M1081-01 Universal AC Power Input Module (PIM)

Technical Specifications
  • Input Voltage: 85–264 Vac rms, 47–63 Hz
  • Peak Voltage Withstand: 120–373 Vac pk
  • Maximum Rack Current: 2.8 A rms @ 240 Vac
  • Inrush Current: <25 A peak, <5 ms
  • Filtering: Differential-mode choke plus metal-oxide varistor
  • Isolation: Input-to-earth 1.5 kVac, input-to-output 500 Vdc
  • Temperature Range: –30 °C to +65 °C operational, –40 °C to +85 °C storage
  • Dimensions: 120.7 mm × 25.4 mm × 114.3 mm (H × W × D)
  • Weight: 0.34 kg (0.75 lb)
  • Connector: IEC C14 inlet, crimp fork terminals for rack back-plane
  • Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH
Read more
Quick view

Bently Nevada 3500/15 127610-01 – High-Reliability AC Power Supply Module

Technical Specifications

  • Input Parameters:
    • Voltage Range: 100–240 VAC (50/60 Hz) with wide compatibility for global power systems .
    • Input Current: ≤2 A at full load (24 VDC, 5 A output) .
    • Efficiency: ≥94% under typical load conditions, minimizing energy loss .
  • Output Parameters:
    • Voltage: 24 VDC with ±1% regulation to ensure stable power delivery .
    • Maximum Current: 5 A continuous, supporting up to 14 monitoring modules in a 3500/05 rack .
    • Ripple Noise: <100 mV peak-to-peak for sensitive industrial electronics .
Read more
Quick view

Bently Nevada 3500/15 127610-01 AC Power Supply Module

Technical Specifications
  • Input Voltage: 85–264 Vac rms, 47–63 Hz
  • Output Voltage / Current: 24 Vdc, 5.5 A (133 W continuous, 150 W peak)
  • Load Regulation: ±1 % from 0 A to 5.5 A
  • Ripple & Noise: <50 mV p-p, 20 MHz bandwidth
  • Efficiency: 87 % typical @ 230 Vac, full load
  • Hold-up Time: 20 ms @ 115 Vac, full load
  • Protection: Over-current 120 % (auto-recover), over-voltage 28 Vdc (hiccup), short-circuit (fold-back), over-temp 105 °C (shutdown)
  • Isolation: Input-to-output 3 kVac, input-to-earth 1.5 kVac
  • Temperature Range: –30 °C to +65 °C operational, –40 °C to +85 °C storage
  • Dimensions: 120.7 mm × 50.8 mm × 251.5 mm (H × W × D)
  • Weight: 1.39 kg (3.06 lb)
  • Cooling: Internal fan, temperature controlled
  • Indicators: Green “AC OK”, red “Fault” LEDs on front bezel
  • Connector: IEC C14 inlet, crimp fork terminals for DC output
  • Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH
Read more
Quick view

Bently Nevada 3500/15 133292-01 Dual AC/DC Power Supply Module

Technical Specifications
  • Input Voltage: 88–264 Vac rms, 47–63 Hz or 100–250 Vdc
  • Output Voltage / Current: +24 Vdc @ 2.5 A, –24 Vdc @ 2.5 A (120 W total)
  • Load Regulation: ±1 % from 0 A to 2.5 A per rail
  • Ripple & Noise: <50 mV p-p, 20 MHz bandwidth
  • Efficiency: 85 % typical @ 230 Vac, full load
  • Hold-up Time: 20 ms @ 115 Vac, full load
  • Protection: Over-current 120 % (auto-recover), over-voltage 30 Vdc (hiccup), short-circuit (fold-back), over-temp 105 °C (shutdown)
  • Isolation: Input-to-output 3 kVac, input-to-earth 1.5 kVac
  • Temperature Range: –40 °C to +85 °C operational, –51 °C to +105 °C storage
  • Dimensions: 244 mm × 242 mm × 99 mm (H × W × D)
  • Weight: 1.7 kg (3.7 lb)
  • Cooling: Internal fan, temperature controlled
  • Indicators: Green “AC OK”, red “Fault” LEDs on front bezel
  • Connector: IEC C14 inlet, crimp fork terminals for DC output
  • Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH
Read more
Quick view

BENTLY NEVADA 3500/15 133292-01 LOW-VOLTAGE DC POWER MODULE

Technical Specifications:
  • Input Channels: Supports multiple input channels for connecting proximity probes, velocity sensors, and accelerometers, allowing comprehensive monitoring of machinery vibration and position.
  • Communication Interfaces: Equipped with standard communication interfaces such as Modbus/TCP or Ethernet, facilitating integration with distributed control systems (DCS) and other plant management networks.
  • Processor Capability: Features robust processing capabilities to handle real-time data acquisition, analysis, and alarming functions efficiently.
  • Power Supply: Operates on a specific voltage range suitable for industrial environments, with options for redundant power supplies to ensure uninterrupted operation.
  • Environmental Tolerance: Designed to withstand harsh industrial conditions, including resistance to temperature extremes, humidity, and electromagnetic interference.
