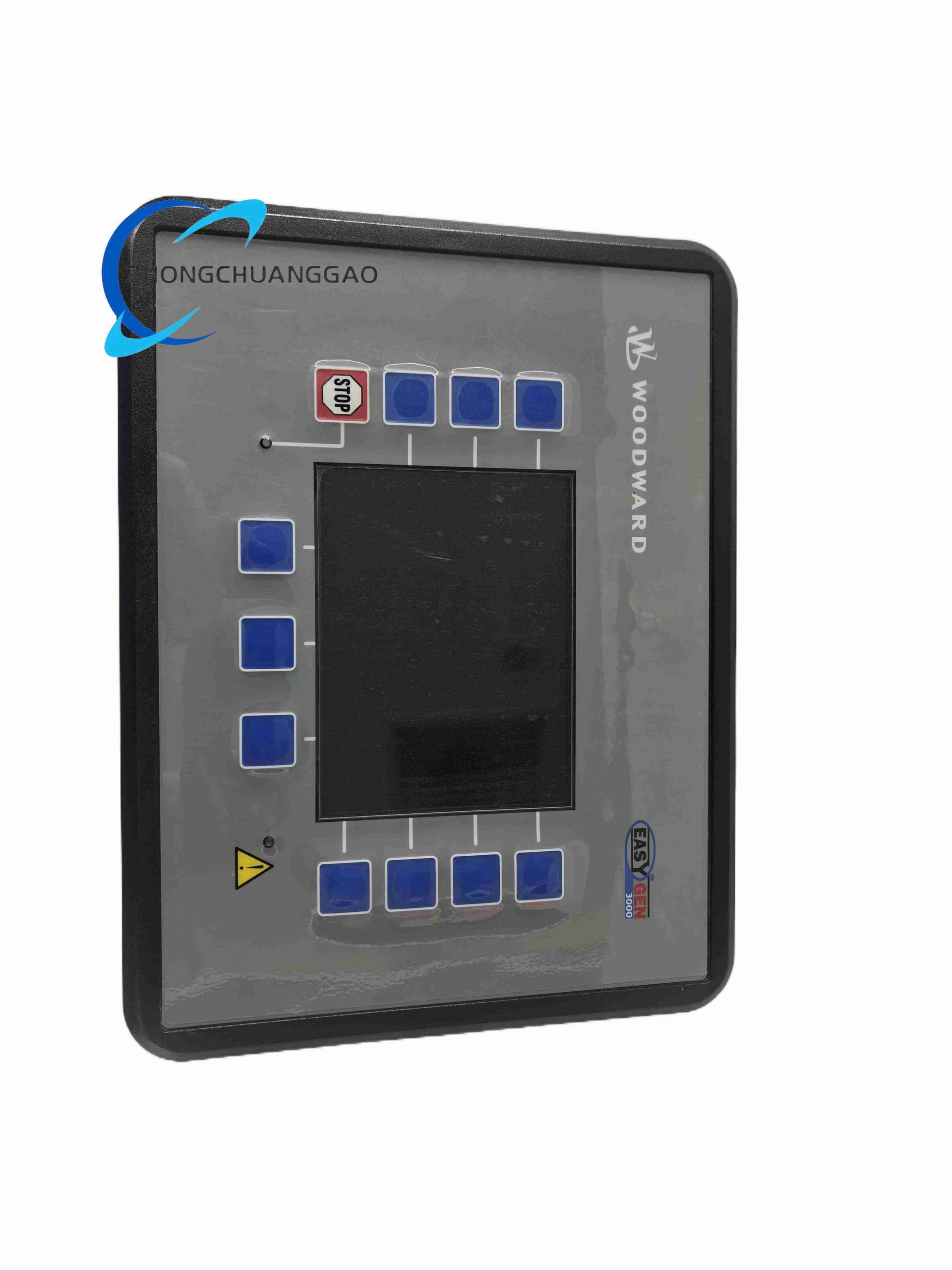

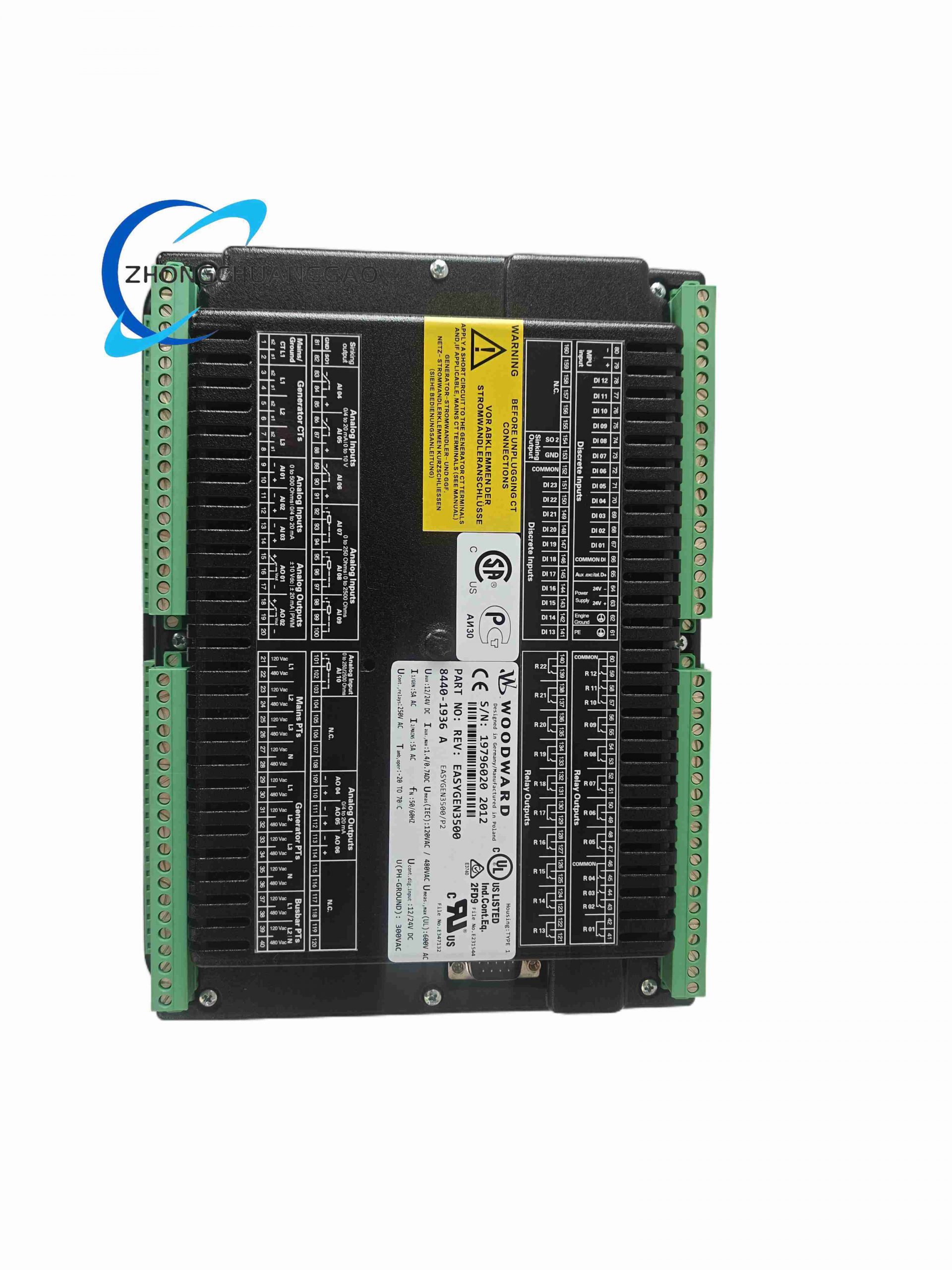

Product Name:​ Woodward easYgen-3500-1A/P2 Genset Controller, Part No. 8440-1936
Product Introduction:​ Advanced microprocessor-based genset control and protection device for single or multi-unit paralleling (up to 32 units), base-load, peak-shaving, and mains import/export control with integrated graphic LCD and keypad.
Category:
Description
Functions:
  • Automatic start/stop, crank, cool-down sequencing
  • Synchronization (phase, frequency, voltage match) to bus or grid
  • Isochronous load sharing (kW & kVAR) among paralleled gensets
  • Mains (grid) sensing, import/export power control, dead-bus close
  • Comprehensive protection: over/under voltage, over/under frequency, overcurrent, reverse power, overspeed, etc.
  • Event & alarm logging with time stamp
I/O (P2 package — 8440-1936):
  • Discrete Inputs: 23 programmable DI
  • Relay Outputs: 22 programmable relays (form C/A)
  • Analog Inputs: 7 × 4–20 mA / 0–10 V + 4 × RTD/Resistance
  • Analog Outputs: 3 × 4–20 mA / 0–10 V + 2 × ±10 V / PWM
  • Sinking pulse outputs for kWh/kVArh
Electrical Parameters:
  • Supply Voltage: 18–32 VDC (24 VDC nominal), < 15 W typical
  • Voltage Sensing: 3-phase 100–690 V L-L (True RMS), 50/60 Hz
  • Current Sensing: via external CT, typical 1 A or 5 A
  • Sync Accuracy: phase error ≤ 1°, freq diff ≤ 0.01 Hz
Communication:
  • 2 × RS-485 (Modbus RTU), 1 × CANopen/J1939, 1 × Ethernet 10/100 (Modbus TCP on P2)
  • Supports Woodward Link (inter-controller comm)
Mechanical & Environment:
  • Panel cutout mount; front bezel ~282 × 216 mm, depth ~96 mm
  • Display: 5.7 in color graphic LCD, 320 × 240
  • Operating Temp: -20 to +70 °C
  • Front: IP54; rear: IP20 (when installed in rated enclosure)
  • Certifications: UL, CE, CSA, IEC 60255, IEC 60950
