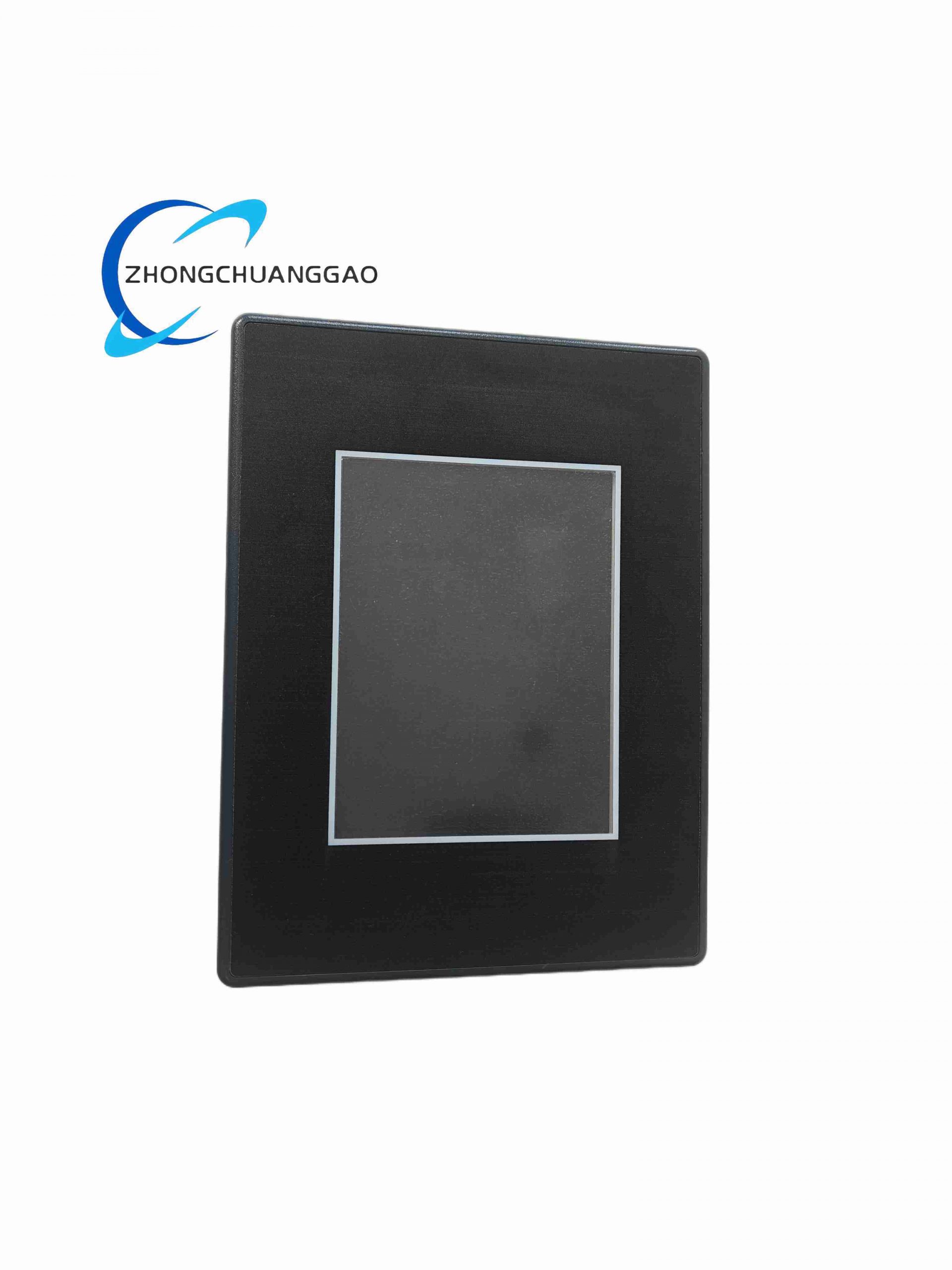

AutomationDirect EA7-T6CL-R - Image 1

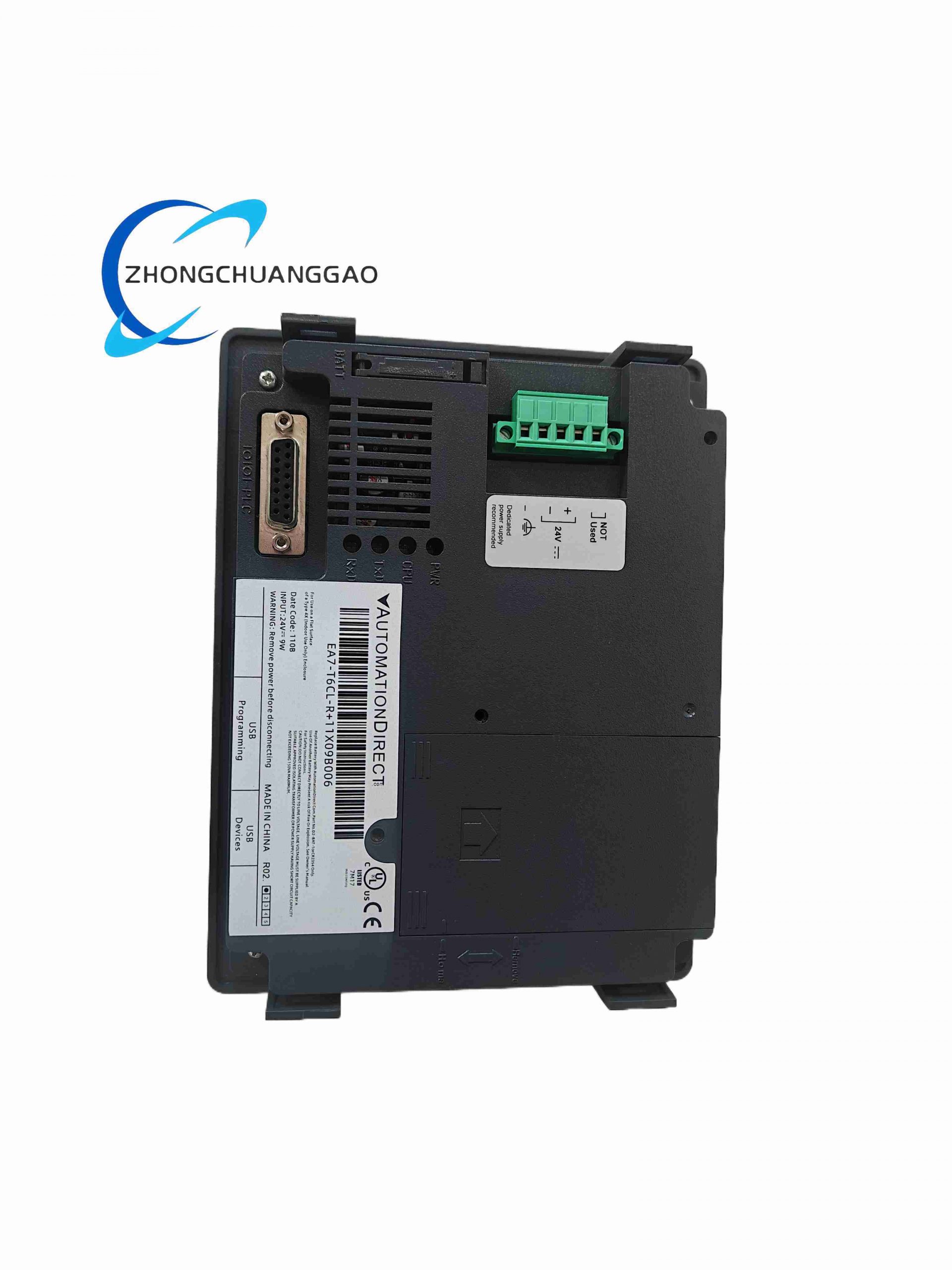

AutomationDirect EA7-T6CL-R - Image 2
Click to enlarge
AutomationDirect EA7-T6CL-R
AutomationDirect EA7-T6CL-R - Image 2
WAUKESHA E740401
WAUKESHA E740401
Back to products
Woodward easYgen-3500 8440-1936
Woodward easYgen-3500 8440-1936

AutomationDirect EA7-T6CL-R

Product Name:​ C-more EA7 Series 5.7″ QVGA Color TFT LCD Touch Panel, Base Model (Red Bezel/Kit)
Product Introduction:​ Operator interface HMI for industrial automation, provides graphical visualization and touch control of PLC and other automation devices via serial or USB communication.
Category:
Description
Display & Touch:
  • Display Size: 5.7 in (145 mm) diagonal active viewing area 115.2 × 86.4 mm
  • Type: TFT color LCD, 65,536 colors (16-bit)
  • Resolution: 320 × 240 pixels (QVGA)
  • Backlight: LED, typical life 50,000 hrs (non-user-replaceable)
  • Touch: Analog resistive, 10-bit resolution, unlimited touch zones
Hardware Specs:
  • CPU: 32-bit RISC @ 333 MHz
  • Memory: 32 MB SDRAM / 32 MB Flash (some sources list 64/64 MB on later revisions)
  • Backup SRAM: 256 KB for retentive data
  • Real-Time Clock: yes (battery-backed, CR2354 coin cell)
  • Screens supported: up to 9,999 (limited by project memory)
Interfaces:
  • 1 × RS-232/422/485 (15-pin D-sub, configurable PLC port)
  • 1 × USB Type-B (programming/download)
  • 1 × USB Type-A (optional data logging via pen drive)
  • No built-in Ethernet on base model EA7-T6CL-R (Ethernet on EA7-T6C full-feature)
  • CompactFlash slot (optional, via expansion or CF interface module)
Electrical & Environment:
  • Power Supply: 24 VDC (20.4–28.8 VDC operating range), typical 300 mA @ 24 VDC
  • Operating Temp: 0 to +50 °C (32 to 122 °F)
  • Storage Temp: -20 to +60 °C
  • Humidity: 10–90 % RH non-condensing
  • Enclosure Rating: NEMA 4/4X, IP65 front face when properly mounted
Mounting:
  • Panel cutout mount; dimensions approx. 156 × 204 mm (6.14 × 8.05 in) faceplate; depth ~43 mm behind panel
