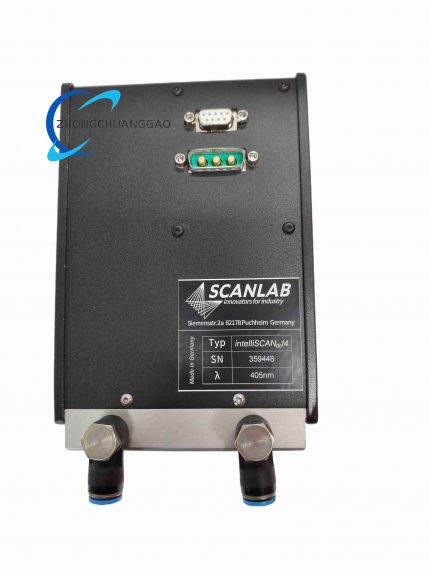

SCANde INTELLISCANDE14-405NM
SCANde INTELLISCANDE14-405NM
Back to products

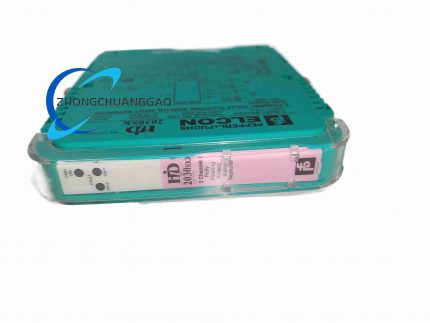

Pepperl+Fuchs HID2030SK
Pepperl+Fuchs HID2030SK

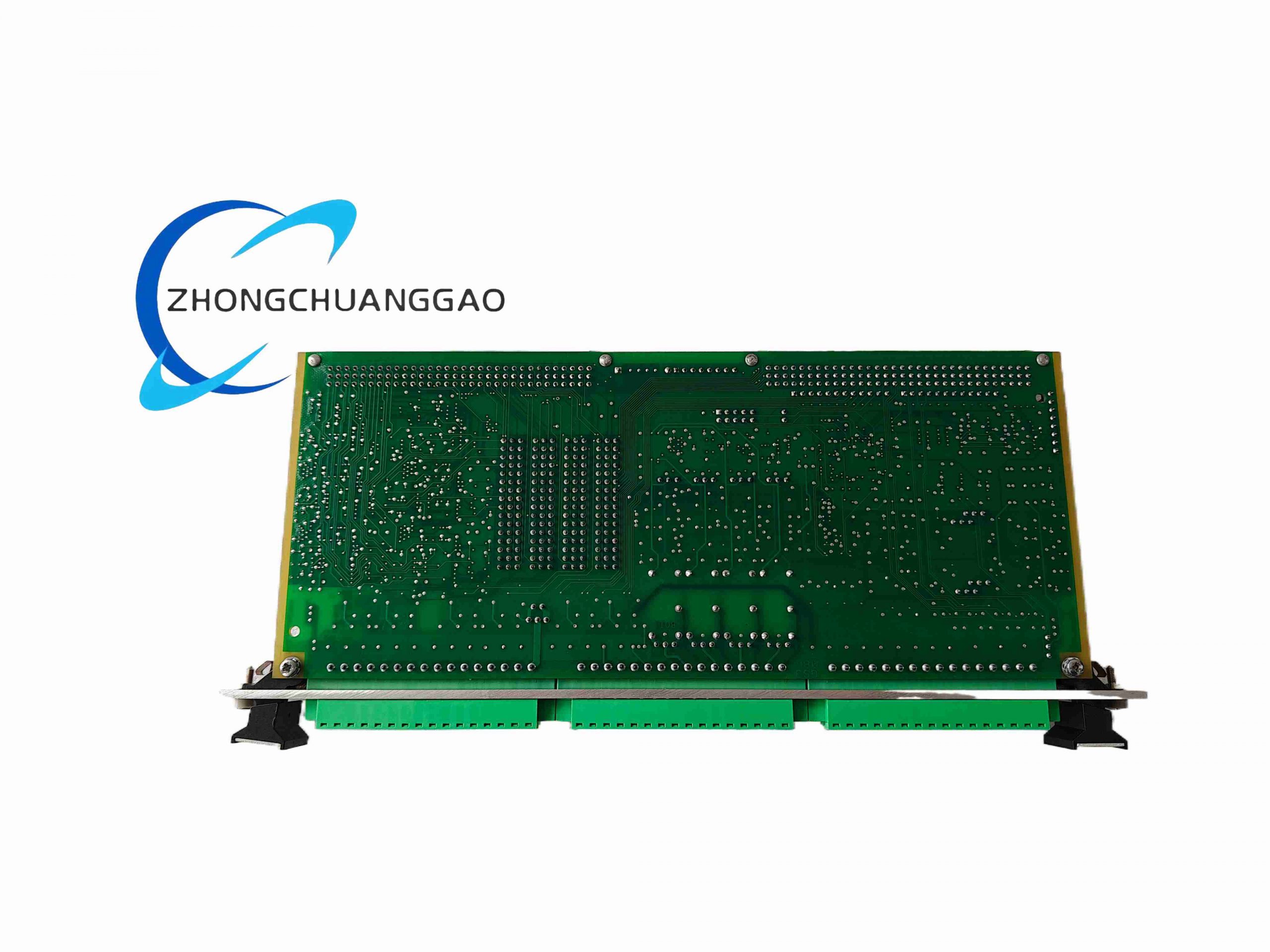

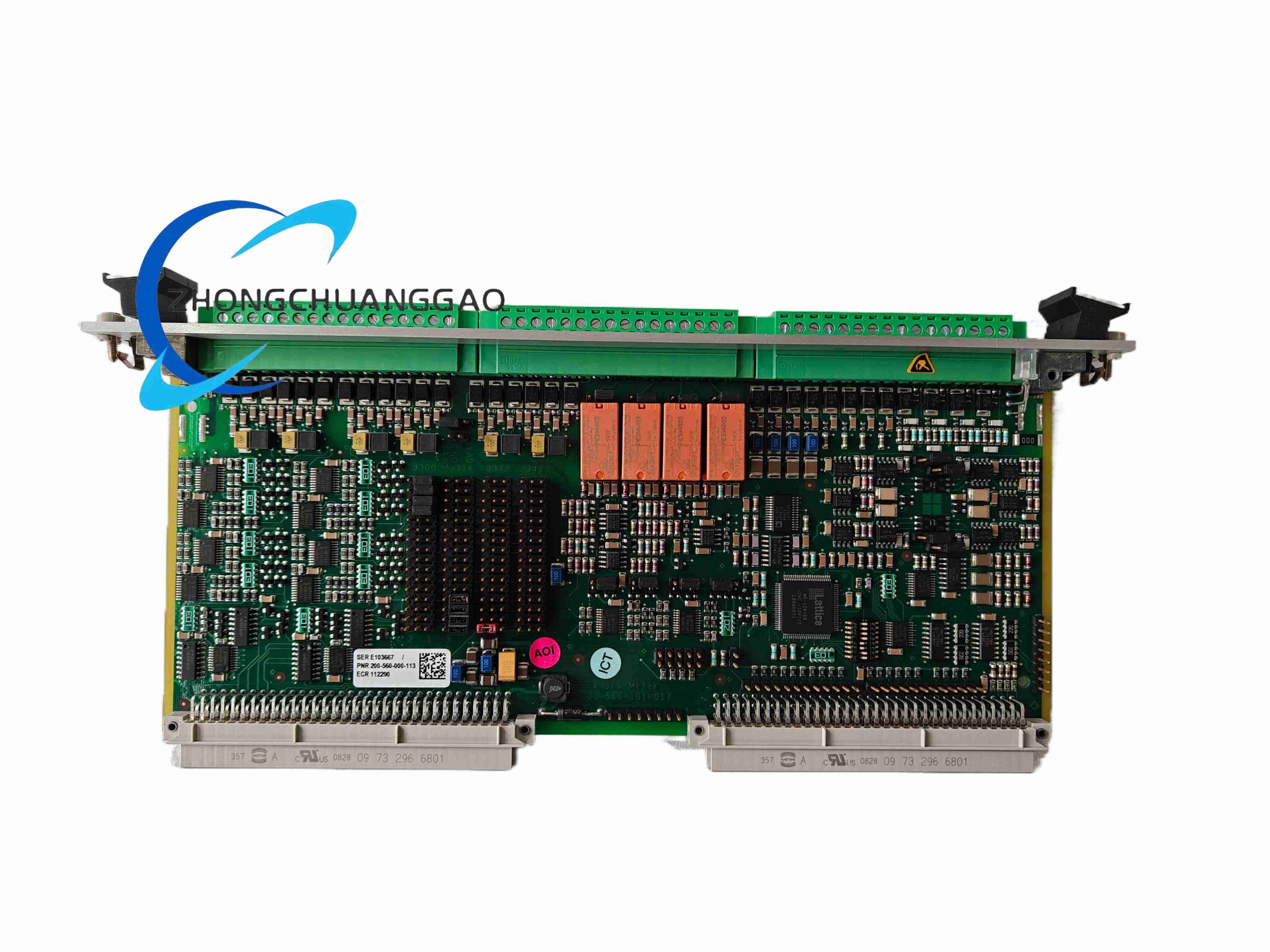

Vibro-Meter IOC4T 200-560-000-1130

Product Name: VM600 IOC4T Input/Output Interface Card
Product Introduction: The Vibro-Meter IOC4T​ (part of Meggitt VM600 machinery protection system) is a signal interface card​ that pairs with the MPC4 protection card​ to provide field wiring termination, analog outputs, relay alarms, and buffered raw signal access for vibration/tachometry monitoring.
Category:
Description
Technical Specifications:
  • Dynamic Inputs: 4 differential channels (accel/velocity/displacement)
  • Tacho Inputs: 2 channels (0.3 Hz – 10 kHz, up to 100k RPM)
  • Analog Outputs: 4 x 0–10 V or 4–20 mA (jumper selectable, DAC-based)
  • Relays: 4 on-board programmable (250 VAC/5 A, NO/NC)
  • Digital Outputs: 32 open-collector (to RLC16/IRC4 cards)
  • Termination: 48-screw terminal strip (J1/J2/J3)
  • Working Temp: -25 °C to +65 °C
  • Hot-Swappable: Yes (live insertion/removal)
  • EMI/Surge: TVS protection, IEC 60255 compliance
  • Size: 6U (approx. 262 × 20 × 125 mm), 0.25 kg
  • Certification: CE, RoHS, SIL1 (IEC 61508)
    Function Features:
  • Buffers raw sensor signals​ for external analysis
  • Software-attributable alarms to local relays
  • EMI filtering on all I/O
  • Mounts behind MPC4 in ABE04x/ABE056 rack via P2 connector
    Applications: Steam/gas turbine vibration monitoring, compressor protection, gearbox condition monitoring, power plant rotating equipment surveillance.
