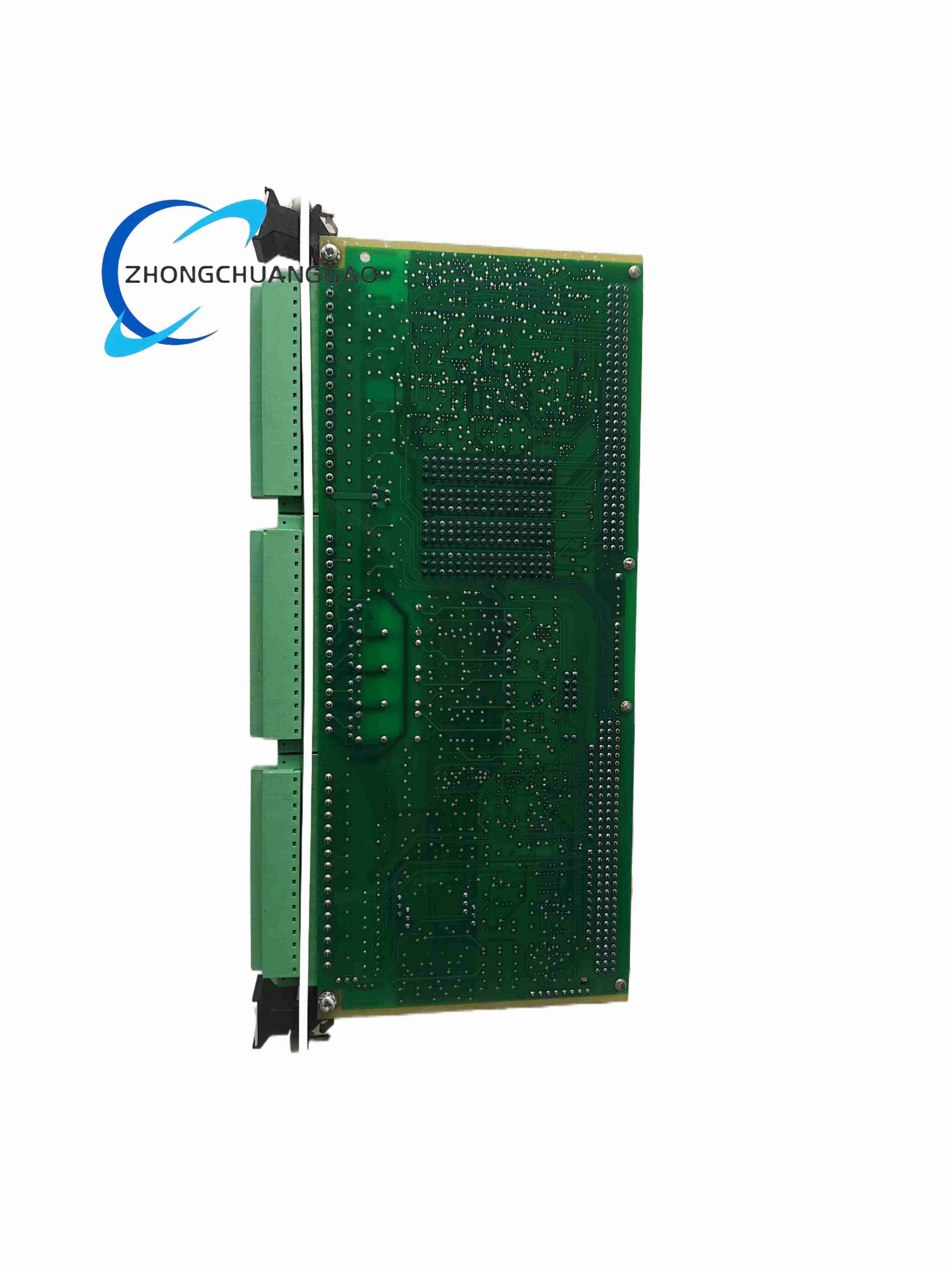

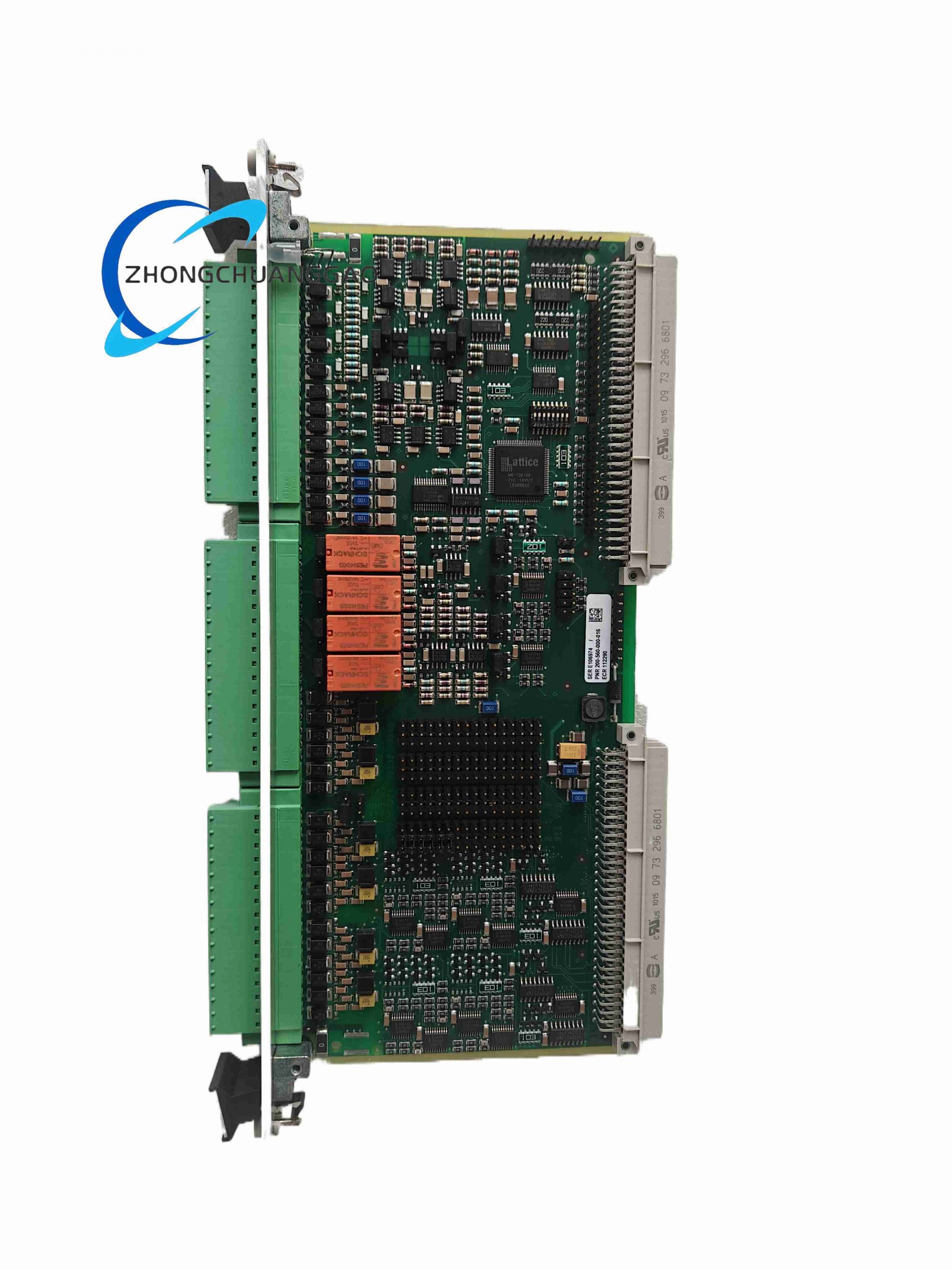

Vibro-Meter IOC4T 200-560-000-016

Product Name:​ VM600 Series Input/Output Conditioning Card (IOC4T)
Product Introduction:​ Signal conditioning and interface I/O card for the VM600 machinery protection system; works in pair with MPC4 dynamic protection cards to acquire dynamic vibration signals and tachometer signals from proximity probes, accelerometers, and speed sensors.
Category:
Description
Technical Specifications:
  • Channels:​ 4 × Dynamic Signal Inputs (AC coupled, accepts eddy-current / seismic sensor signals) + 2 × Tacho / RPM Inputs
  • Analog Outputs:​ 2 × 0–10 VDC buffered outputs (for trend recording)
  • Connection:​ 48-pin screw terminal block (removable)
  • Backplane Bus Current:​ ≤ 500 mA
  • Housing Material:​ Aluminum alloy; typical module size ~130 × 130 × 70 mm
  • Mounting:​ Plugs into VM600 rack backplane; optional wall-mount bracket
  • Operating Temp:​ -25 °C to +70 °C; Storage: -40 °C to +85 °C
  • Protection:​ Overvoltage-protected inputs; hot-standby redundancy supported in VM600 architecture
  • Indicators:​ OK (green), COMM (green), Alarm (red) LEDs per channel/group
    Working Principle:​ Conditions raw transducer signals (amplification, filtering, buffering), transmits digitized data to MPC4 card over backplane bus for comparison against alarm/trip setpoints.
    Installation Notes:​ Ensure proper 120 Ω termination on RS-485 links if used externally; verify sensor type (proximitor™ / accelerometer) before wiring; keep signal cables shielded and separated from power wiring.
    Applications:​ Steam/gas turbine vibration monitoring, compressor train protection, rotating machinery condition monitoring in oil & gas, power generation, petrochemical plants.
