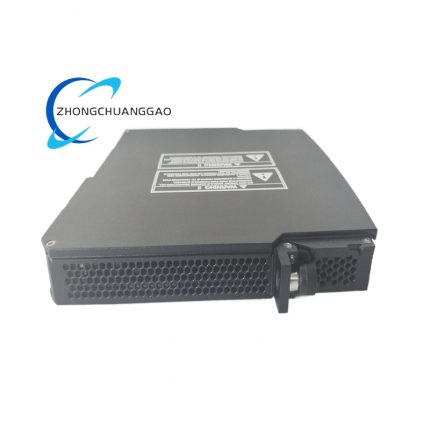

Triconex 3626X Analog Output Module
Triconex 3626X Analog Output Module
Back to products
Triconex 8307A Power Supply Module
Triconex 8307A Power Supply Module

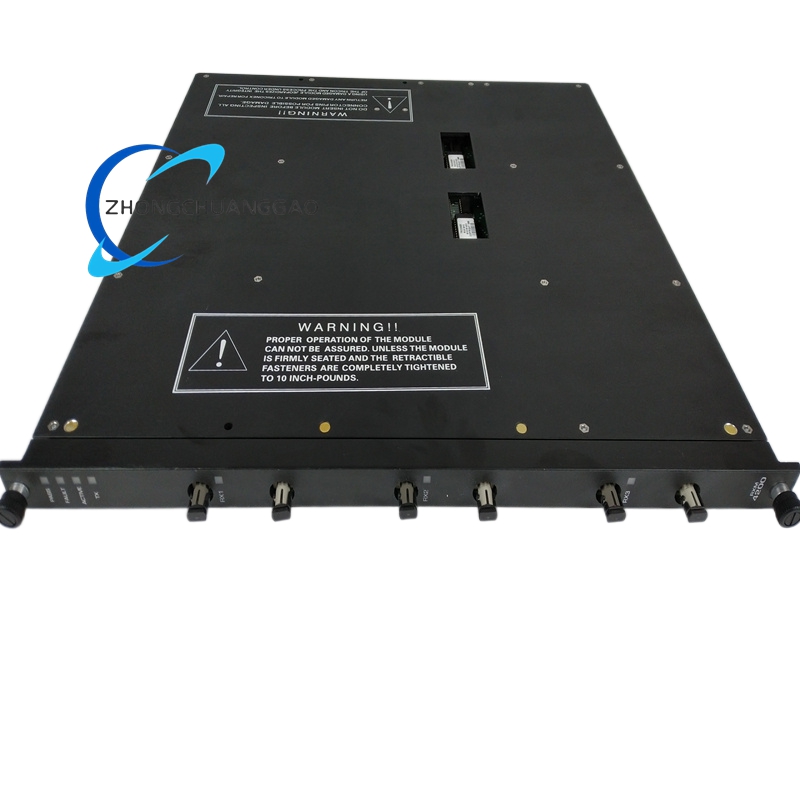

Triconex 4200 Safety Controller

Product Introduction:
The Triconex 4200 is an industrial safety controller designed to protect critical industrial processes and equipment. It operates within the Tricon triple modular redundant (TMR) safety control system architecture, ensuring high reliability and fault tolerance. This controller is specifically tailored for applications where safety and continuous operation are paramount, such as in the oil and gas, chemical, power generation, and nuclear industries.

Category:
Description

Technical Specifications:

  • Processor: 32-bit RISC processor for high-speed data processing.
  • Memory: 128 MB RAM, 2 GB storage space for program and data storage.
  • Input/Output Channels:
    • 16 digital input channels, supporting various signal types including dry contacts, wet contacts, NAMUR, and PNP/NPN.
    • Multiple analog input and output channels for precise process control.
  • Communication Interfaces: RS-232, RS-485, and Ethernet for seamless integration with other control systems and devices.
  • Operating Temperature Range: -40°C to +70°C, ensuring reliable operation in extreme environments.
  • Protection Level: IP65, providing protection against dust and water ingress.
  • Redundancy Design: Triple modular redundancy (TMR) for fault tolerance and system reliability.

Functional Characteristics:

  • High Reliability: The TMR design ensures that the system remains operational even in the event of a single or dual hardware fault, eliminating single points of failure.
  • Real-time Diagnostics: Comprehensive self-diagnostic capabilities monitor the health of the controller and its I/O channels, providing real-time alerts for any detected faults.
  • Flexible Configuration: The controller supports a wide range of input and output signal types, allowing for customization to meet specific application requirements.
  • Hot Swapping: Enables online replacement of modules without interrupting the control process, minimizing downtime and maintenance costs.
  • High Precision and Stability: Suitable for applications requiring precise control and measurement, such as in chemical processing and power generation.

Application Scenarios:

  • Oil and Gas Industry: Used in wellhead control, pipeline monitoring, and refinery automation to ensure safe and efficient operation.
  • Chemical Industry: Monitors and controls critical reaction processes, including temperature, pressure, and liquid level, to prevent accidents and ensure product quality.
  • Power Generation: Controls boiler systems, turbine operations, and electrical substation automation to maintain stable power supply and prevent equipment damage.
  • Nuclear Industry: Provides safety control for nuclear reactors and associated systems, ensuring compliance with stringent safety regulations.
  • Transportation: Applied in railway signaling systems and air traffic management for safe and reliable operation.
  • Medical Equipment: Protects critical medical control devices from malfunctions, ensuring patient safety.
