TEXMATE FX‑B101Q

Technical Specifications: Display: 101‑segment LED bargraph, red as standard, green or amber optional Panel cut‑out dimension: 144 mm × 36 mm (9/64 DIN case) Programming mode: QUICKSET front‑panel button quick‑calibration Analog output: Isolated 16‑bit analog output, selectable 4‑20 mA or 0‑10 V DC Power‑supply option 1: 85‑265 V AC / 95‑300 V DC Power‑supply option 2: 15‑48 V AC / 10‑72 V DC Input‑mode: Support replaceable modular input‑cards for AC‑current, AC‑voltage, DC‑voltage, DC‑current Basic accuracy: ±0.5 % full‑scale Operating temperature: ‑20 °C ~ +80 °C Storage temperature: ‑40 °C ~ +125 °C Protection class: IP00 for panel‑rear side, panel‑front IP65 optional Certifications: CE, RoHS Mounting form: Panel‑mount installation

Functional Features: 101‑segment high‑resolution LED bargraph for fast visual‑reading of process‑value QUICKSET front‑panel button zero‑span calibration without complex menu navigation Modular plug‑in input‑card design, conveniently switch measuring‑signal‑type Isolated 16‑bit analog‑retransmission output, can transmit process‑value to remote‑control‑room or recorder Support horizontal or vertical panel‑installation, support reverse‑bar‑display direction setting Front‑panel Zero, Span, Lo, Hi function‑buttons for on‑site parameter setting Wide‑range AC/DC universal power‑supply compatibility User‑configurable full‑scale range according to field‑site process‑signal

Application Scenarios: Industrial‑control‑panel on‑site pressure‑value indication Hydraulic and pneumatic‑system pressure monitoring display Water‑treatment‑plant flow‑signal local‑panel indication HVAC‑system process‑variable panel‑display Machinery‑equipment local‑panel current‑voltage signal indication Petrochemical‑plant auxiliary‑equipment local visual‑indicator

Material Composition: Front‑panel frame: High‑strength flame‑retardant plastic Main housing: Black engineering‑plastic housing Display unit: LED segment‑light‑group Internal circuit‑board: FR‑4 industrial‑grade circuit‑board Input‑card: Plug‑in modular circuit‑board with plastic housing Terminal‑block: Tin‑plated copper‑alloy screw‑terminal

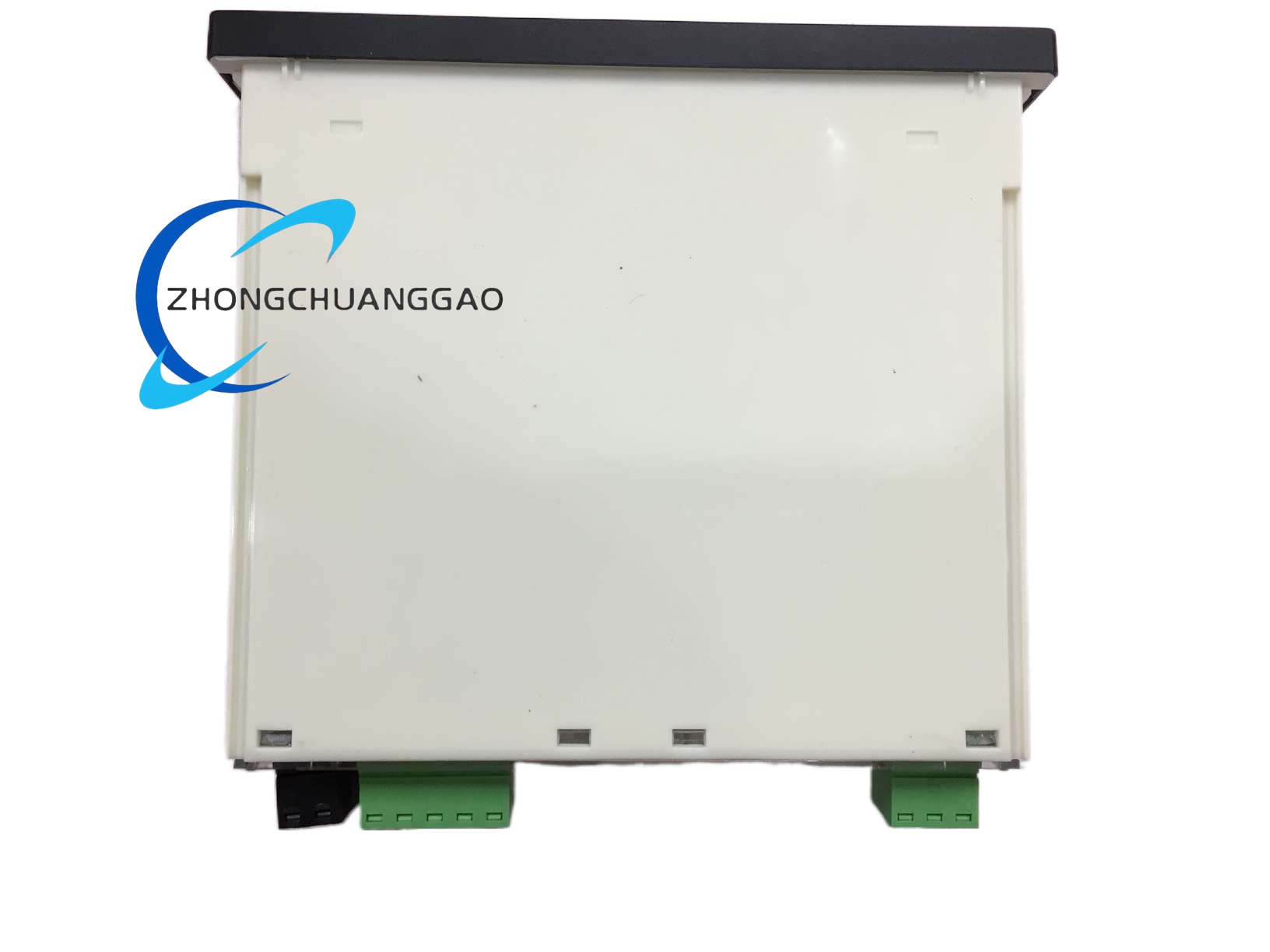

Structural Characteristics: Standard 9/64 DIN panel‑mount housing, fixed by panel‑mounting‑clamp Front‑panel with bargraph display window and four function‑operation‑buttons Rear‑housing with plug‑in slot for replaceable input‑card Rear‑side screw‑locking terminal‑block for power‑supply, input‑signal and analog‑output wiring Support horizontal or vertical panel‑installation orientation No moving mechanical‑components inside meter

Working Principle: Field‑site process‑signal (voltage/current) enters replaceable input‑card. Input‑card converts external measuring‑signal into internal‑processing signal. Internal micro‑processor calculates real‑time process‑value according to zero‑span calibration‑parameter set by front‑panel button. Micro‑processor drives 101‑segment LED bargraph to display corresponding‑value. Meanwhile isolated analog‑output circuit generates 4‑20 mA or 0‑10 V DC retransmission‑signal proportional to measuring‑value and sends to external‑equipment. QUICKSET button directly modifies zero‑point and full‑scale‑parameter stored inside non‑volatile‑memory, parameter‑data remains after power‑off.

Installation Requirements: Install in industrial‑control‑panel cut‑out of 144 mm × 36 mm dimension, fasten meter with panel‑mount‑clamp. Select horizontal or vertical installation‑orientation according to site‑demand. Install matched input‑card corresponding to measuring‑signal‑type before wiring. Rear‑side wiring terminal connects power‑supply, measuring‑input‑signal and analog‑output‑signal. Keep rear‑housing ventilation‑space, avoid high‑temperature‑heat‑source direct‑radiation. Ambient‑operating‑temperature must keep within ‑20 °C ~ +80 °C range.

Usage Notes: Select matched‑model input‑card according to actual‑measuring‑signal‑type, wrong‑input‑card will cause measuring‑error or hardware‑damage. Complete zero‑point and full‑scale calibration after installation before formal‑use. Do not exceed allowable input‑signal range. Do not operate beyond permitted power‑supply‑voltage‑range. Keep front‑panel surface clean, avoid chemical‑solvent erosion. When meter power‑supply is shared with other‑equipment, add power‑supply filter if site‑interference is heavy. Do not open rear‑housing in powered‑on‑state. This product is discontinued‑model, confirm spare‑part‑availability before project‑application。
