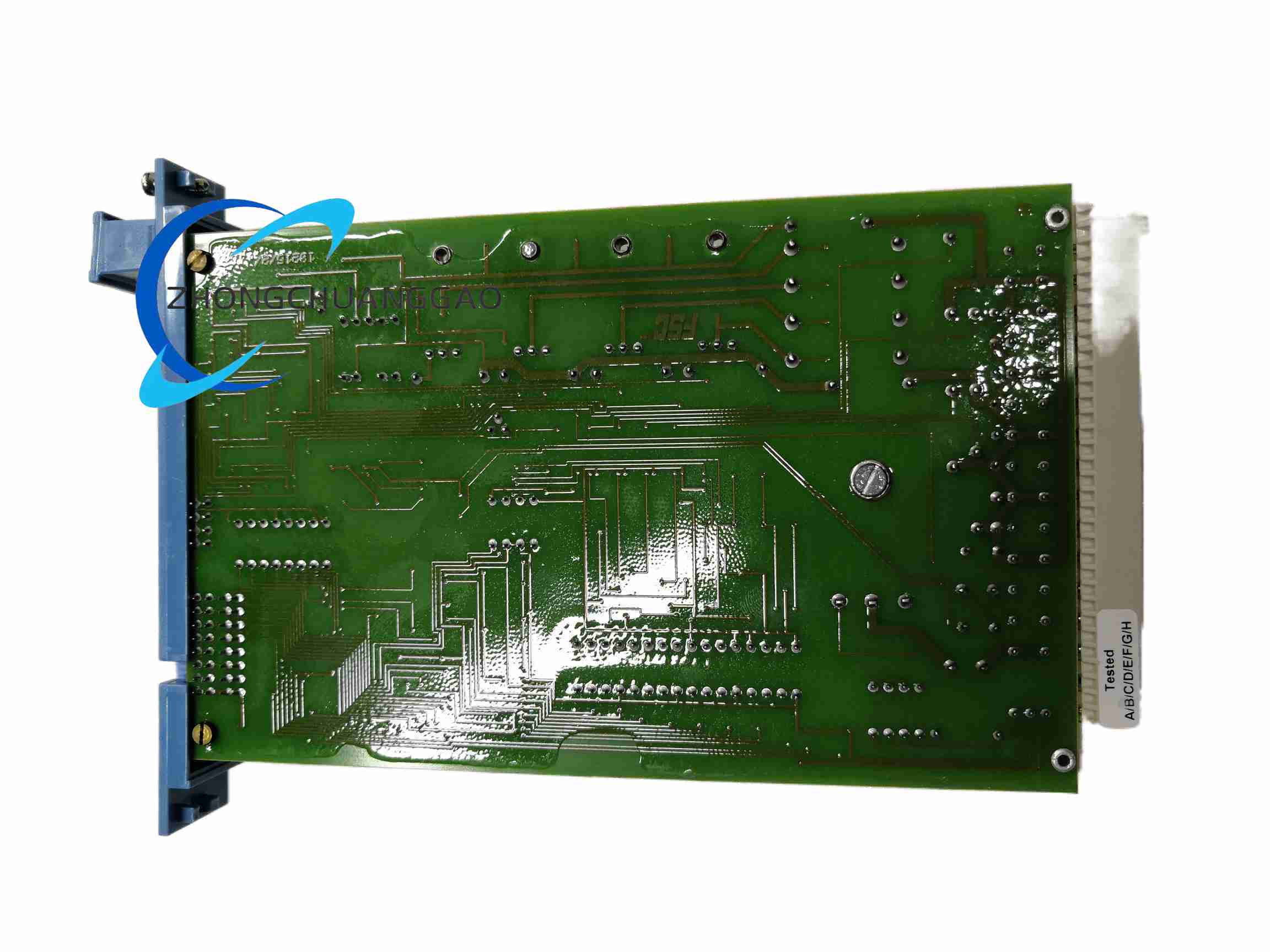

Honeywell FC‑SDOL‑0424

Technical Specifications:

4‑channel digital output, 24VDC working voltage, safety integrity level SIL3 certified, short‑circuit and over‑current protection, backplane bus communication, compact DIN‑rail mounting form factor.

Functional Features:

Safety‑oriented fault‑diagnosis function, channel‑independent output control, built‑in circuit self‑test, support safety‑related logic interlock, short‑circuit open‑circuit detection for field loops.

Application Scenarios:

Petrochemical plants, chemical process safety control, power plant safety interlock systems, oil & gas processing facilities, safety instrumented system (SIS) cabinets.

Performance Parameters:

Response time less than 20ms, operating ambient temperature ‑20℃ to +60℃, isolation between field channels and internal bus, conform to IEC61508 safety standard.

Material Composition:

Industrial‑grade ABS plastic housing, copper alloy terminal blocks, gold‑plated backplane contact pins.

Structural Features:

Compact modular hot‑plug‑capable structure, front‑view LED status indicator lights, spring‑type wiring terminals, standard module width for cabinet installation.

Working Principle:

Receive safety logic commands from Safety Manager main controller via backplane bus; internal safety‑certified circuit drives field output channels, continuously execute self‑diagnosis for output circuit faults, trigger safe‑state output once fault is detected.

Installation Requirements:

Mount on standard DIN‑35 rail inside control cabinet, maintain sufficient ventilation clearance between adjacent modules, separate safety signal wiring from high‑power power cable wiring, comply with intrinsic safety installation specifications.

Usage Notes:

Only apply within SIL‑rated safety instrumented loops, avoid mechanical impact on module housing, complete loop insulation test before power‑on, forbid modification of internal circuit, execute regular functional proof‑test as per safety system maintenance manual.
