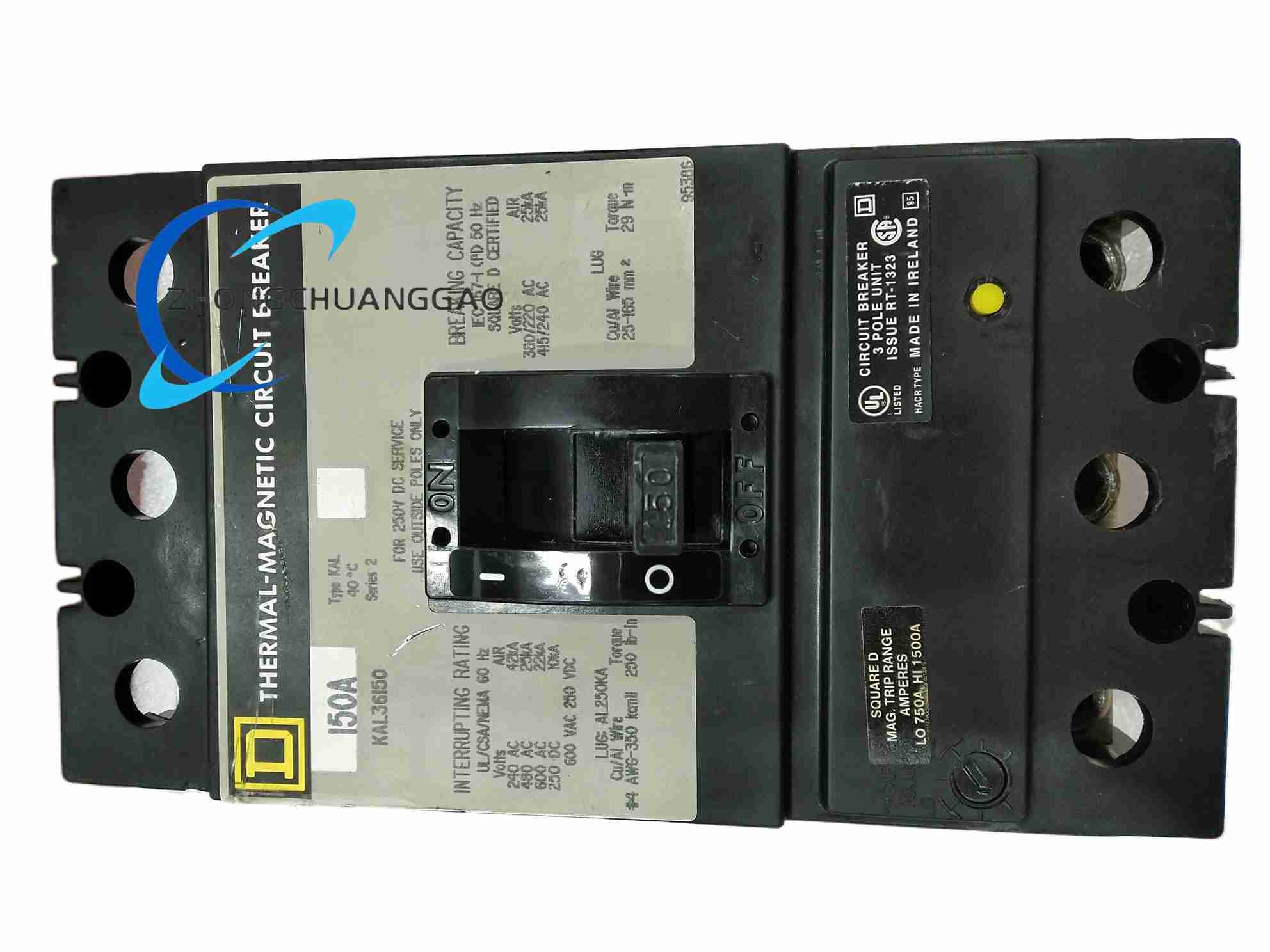

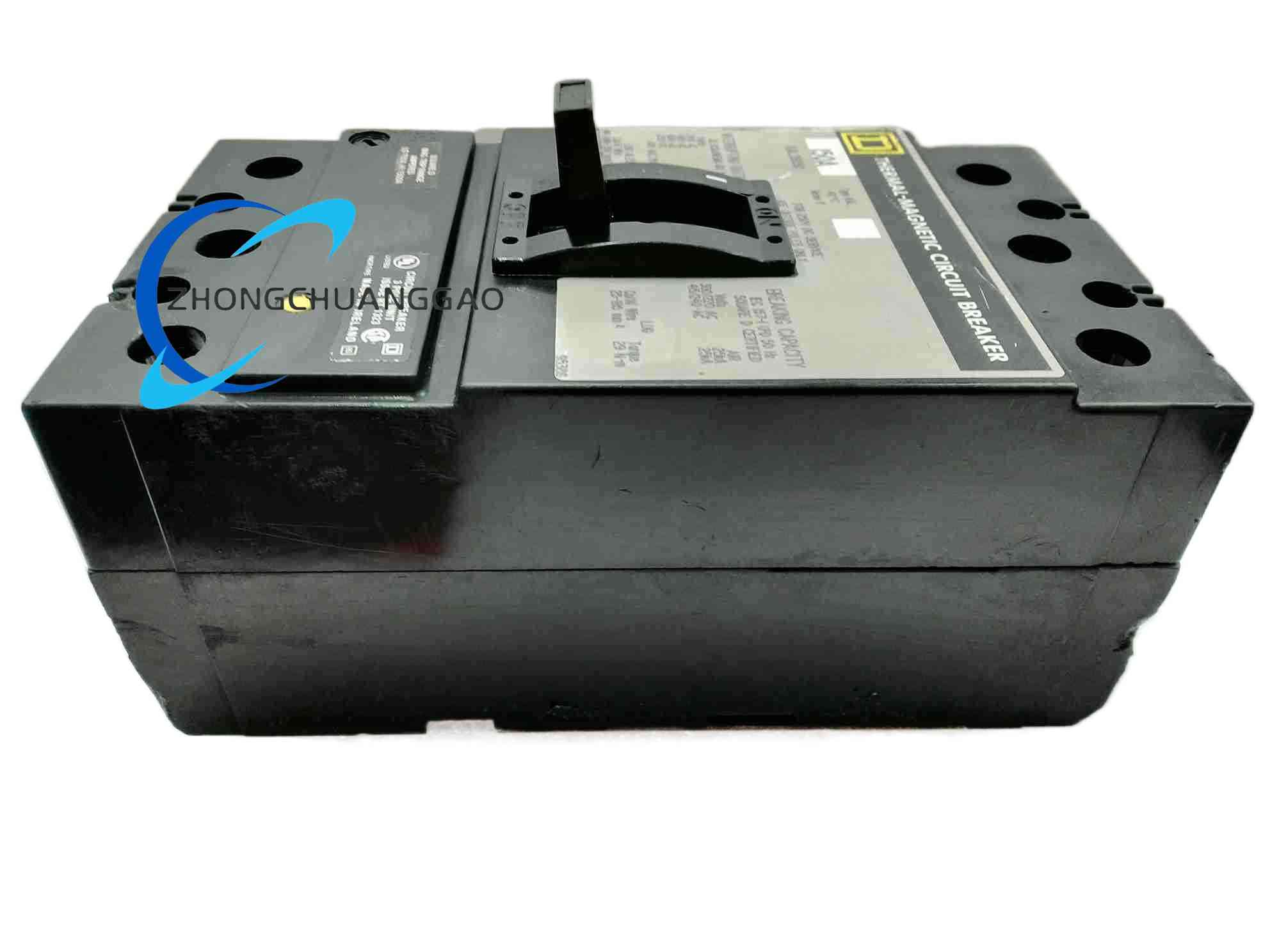

KAL36150J Square D K-frame molded case circuit breaker.
Product Overview
Three-pole thermal-magnetic molded case circuit breaker for low-voltage industrial distribution and motor feeder protection. The J designation identifies I-Line plug-on mounting compatibility in addition to unit-mount configurations.
Category:
Description
Technical Specifications
  • Brand range: Square D, Schneider Electric
  • Frame: K-frame
  • Poles: 3
  • Rated current: 150 A
  • Voltage: 600 VAC maximum, 250 VDC maximum
  • Frequency: 50 or 60 Hz
  • Trip type: thermal-magnetic, long-time overload and instantaneous short-circuit
  • Interrupting capacity: documented KAL listings range 42 to 65 kA at 240 VAC, 25 to 35 kA at 480 VAC and 22 kA at 600 VAC depending on specification level; confirm AIC on the nameplate
  • Conductor range: 4 AWG to 300 or 350 kcmil aluminum or copper depending on lug kit
  • Operating temperature: -25 to 70 degrees Celsius
  • Mounting: I-Line plug-on, unit mount, enclosure or switchboard installation
Functional Features
Visi-Trip indication, thermal overload protection, magnetic instantaneous protection, optional shunt trip, auxiliary contact, alarm contact and undervoltage release.
Application Scenarios
Industrial power distribution panels, commercial main and branch disconnects, motor control center incoming feeders, compressor and pump feeders, data-center rack power panels and critical-load switchboards.
Performance Parameters
Long-time thermal element protects against sustained overload. Instantaneous magnetic element clears short-circuit current within the rated breaking capacity. Handle provides visible ON, OFF and tripped status.
Material Composition
Thermoset or modified engineering-plastic housing, silver-alloy or silver-tin-oxide contacts, copper bus bars and lugs, bimetallic overload strip, electromagnetic trip coil, steel spring mechanism.
Structural Characteristics
Molded arc-chute chamber, movable and fixed contacts, operating handle, trip indicator window, line and load terminals, thermal-magnetic trip unit and I-Line jaw or bolt-lug interface.
Working Principle
Normal current flows through closed contacts. Overload heating bends the bimetal strip until it releases the latch and opens the breaker. Short-circuit current creates a magnetic field in the coil that instantly pulls the trip bar, opening contacts and quenching the arc in the arc chute.
Installation Requirements
Install in a Square D I-Line panel or compatible enclosure with correct torque values. Use listed lugs for conductor size. Verify breaker frame, pole count and AIC against system short-circuit calculations. Connect proper ground and bonding conductors.
Usage Precautions
Energize only after confirming de-energized installation. Do not reset repeatedly against a sustained fault. Test optional shunt, auxiliary and alarm functions during commissioning. Maintain clearance for heat dissipation and arc-fault coordination.
