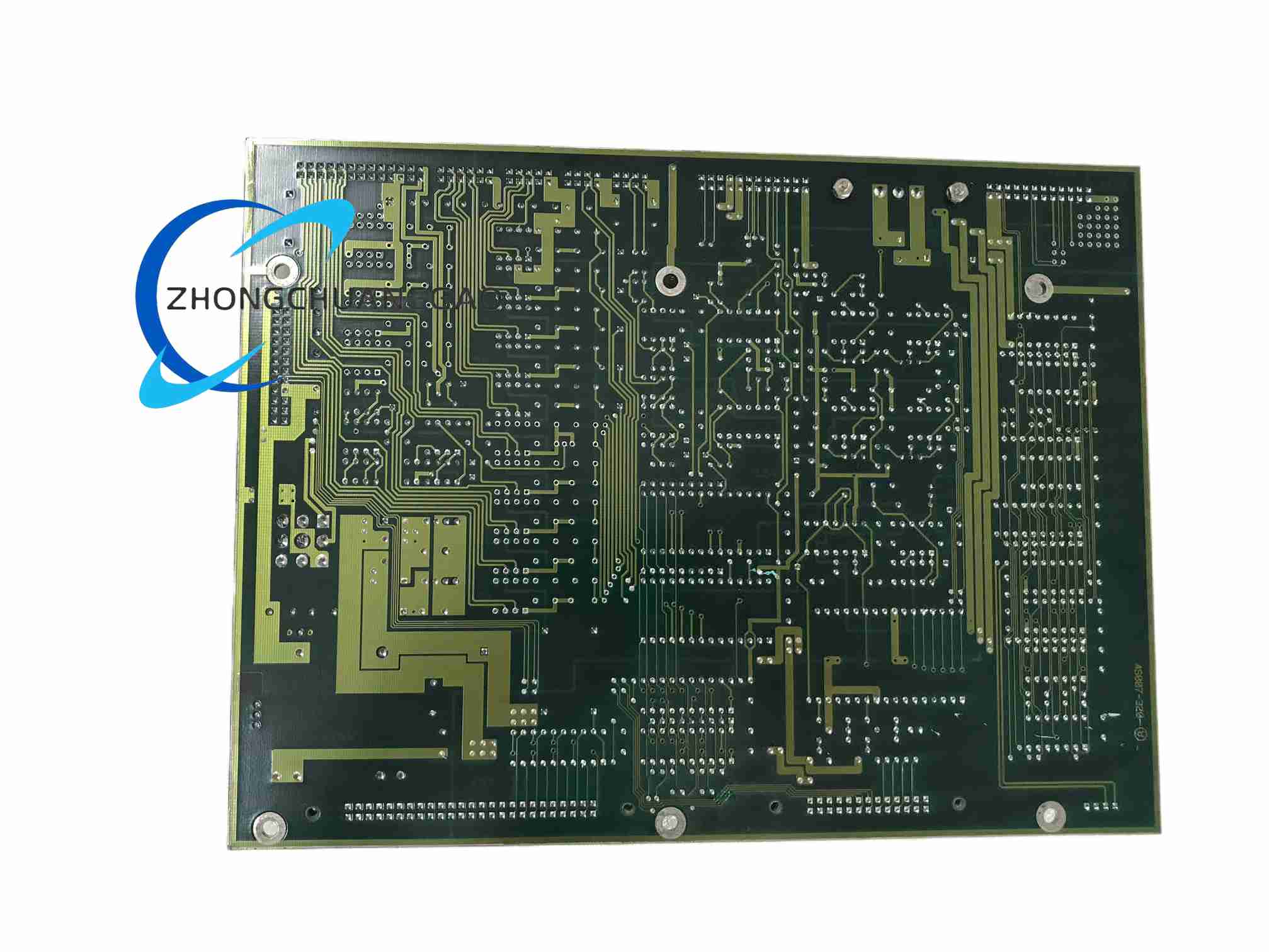

Nikon KBA-006504S007-320-ALC-SIG4 - Image 2
Click to enlarge
Nikon KBA-006504S007-320-ALC-SIG4
Nikon KBA-006504S007-320-ALC-SIG4 - Image 2
Square D KAL36150J
Square D KAL36150J
Back to products
KB Electronics KBLC-120
KB Electronics KBLC-120

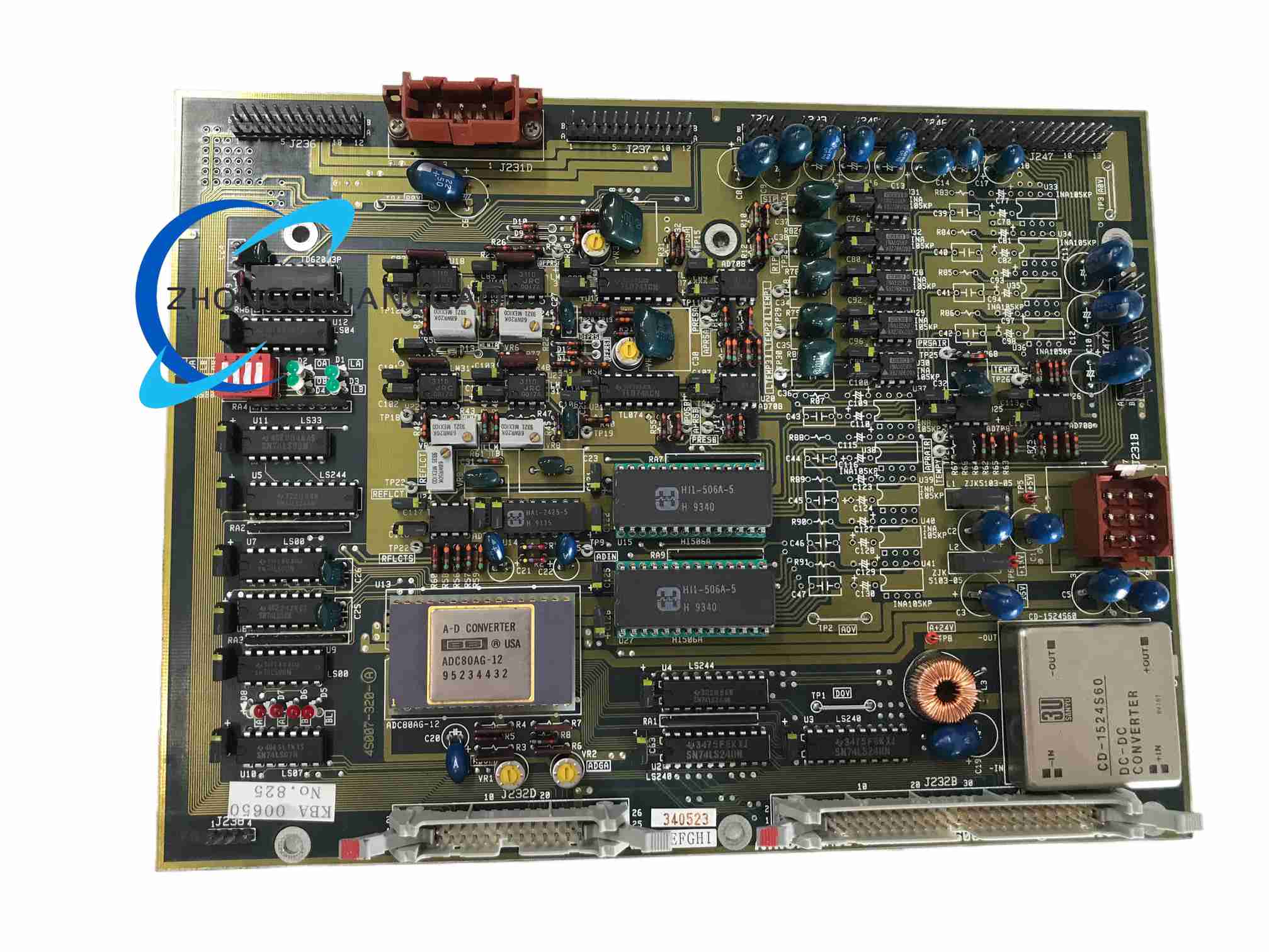

Nikon KBA-006504S007-320-ALC-SIG4

Product Name
KBA-00650 4S007-320-A ALC-SIG4 Nikon industrial signal processing and transmission module.
Product Overview
Configurable Nikon industrial signal module used for high-speed data acquisition, analog signal processing and network transmission in automation systems. The long part string covers LC-SIG4/ALC-SIG4 variants supplied for panel or field installation.
Category:
Description
Technical Specifications – Signal Processing Configuration
  • Power: 24 VDC, ±10 percent
  • Analog input: ±10 V documented range
  • Resolution: 16 bits
  • Sampling rate: 10 kHz
  • Communication: Modbus RTU and Modbus TCP
  • Operating temperature: -20 to 70 degrees Celsius
  • Isolation: channel-to-bus isolation
Technical Specifications – High-Speed Transmission Configuration
  • Power: 24 VDC
  • Network speed: 1 Gbps documented Ethernet option
  • Additional protocol: RS-485
  • Response time: 50 microseconds
  • Protection: IP67 in field-grade housing
  • Operating temperature: -40 to 85 degrees Celsius
  • Mounting: rail-mounted or field enclosure
Technical Specifications – Programmable I/O Configuration
  • Power: 24 VDC, 3 A in documented PLC-style listings
  • Digital I/O: 32 inputs and 32 outputs depending on firmware
  • Communication: Ethernet, RS-232, RS-422
  • Dimensions: approximately 150 x 70 x 115 mm
  • Weight: approximately 0.5 kg
  • Operating temperature: 0 to 45 degrees Celsius
Functional Features
Differential front-end acquisition, high-resolution analog-to-digital conversion, real-time Ethernet or serial transmission, optical isolation, LED diagnostics and ruggedized housing options.
Application Scenarios
Machine signal acquisition, metrology and inspection systems, high-speed production lines, outdoor industrial networking, robotics communication interface and process data logging.
Performance Parameters
Low-jitter sampling for analog measurement, microsecond-level response for high-speed transmission, deterministic communication for controller integration.
Material Composition
Aluminum or coated steel field housing where IP67 is required, industrial FR4 circuit board, gold-plated connectors, conformal coating for harsh environments, plastic DIN adapter where panel-mounted.
Structural Characteristics
Modular signal front end with single-ended-to-differential amplifier, A/D converter, embedded processor, communication transceivers, terminal block or RJ/industrial connectors and status LEDs.
Working Principle
Analog signals are conditioned by the differential front end and converted by the A/D stage. Digital inputs are latched and isolated. The processor formats data and transmits it over Ethernet, RS-485, RS-232 or RS-422 according to the configured protocol. Field versions add sealed enclosures and protection circuits.
Installation Requirements
Match the module variant to the ordered suffix before installation. Use DIN rail for panel versions or sealed enclosure for IP67 versions. Provide stabilized 24 VDC. Ground shields at one point. Separate communication cables from power cables.
Usage Precautions
Do not exceed ±10 V analog input or 24 VDC supply limits unless the nameplate states extended ratings. For IP67 units, use proper cable glands and avoid open connector covers. Verify protocol, IP address and baud rate before system integration.
