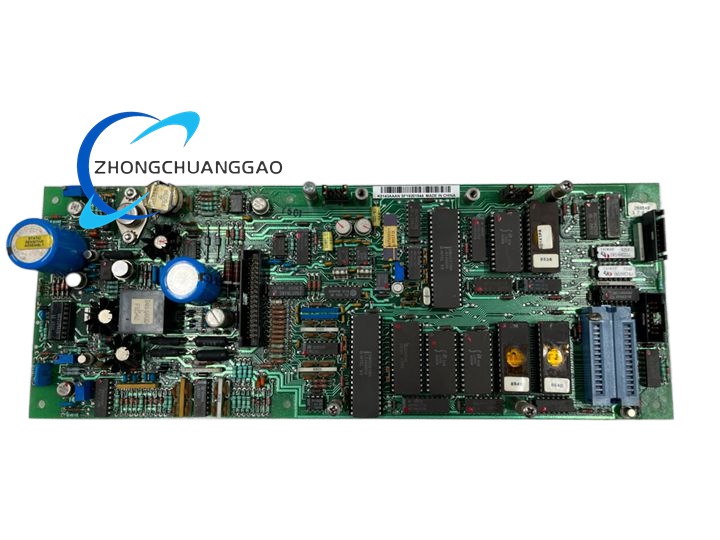

FOXBORO K0143AAAN - Image 1

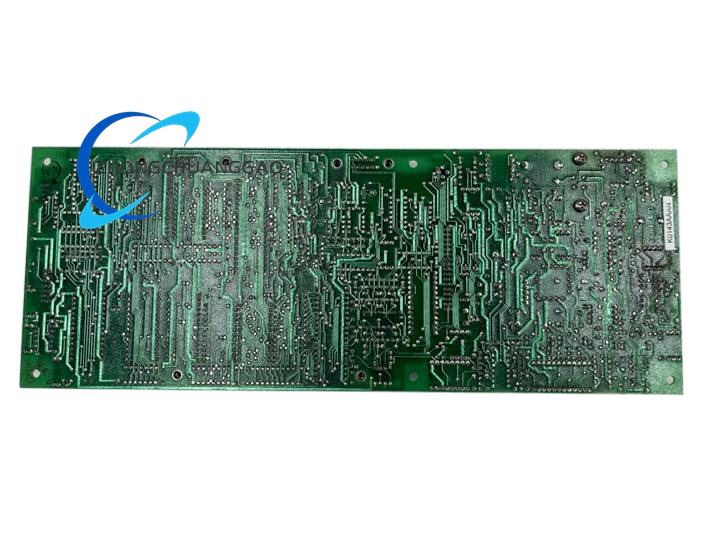

FOXBORO K0143AAAN - Image 2
Click to enlarge
FOXBORO K0143AAAN
FOXBORO K0143AAAN - Image 2

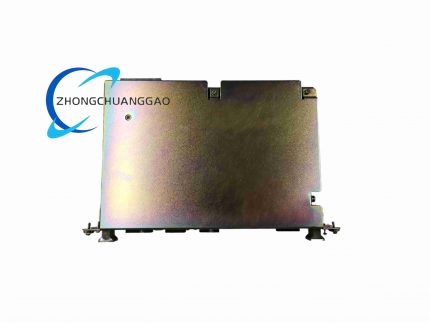

Yaskawa JZNC-XRK01D-1
Yaskawa JZNC-XRK01D-1
Back to products
Square D KAL36150J
Square D KAL36150J

FOXBORO K0143AAAN

Product Name
K0143AAAN Foxboro industrial I/O and control module.
Product Overview
Replacement-supplier records assign K0143AAAN to several Foxboro automation configurations, including analog input, digital output and combined system/control versions. Confirm the exact card class from the controller model, slot function and firmware label before installation.
Category:
Description
Technical Specifications – Analog Input Configuration
  • Channels: 4 single-ended analog inputs
  • Signal range: 0 to 10 VDC and 4 to 20 mA
  • Resolution: 16 bits
  • Accuracy: 0.01 V or 0.01 mA per documented calibration
  • Backplane or auxiliary power: 24 VDC
  • Operating temperature: -10 to 55 degrees Celsius
  • Protection: IP20
  • Dimensions: approximately 72 x 96 x 60 mm
  • Weight: approximately 0.25 kg
Technical Specifications – Digital Output Configuration
  • Channels: 4 digital outputs
  • Voltage: 24 VDC
  • Current rating: up to 20 mA per channel in documented listings
  • Response time: microseconds level
  • Operating temperature: -20 to 70 degrees Celsius
  • Protection: IP20
  • Dimensions: approximately 120 x 100 x 40 mm
  • Weight: approximately 0.2 kg
Technical Specifications – Mixed System Configuration
  • Analog inputs: up to 8 channels, 0 to 10 V or 4 to 20 mA
  • Digital inputs: up to 16 channels, 12 to 30 VDC
  • Digital outputs: up to 12 channels, maximum 2 A per output group in listed variants
  • Communication: Ethernet 10/100 Mbps and RS-485
  • Power: 24 VDC, consumption below 10 W
  • Operating temperature: -20 to 60 degrees Celsius
  • Dimensions: approximately 200 x 150 x 50 mm
Functional Features
Signal conditioning, analog-to-digital conversion, digital driving, isolation, bus communication and diagnostics according to the installed configuration.
Application Scenarios
Foxboro I/A Series and compatible distributed control systems, chemical process control, power and energy monitoring, pharmaceutical batches, food and beverage lines, machinery control and building automation interfaces.
Performance Parameters
High-resolution analog sampling for temperature, pressure and flow loops. Fast digital response for valve, motor and alarm control. Deterministic communication with controller CPUs through backplane or field bus.
Material Composition
Industrial printed circuit board, surface-mount signal components, metal or plastic connector shells, tinned or gold-plated contacts, flame-retardant module housing.
Structural Characteristics
Pluggable DIN or backplane module with channel terminals, power connector, communication port, LED status indicators and onboard signal-conditioning circuitry.
Working Principle
Field analog signals pass through filtering and amplification stages before analog-to-digital conversion. Digital inputs are optically isolated and debounced. Digital outputs are driven through power stages. The module exchanges processed data with the controller through the backplane bus or external communication port.
Installation Requirements
Install in the specified controller slot or DIN enclosure. Use twisted-pair cable for analog signals. Connect shield to a single ground point. Verify address, firmware and terminal assignment before energizing.
Usage Precautions
Do not exceed 10 V or 20 mA on analog inputs unless the nameplate states extended range. Separate signal and power wiring. Perform calibration after replacement. Confirm explosion-protection and IP requirements before outdoor or hazardous-area use.
