SIGMATEK DCP161

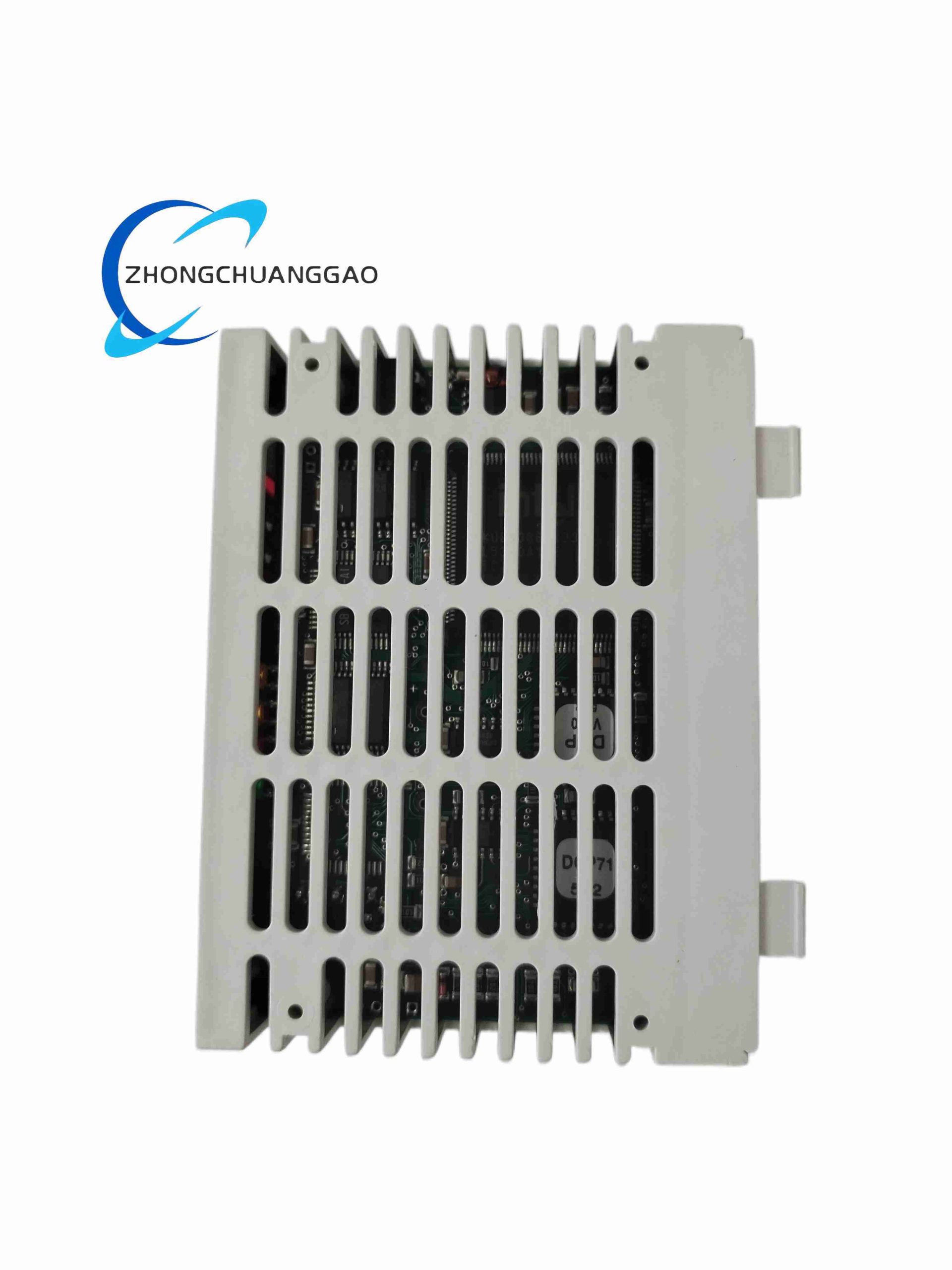

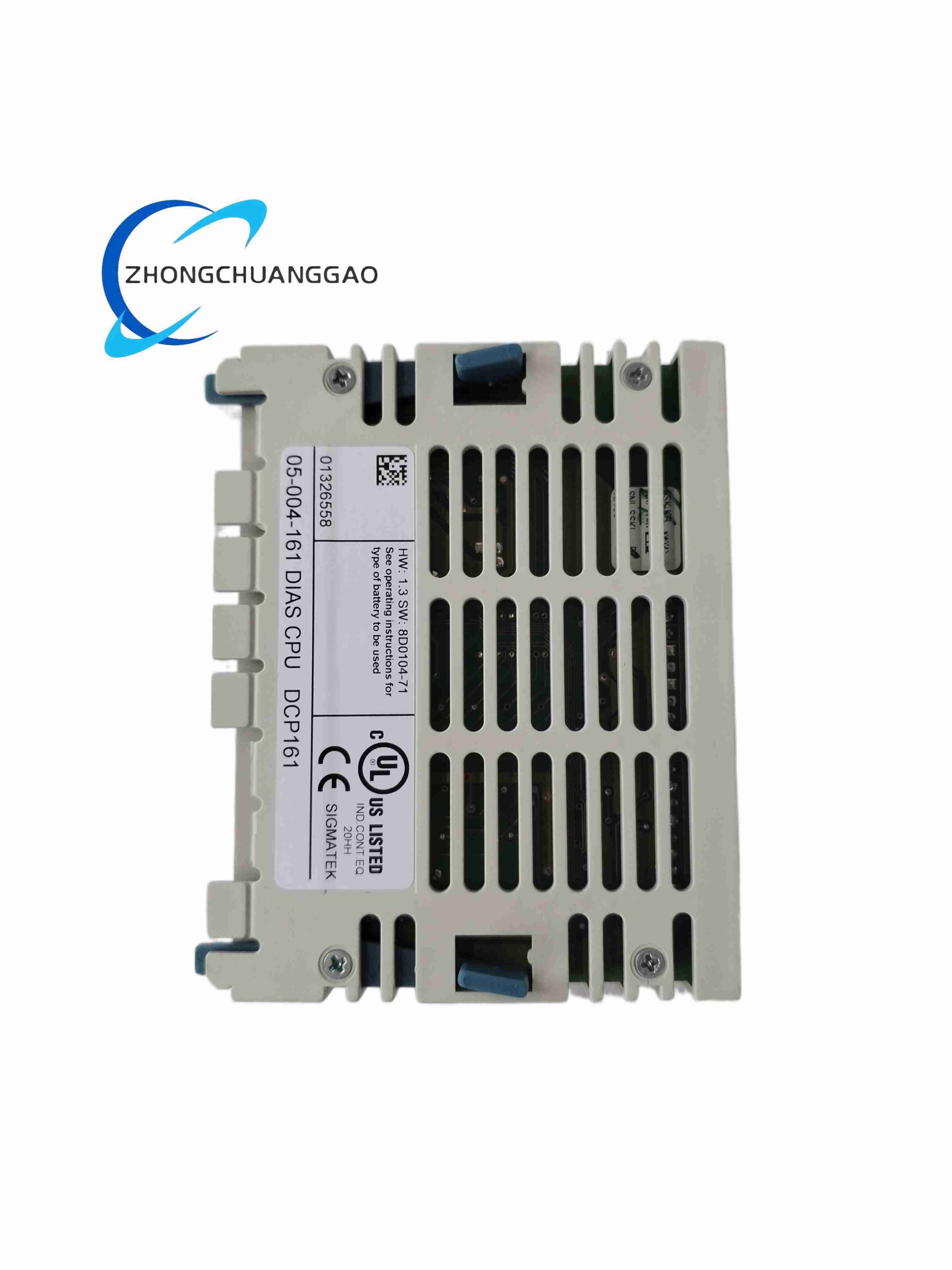

Product Name:​ SIGMATEK DCP161 16-Channel Digital Input Module
Product Introduction:​ High-density, optically isolated 24 V DC digital input module for SIGMATEK modular automation systems (SLC / PAC controllers). Suitable for decentralized I/O close to machines.
Technical Specifications:
  • Manufacturer:​ SIGMATEK (Austria)
Category:
Description
  • Model:​ DCP161
  • Inputs:​ 16 × 24 V DC (10–30 V DC range)
  • Input Type:​ Sink (NPN) or Source (PNP) selectable per channel group
  • Input Current:​ ~3 mA @ 24 V DC
  • Response Time:​ < 1 ms (on/off)
  • Galvanic Isolation:​ 500 V (field side ↔ logic backplane); some sources quote 2.5 kV optocoupler isolation
  • Status Indicators:​ LED per channel
  • Backplane Bus:​ SIGMATEK DIAS / DCP high-speed bus; also CANopen / SERCOS III capable in distributed config
  • Power Consumption:​ ~2.8 W typical
  • Operating Temp.:​ 0 °C to +55 °C (some datasheets -25 °C to +60 °C)
  • Mounting:​ 35 mm DIN rail (EN 60715); width 65 mm
  • Dimensions (W×H×D):​ ~65 × 110 × 100 mm; weight ~0.45 kg
  • Certifications:​ CE, UL/cULus, RoHS
Key Features:
  • SignalGuard™ technology reduces ground-loop interference
  • Timestamped event capturing in LASAL software
  • Diagnostic LEDs for quick troubleshooting
Applications:​ SMT pick-and-place I/O, packaging machine sensor banks, CNC auxiliary interlocks, material handling limit-switch monitoring.
Installation Notes:​ Wire sensor common to module’s 0 V or +24 V per sinking/sourcing selection; terminate unused inputs to avoid floating; ensure backplane bus connector is fully seated before power-on.
