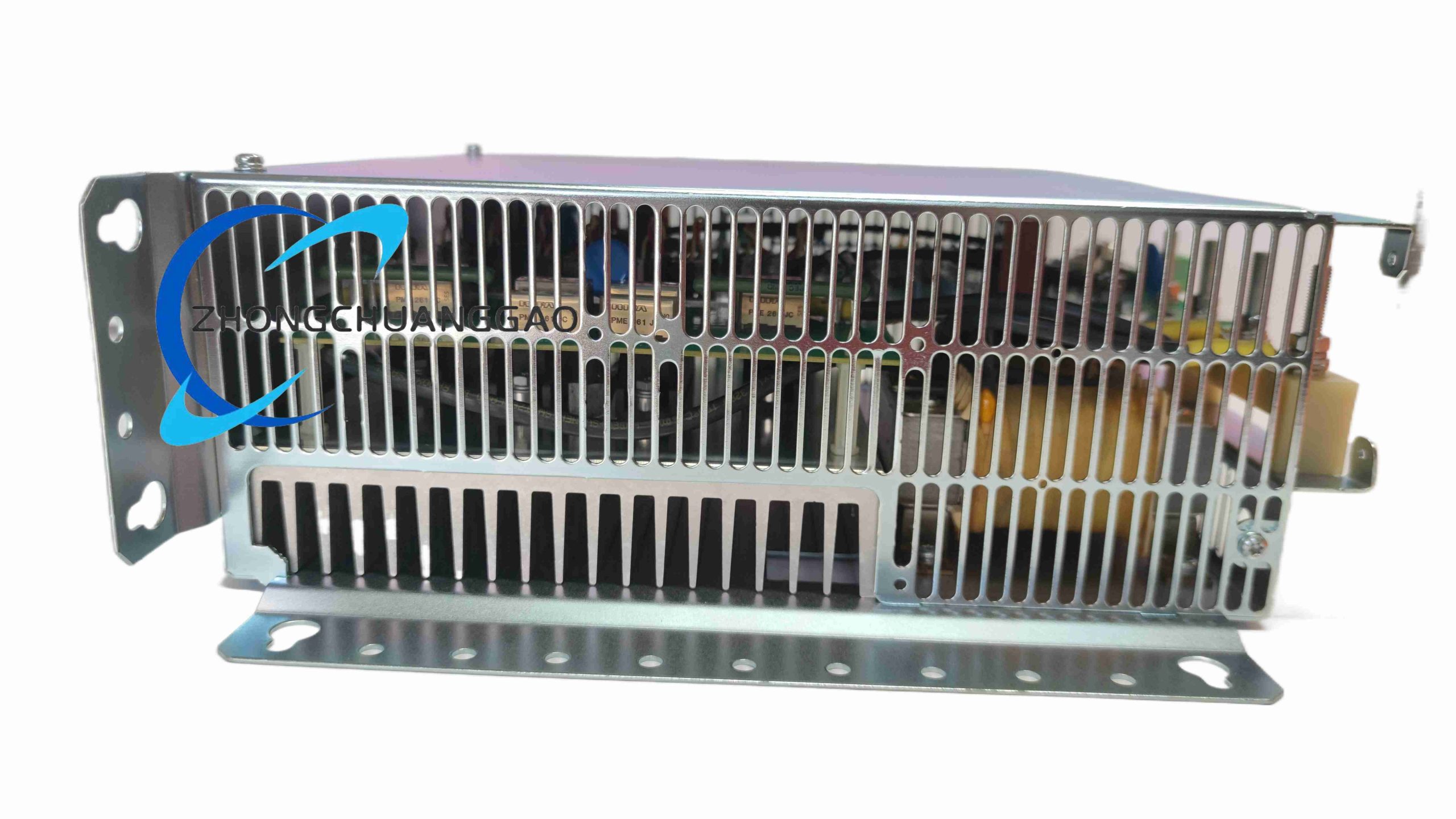

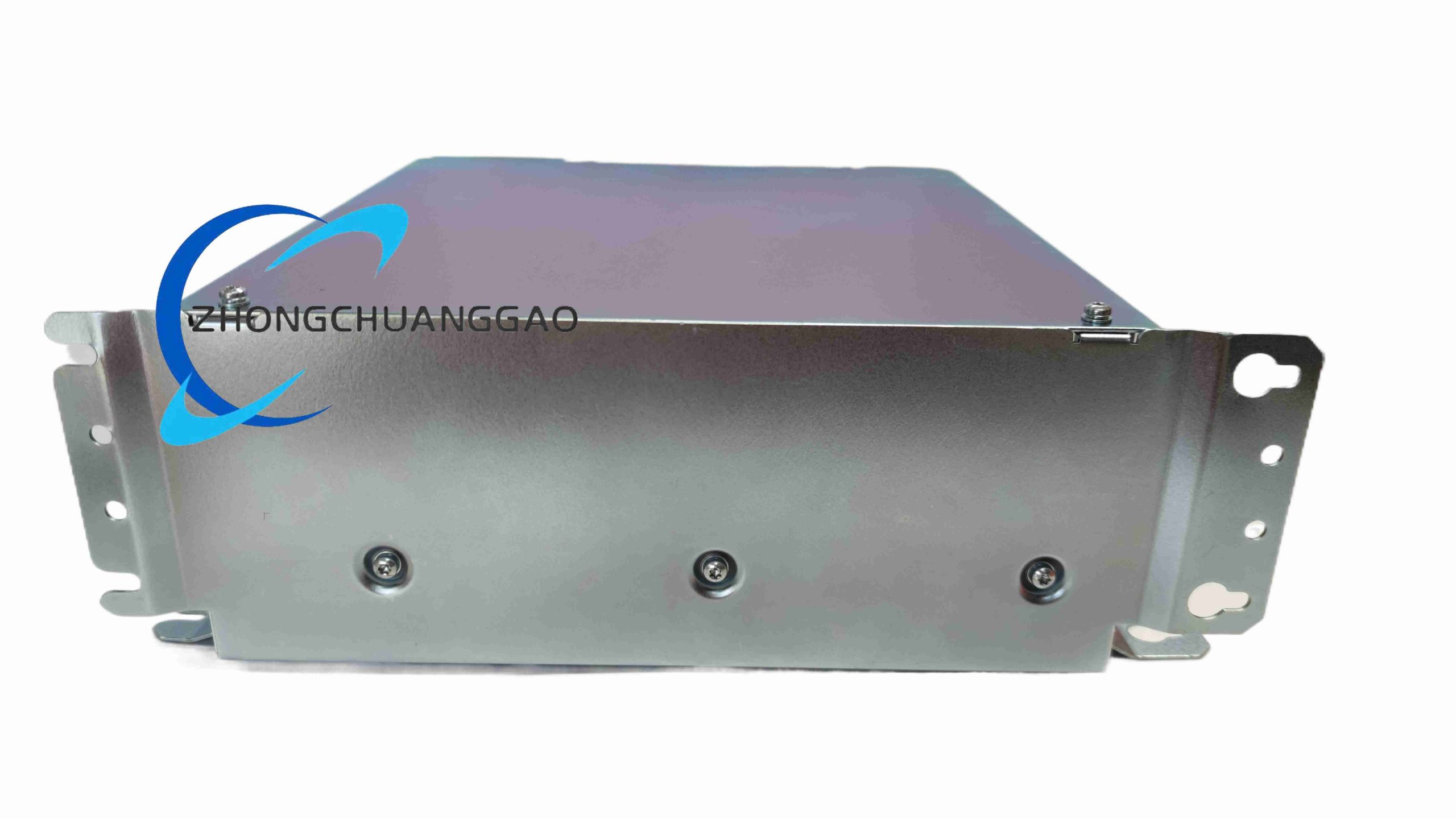

ABB DCF804-0050

Product Name:​ ABB DCF804-0050 External Field Excitation Module for DCS880 DC Drive System
Product Introduction:​ A dedicated field (excitation) supply module for ABB DCS800 / DCS880 series DC drives, providing controlled DC field current to separately-excited DC motors or synchronous machines’ field windings.
Technical Specifications:
  • Model:​ DCF804-0050 (3ADT209026R000x)
Category:
Description
  • System Compatibility:​ ABB DCS880 rectifier / DC drive family
  • Field Current Capability:​ Up to ~50 A (nameplate dependent; consult DCS880 manual)
  • Input:​ Single-phase AC from drive transformer or mains (via drive cabinet)
  • Control Mode:​ 4-quadrant capable with drive; supports flux weakening & field loss detection
  • Built-in Components:​ Integral excitation contactor (K3), fuses, snubber circuits
  • Communication:​ DCSLink / fieldbus via drive master module
  • Protection:​ Over-current, short-circuit, over-temperature, field-loss supervision
  • Mounting:​ DIN-rail or panel-mount inside drive cubicle
  • Operating Temp.:​ 0 °C to +55 °C typical for drive-mounted electronics
  • Material / Enclosure:​ Metal chassis with vent slots; install in IP20+ cabinet
Key Features:
  • Simplifies external field wiring — no separate DC source needed
  • Automatic field discharge via built-in contactor on drive trip
  • Fully parameterized via ABB Drive Composer / DCS880 panel
Applications:​ Steel rolling mill DC main drives, paper machine section drives, mine hoists, large synchronous motor excitation (paired with appropriate rectifier).
Installation Notes:​ Torque all power terminals to ABB spec; ensure field winding insulation test done before connection; verify drive firmware supports DCF804 option; ground metal case to drive earth bar.
