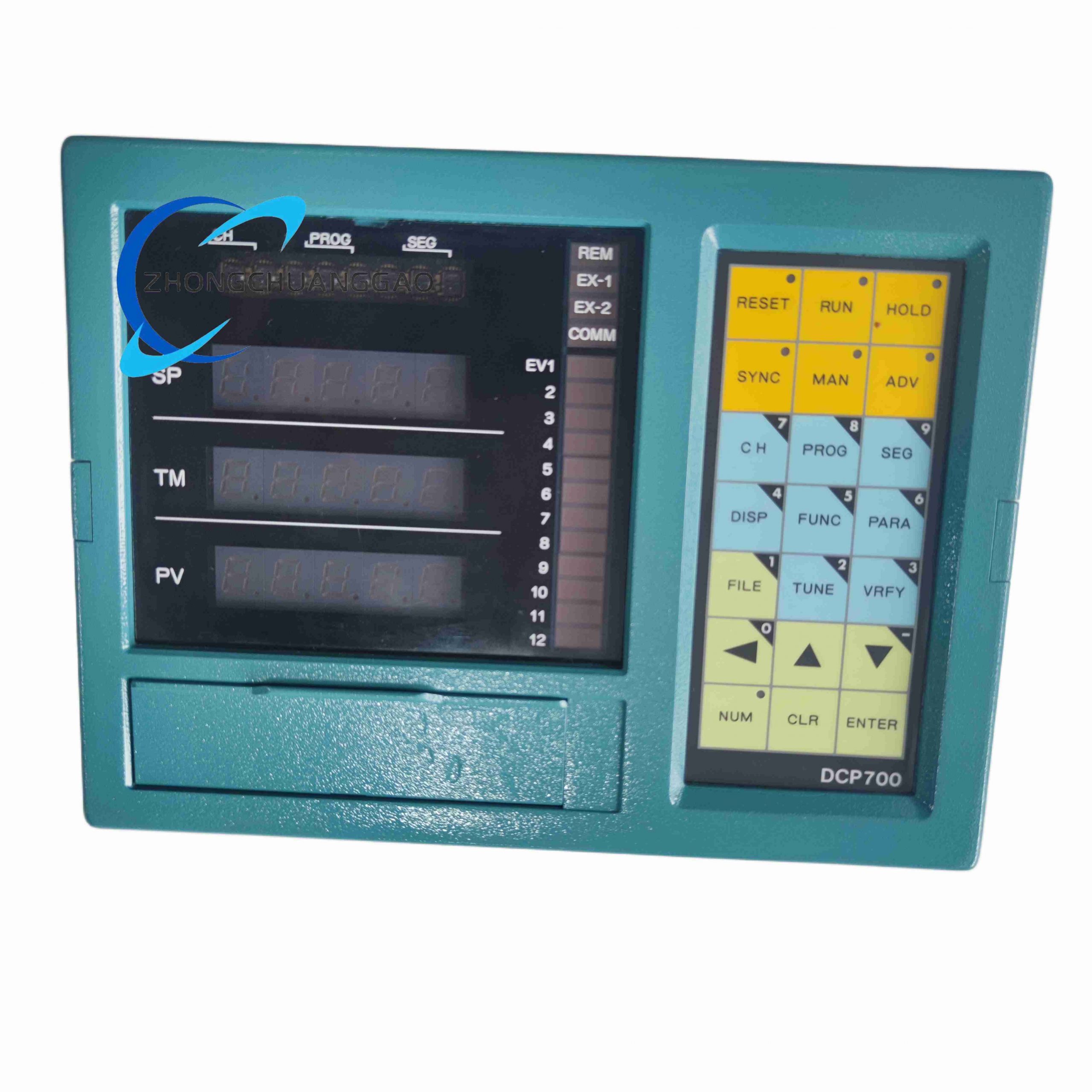

Honeywell DCP71150C012010H0 - Image 1

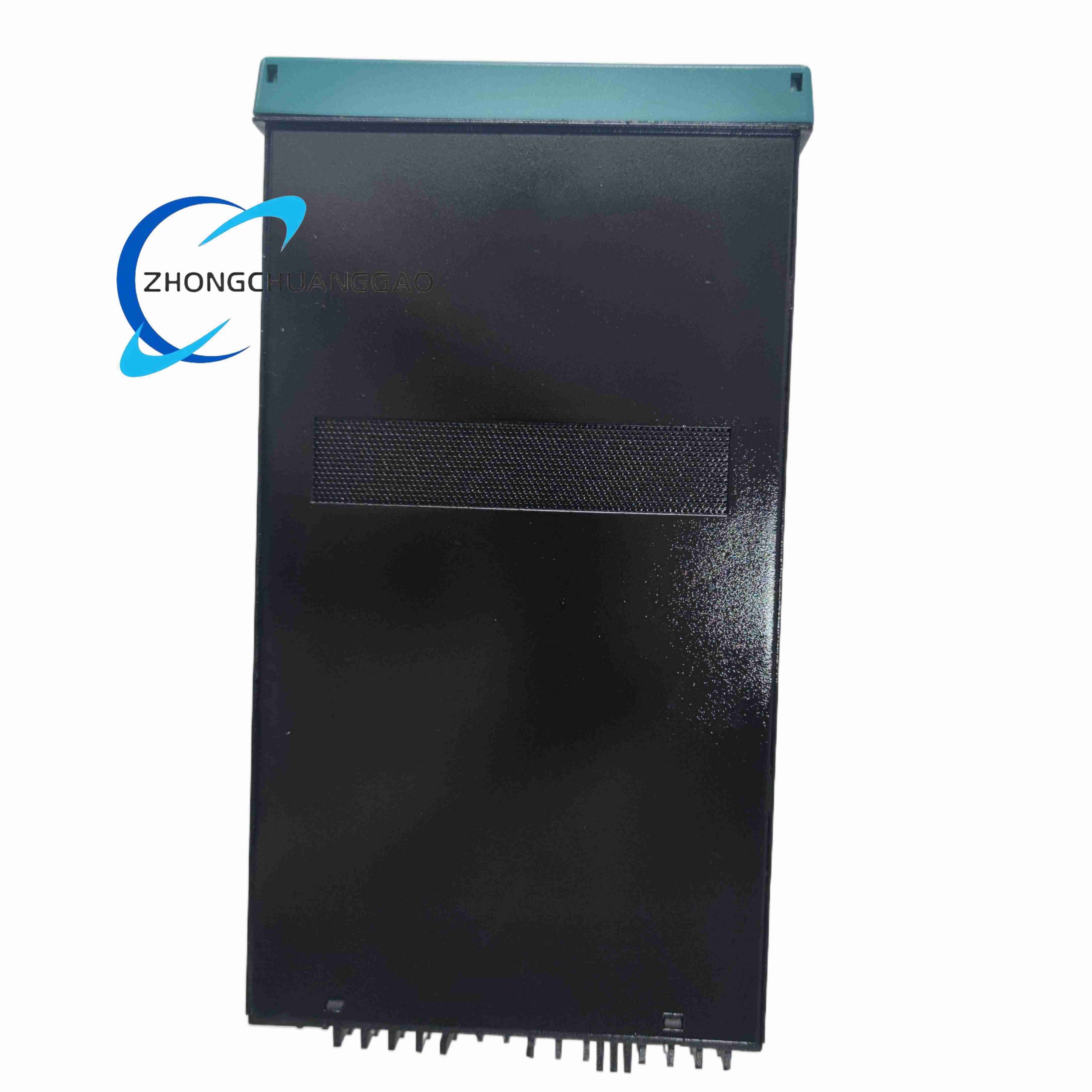

Honeywell DCP71150C012010H0 - Image 2
Click to enlarge
Honeywell DCP71150C012010H0
Honeywell DCP71150C012010H0 - Image 2
SIGMATEK DCP161
SIGMATEK DCP161
Back to products
METSO D201435L
METSO D201435L

Honeywell DCP71150C012010H0

Product Introduction:​ Core control engine of Honeywell’s Experion Process Knowledge System (PKS). Executes continuous & sequential control strategies, collects I/O data, performs advanced regulatory control, and communicates over Fault Tolerant Ethernet (FTE).
Technical Specifications:
  • Model:​ DCP71150C012010H0 (Advanced Digital Control Processor)
Category:
Description
  • System:​ Honeywell Experion PKS Series C (also compatible TDC 3000 migration paths)
  • Processor:​ Dual-core PowerPC RISC
  • Memory:​ 512 MB RAM + 1 GB Flash (program & historical buffer)
  • I/O Capacity:​ Up to 32,000 tags (AI/AO/DI/DO/calculated points)
  • Control Scan:​ Fastest 50 ms; typical 100–1000 ms user-configurable
  • Redundancy:​ 1:1 Hot-standby with bumpless switchover (< 1 s)
  • Network:​ Dual redundant FTE (100 Mbps Ethernet); also UCN/LCN capable in hybrid systems
  • Power:​ +5 V DC from controller chassis backplane (typically); some variants 24 V DC external
  • Operating Temp.:​ 0 °C to +60 °C
  • Humidity:​ 5–95 % RH non-condensing
  • Safety Certification:​ IEC 61508 SIL 2 capable (with Safety Manager)
  • Indicators:​ Run, Fault, Active/Standby, Comm LEDs on front panel
  • Mounting:​ Plug-in to C30/C40 controller baseplate in control cabinet (IP20 environment)
Key Features:
  • Supports IEC 61131-3programming (via Control Builder)
  • Integrated batch / APC (Advanced Process Control) capability
  • Extensive self-diagnostics & watchdog
  • Long lifecycle support (15+ years)
Applications:​ Refinery crude/distillation unit control, ethylene plant crackers, power plant boiler/turbine coordination, pharma/batch reactor control, pulp & paper continuous digester.
Installation Notes:​ Insert only into grounded, correctly keyed baseplate; verify FTE network cabling (ring/star topology); configure redundancy pairing in Experion Engineering before downloading; keep firmware revision consistent across redundant pair.
