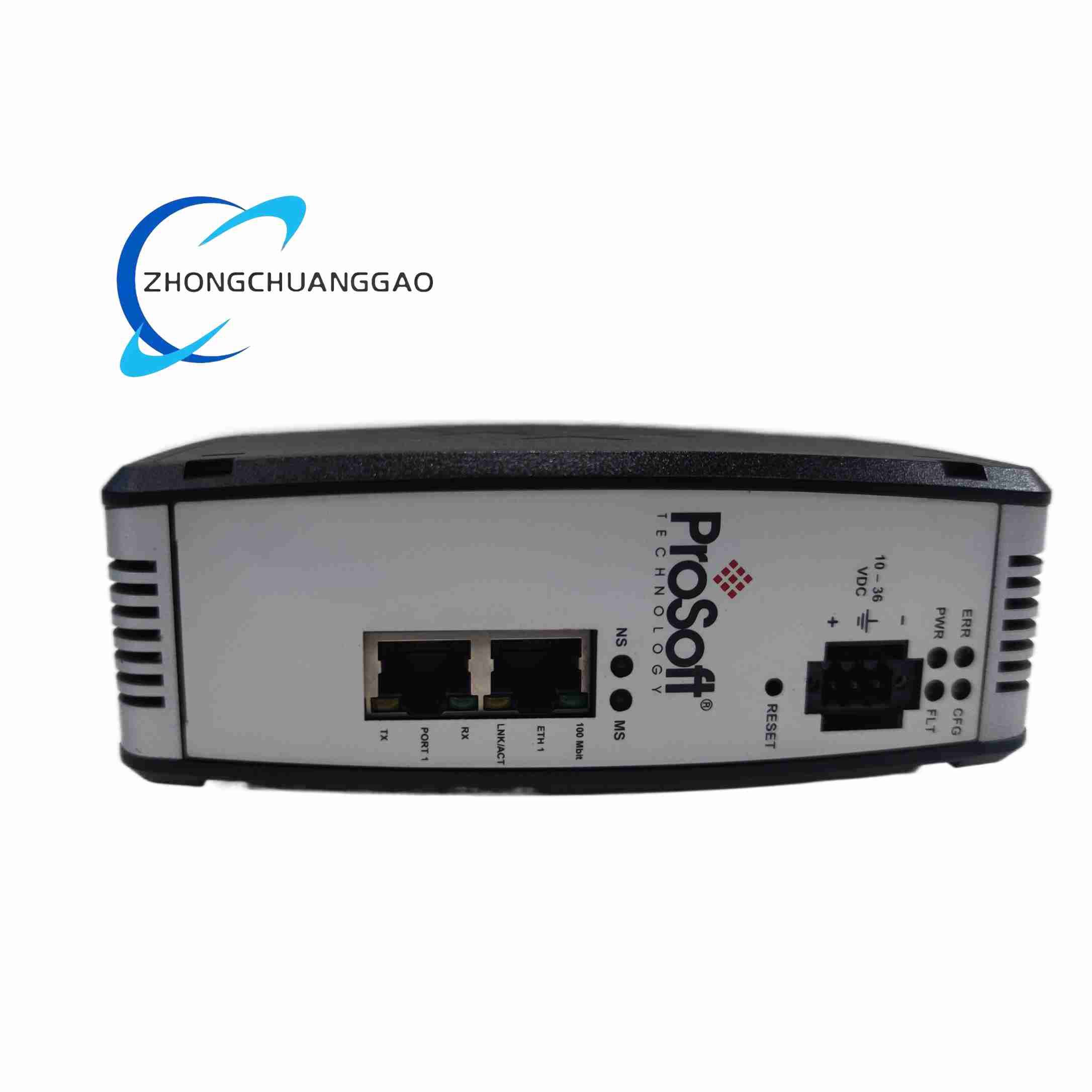

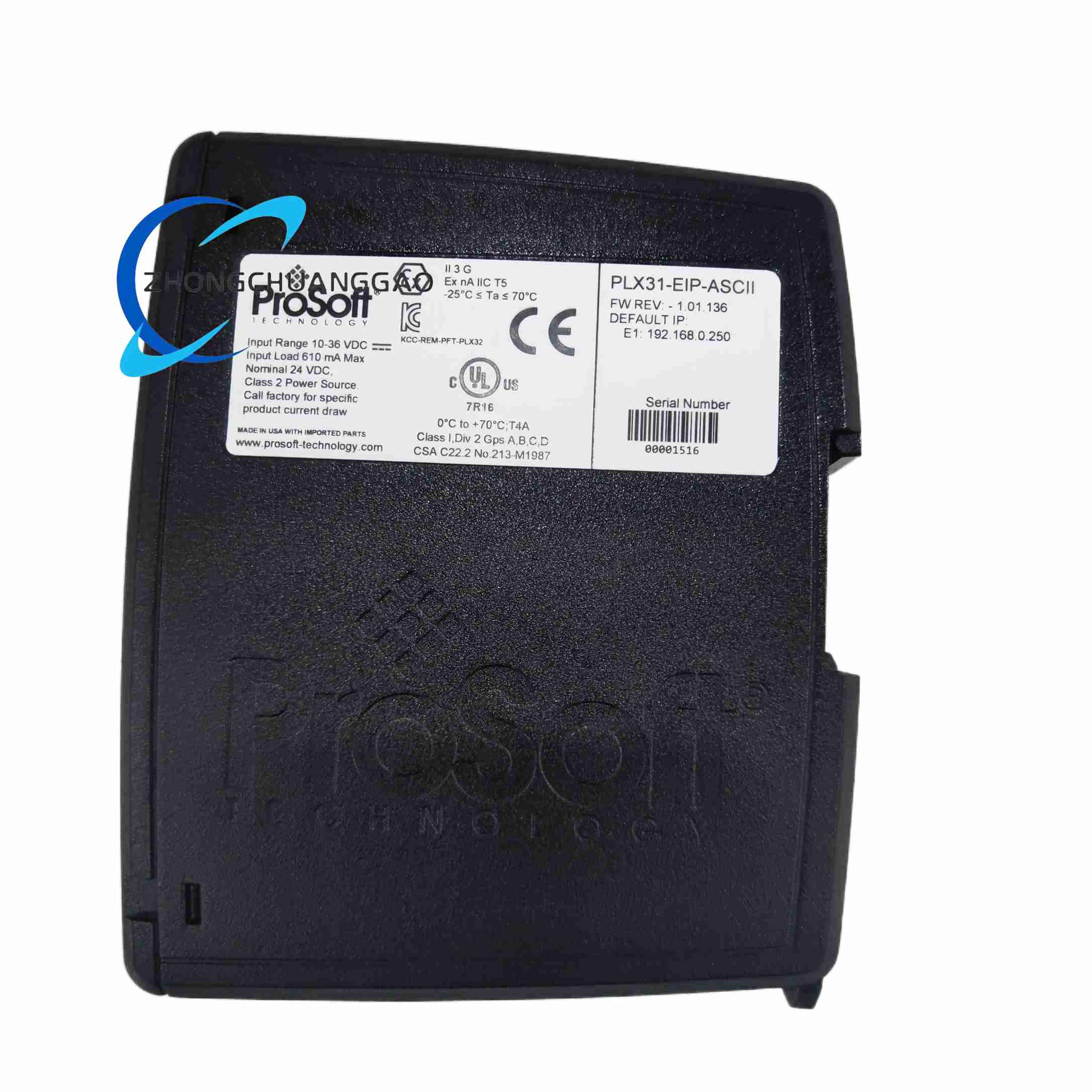

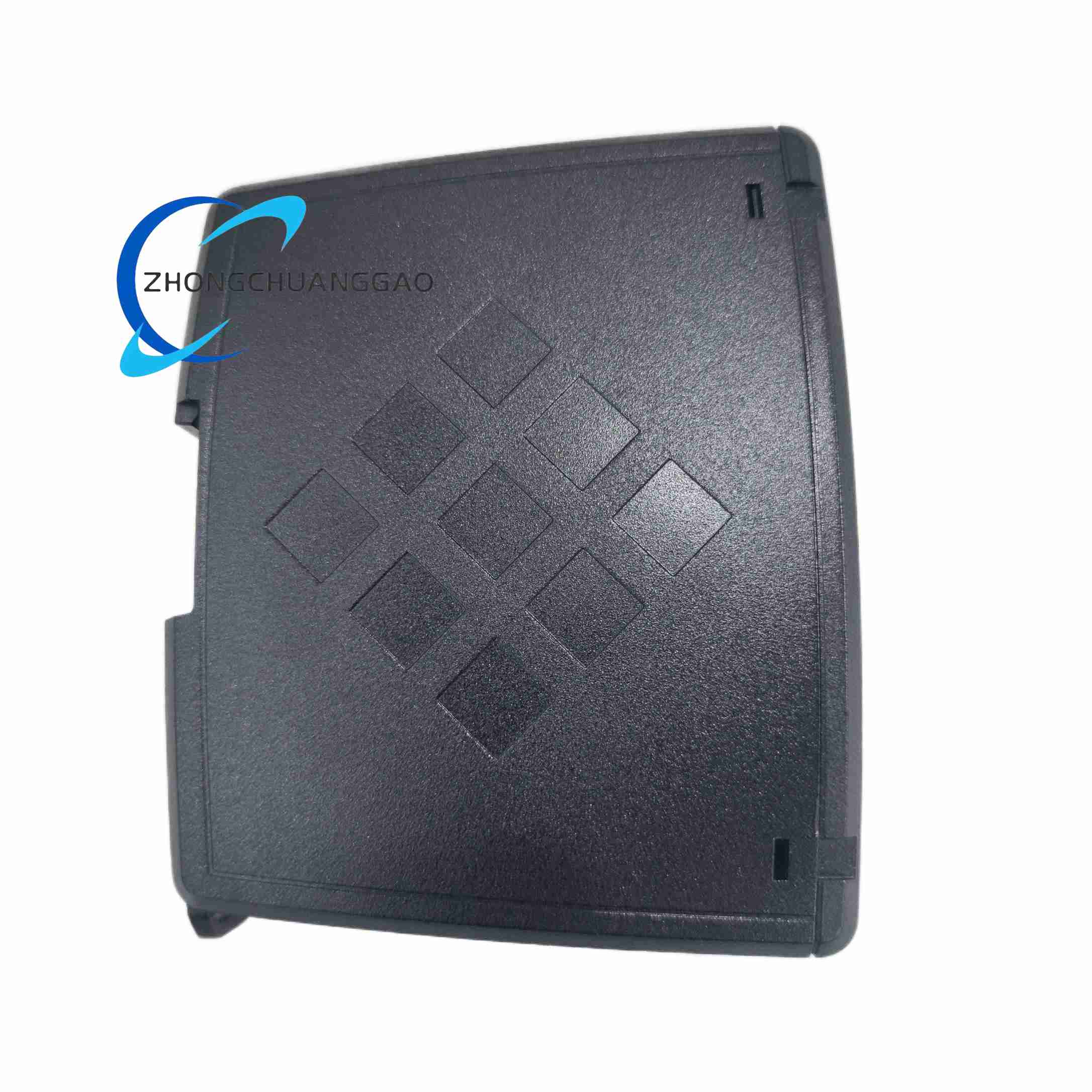

ProSoft PLX31-EIP-ASCII

  • Product Name:​ EtherNet/IP to ASCII Communication Gateway
  • Product Introduction:​ Standalone DIN-rail industrial protocol gateway that bridges EtherNet/IP-enabled PACs (Rockwell ControlLogix/CompactLogix, Schneider) with serial ASCII devices such as weigh scales, barcode readers, printers, and legacy terminals. Acts as EtherNet/IP Client/Server and ASCII Master/Slave simultaneously.
Category:
Description
  • Technical Specifications:
    • Power:​ 24 VDC nominal (10–36 VDC range), 300 mA typical, 610 mA max
    • Ethernet:​ 10/100 Mbps RJ45, 1500 Vrms isolation, broadcast storm resilient ≤5000 ARP fps/5 min
    • Serial:​ 1 port RS-232/422/485 (RJ45 to DB9/terminal), 2500 Vrms isolation via Silicon Labs Si844x RF-coupled ICs, 1200–115.2 kbps, 5–8 data bits, 1–2 stop bits, none/odd/even/mark/space parity
    • Buffers:​ 255-byte TX and RX per port, character pacing 0–65535 ms
    • EtherNet/IP:​ 5 Class 3 server connections, 2 connected + 1 unconnected Class 3 client, 1 Class 1 I/O connection (248/248 bytes), 5 ms min RPI, CIP 0x4C/0x4D, PCCC, up to 100 commands per client, up to 10,000 16-bit internal registers
    • Environment:​ -25 to 70 °C operating, -40 to 80 °C storage, 5–95 % RH non-condensing, 15 G shock / 5 G vibration (IEC 60068)
    • Mechanical:​ 13.67 × 5.05 × 11.13 cm, 35 mm DIN rail, SD slot for config backup, LED: PWR/FLT/CFG/ERR/NS/MS
  • Features:​ Embedded EDS Add-On Profile, ProSoft Discovery Service for IP assignment off-subnet, secure config via module switch (v1.04+), data prioritization with separate RPI for status/control.
  • Applications:​ Manufacturing, oil & gas, power, food processing, legacy serial device integration into modern CIP networks.
  • Installation & Notes:​ Mount on 35 mm DIN rail inside panel, isolate serial ground from Ethernet ground, use shielded cable for ASCII runs, do not exceed 115.2 kbps on long RS-485 drops, keep SD card for disaster recovery swaps.
