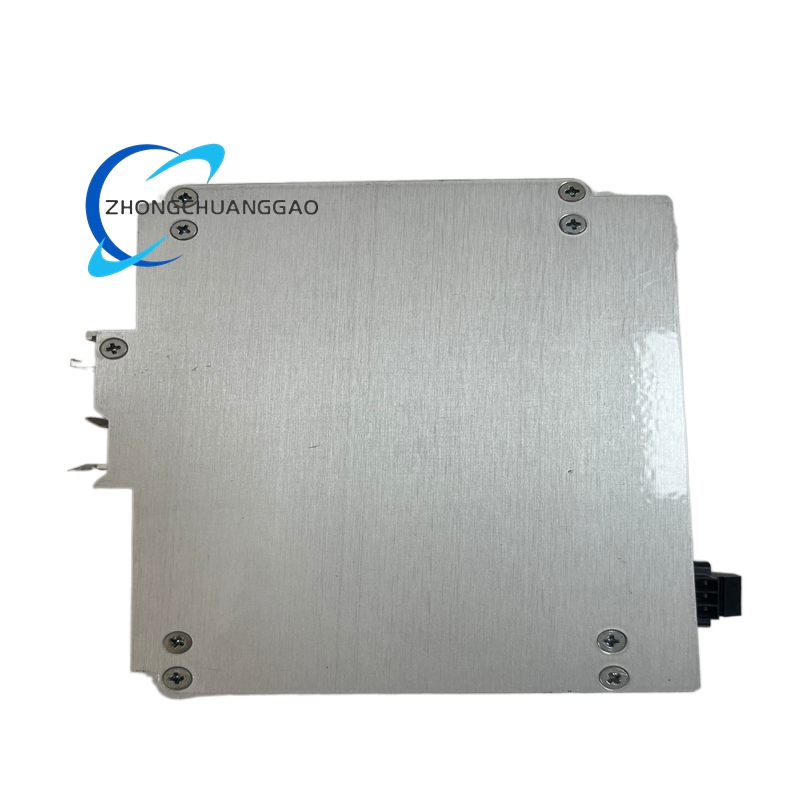

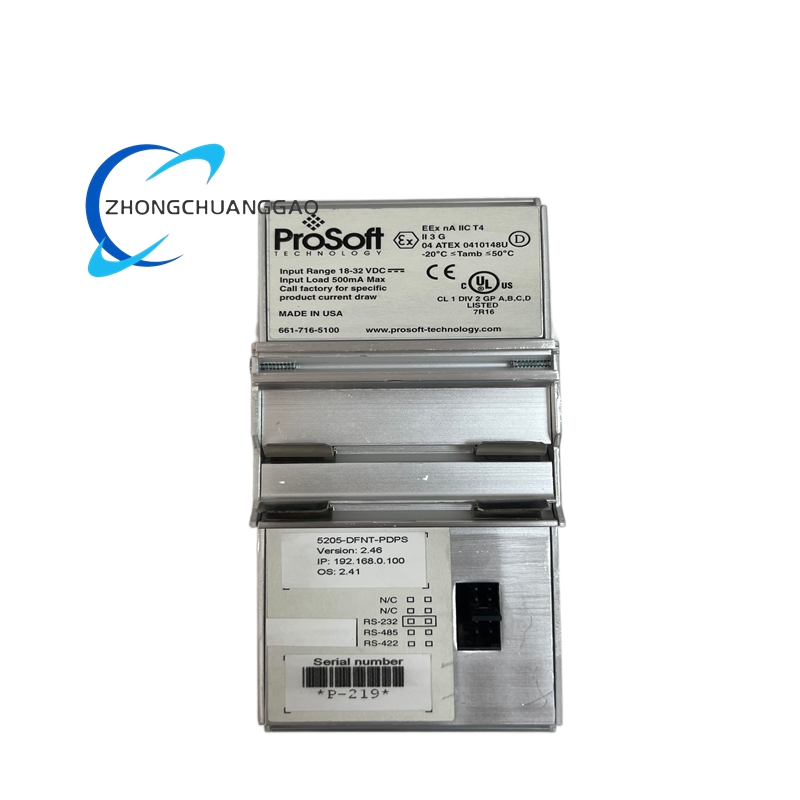

ProSoft 5205-DFNT-PDPS

3. Technical Specifications

• Official Model Code: 5205-DFNT-PDPS
• Input Rated Power Supply: 24 VDC (allowable input range 18 VDC ~ 30 VDC), max operating current 500 mA, total rated power 12 W
• EtherNet/IP Port Parameter: Single 10/100 Base-TX RJ45 port, auto-adaptive full-duplex/half-duplex, supports EtherNet/IP Explicit Message, Client & Server dual working mode, compatible Modbus TCP auxiliary communication protocol
• PROFIBUS DP Port Parameter: Standard DB9 Female connector, PROFIBUS DP-V0 Slave fixed working mode, configurable node address range 0 ~ 125 (factory default address 126), optional automatic baud rate detection; supported baud rate series: 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps
• Configuration Debug Port: Onboard isolated RS232 Mini-DIN8 configuration port, exclusively matching ProSoft Configuration Builder software for offline parameter setup and firmware upgrade
• Max Mapping I/O Capacity: Input data maximum 122 Words, Output data maximum 122 Words, total bidirectional I/O data upper limit 512 Bytes, internal fixed database storage space 128 KB
• Galvanic Isolation Grade: 1500 VDC isolation between PROFIBUS bus circuit, Ethernet circuit and power supply circuit to eliminate cross-circuit surge interference
• Operating Ambient Temperature: -20 ℃ ~ +60 ℃; Storage Environment Temperature: -40 ℃ ~ +85 ℃
• Applicable Humidity Range: 5% ~ 95% relative humidity under non-condensing environment
• Overall Physical Dimension: 132 mm (Height) × 52.5 mm (Width) × 114.8 mm (Depth); Net Weight: 495 g
• Enclosure Protection Level: IP20 indoor cabinet installation grade, non-outdoor direct exposure allowed

4. Functional Characteristics

1. Implements full hardware-based bidirectional protocol parsing, completes real-time encapsulation and decapsulation between EtherNet/IP application layer data frame and PROFIBUS DP-V0 telegram without intermediate PLC data forwarding.
2. Supports PROFIBUS DP standard Sync mode and Freeze mode command parsing, fully matches all mainstream PROFIBUS master station functional instructions from Siemens, ABB and other brands’ DP master controllers.
3. Built-in configurable data byte swap function for matching different endianness data formats of upper and lower network control equipment, flexible data address mapping via PC configuration software.
4. Embedded independent communication fault judgment logic, configurable communication failure timeout multiplier and abnormal data output definition for DP bus disconnection or Ethernet link breakdown scenarios.
5. Front-panel multi-group LED status indicator: PWR, ETH LINK/ACT, DP BUS, CONFIG four independent indicator lamps to realize real-time running state visualization of power supply, Ethernet link, PROFIBUS bus and configuration channel respectively.
6. Supports online firmware remote upgrade via Ethernet port and local offline upgrade via RS232 configuration port without interrupting field wiring layout of the whole automation system.
7. Retains independent status register inside onboard database to store DP slave error code, link abnormal information and real-time communication frame count for later system fault tracing and maintenance.

5. Performance Parameters

• Maximum cyclic I/O data refresh period: ≤3 ms under full 512-byte mapped data configuration.
• Single frame explicit message transmission response delay: ≤1.2 ms under standard 100 Mbps Ethernet operating condition.
• Vibration Resistance Index: Passes 10 Hz ~ 150 Hz continuous vibration test with 5g acceleration without communication abnormality or component damage.
• Shock Resistance Index: 30g peak acceleration under operating state, 50g peak acceleration under non-operating storage state, no internal circuit breakage or connector loose failure after impact test.
• Long-term Continuous Operation MTBF: ≥260000 hours under rated temperature and humidity working environment.
• Channel crosstalk interference value: Zero effective data error caused by mutual interference between Ethernet channel and PROFIBUS DP channel under full-load running state.
• EMC Compliance Standard: Comply with IEC 61000-6-2 industrial electromagnetic immunity specification and IEC 61000-6-3 emission control specification.

6. Material Composition

1. Main Enclosure Shell: Flame-retardant black ABS+PC modified engineering plastic with UL94-V0 fireproof certification, anti-ultraviolet modification treatment for cabinet long-term stable use.
2. Core Mainboard Substrate: High-Tg FR4 flame retardant copper-clad plate, epoxy glass fiber reinforced base material, surface immersion gold treatment on PCB contact pads with gold thickness ≥0.03 μm.
3. RJ45 & DB9 Connector Terminal: Phosphor bronze alloy conductive terminal with full nickel pre-plating + surface hard gold plating ≥0.5 μm thickness, anti-oxidation and anti-corrosion property.
4. Internal Isolation Components: Ceramic capacitor and optocoupler isolation chips for 1500 VDC isolation design between different functional circuits.
5. DIN Rail Fixed Buckle: Reinforced PA66+25% glass fiber engineering plastic with high mechanical fatigue resistance.
6. Internal Power Filter Inductor & Transformer: Silicon steel laminated magnetic core with enameled copper winding, sealed epoxy packaging for anti-vibration and dust prevention.
7. Internal Fastening Hardware: SUS304 stainless steel miniature positioning screws and elastic shrapnel fixing parts.

7. Structural Features

1. Integral split modular structure consisting of front indicator panel, middle main circuit board and rear wiring fixed terminal area, all internal components fixed as a single sealed whole unit.

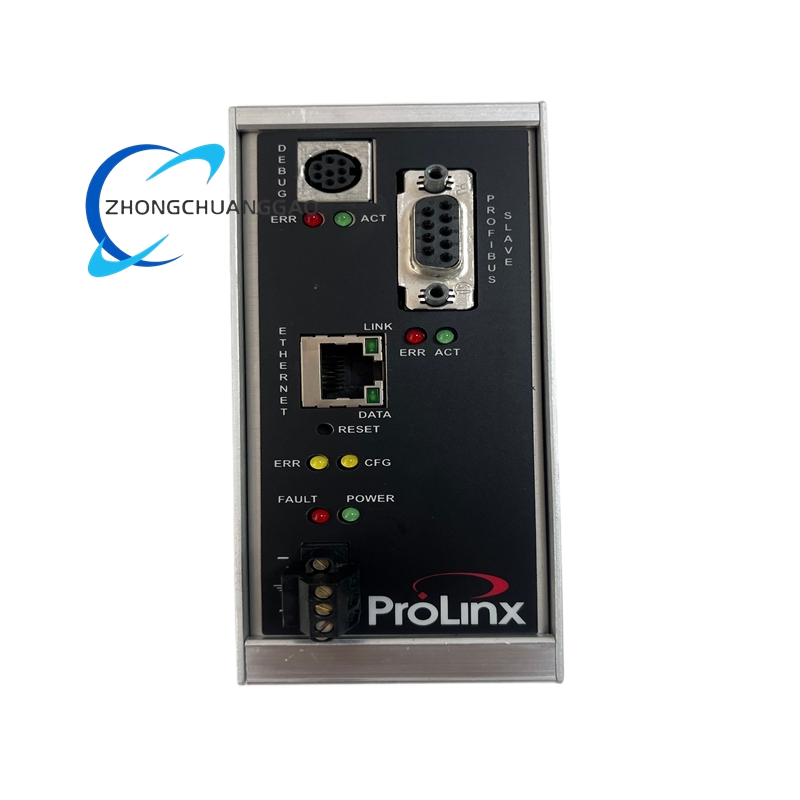

2. Front panel centralized layout: RJ45 Ethernet socket, DB9 PROFIBUS socket, Mini-DIN8 configuration port and four groups of status LED indicators arranged in fixed modular partition layout.
3. Rear side integrated spring-type DIN rail buckle structure compatible with global standard 35mm top-hat DIN mounting rail specification.
4. Internal PCB zoning layout: Independent partition for power supply filtering region, Ethernet protocol processing region, PROFIBUS bus signal region and MCU core control region to isolate strong current and weak signal mutual interference.
5. Internal closed plastic isolation baffle between Ethernet transformer and DP bus isolation optocoupler for physical partition of high-frequency signal circuits.
6. Reserved internal fixed positioning card slot for optional external terminal adapter converting DB9 PROFIBUS interface to screw terminal wiring mode.

8. Working Principle

9. Advantage Highlights

1. Original ProSoft factory standard product with complete batch production traceability, matched official GSD file and configuration software resource, zero secondary program development needed for mainstream PLC system access.
2. All-in-one standalone DIN rail installation design eliminates the need for extra rack chassis slot occupation compared with plug-in rack communication modules, saving electrical cabinet internal layout space.
3. Full galvanic isolation circuit design completely avoids field bus surge voltage damage to upper-side Ethernet control system, improving whole network operation stability under complex industrial field power fluctuation.
4. Flexible bidirectional I/O address mapping function supports direct interconnection of legacy PROFIBUS DP field instruments and new EtherNet/IP automation system without on-site equipment rewiring or equipment replacement, reducing brownfield reconstruction engineering cost.
5. Multi-indicator real-time status feedback reduces on-site troubleshooting difficulty and shortens equipment fault downtime duration.
6. Full global certification system including UL, CE, RoHS guarantees free cross-border export application restriction for complete equipment delivery.

10. Applicable Industries

• Automotive complete vehicle assembly and auto parts automated production industry
• Petrochemical process monitoring and DCS system networking industry
• Water supply & sewage environmental protection automatic control industry
• New energy lithium battery automated production line industry
• Food & beverage packaging intelligent manufacturing industry
• Metallurgy continuous rolling mill fieldbus transformation industry
• Pharmaceutical workshop GMP standardized automatic control industry
• Tobacco processing automated equipment networking industry

11. Applicable Model Series

• Upper EtherNet/IP Master Matching Series: Rockwell ControlLogix 5570/5580, CompactLogix L24ER/L30ER, Micro800 series PLC controllers and all ODVA certified EtherNet/IP host equipment.
• Lower PROFIBUS DP Master Matching Series: Siemens S7-300/S7-400/S7-1200 (DP master card equipped), ABB AC800M, Phoenix Contact ILC series DP master control systems.
• Product Belonging Series: ProSoft ProLinx 5000 universal standalone gateway product lineup, peer models include 5205-BACNET-PDPS,5205-MBTCP-PDPS etc.

12. Installation Requirements

1. Select standard indoor IP54 above electrical cabinet internal installation position, reserve minimum 50 mm upper and lower ventilation clearance space around module body for natural heat dissipation, forbid closed fully enclosed mounting without air circulation space.
2. Lock the rear DIN rail buckle onto standard 35 mm top-hat DIN rail firmly after module positioning, confirm no loose shaking of the whole module body under external slight vibration.
3. Connect 24VDC power cable to dedicated power terminal following positive/negative polarity definition, apply rated tightening torque 0.6 N·m on terminal fixing screws to prevent power line loose contact caused by equipment long-term vibration.
4. Insert standard CAT5e/CAT6 shielded Ethernet cable into front RJ45 port, connect PROFIBUS standard shielded DP bus cable into DB9 female port; install terminal matching 120Ω termination resistor at the physical two endpoints of full PROFIBUS bus trunk line strictly following DP bus wiring specification.
5. Complete all wiring operation under full power-off state of gateway and peripheral related control equipment; install ProSoft Configuration Builder matching version configuration software on Windows platform PC and connect PC with gateway RS232 configuration port via null-modem cable for parameter downloading and configuration validation.
6. After configuration download completion, power on gateway sequentially then upper EtherNet/IP controller and lower PROFIBUS DP master device, execute full network online test and I/O data verification before formal production running.

13. Usage Precautions

1. Strictly prohibit live plugging/unplugging of RJ45 Ethernet cable and DB9 PROFIBUS bus cable during gateway powered running status to avoid instantaneous surge current damaging internal isolation circuit and core MCU chip.
2. Prevent conductive metal dust, cutting fluid and corrosive chemical liquid splashing onto module front panel and wiring terminal area; cut off input power supply immediately once liquid infiltration occurs and execute full drying maintenance before repowering test.
3. Do not connect non-standard non-shielded ordinary network cable and unqualified PROFIBUS bus cable to communication ports, substandard wiring causes abnormal communication fluctuation and periodic data loss fault.
4. Conduct quarterly routine maintenance inspection: check terminal wiring tightness, LED indicator operating state, internal communication error register data and cabinet internal dust accumulation, record all inspection content into equipment maintenance log.
5. Store spare module inside original anti-static sealed packaging box under 15 ℃ ~ 25 ℃ dry indoor environment, forbid long-term outdoor stacking under direct sunlight, high temperature or damp rain immersion environment.
6. Complete firmware upgrade operation only during equipment scheduled downtime maintenance period, forbid online firmware update under production continuous running state to avoid temporary system communication interruption risk.
