ProSoft 1454‑9F

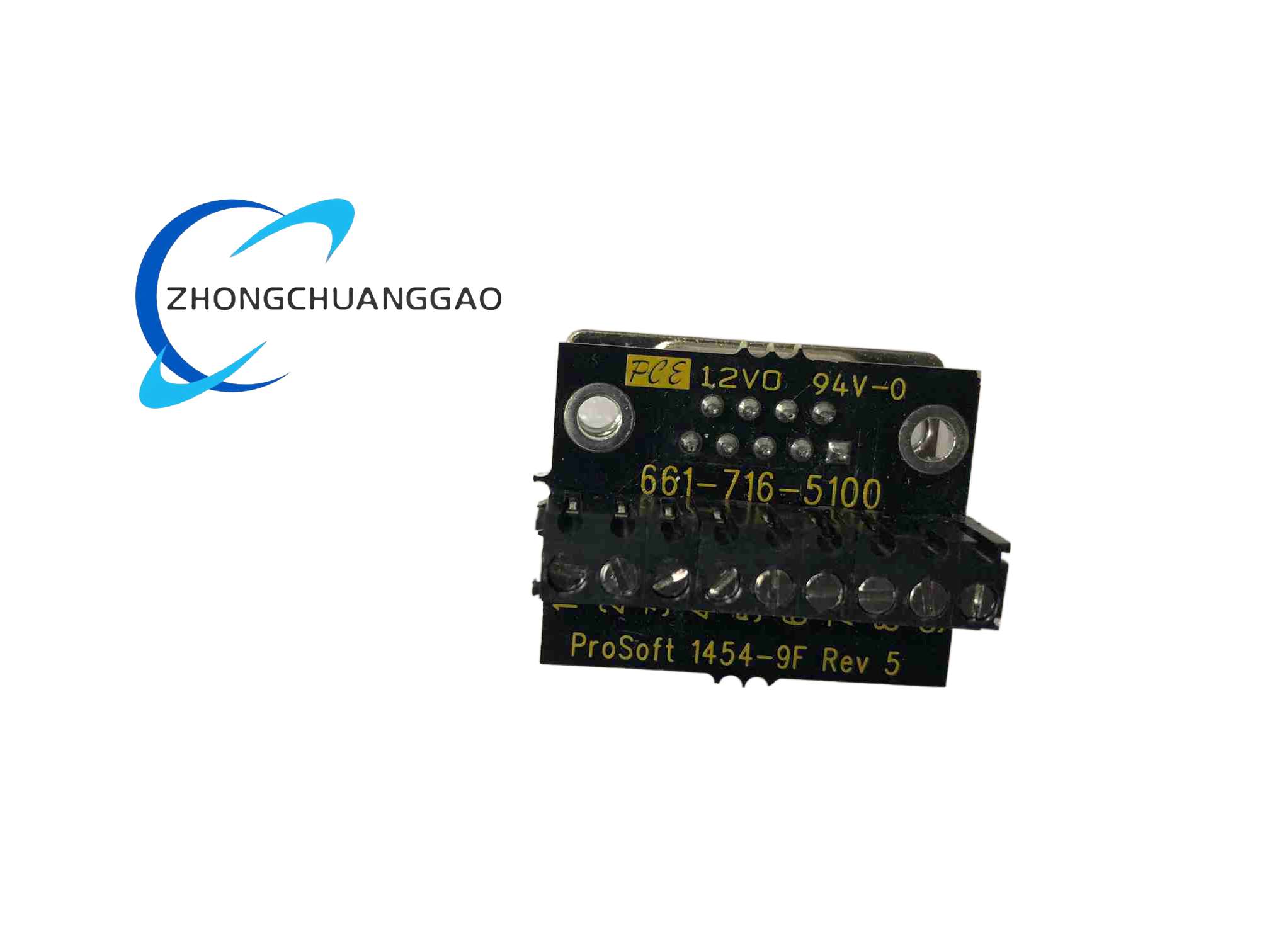

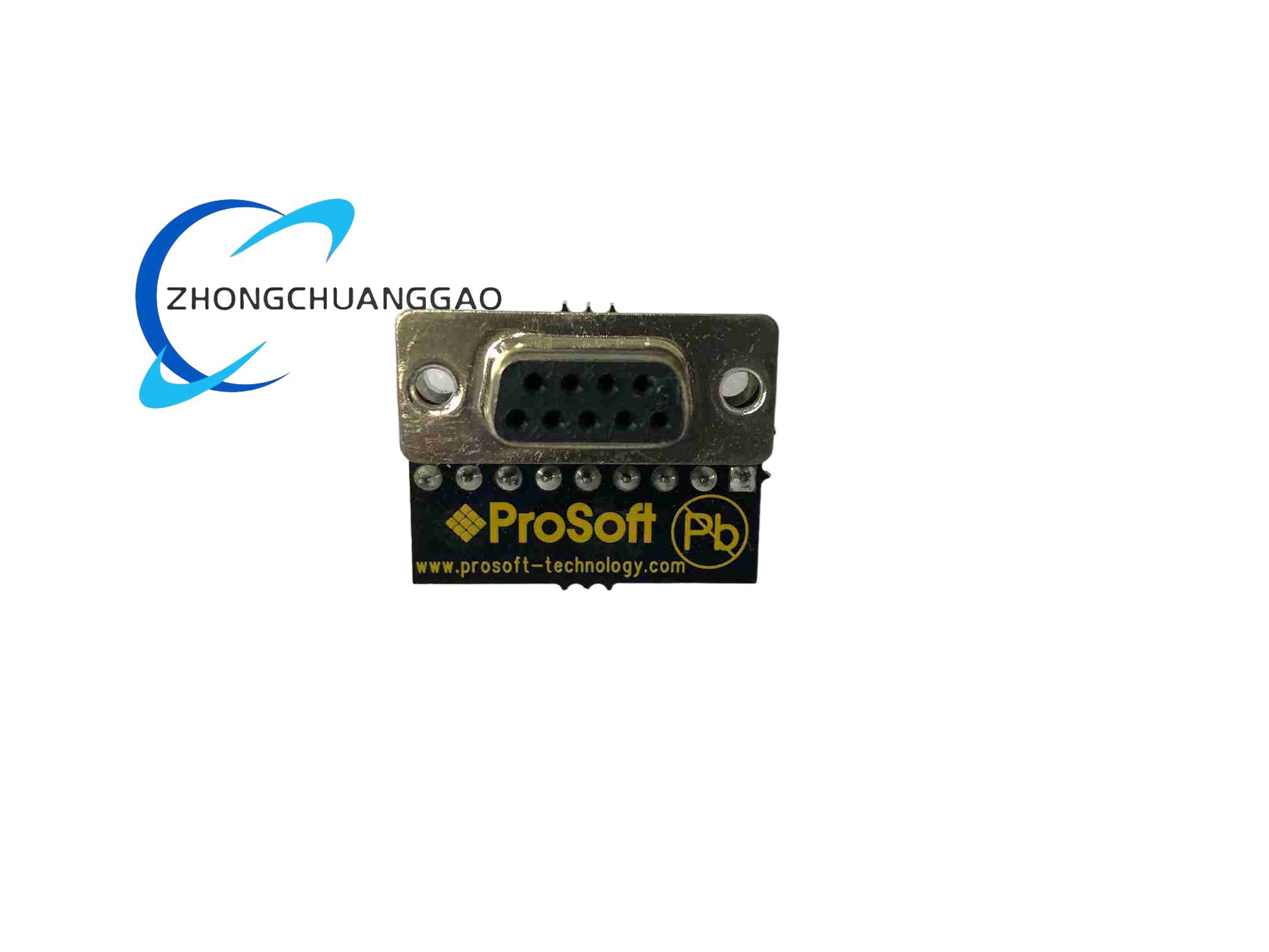

Product Introduction： Passive serial signal adapter converting DB‑9 female D‑sub connector to 5‑position screw terminals, adapting RS‑422/RS‑485 communication wiring for industrial site and matching ProSoft serial communication modules.

Technical Specifications： Interface: DB9 Female + 5‑pin screw terminal; Supported Protocol: RS‑422, RS‑485; Wire Range: 14‑24AWG; Operating Temperature: ‑20℃~+70℃; IP20 protection; Dimensions: 52mm×48mm×22mm; Weight: 60g.

Category:
Description

Application Scenarios： PLC Modbus‑RTU field wiring; DCS serial signal transition; equipment renovation project; cabinet internal serial signal conversion; remote sensor serial data transmission.

Performance Parameters： Max baud rate 115200bps; contact resistance ≤10mΩ; dielectric withstand voltage 500V AC 1min; signal isolation 250V.

Material Composition： High‑Tg FR‑4 PCB; nickel‑plated brass terminals; PBT DB9 female connector; flame‑retardant plastic support.

Structural Features： Flat PCB assembly with mounting holes; two‑end interface layout; surface printed pin correspondence; bottom flat structure for cabinet fitting.

Working Principle： Passive hardware pin‑to‑pin mapping; directly route DB9 pins to corresponding screw terminals without protocol chip processing, only complete physical interface conversion for differential serial signals.

Installation Requirements： Install inside IP20 control cabinet with screw fixation; separate serial wiring from high‑power AC cables; configure terminating resistor at RS‑485 bus terminal; stay away from inverters and high‑frequency interference sources.

Precautions： Cannot convert RS‑232 signals; follow printed pin definition strictly; avoid over‑tightening terminals to prevent PCB pad damage; stranded wires must use ferrules; test continuity before power on.
