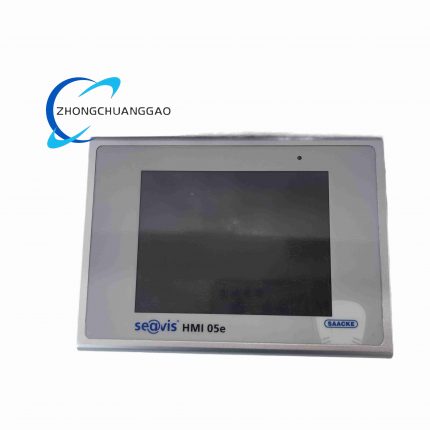

SAACKE HMI 05E
SAACKE HMI 05E

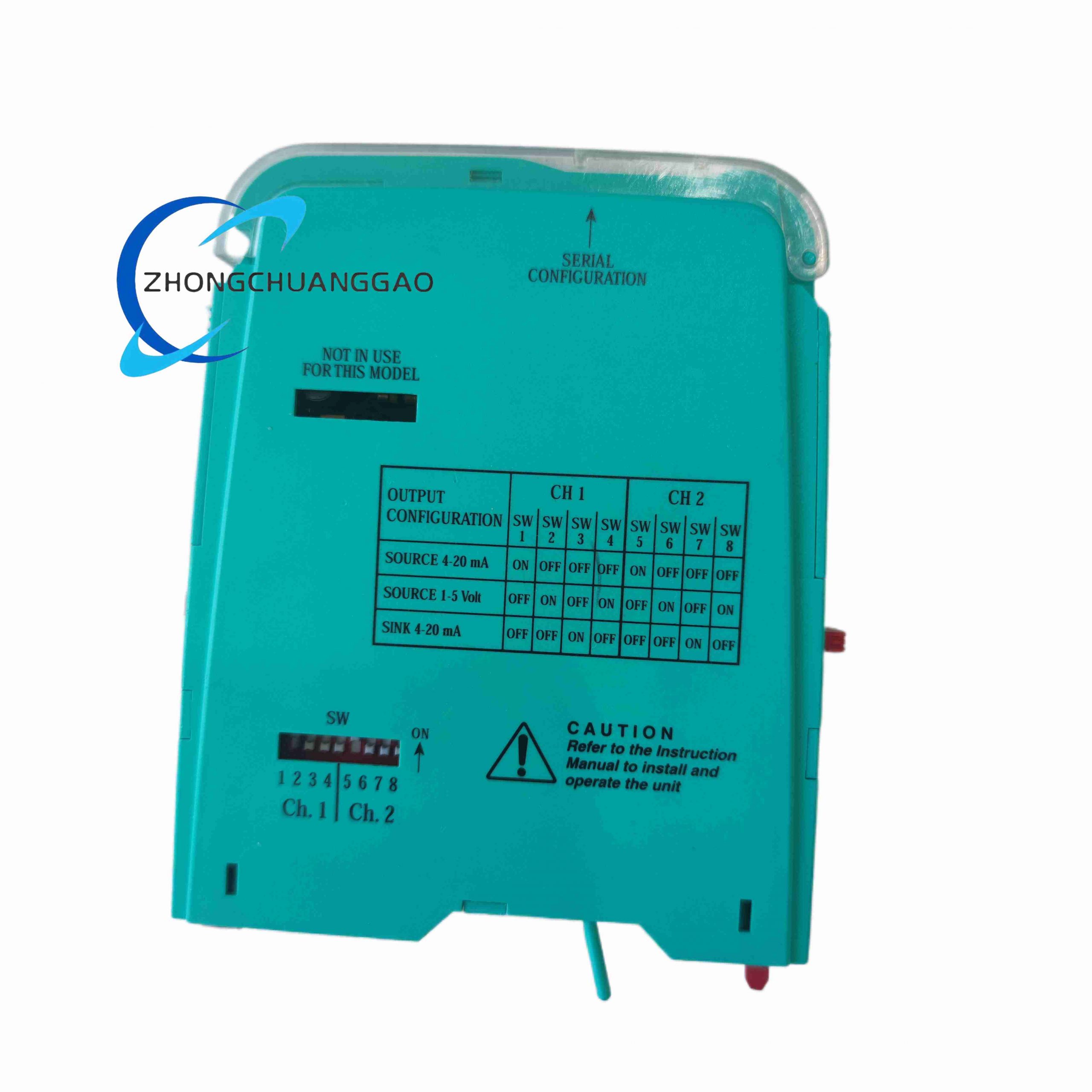

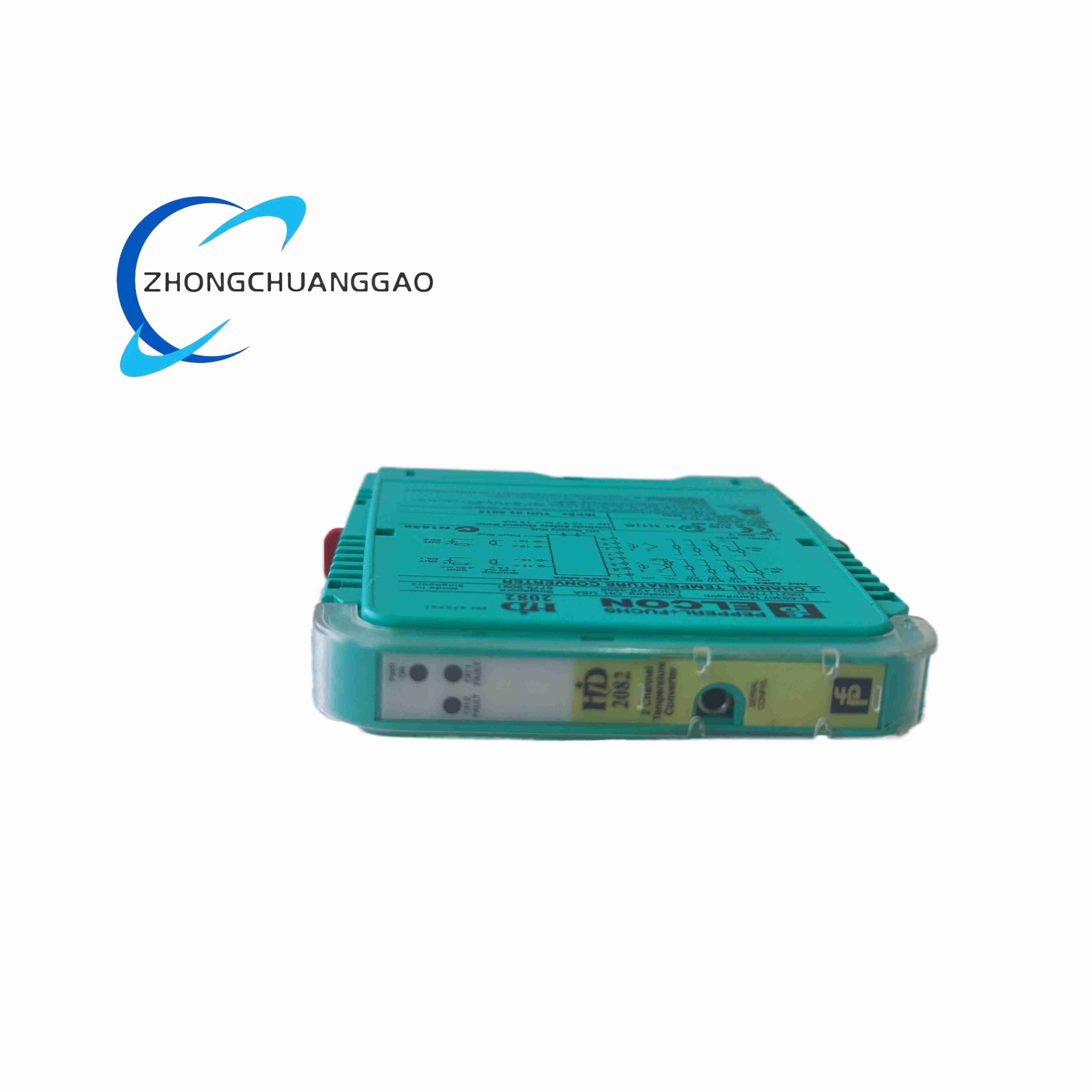

Pepperl+Fuchs HID2082

  • Product Name: SMART Transmitter Power Supply (Series HiD)
  • Product Introduction: Part of the Pepperl+Fuchs HiD series of isolated barriers for analog signal transmission. Typically configured as a single or multi-channel barrier for 4-20 mA SMART/HART transmitters with line fault detection.
Category:
Description
  • Technical Specifications​ (Typical for HID208x series):
    • Supply: 24 V DC via bus or termination board
    • Signal: 4 … 20 mA passive/active output
    • Safety: SIL 2 capable, intrinsic safety Ex ia/ib
  • Functional Features:
    • HART signal transparency.
    • Diagnostic capability via LFD.
    • High galvanic isolation between input, output, and power supply.
  • Application Scenarios: Used in chemical, oil & gas, and pharmaceutical industries for safe separation of field signals in hazardous areas.
  • Structural Features:
    • Modular housing for Termination Board carrier systems.
    • Front-side labeling space and status LEDs.
  • Notes: Exact parameters depend on specific variant suffix; generally shares the robust isolation and SIL capabilities of the HID2030SK platform.
