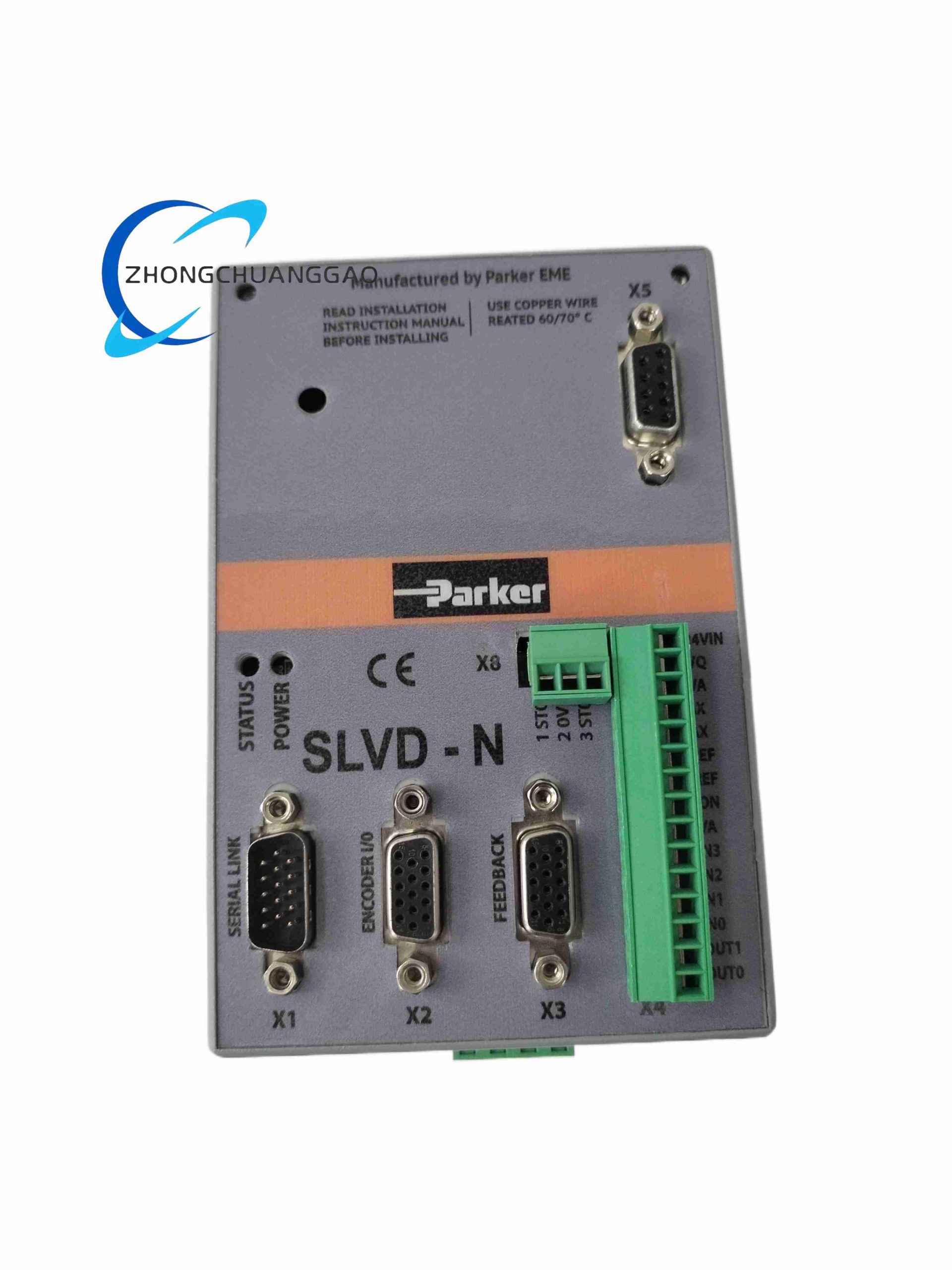

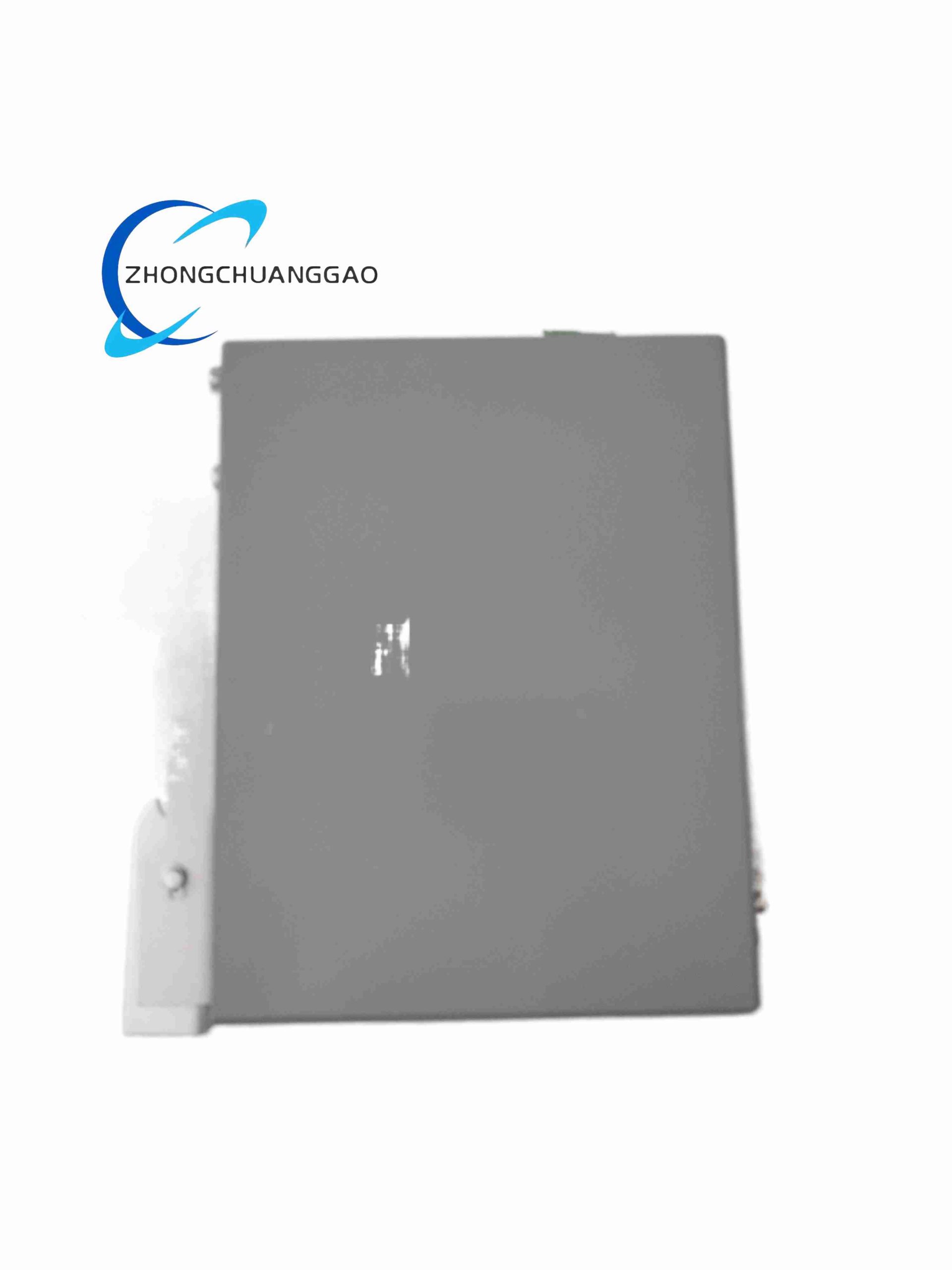

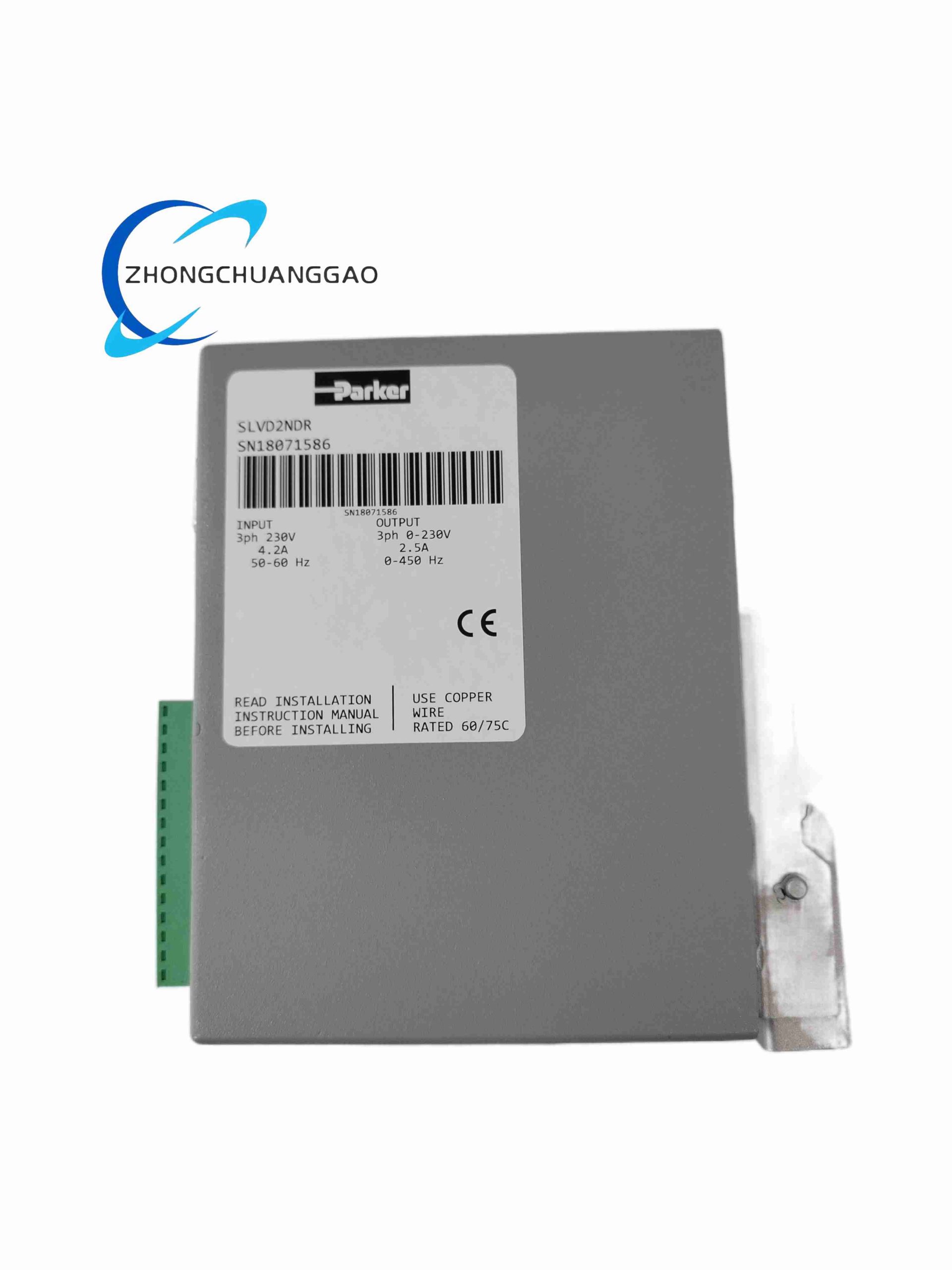

Parker SLVD2N

Product Name:​ Parker Hannifin SLVD-N Series Compact Servo Drive, Model SLVD2N (SLVD2NDR variant)
Product Brief:
The SLVD2N is a compact single-/three-phase servo amplifier from Parker’s SLVD-N range, designed for cost-effective motion control with optional fieldbus communications. “DR” suffix typically denotes a specific firmware/connector variant.
Category:
Description
Technical Specifications:
  • Model:​ SLVD2N — Rated Output Current 2.5 A RMS, Peak 5.0 A (2 s)
  • Input Power:​ 1×/3× 200–230 VAC ±10 %, 50/60 Hz
  • Control Supply:​ 24 VDC (-0/+10 %)
  • Power Rating (approx.):​ 1.6 kVA
  • Overload Capability:​ 200 % for 2 s
  • Feedback Supported:​ Resolver, Hiperface, EnDat, Hall sensors, incremental encoder
  • Standard Comm:​ RS-422/485, CANopen (DS301/DS402)
  • Optional Fieldbus:​ EtherCAT, PROFINET, DeviceNet, Profibus (via gateway/module)
  • Control Modes:​ Torque, Velocity, Position, Electronic Gear, Electronic Cam, Virtual Master
  • Built-in PLC:​ Optional PicoPLC / IEC 61131-3programmable logic (selected models)
  • Digital I/O:​ 4 × inputs, 2 × outputs (configurable)
  • Analog I/O:​ 1 × analog in, 1 × analog out
  • Aux Encoder:​ 1 × input, 1 × output (follower)
  • Brake Control:​ Integrated brake output (24 VDC)
  • Safety:​ Optional STO (Safe Torque Off)
  • Internal Brake Resistor & EMC Filter:​ Included (3-phase input models)
  • Operating Temp:​ 0 °C to +45 °C (derate above)
  • Humidity:​ <85 % RH non-condensing
  • Altitude:​ ≤1000 m (derate 1.5 %/100 m to 2000 m)
  • Protection:​ IP20 (cabinet mount)
  • Certifications:​ CE, UL, cUL
Features:
Commissioning via Parker MotionWiz software with oscilloscope and autotune. Supports daisy-chain RS-485 for up to 32 drives.
Installation & Notes:
Provide adequate panel ventilation. Motor cable shields must be clamped to PE at drive end. If STO is used, wire per EN ISO 13849-1.
Applications:​ Packaging machinery, pick-and-place units, labeling machines, small CNC retrofit, conveyor indexing.
