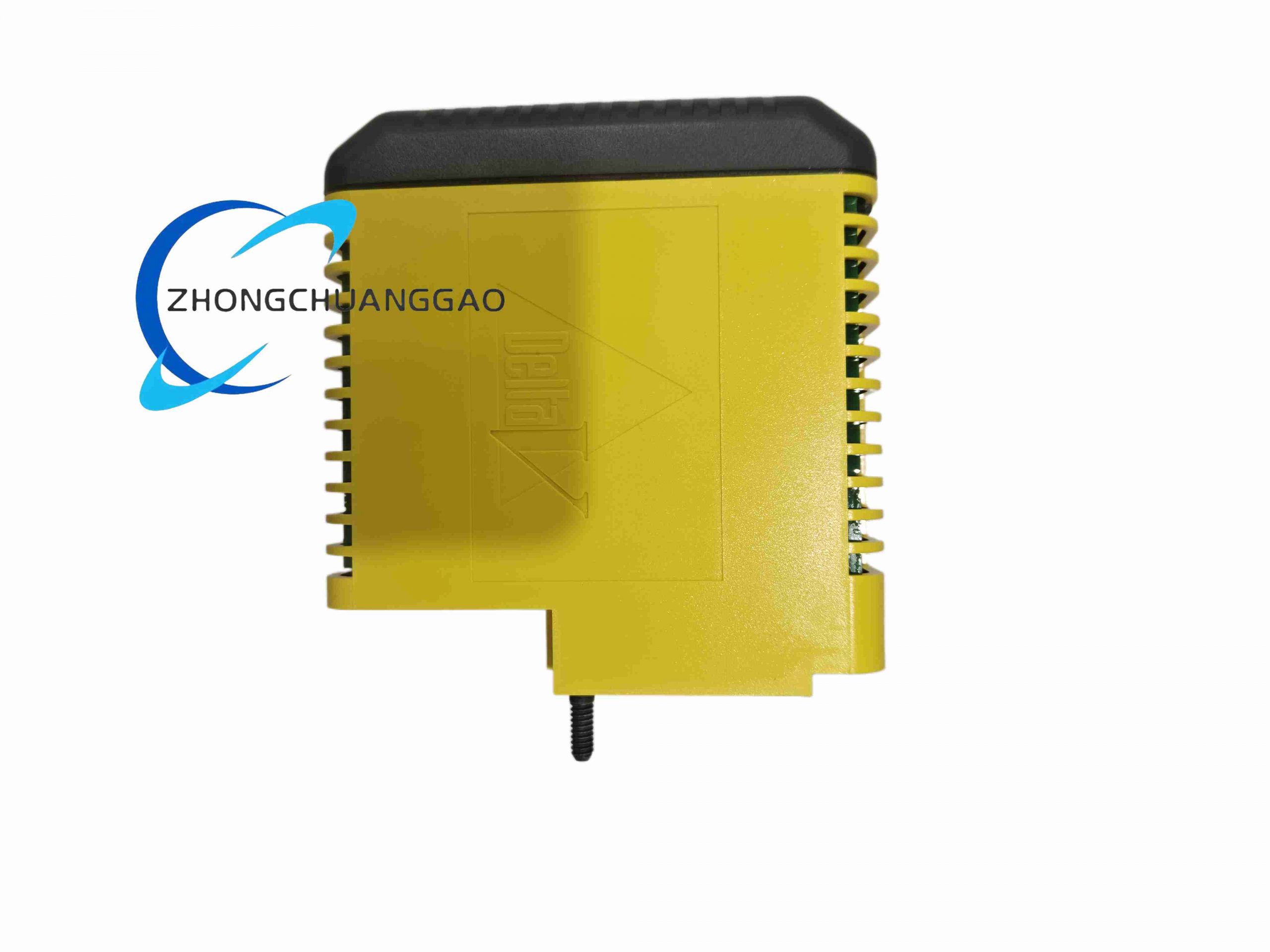

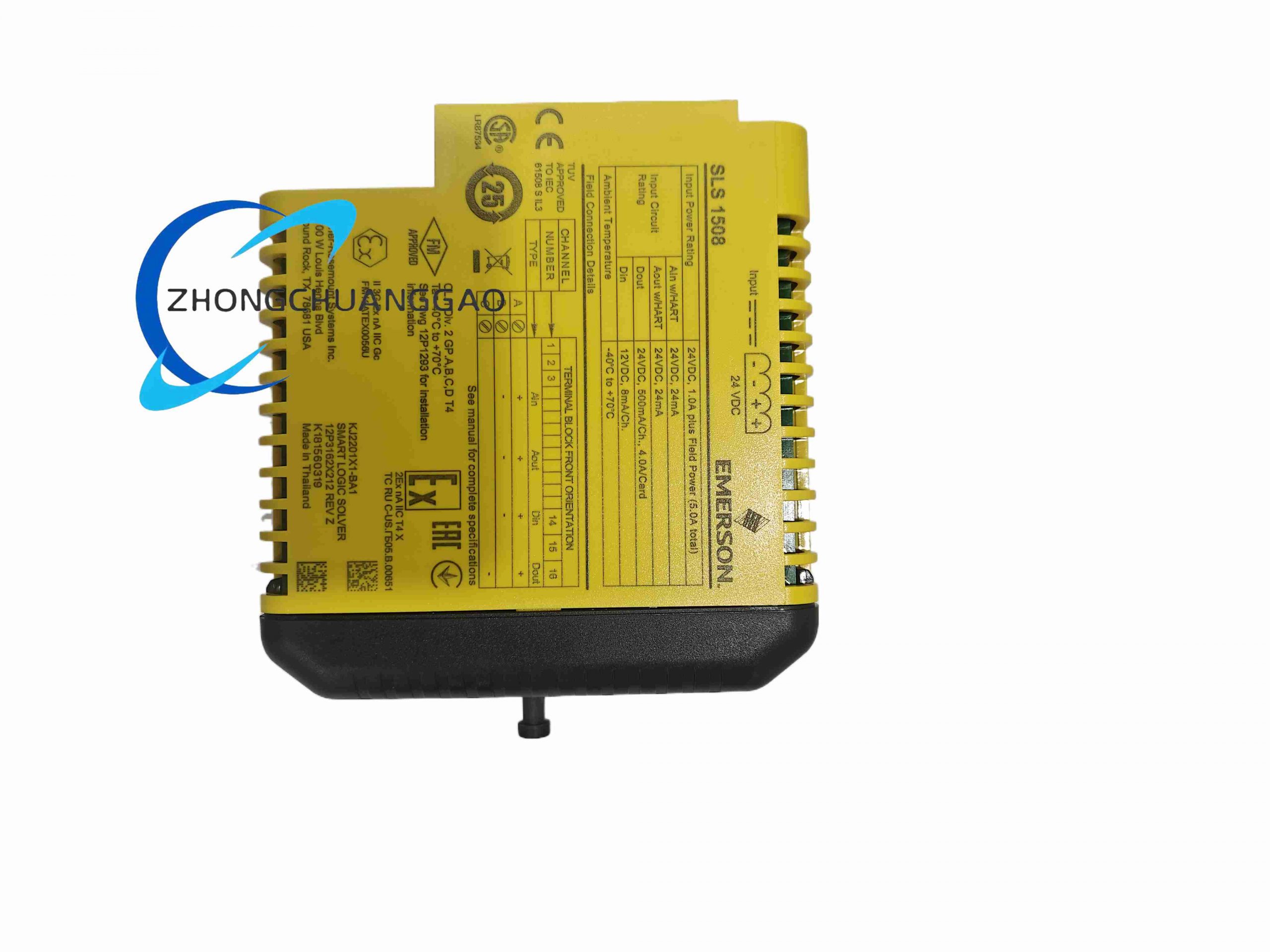

Emerson SLS1508 KJ2201X1-BA1 - Image 1
Emerson SLS1508 KJ2201X1-BA1 - Image 2
Click to enlarge
Emerson SLS1508 KJ2201X1-BA1
Emerson SLS1508 KJ2201X1-BA1 - Image 2
Rolls-Royce SLIO-02
Rolls-Royce SLIO-02
Back to products
Parker SLVD2N
Parker SLVD2N

Emerson SLS1508 KJ2201X1-BA1

Product Name:​ Emerson DeltaV SIS Logic Solver SLS 1508, Part Number KJ2201X1-BA1 (12P3162X112)
Product Brief:
A Safety Instrumented System (SIS) logic solver certified for process safety applications, forming part of the Emerson DeltaV SIS architecture. Executes safety logic independently from the basic process control system.
Category:
Description
Technical Specifications:
  • Logic Solver Type:​ DeltaV SIS SLS 1508
  • I/O Capacity:​ Supports up to 16 I/O channels (DI, DO, AI with HART, HART discrete output — mix configurable via terminal blocks)
  • Power Supply:​ 24 VDC ±20 %, typ. 1.0 A + field power (total ≤5 A)
  • Field Power:​ 4 A max (depending on channel types)
  • Isolation:​ Optical isolation 1500 V DC (channel-to-system); no ch-ch isolation
  • Communication:​ SISnet peer bus (local & remote redundant rings)
  • Redundancy:​ 1oo2 hot-standby redundant pair occupies 2 adjacent odd/even slots; bumpless switchover
  • Operating Temperature:​ -40 °C to +70 °C
  • Storage Temperature:​ -40 °C to +85 °C
  • Humidity:​ 5 %–95 % non-condensing
  • Contaminants Class:​ ISA-S71.04 Class G3 (conformal coated)
  • Hazardous Area Approval:​ FM Cl. I Div. 2 Grps A–D T4; ATEX 3G Ex nA IIC T4; CSA 1010
  • Vibration:​ 0.5 g @ 16–150 Hz; 1 mm p-p @ 5–16 Hz
  • Shock:​ 10 g, 11 ms half-sine
  • Slot Requirement:​ Installed in odd-numbered slots (1,3,5,7) of 8-wide carrier
Working Principle:
Executes certified safety logic (FBD or ladder within SIS function blocks). Reads inputs directly from associated SIS I/O termination blocks, solves logic, drives outputs. Redundant solvers run in parallel — both solve; one communicates to workstation/network, the other is standby but fully active. On failure, outputs remain driven by healthy solver.
Installation & Notes:
Requires dedicated 24 VDC safety power supply, isolated from BPCS power. Install in redundant pairs for SIL 3 capability. Must be configured in DeltaV SIS workstation — not interchangeable with standard DeltaV controllers.
Applications:​ Emergency Shutdown (ESD) systems, Burner Management Systems (BMS), High Integrity Pressure Protection (HIPPS), fire & gas logic in oil/gas/refining/petrochemical plants.
