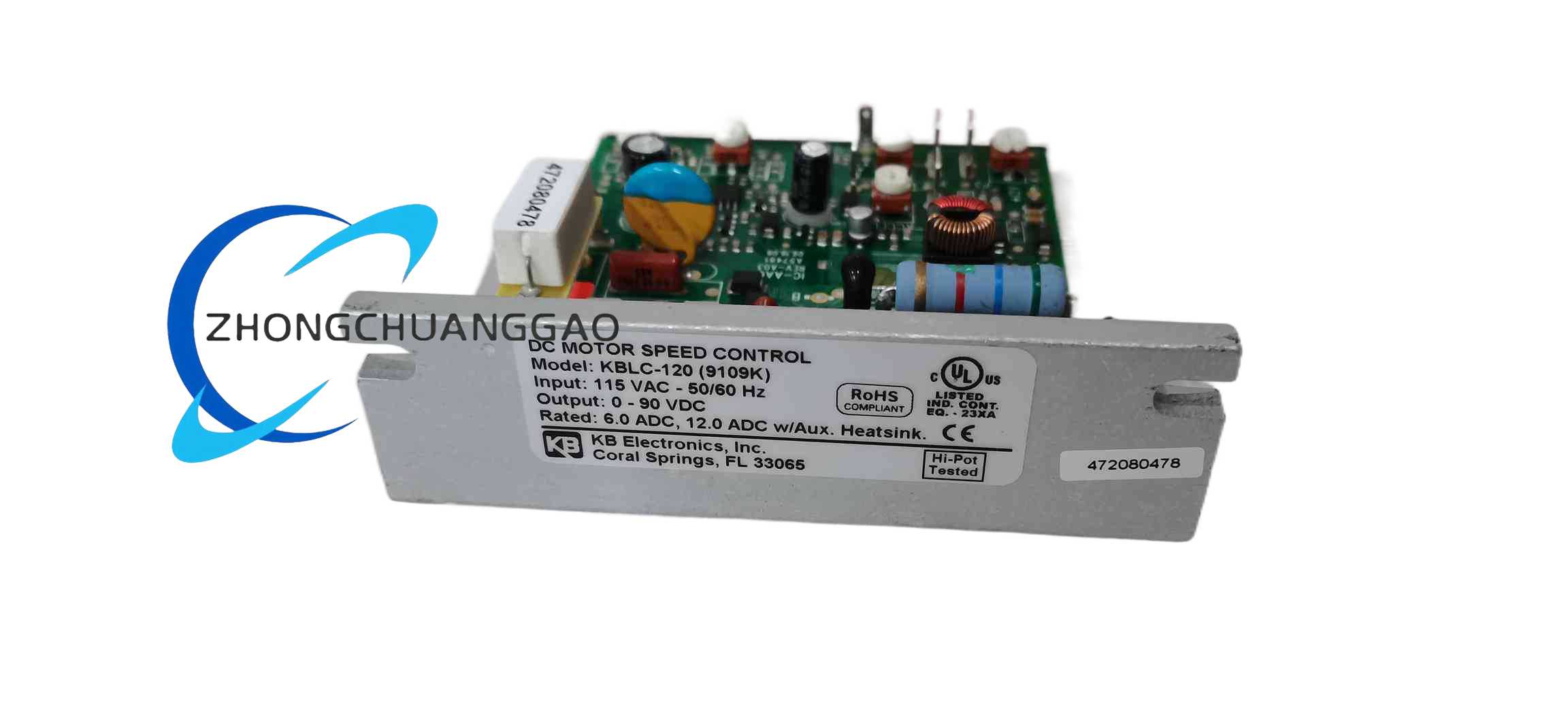

KB Electronics KBLC-120 - Image 1
KB Electronics KBLC-120 - Image 2
Click to enlarge
KB Electronics KBLC-120
KB Electronics KBLC-120 - Image 2

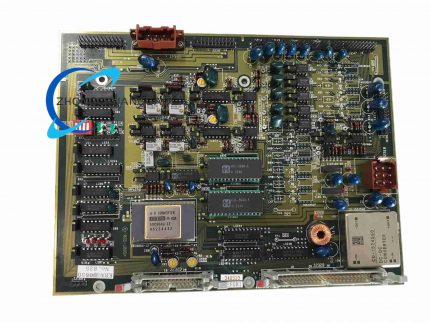

Nikon KBA-006504S007-320-ALC-SIG4
Nikon KBA-006504S007-320-ALC-SIG4
Back to products
KB Electronics KBRG-212D
KB Electronics KBRG-212D

KB Electronics KBLC-120

Product Name

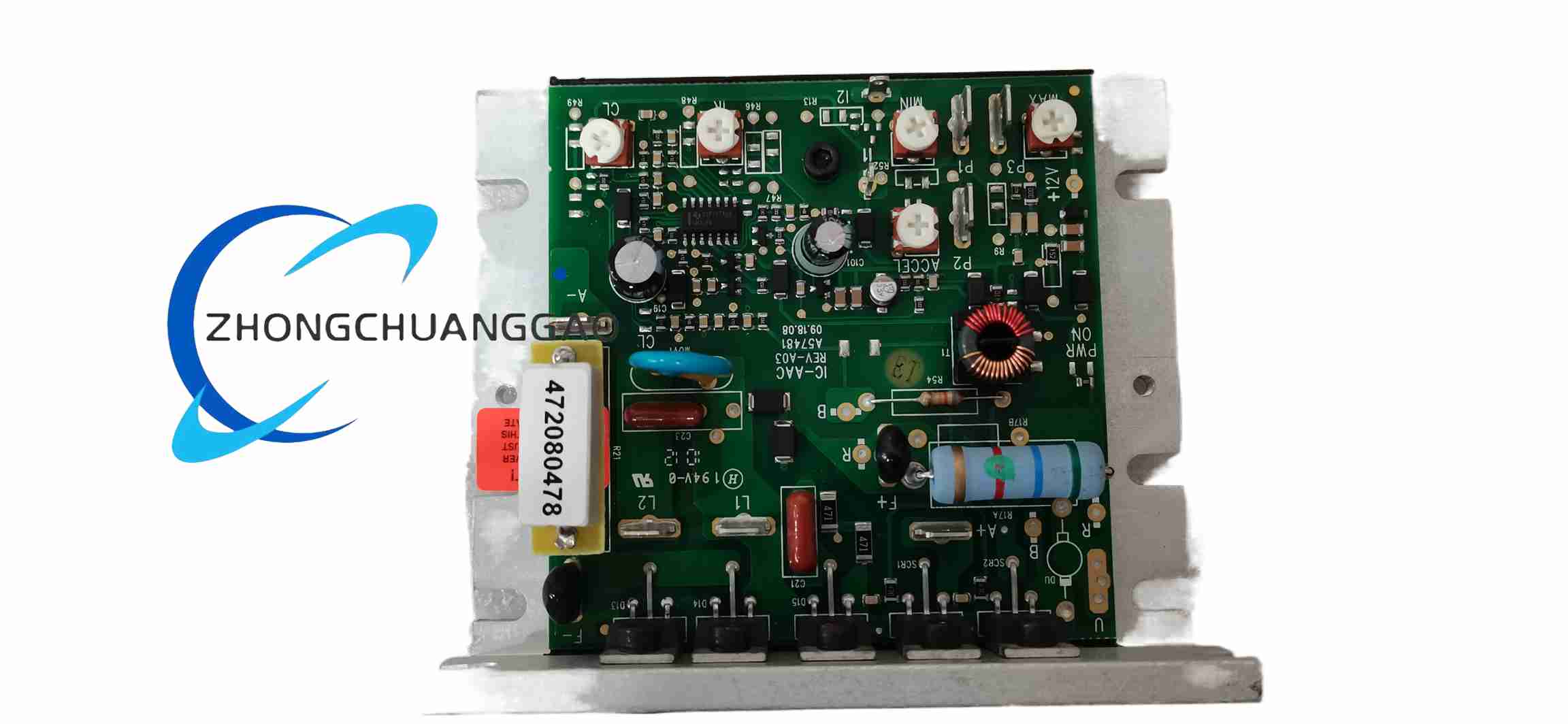

KBLC-120 full-wave DC motor speed control.
Product Overview
Compact open-board SCR speed controller for permanent-magnet and shunt-wound DC motors. It provides adjustable armature voltage, current limiting and acceleration control for variable-speed drive applications.
Category:
Description
Technical Specifications
  • Input voltage: 115 VAC 50/60 Hz or 230 VAC 50/60 Hz by jumper or model
  • Motor types: permanent-magnet and shunt-wound DC
  • Horsepower range: approximately 1/100 to 1 HP at 115 VAC; 1/50 to 2 HP at 230 VAC with correct power resistor and heatsink
  • Output: full-wave DC armature control
  • Armature voltage: 0 to 90 VDC at 115 VAC input; 0 to 180 VDC at 230 VAC input
  • Speed range: 50:1
  • Load regulation: approximately 1.4 to 2 percent of base speed across full load
  • Line regulation: 0.5 percent for ±15 percent AC variation
  • Acceleration: 0.5 to 4 seconds adjustable
  • Minimum/maximum speed: adjustable by trimpot
  • Ambient temperature: maximum 45 degrees Celsius at full rating
  • Enclosure: open chassis
Functional Features
Plug-in horsepower resistor, MOV transient protection, minimum and maximum speed adjustment, acceleration adjustment, IR compensation, current-limit adjustment, voltage-following input, Auto Inhibit and external inhibit.
Application Scenarios
Conveyors, packaging machines, pumps, feeders, printing equipment, exercise equipment, screeners, welding positioners and small machine-tool feeds.
Performance Parameters
Linear speed control relative to potentiometer rotation, adjustable current limit for stall protection, IR compensation for improved low-speed stiffness, smooth acceleration from zero to set speed.
Material Composition
Flame-retardant PCB, silicon-controlled rectifiers, aluminum or steel heatsink where fitted, plastic insulating enclosure, tinned quick-connect terminals or optional barrier terminals.
Structural Characteristics
Open control board with power semiconductors, trimpot section, armature/field/power/control terminal section, optional auxiliary heatsink, signal isolator and RFI filter provisions.
Working Principle
AC input is rectified and regulated by phase-controlled SCRs. The control circuit compares speed command, armature current feedback and IR-compensation voltage to adjust SCR firing angle. Output DC armature voltage increases or decreases according to the acceleration setting and current limit.
Installation Requirements
Mount in a ventilated enclosure with insulation clearances. Fuse the AC line and DC armature per KB recommendations. Install the correct plug-in horsepower resistor. Connect the motor field before armature on shunt motors. Provide grounding and surge protection.
Usage Precautions
Set current limit before initial run. Never defeat Auto Inhibit or external inhibit. Operate within the 45-degree-Celsius ambient rating or apply heatsink derating. Keep flammable materials away from open-board components.
