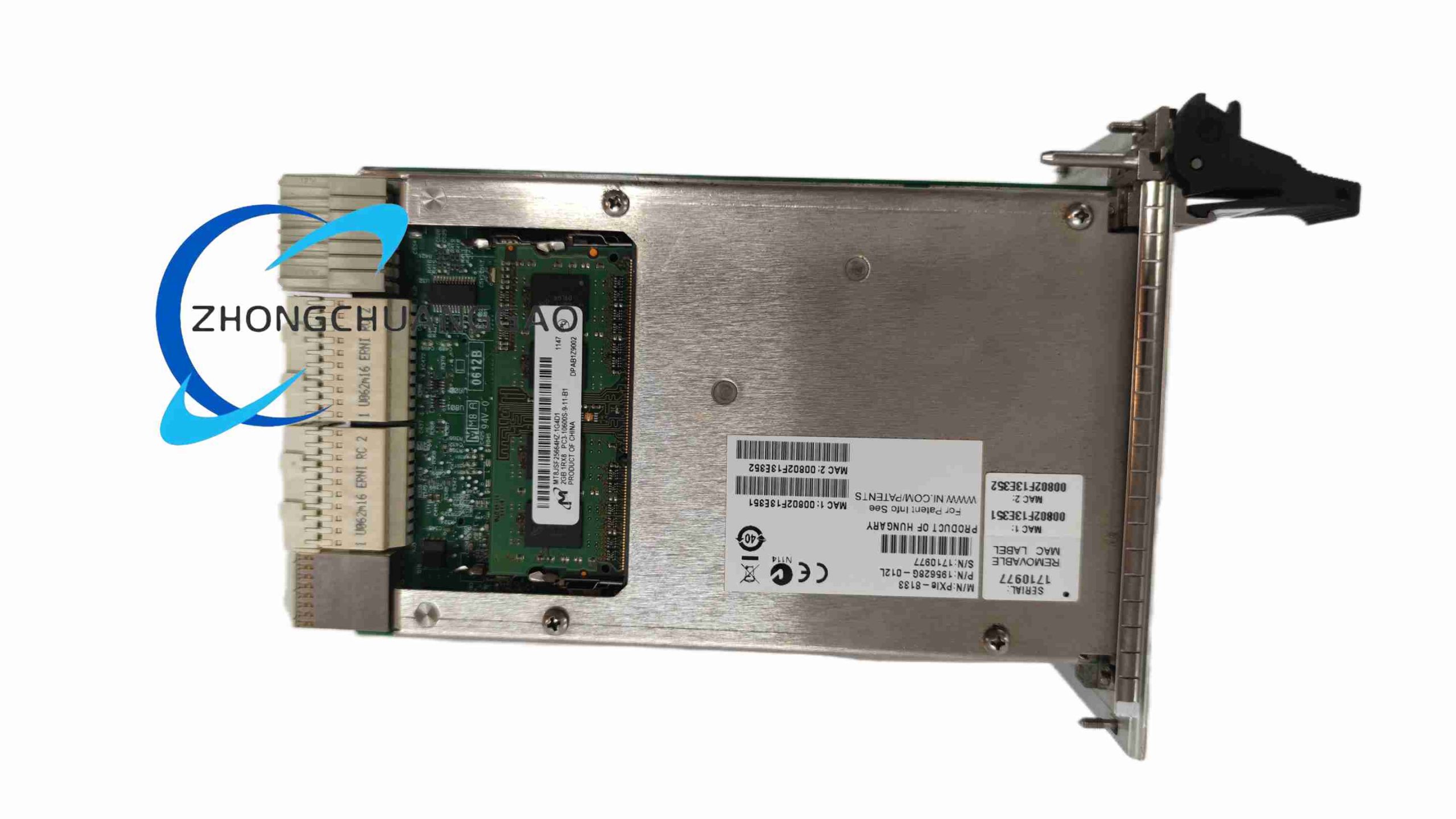

NI PXIe-8133

Product Name:​ PXIe-8133 Quad-Core Embedded Controller
Introduction:​ High-performance 3U PXI Express embedded controller based on Intel Core i7-820QM.
Technical Specifications:
  • CPU: Intel Core i7-820QM, 1.73 GHz base, 3.06 GHz Turbo (quad-core)
Category:
Description
  • Cache: 512 KB L2 per core
  • RAM: 2 GB DDR3-1333 std, up to 8 GB
  • Storage: 120 GB+ SATA HDD or SSD (optional extended-temp SSD)
  • Ethernet: 2× GbE
  • USB: 4× USB 2.0
  • Other I/O: RS-232, GPIB, parallel port, ExpressCard/34
  • PXIe links: four x4 Gen2 PCIe to backplane
  • OS: Windows 7 Pro / XP Embedded / LabVIEW RT
    Structure:​ 3U single-slot controller with rear backplane connector and front I/O panel.
    Working Principle:​ Acts as PCIe root complex; enumerates PXIe bus, distributes 100 MHz ref, bridges to GigE/USB.
    Applications:​ Standalone ATE, vehicle ECU test, aerospace validation.
    Notes:​ Extended-temp model supports 0–55 °C (or wider with SSD); ensure chassis supplies enough 12 V for CPU load; not pin-compatible with older PXI-only backplanes for full bandwidth.
